How to Connect Ptz Camera to Dahua Dvr

Connecting a PTZ camera to a Dahua DVR is simpler than it sounds with the right guidance. This guide walks you through every step—from wiring to software setup—so you can get your surveillance system up and running quickly and reliably.

Key Takeaways

• Use compatible PTZ cameras: Ensure your PTZ camera supports Dahua’s protocols like PELCO-D or PELCO-P for smooth communication.
• Proper wiring is essential: Connect video (coaxial or IP), power, and control (RS-485) cables correctly to avoid signal loss or damage.
• Configure DVR settings: Access the DVR’s menu to set the correct camera type, protocol, and address for PTZ control.
• Test PTZ functions early: After setup, verify pan, tilt, zoom, and preset functions to confirm everything works.
• Use shielded cables for long runs: Prevent interference by using high-quality, shielded cables, especially over 300 feet.
• Update firmware when needed: Keep your Dahua DVR and PTZ camera firmware updated to avoid compatibility issues.
• Troubleshoot systematically: If PTZ doesn’t work, check power, cabling, settings, and protocol matches before assuming hardware failure.

Introduction: Why Connect a PTZ Camera to a Dahua DVR?

If you’re setting up a professional surveillance system, you’ve likely considered adding a PTZ (Pan-Tilt-Zoom) camera. These cameras offer dynamic monitoring—rotating horizontally (pan), vertically (tilt), and zooming in on details—making them ideal for large areas like parking lots, warehouses, or outdoor perimeters. When paired with a Dahua DVR (Digital Video Recorder), you get centralized control, recording, and playback of high-quality video footage.

But how do you actually connect a PTZ camera to a Dahua DVR? It’s not just about plugging in a cable. You need to ensure compatibility, proper wiring, and correct configuration. This guide will walk you through the entire process—step by step—so you can confidently integrate your PTZ camera with your Dahua DVR system. Whether you’re a DIY enthusiast or a security professional, this guide is designed to be clear, practical, and easy to follow.

By the end of this article, you’ll know how to:

• Choose the right PTZ camera for your Dahua DVR
• Wire the camera correctly (video, power, and control)
• Configure the DVR settings for PTZ control
• Troubleshoot common issues
• Test and optimize your setup

Let’s get started!

Step 1: Check Compatibility Between PTZ Camera and Dahua DVR

Before you buy or install anything, make sure your PTZ camera is compatible with your Dahua DVR. Not all PTZ cameras work seamlessly with Dahua systems, so this step is crucial.

Understand Dahua-Compatible Protocols

Dahua DVRs typically support standard PTZ control protocols such as:

• PELCO-D – A widely used protocol for PTZ control
• PELCO-P – Another common protocol, similar to PELCO-D
• Dahua Private Protocol – Used in some Dahua-branded PTZ cameras

Check your PTZ camera’s manual or product specifications to see which protocol it uses. Most third-party PTZ cameras support PELCO-D or PELCO-P, which are compatible with Dahua DVRs. If your camera uses a proprietary protocol not supported by Dahua, you may need a protocol converter or a different camera.

Confirm DVR Model and PTZ Support

Not all Dahua DVRs support PTZ control. Check your DVR model and verify in the user manual whether it has PTZ functionality. Look for features like:

• RS-485 control port
• PTZ menu in the DVR interface
• Support for multiple PTZ protocols

For example, Dahua’s XVR series (hybrid DVRs) and older analog DVRs often support PTZ over coaxial cable (using HDCVI technology), while newer IP-based systems may use network-based PTZ control. Make sure your DVR model matches your camera type (analog or IP).

Choose the Right Camera Type

PTZ cameras come in two main types:

• Analog PTZ (HDCVI or HDTVI): These use coaxial cables and are compatible with Dahua DVRs that support HDCVI. They’re cost-effective and easy to install.
• IP PTZ Cameras: These connect via Ethernet (PoE) and require a Dahua NVR (Network Video Recorder) or a hybrid DVR with IP support. Some Dahua DVRs can handle both analog and IP cameras.

If you’re using an analog PTZ camera, ensure your DVR has enough channels and supports HDCVI 3.0 or higher for full PTZ functionality. For IP PTZ cameras, confirm your DVR or NVR supports ONVIF or Dahua’s own IP protocol.

Step 2: Gather the Right Tools and Cables

Once compatibility is confirmed, gather the necessary tools and materials. Having everything ready will make the installation faster and less frustrating.

Essential Tools and Materials

You’ll need:

• PTZ camera (compatible with Dahua DVR)
• Dahua DVR with PTZ support
• Coaxial cable (for analog PTZ) or Ethernet cable (for IP PTZ)
• Power supply (12V DC for most PTZ cameras)
• RS-485 control cable (two-wire, shielded twisted pair)
• BNC connectors (for coaxial setups)
• RJ45 connectors and crimping tool (for IP cameras)
• Screwdrivers, wire strippers, and electrical tape
• Ladder or mounting hardware (if installing outdoors)

Cable Recommendations

For analog PTZ cameras:

• Use RG59 coaxial cable with a separate power cable and RS-485 control wire. Some installers use a Siamese cable that combines video, power, and control in one sheath—this simplifies installation.
• Ensure the RS-485 cable is shielded twisted pair (STP) to reduce electrical interference.

For IP PTZ cameras:

• Use Cat5e or Cat6 Ethernet cable with PoE (Power over Ethernet) support. This allows both data and power to run over a single cable.
• If the camera is far from the DVR/NVR, consider using a PoE extender or fiber optic converter.

Tip: Always use high-quality cables, especially for long runs. Cheap cables can cause signal degradation, flickering video, or PTZ control failures.

Step 3: Install the PTZ Camera Physically

Now it’s time to mount and wire the camera. Proper installation ensures reliable performance and longevity.

Choose the Right Location

Select a spot that offers:

• Clear line of sight to the area you want to monitor
• Protection from weather (use outdoor-rated cameras and enclosures)
• Accessibility for maintenance
• Proximity to power and DVR location (or use PoE for IP cameras)

Avoid placing the camera near sources of electrical interference, such as motors, transformers, or high-voltage lines.

Mount the Camera Securely

Use the mounting bracket that came with your PTZ camera. Secure it to a wall, ceiling, or pole using appropriate screws and anchors. Make sure the mount is tight and won’t vibrate or shift in wind.

For outdoor installations, use a weatherproof junction box to protect cable connections from moisture.

Run the Cables

Carefully route the cables from the camera to the DVR location. Keep cables away from sharp edges and secure them with clips or conduit.

For analog PTZ:

• Run the coaxial cable for video
• Run a separate 12V DC power cable
• Run the RS-485 control cable (A and B wires)

For IP PTZ:

• Run a single Ethernet cable (Cat5e/Cat6) from the camera to a PoE switch or directly to the DVR/NVR

Tip: Label your cables at both ends to avoid confusion during setup.

Step 4: Connect the PTZ Camera to the Dahua DVR

Now that the camera is mounted and cables are run, it’s time to make the physical connections.

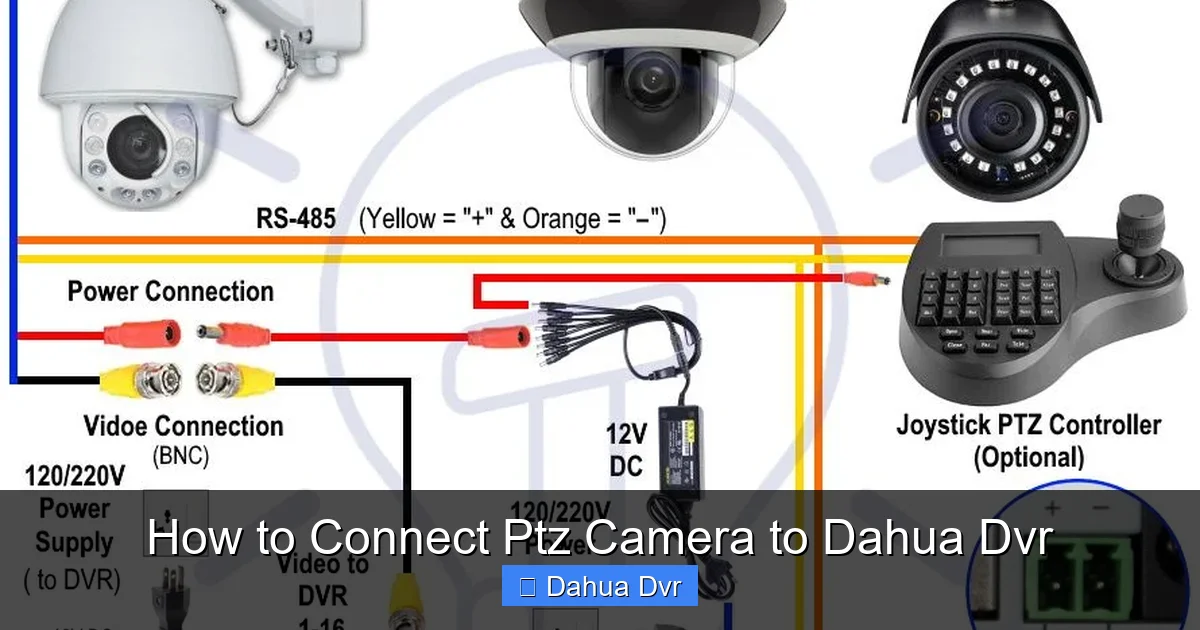

Analog PTZ Camera Wiring

If you’re using an analog PTZ camera, follow these steps:

1. Connect the Video Cable

Attach one end of the coaxial cable to the camera’s video output (usually labeled “VIDEO OUT” or “BNC”). Connect the other end to an available video input channel on the DVR using a BNC connector.

2. Connect the Power Supply

Plug the 12V DC power adapter into a wall outlet. Connect the positive (+) and negative (−) wires to the camera’s power input. Double-check polarity—reversing it can damage the camera.

3. Connect the RS-485 Control Cable

This is the most critical step for PTZ control. The RS-485 cable has two wires: A (Data+) and B (Data−).

• Connect the A wire from the camera to the A terminal on the DVR’s RS-485 port
• Connect the B wire from the camera to the B terminal on the DVR

Some DVRs have multiple RS-485 ports (e.g., RS-485 A and RS-485 B). Use the correct one as labeled. If you have multiple PTZ cameras, daisy-chain them using the same RS-485 bus—connect A to A and B to B across all cameras.

IP PTZ Camera Wiring

For IP PTZ cameras:

• Connect the Ethernet cable from the camera to a PoE switch or directly to the DVR/NVR’s PoE port
• The DVR will provide power and data over the same cable
• No separate RS-485 cable is needed—PTZ control happens over the network

Tip: If your DVR doesn’t have built-in PoE, use an external PoE injector between the DVR and camera.

Step 5: Configure the Dahua DVR for PTZ Control

Physical connections are done—now it’s time to configure the DVR software to recognize and control the PTZ camera.

Access the DVR Menu

Connect a monitor and mouse to your Dahua DVR. Power it on and log in using your admin credentials (default is often admin/admin or admin/123456—change this for security).

Set the Camera Type

Go to Main Menu > Camera > Camera Information. Select the channel where your PTZ camera is connected. Set the camera type to “PTZ” or “HDCVI PTZ” (for analog) or “IP Camera” (for network models).

Configure PTZ Settings

Navigate to Main Menu > PTZ > Basic Settings. Here, you’ll set up the protocol and address:

• Protocol: Select the correct protocol (e.g., PELCO-D, PELCO-P, or Dahua)
• Address: Set a unique address for the camera (usually 1–255). If you have only one PTZ camera, use address 1
• Baud Rate: Match the camera’s baud rate (common values: 2400, 4800, 9600, 19200). Check the camera manual
• Data Bit, Stop Bit, Parity: Usually set to 8, 1, None—unless specified otherwise

Example: If your PTZ camera uses PELCO-D at 9600 baud, set the DVR to match exactly.

Enable PTZ Control

Go to Main Menu > PTZ > PTZ Control and make sure PTZ control is enabled for the selected channel. You should now be able to control the camera using the DVR’s on-screen PTZ controls (arrow keys, zoom buttons, etc.).

Step 6: Test PTZ Functions

After configuration, test all PTZ functions to ensure everything works.

Basic PTZ Controls

Use the DVR interface to:

• Pan left and right
• Tilt up and down
• Zoom in and out
• Focus (auto or manual)

If the camera moves as expected, great! If not, proceed to troubleshooting.

Set Presets and Tours

Once basic control works, set up presets (saved positions) and tours (automatic movement between presets):

• Move the camera to a desired position
• Go to PTZ > Preset and save the position (e.g., “Entrance,” “Parking Lot”)
• Create a tour by linking multiple presets with dwell times

This allows automated surveillance without manual intervention.

Step 7: Troubleshooting Common Issues

Even with careful setup, problems can occur. Here’s how to fix the most common ones.

PTZ Camera Not Responding

Possible Causes:

• Incorrect protocol or address
• Faulty RS-485 wiring
• Power issues

Solutions:

• Double-check protocol, address, and baud rate in DVR settings
• Verify RS-485 connections: A to A, B to B. Use a multimeter to check continuity
• Ensure the camera is receiving power (check LED indicators)
• Try a different RS-485 port on the DVR

Video Signal Lost or Flickering

Possible Causes:

• Damaged or low-quality coaxial cable
• Improper BNC connections
• Power voltage drop

Solutions:

• Replace the coaxial cable with a higher-quality one
• Re-crimp BNC connectors securely
• Use a regulated 12V power supply with sufficient amperage
• For long runs, use a video amplifier or fiber converter

PTZ Moves in Wrong Direction

This usually happens when the RS-485 wires are swapped.

• Swap the A and B wires at either the camera or DVR end
• Test again—movement should now be correct

Camera Not Powering On

• Check power adapter output with a multimeter (should be ~12V)
• Ensure polarity is correct (+ to +, − to −)
• Test with a different power supply if possible

IP PTZ Not Detected

• Check IP address conflict—assign a static IP or use DHCP
• Verify network settings (subnet mask, gateway)
• Ensure the DVR and camera are on the same network
• Update firmware on both devices

Tips for a Reliable PTZ Setup

To ensure long-term performance, follow these best practices:

• Use surge protectors: Install surge protection on power and data lines, especially outdoors
• Ground the RS-485 cable: Connect the shield to ground at one end to reduce noise
• Label everything: Clearly mark cables, channels, and presets
• Regular maintenance: Clean the camera lens and check connections periodically
• Update firmware: Check Dahua’s website for DVR and camera firmware updates

Conclusion: Enjoy Full PTZ Control with Your Dahua DVR

Connecting a PTZ camera to a Dahua DVR might seem complex at first, but by following this guide, you’ve learned how to do it safely and effectively. From checking compatibility and wiring correctly to configuring settings and troubleshooting issues, every step is designed to help you build a reliable surveillance system.

With your PTZ camera now integrated, you can monitor large areas with precision, automate camera movements, and respond quickly to security events. Whether you’re protecting a home, business, or industrial site, this setup gives you the flexibility and control you need.

Remember: take your time, double-check connections, and test thoroughly. A well-installed PTZ system not only enhances security but also saves time and effort in the long run. If you run into issues, refer back to the troubleshooting section or consult Dahua’s official support.

Now go ahead—put your PTZ camera to work and enjoy the peace of mind that comes with smart, proactive surveillance.
