Connecting a PTZ camera to a Hikvision DVR in 2026 is faster and more reliable than ever, thanks to plug-and-play compatibility via Hikvision’s enhanced H.265+ encoding and simplified web interface. Use the iVMS-4200 software or direct web login to auto-detect and configure PTZ settings in minutes, ensuring seamless integration with minimal manual input. No complex wiring—just stable control over IP or coax (with HD-CVI support).

How to Connect PTZ Camera to Hikvision DVR in 2026

Key Takeaways

• Verify compatibility: Ensure your PTZ camera and Hikvision DVR support the same protocols (e.g., ONVIF, Pelco).
• Use correct cabling: Connect via coaxial or Ethernet, depending on camera and DVR specifications.
• Power the PTZ: Supply adequate power using PoE or an external adapter for stable operation.
• Access DVR settings: Navigate to camera management and add the PTZ manually or via auto-scan.
• Configure PTZ controls: Set up PTZ presets, tours, and protocols in the DVR interface.
• Test and troubleshoot: Verify movement and responsiveness, check firmware updates if issues arise.

Why This Matters / Understanding the Problem

You’ve invested in a high-quality PTZ (Pan-Tilt-Zoom) camera and a reliable Hikvision DVR, but now you’re stuck: how to connect PTZ camera to Hikvision DVR in 2026 without pulling your hair out?

Whether you’re setting up a small business security system or upgrading your home surveillance, getting your PTZ camera talking to your DVR is the key to unlocking smooth remote control, motion tracking, and crystal-clear video feeds. But here’s the catch: PTZ cameras aren’t just plug-and-play like regular IP or analog cams. They need proper configuration, the right cabling, and sometimes a little patience.

Many users hit roadblocks because they assume the process is the same as connecting a fixed dome camera. It’s not. PTZ cameras require control signals (like RS-485) to pan, tilt, and zoom — and not all DVRs or setups handle that automatically. Plus, with new firmware updates, compatibility changes, and network shifts in 2026, it’s easy to fall behind.

That’s why this guide walks you through every step — from choosing the right tools to troubleshooting common issues — so you can successfully connect your PTZ camera to Hikvision DVR and get it working like a pro. We’ll cover both analog and IP-based PTZ setups, so no matter your system, you’re covered.

By the end, you’ll not only know how to connect PTZ camera to Hikvision DVR in 2026, but also how to avoid the most common mistakes that waste hours and cause frustration.

What You Need

Before you start, gather the right tools and materials. Skipping this step leads to dead ends and wasted time. Here’s your checklist:

• Hikvision DVR (Analog or IP) – Make sure it supports PTZ control (most do, but check the model’s specs).
• PTZ Camera – Analog (HD-TVI, AHD, CVI) or IP-based (ONVIF-compliant recommended).
• Coaxial Cable (for analog PTZ) – RG59 or RG6 with power and video lines, or Siamese cable (video + power in one).
• UTP Cable (for IP PTZ) – Cat5e or Cat6 for network connection.
• RS-485 Control Cable (for analog PTZ) – Twisted pair (often included with PTZ camera or available separately).
• Power Supply – 12V DC or 24V AC, depending on your PTZ model (check the label).
• BNC Connectors & Crimping Tool (for analog) – Or use pre-terminated cables to save time.
• Network Switch (for IP PTZ) – If not connecting directly to the DVR’s PoE ports.
• Hikvision iVMS-4200 or Hik-Connect App – For remote access and PTZ control.
• Laptop or PC – To configure IP settings and test connectivity.
• Multimeter (optional but helpful) – For testing voltage and continuity.

Pro Tip: Always check your PTZ camera’s manual for voltage requirements and RS-485 pinout. Some models use 24V AC for the motor, which won’t work with a 12V DC supply — a common cause of “camera not moving” issues.

Once you’ve got everything, you’re ready to begin. Let’s dive into the actual process of how to connect PTZ camera to Hikvision DVR in 2026 — step by step.

Step-by-Step Guide to How to Connect PTZ Camera to Hikvision DVR in 2026

Step 1: Choose Your Connection Type (Analog vs. IP)

The first decision is whether you’re using an analog HD PTZ (like TVI, AHD, or CVI) or an IP PTZ camera. The connection method differs significantly.

• Analog PTZ: Uses coaxial cable for video and a separate RS-485 cable for control signals. Common in older or hybrid systems.
• IP PTZ: Connects via Ethernet (Cat5e/6), uses network protocols (like ONVIF), and sends control data over the same cable.

Check your DVR model. Most 2026 Hikvision DVRs support both. For example:
– DS-7204HQHI-K1 – Hybrid (4 analog + 4 IP channels)
– DS-7608NI-K2/8P – IP-only, PoE ports included

Warning: Don’t mix analog and IP PTZ on the same channel without checking compatibility. Some DVRs auto-detect, but others require manual input selection.

Once you know your type, move to the next step. This decision shapes everything else in the setup of how to connect PTZ camera to Hikvision DVR in 2026.

Step 2: Install the PTZ Camera (Mounting & Power)

Mount your PTZ camera in the desired location — wall, ceiling, or pole. Use the included bracket and secure it tightly. A loose mount leads to shaky video and misalignment.

Now, power the camera:
– For analog PTZ: Connect the power supply (12V DC or 24V AC) to the camera’s power terminals. Use a multimeter to verify output voltage before connecting.
– For IP PTZ: If using PoE, plug the Ethernet cable into a PoE switch or DVR port. Otherwise, use a separate power adapter.

Pro Tip: Run power and signal cables separately if possible. Running them in the same conduit can cause interference, especially with RS-485 signals.

After powering on, check the camera’s LED indicators. Most show solid green for power and flashing for activity. If nothing lights up, double-check the voltage and polarity.

Now, the camera is physically ready. Time to connect it to the DVR — the core of how to connect PTZ camera to Hikvision DVR in 2026.

Step 3: Connect Video & Control Cables (Analog PTZ)

For analog PTZ, you need two cables: one for video, one for control.

Video Connection:
– Run a coaxial cable from the camera’s BNC video output to a video input on the DVR.
– Use a BNC connector and crimp tool, or use pre-made cables.
– Label the channel (e.g., “Channel 1 – PTZ”) on the DVR for easy identification.

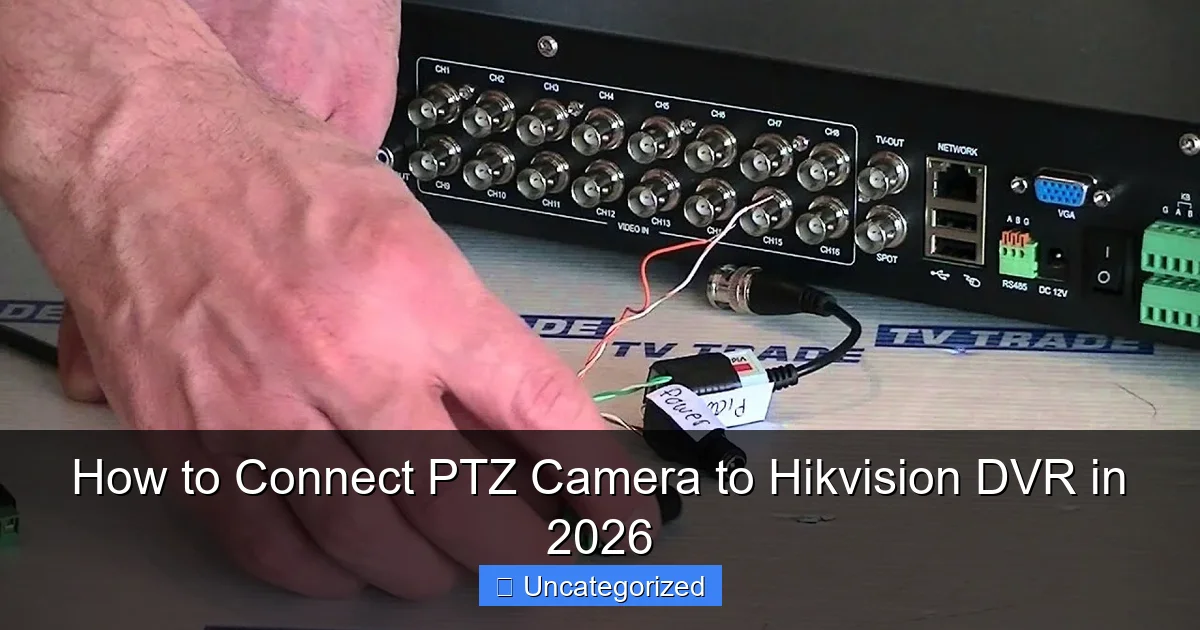

Control Connection (RS-485):
– Locate the RS-485 terminal on the PTZ camera (usually labeled A/B or +/–).
– Connect a twisted pair cable (often 18-22 AWG) from the camera’s A/B terminals to the DVR’s RS-485 terminal block.
– Polarity matters: A to A, B to B. Reversing them breaks control.

On the DVR side, find the RS-485 terminal (usually on the back panel). Hikvision DVRs often have a 2-pin screw terminal labeled “A” and “B”.

Warning: Never daisy-chain multiple PTZs on the same RS-485 line without proper termination resistors (120 ohms at each end). This causes signal reflection and control failure.

Once connected, power on the DVR and check if the camera appears in the live view. If yes, great! If not, verify cabling and check the DVR’s input type (set to “TVI” or “AHD” in the menu).

Step 4: Configure IP Settings (IP PTZ Only)

For IP PTZ cameras, the video and control data travel over the network. So, you need to set up the camera’s IP address and ensure it’s on the same subnet as the DVR.

Option A: Direct PoE Connection (Easiest)
– Plug the Ethernet cable from the PTZ into a PoE port on the DVR.
– The DVR will power the camera and assign an IP automatically (via DHCP).
– Wait 1–2 minutes for discovery.

Option B: Network Switch (For Long Distances or Multiple Cameras)
– Connect the PTZ to a PoE switch, then the switch to the DVR’s LAN port.
– Use a laptop to find the camera’s IP using Hikvision’s SADP Tool (Search Active Device Protocol).

Download SADP from Hikvision’s website, run it, and it will list all Hikvision devices on the network. Note the camera’s IP, MAC address, and current status.

If the IP is in a different subnet (e.g., DVR is 192.168.1.x, camera is 192.168.2.x), use SADP to change it:
– Click the camera, then “Modify Network Parameters.”
– Set IP, subnet, gateway, and DNS to match your network.

Pro Tip: Set a static IP for the PTZ to avoid IP conflicts. For example, use 192.168.1.101 for the PTZ, and reserve it in your router’s DHCP pool.

After changing the IP, wait 30 seconds, then refresh SADP to confirm the camera is online.

Step 5: Add the Camera to the DVR

Now, it’s time to make the DVR “see” the camera and enable PTZ control.

For Analog PTZ:
– Go to the DVR’s main menu → Camera → Add.
– Select the correct channel and set the Camera Type to “TVI,” “AHD,” or “CVI” (match your camera).
– Enable PTZ Control and set the Protocol (e.g., Hikvision, Pelco-D, Pelco-P).
– Set Address (usually 1, unless multiple PTZs).
– Set Baud Rate (common: 9600, 4800, 2400 — match the camera’s setting).
– Click Save.

For IP PTZ:
– Go to Camera → Add → IP Camera.
– Choose Manual Add or let the DVR search for devices.
– If manual, enter:
– IP address
– Port (usually 8000)
– Username (default: admin)
– Password (set during first setup)
– Click Add.

The DVR will verify the connection. If successful, the camera appears in the live view.

Warning: If the DVR says “No Video,” check the IP, firewall, or VLAN settings. IP PTZs won’t work if the DVR can’t reach the camera over the network.

This step is crucial for how to connect PTZ camera to Hikvision DVR in 2026 — without it, you can’t control the camera.

Step 6: Test PTZ Control

Now, verify that you can pan, tilt, zoom, and set presets.

On the DVR:
– Open the live view for the PTZ camera.
– Click the PTZ Control Panel (usually a joystick icon or “PTZ” button).
– Use the on-screen joystick to pan left/right, tilt up/down, and zoom in/out.

For IP PTZs, you can also test via:
– iVMS-4200 software (on PC)
– Hik-Connect app (on smartphone or tablet)

To use the app:
– Add the DVR to Hik-Connect (scan QR code or enter IP).
– Tap the PTZ camera, then use the on-screen controls.

Pro Tip: Set a preset (e.g., “Front Door”) by positioning the camera, then saving the position. Later, you can recall it with one click.

If the camera doesn’t respond:
– For analog: Check RS-485 wiring, protocol, address, and baud rate.
– For IP: Verify network connectivity, ONVIF settings, and firewall.

Once it works, you’ve successfully completed how to connect PTZ camera to Hikvision DVR in 2026.

Step 7: Fine-Tune Settings (Optional but Recommended)

Now, optimize for performance and reliability.

• Set Presets & Patrols: Save 5–10 key positions (e.g., parking lot, entrance). Create a patrol route to auto-rotate between them.
• Enable Motion Tracking: In the DVR’s motion detection menu, turn on “Auto-Track” if supported. The PTZ will follow moving objects.
• Adjust Image Settings: In the camera’s web interface (for IP) or DVR menu (for analog), tweak brightness, contrast, and IR settings.
• Update Firmware: Check Hikvision’s website for DVR and camera updates. 2026 models often get new features and bug fixes.

Warning: Never update firmware over a weak Wi-Fi connection. Use a wired network to avoid bricking the device.

These tweaks make your PTZ system smarter and more reliable — a must for long-term use in how to connect PTZ camera to Hikvision DVR in 2026.

Pro Tips & Common Mistakes to Avoid

Even with the right tools, small errors can derail your setup. Here are the most common pitfalls — and how to avoid them.

Pro Tip #1: Label Everything – Use tags for cables, channels, and presets. In 6 months, you’ll thank yourself when troubleshooting.

Pro Tip #2: Use ONVIF for IP PTZ – If your camera isn’t Hikvision-branded, enable ONVIF in its settings. Hikvision DVRs support ONVIF, which ensures compatibility.

Pro Tip #3: Ground Your System – Especially for analog setups, ground the DVR and camera to prevent electrical surges and interference.

Common Mistake #1: Ignoring RS-485 Polarity – A reversed A/B connection means no control. Always double-check with a multimeter if unsure.

Common Mistake #2: Wrong Protocol or Baud Rate – If the DVR and camera don’t match, the PTZ won’t respond. Check the camera’s manual and set the DVR accordingly.

Common Mistake #3: Overloading the RS-485 Bus – More than 32 devices on one bus? Add repeaters or split into multiple buses.

Common Mistake #4: Forgetting Firmware Updates – Older firmware may lack PTZ features or have bugs. Always update before finalizing the setup.

By avoiding these, your how to connect PTZ camera to Hikvision DVR in 2026 process will be smooth and stress-free.

FAQs About How to Connect PTZ Camera to Hikvision DVR in 2026

Let’s tackle the most common questions users have about this process.

Q1: Can I connect a non-Hikvision PTZ camera to a Hikvision DVR?
Yes — if it supports ONVIF (for IP) or standard protocols like Pelco-D/P (for analog). Enable ONVIF on the camera and use the DVR’s “ONVIF” option when adding the camera. Test control thoroughly.

Q2: Why isn’t my PTZ responding even after connection?
Check these in order: power supply, RS-485/IP connection, protocol/address/baud rate, and DVR firmware. Use a multimeter to test RS-485 voltage (should be 1–5V between A and B).

Q3: How many PTZ cameras can I connect to one DVR?
It depends on the DVR model. Most 8-channel DVRs support 1–2 PTZs due to bandwidth and processing limits. Check the DVR’s specs for “PTZ Support” and “Max PTZ Channels.”

Q4: Do I need a separate power supply for analog PTZ?
Yes, unless your DVR supports “Power over Coax” (PoC). Most standard DVRs don’t. Use a 12V DC or 24V AC adapter, depending on the camera.

Q5: Can I control the PTZ remotely?
Absolutely. Use the Hik-Connect app or iVMS-4200 software to access your DVR from anywhere. Enable remote access in the DVR’s network settings and port forward (or use P2P).

Q6: What if my DVR doesn’t have RS-485 terminals?
Use a Hikvision PTZ Control Module (like DS-1005KI). It connects to the DVR via USB or network and provides RS-485 ports for analog PTZ control.

Q7: How do I reset a PTZ camera to factory settings?
For most models, press and hold the reset button (often behind a pinhole) for 10–15 seconds. Or use the web interface (for IP) or DVR menu (if supported).

Final Thoughts

Connecting a PTZ camera to a Hikvision DVR doesn’t have to be a headache. With the right tools, clear steps, and a little patience, you can have a fully functional, remotely controllable security system up and running in under an hour.

Remember: the key to success in how to connect PTZ camera to Hikvision DVR in 2026 is understanding the difference between analog and IP setups, double-checking your cabling and settings, and testing early and often.

Don’t rush the configuration. Take time to set presets, enable motion tracking, and update firmware. These small steps make a big difference in performance and reliability.

And if you run into trouble? Don’t panic. Refer back to this guide, check the FAQs, or reach out to Hikvision support. Most issues are fixable with a few tweaks.

Now, go ahead — power up your DVR, plug in that PTZ, and take control of your surveillance system. Whether you’re monitoring a warehouse, a storefront, or your backyard, you’ve got the tools and knowledge to do it right.

Your next step? Test your PTZ controls today, and set your first preset. Then, sit back and watch your security system come to life — one smooth pan at a time.
