How to Connect to Dahua Dvr via Lan

This guide walks you through the complete process of connecting to your Dahua DVR via LAN, from physical setup to remote viewing. You’ll learn how to configure network settings, use Dahua software, and troubleshoot common issues—all in simple, clear steps.

Key Takeaways

• Proper physical connection is essential: Use an Ethernet cable to link your Dahua DVR to your router or switch for a stable LAN connection.
• Assign a static IP address: Configure a fixed IP for your DVR to avoid connectivity issues caused by dynamic IP changes.
• Use Dahua config tools: Software like ConfigTool or Smart PSS helps detect and manage your DVR on the network.
• Enable network services: Ensure HTTP, RTSP, and ONVIF are enabled in the DVR settings for remote access and third-party integration.
• Test connectivity with ping: Use the command prompt to verify that your computer can communicate with the DVR over the LAN.
• Secure your DVR: Change default passwords and enable HTTPS to protect your system from unauthorized access.
• Troubleshoot common issues: Problems like no video, IP conflicts, or login failures can often be resolved with basic network checks.

How to Connect to Dahua DVR via LAN: A Complete Step-by-Step Guide

So, you’ve got a Dahua DVR system installed, and now you want to access it over your local area network (LAN). Whether you’re a security professional, a small business owner, or a home user, connecting your Dahua DVR via LAN opens up a world of convenience. You’ll be able to view live feeds, playback recordings, and manage settings from any device on the same network—no need to be physically near the DVR.

In this guide, we’ll walk you through the entire process of connecting your Dahua DVR to your LAN. We’ll cover everything from physical setup to software configuration, network settings, remote access, and troubleshooting. By the end, you’ll have a fully functional, secure, and accessible surveillance system.

Let’s get started!

What You’ll Need

Before diving into the setup, make sure you have the following:

• A Dahua DVR (any model with Ethernet port)
• An Ethernet cable (Cat5e or Cat6 recommended)
• A router or network switch
• A computer or laptop connected to the same network
• Access to the DVR’s user interface (via monitor and mouse, or remotely)
• Dahua software (optional but helpful): ConfigTool, Smart PSS, or DMSS mobile app

Having these items ready will make the process smooth and efficient.

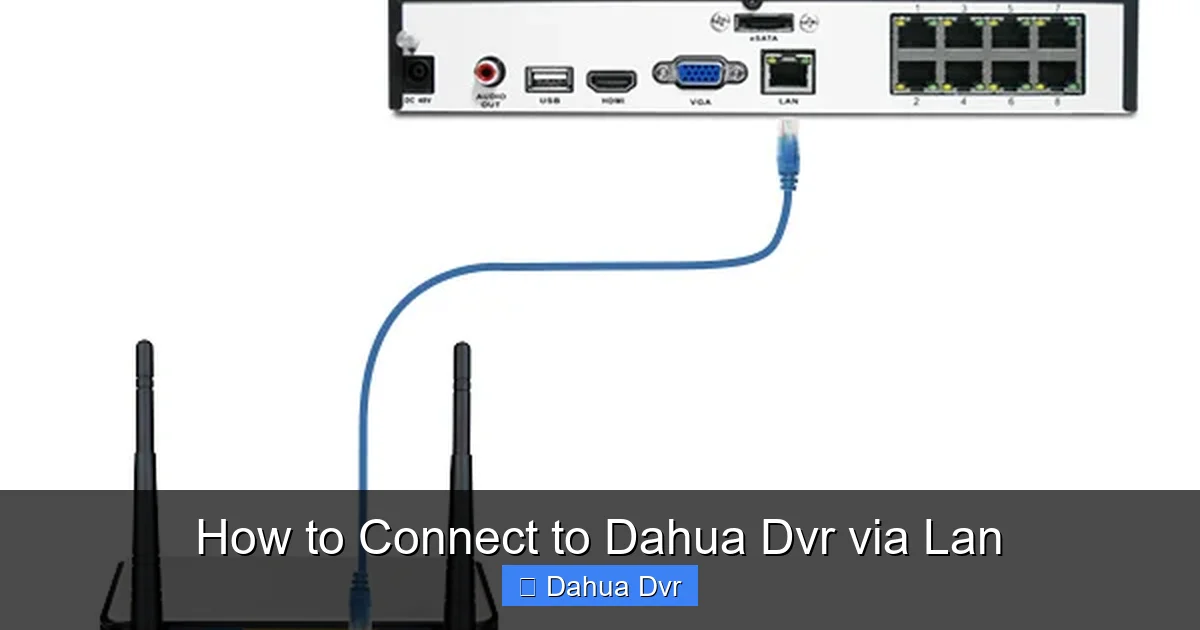

Step 1: Physically Connect the Dahua DVR to Your Network

The first step is establishing a physical connection between your Dahua DVR and your local network.

Locate the Ethernet Port

On the back panel of your Dahua DVR, you’ll find an RJ45 Ethernet port—usually labeled “LAN” or “NET.” This is where you’ll plug in your Ethernet cable.

Connect the Cable

Take one end of the Ethernet cable and plug it into the DVR’s LAN port. Plug the other end into an available port on your router or network switch. Make sure the connection is secure.

Tip: Use a high-quality cable and avoid running it near power lines to prevent interference.

Power On the DVR

If your DVR isn’t already powered on, plug it in and turn it on. Wait a minute or two for it to boot up completely. You should see lights on the Ethernet port indicating a connection (usually a green or amber LED).

Step 2: Access the DVR’s Network Settings

Now that the DVR is connected, you need to configure its network settings. You can do this directly on the DVR using a monitor and mouse, or remotely if you’ve previously set it up.

Connect a Monitor and Mouse

If you haven’t already, connect an HDMI or VGA monitor to the DVR and plug in a USB mouse. This gives you direct access to the DVR’s graphical user interface (GUI).

Log In to the DVR

On the main screen, click the “Menu” button (usually in the lower-right corner). Enter your username and password. The default is often:

• Username: admin
• Password: admin or 123456

Note: Always change the default password after initial setup for security.

Navigate to Network Settings

Once logged in, go to:

Main Menu > Network > TCP/IP

Here, you’ll see the current network configuration. By default, the DVR may be set to obtain an IP address automatically (DHCP).

Step 3: Assign a Static IP Address

Using a static (fixed) IP address is highly recommended. This ensures your DVR always has the same address on the network, making it easier to access and reducing the risk of connection drops.

Why Use a Static IP?

When a device uses DHCP, your router assigns it an IP address that can change over time. If the IP changes, you won’t be able to connect unless you rediscover it. A static IP avoids this problem.

Find Your Router’s IP Range

Open a command prompt on your computer (Windows: press Win + R, type cmd, press Enter). Type:

ipconfig

Look for the “Default Gateway” under your active network adapter. This is your router’s IP (e.g., 192.168.1.1). Your DVR’s IP should be in the same range (e.g., 192.168.1.x).

Set a Static IP on the DVR

Back in the DVR’s network settings:

• Set IP Address to something like 192.168.1.100 (avoid .1, which is usually the router)
• Set Subnet Mask to 255.255.255.0
• Set Default Gateway to your router’s IP (e.g., 192.168.1.1)
• Set Preferred DNS to your router’s IP or a public DNS like 8.8.8.8 (Google)

Example: If your router is 192.168.1.1, set the DVR to 192.168.1.100.

Save and Reboot

Click “Save” or “Apply.” The DVR may restart to apply the new settings. Wait for it to come back online.

Step 4: Verify the Connection

Now that the DVR has a static IP, let’s make sure your computer can reach it.

Ping the DVR

On your computer, open the command prompt again and type:

ping 192.168.1.100

(Replace with your DVR’s actual IP.)

If you see replies like “Reply from 192.168.1.100,” the connection is working. If you get “Request timed out,” there’s a problem.

Troubleshoot Ping Failures

• Double-check the IP address and cable connections
• Ensure both devices are on the same network
• Restart the DVR and router
• Try a different Ethernet cable or port

Step 5: Access the DVR via Web Browser

Once the network connection is confirmed, you can access the DVR’s interface through a web browser.

Open a Browser

Launch Chrome, Firefox, or Edge. In the address bar, type:

http://192.168.1.100

(Use your DVR’s IP.)

Log In

You’ll see a login page. Enter your DVR username and password (same as before).

Note: Some browsers may show a security warning. Click “Advanced” and proceed—this is normal for local devices.

Install ActiveX or Web Plugin (if prompted)

Older Dahua DVRs may require an ActiveX plugin for full functionality. Follow the on-screen instructions to install it. Modern systems often use HTML5, which works without plugins.

View Live Feed

Once logged in, you should see the live video feed from your cameras. You can switch channels, playback recordings, and adjust settings.

Step 6: Use Dahua ConfigTool for Easy Discovery

If you’re having trouble finding the DVR’s IP, Dahua’s ConfigTool software can help.

Download and Install ConfigTool

Go to the official Dahua website and download ConfigTool for your operating system. Install it on your computer.

Launch ConfigTool

Open the software. It will automatically scan your network for Dahua devices.

Find Your DVR

Look for your DVR in the list. It should show the model, IP address, MAC address, and status.

Modify Settings (Optional)

You can change the IP address, password, or network settings directly from ConfigTool. Right-click the device and select “Modify IP” or “Login.”

Test Connection

Click “Test” to verify connectivity. If successful, you can now access the DVR via the new IP.

Step 7: Enable Remote Access and Services

To get the most out of your DVR, enable key network services.

Enable HTTP Service

In the DVR’s network settings, go to:

Main Menu > Network > Connection

Make sure “HTTP Service” is enabled. This allows web browser access.

Enable RTSP

RTSP (Real-Time Streaming Protocol) lets you stream video to third-party apps or VLC media player.

Go to:

Main Menu > Network > RTSP

Enable RTSP and note the port (default is 554).

Enable ONVIF

ONVIF allows integration with other security systems and software.

Go to:

Main Menu > Network > ONVIF

Enable ONVIF and set a username/password if required.

Enable FTP (Optional)

If you want to upload recordings to an FTP server, enable FTP under:

Main Menu > Storage > FTP

Enter your FTP server details.

Step 8: Access DVR from Mobile Devices

You can also monitor your Dahua DVR on smartphones and tablets.

Download DMSS App

Search for “DMSS” in the App Store (iOS) or Google Play (Android). Install the app.

Add Your DVR

Open DMSS and tap the “+” icon. Choose “Manual Add.”

Enter:

• Device Name: e.g., “Home DVR”
• IP Address: Your DVR’s LAN IP (e.g., 192.168.1.100)
• Port: 37777 (default for Dahua)
• Username and Password

Tap “Save.”

View Live Feed

You should now see your cameras in the app. Tap to view live video or playback recordings.

Step 9: Secure Your DVR

Security is critical when connecting any device to a network.

Change Default Password

Go to:

Main Menu > Maintenance > User

Change the admin password to something strong and unique.

Enable HTTPS

In network settings, enable HTTPS for encrypted web access. Use port 443.

Disable Unused Services

Turn off Telnet, SSH, or UPnP if you don’t need them.

Update Firmware

Check for firmware updates on the Dahua website. Updated firmware fixes bugs and improves security.

Troubleshooting Common Issues

Even with careful setup, problems can occur. Here’s how to fix the most common ones.

No Video in Browser

• Ensure the DVR is powered and connected
• Check that the correct IP is used
• Try a different browser or clear cache
• Install the latest web plugin

Can’t Ping the DVR

• Verify the IP address and subnet mask
• Check the Ethernet cable and port
• Restart the DVR and router
• Disable firewall temporarily for testing

Login Failed

• Confirm username and password
• Reset the DVR to factory settings if needed
• Use ConfigTool to reset password

IP Address Conflict

If another device has the same IP, you’ll get connection issues. Change the DVR’s IP to an unused one (e.g., 192.168.1.101).

Slow or Laggy Video

• Check network bandwidth
• Reduce video resolution or frame rate
• Use wired connections instead of Wi-Fi

Best Practices for Long-Term Use

To keep your Dahua DVR running smoothly:

• Regularly back up configuration settings
• Monitor storage usage and delete old recordings
• Schedule firmware updates
• Use a UPS to protect against power outages
• Label cables and document IP addresses

Conclusion

Connecting your Dahua DVR via LAN is a straightforward process that unlocks powerful remote monitoring capabilities. By following this guide, you’ve learned how to physically connect the DVR, configure network settings, assign a static IP, access the system via browser and mobile apps, and secure your device.

Whether you’re managing a home security system or a commercial surveillance setup, a stable LAN connection ensures reliable access and peace of mind. With the right configuration and a few best practices, your Dahua DVR will serve you well for years to come.

Now that you’re connected, explore advanced features like motion detection, email alerts, and integration with other smart devices. The possibilities are endless!
