How to Connect Wired Camera with POE Injector in 2025

Key Takeaways

• Verify POE compatibility: Ensure your camera supports POE to avoid damage.
• Use Cat6 cables: Opt for high-quality cables for stable, long-distance connections.
• Connect injector properly: Link the injector’s POE port to the camera’s input.
• Check power requirements: Match injector output (e.g., 802.3af/at) to camera needs.
• Test before mounting: Confirm functionality at ground level first for troubleshooting.
• Secure connections: Use waterproof sleeves or enclosures for outdoor installations.
• Monitor network traffic: Ensure POE injector doesn’t overload your network bandwidth.

Why This Matters / Understanding the Problem

Setting up a home or business security system can feel overwhelming—especially when you’re dealing with wired cameras that need both power and data. In 2025, many users still face confusion about how to connect wired camera with POE injector, even though it’s one of the most reliable and cost-effective solutions available.

Unlike wireless setups that rely on batteries and Wi-Fi signals, Power over Ethernet (POE) delivers both power and video data through a single cable. This means fewer wires, better reliability, and easier long-term maintenance. But if you’re new to POE, the process can seem intimidating.

Whether you’re installing a single outdoor camera or building a full surveillance network, knowing how to connect wired camera with POE injector in 2025 ensures your system runs smoothly from day one. No more tangled cords, dead batteries, or weak Wi-Fi signals disrupting your feed.

POE technology has evolved, with newer standards like IEEE 802.3bt offering up to 90W of power—perfect for high-resolution cameras, heaters, or pan-tilt-zoom (PTZ) models. But even basic POE injectors work great for standard HD cameras. The key is understanding the right tools and steps.

What You Need

Before diving into the setup, gather these essential tools and materials. Having everything ready saves time and prevents mid-installation trips to the hardware store.

• Wired POE-compatible camera (check the label for “802.3af” or “802.3at”)
• POE injector (Midspan or Endspan) – choose based on your camera’s power needs
• Ethernet cables (Cat5e or Cat6) – use shielded cables for outdoor or long runs
• Network switch or router with POE ports (if not using a standalone injector)
• Power outlet near the injector location
• Drill and screws (for mounting the camera)
• Cable clips or conduit (to protect and organize cables)
• Network cable tester (optional but recommended)
• Screwdriver, ladder, and flashlight (basic hand tools)

Pro Tip: Always check your camera’s voltage and power requirements (usually 48V DC, 15W max). Match the POE injector output to avoid damage. Most modern injectors are auto-sensing, but it’s safer to verify.

For example, if you’re installing a Reolink RLC-410W, it supports 802.3af POE (up to 12.95W), so a standard 15W POE injector is ideal. Using a 90W injector won’t hurt, but it’s overkill unless you’re powering multiple devices.

Step-by-Step Guide to How to Connect Wired Camera with POE Injector in 2025

Follow these clear, practical steps to get your wired camera up and running with a POE injector. We’ll walk you through from planning to power-up.

Step 1: Choose the Right Location for the Camera

Start by scouting the best spot for your camera. Look for areas with a clear view of entry points, driveways, or blind spots. Avoid direct sunlight or heavy rain exposure unless your camera is rated for outdoor use (IP66 or higher).

Use a pencil to mark the mounting holes. For outdoor setups, consider using a weatherproof junction box to protect cable connections. This prevents moisture damage and makes future maintenance easier.

Warning: Never drill into electrical wires or plumbing. Use a stud finder to locate wall supports, and check for hidden utilities before drilling.

Step 2: Mount the Camera Securely

Use the included mounting template (if available) to drill pilot holes. Secure the base with screws and anchors—especially important for brick, stucco, or concrete walls. Make sure the camera is level and angled correctly.

For example, if you’re installing a front door camera, aim it slightly downward to capture faces and packages. A slight 10–15 degree tilt often works best.

Don’t connect the Ethernet cable yet—leave that for after mounting. This keeps the camera stable while you work and avoids pulling on the connector.

Step 3: Prepare the Ethernet Cable Run

Measure the distance from the camera to your router or POE switch. Cut or use a pre-made Ethernet cable that fits—but always add 2–3 extra feet for slack. This gives you room to adjust later.

For outdoor or in-wall runs, use Cat6 shielded cable to reduce interference and protect against moisture. Run the cable through conduit if it’s exposed to weather or physical damage (e.g., near a walkway).

Use cable clips every 12–18 inches to keep the line tidy and reduce strain. If running through walls, use a fish tape or pull string to guide the cable safely.

Pro Tip: Label both ends of the cable with tape or tags (e.g., “Front Door Cam”). This makes troubleshooting much easier later.

Step 3.1: Terminate the Cable (If Using Raw Cable)

If you’re using raw Ethernet cable (not pre-terminated), you’ll need to crimp an RJ45 connector on one end. Use a cable stripper to remove 1.5 inches of outer jacket, then untwist and arrange the wires in T568B order:

• Orange-White
• Orange
• Green-White
• Blue
• Blue-White
• Green
• Brown-White
• Brown

Trim the wires evenly, insert into the RJ45 connector, and crimp with a proper tool. Test with a network tester to ensure all 8 pins are connected correctly.

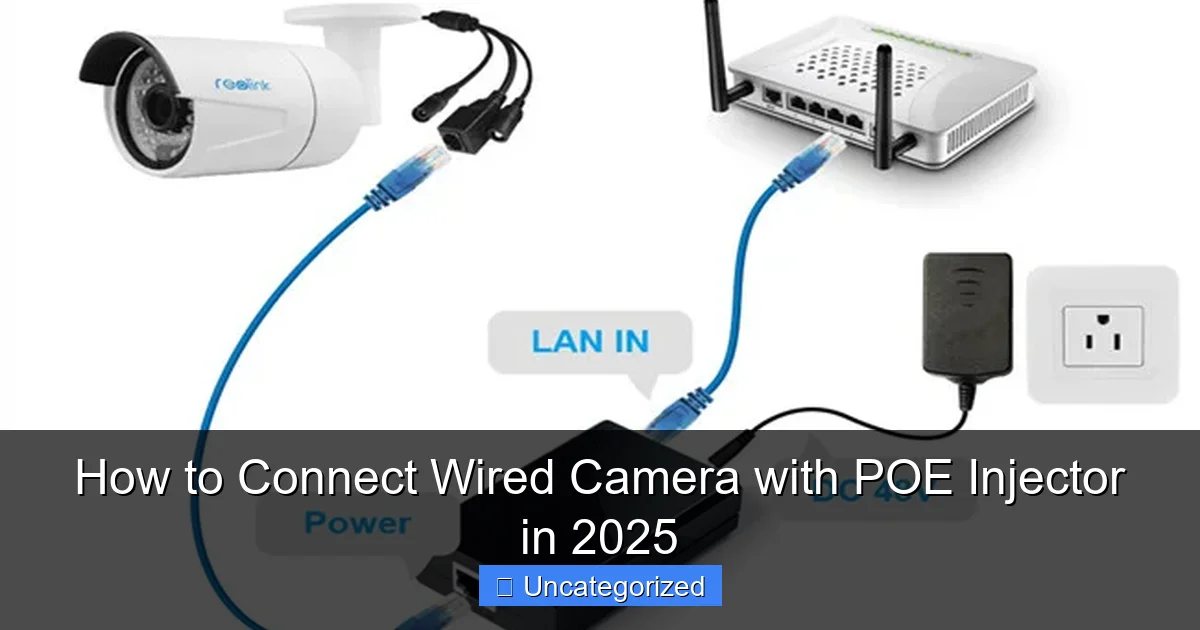

Step 4: Connect the Camera to the POE Injector

Now it’s time to plug in. Connect one end of the Ethernet cable to the camera’s RJ45 port. Make sure it clicks in securely—loose connections cause flickering or no signal.

Run the other end of the cable to the POE injector. Plug it into the “POE” or “Data + Power” port on the injector. This is the port that sends both data and power down the line.

Warning: Never plug the camera into the “Data Only” port on the injector. It won’t get power, and your camera won’t turn on.

For example, if you’re using a TP-Link TL-POE150S injector, the “POE” port is labeled clearly. The “LAN” port is for data only—save that for connecting to your router.

Step 5: Connect the POE Injector to Your Network

Use a second Ethernet cable (preferably Cat5e or Cat6) to connect the “Data Only” or “LAN” port on the POE injector to your router, modem, or network switch.

This cable carries the video data from the camera to your network. If your router supports POE, you could skip the injector—but if not, this step is essential.

Plug the injector into a power outlet using the included AC adapter. Most injectors have a small LED that turns green or blue when powered and sending data.

Wait 30–60 seconds. The camera should power on automatically. You’ll often see a status light blink or change color.

Step 6: Access the Camera on Your Network

Now it’s time to configure your camera. Open a web browser and enter your router’s IP address (usually 192.168.1.1 or 192.168.0.1). Log in using your admin credentials.

Look for a section called “DHCP Client List” or “Connected Devices.” Find your camera in the list—it may show up as the brand name (e.g., “Reolink”) or a generic label like “POE Camera.”

Note the camera’s IP address (e.g., 192.168.1.105). Open a new browser tab and enter that IP. This loads the camera’s web interface.

Pro Tip: If the camera doesn’t appear, try restarting the injector and router. Use a network scanner app (like Fing) on your phone to find it faster.

Step 7: Configure Camera Settings

Once in the web interface, follow the setup wizard. Common steps include:

• Setting a strong admin password (never leave it as default)
• Updating firmware (critical for security and performance)
• Choosing video resolution (1080p, 4K, etc.)
• Enabling motion detection or night vision
• Setting up remote access (via app or cloud)

For example, if you’re using an Amcrest camera, download the Amcrest View Pro app. Scan the QR code on the camera to link it to your phone. Now you can view live footage from anywhere.

Assign a static IP address if you plan to access the camera remotely. This prevents the IP from changing after a reboot, which can break remote connections.

Step 8: Test and Adjust

Walk around the camera’s field of view to test motion detection. Check the live feed on your phone or computer. Look for:

• Clear, stable image
• No flickering or lag
• Proper night vision (if applicable)
• Correct motion alerts (no false triggers from trees or shadows)

If the image is blurry, adjust the focus ring (on some models). For poor night vision, ensure the IR LEDs aren’t blocked by glass or dust.

Use the camera’s app or web interface to tweak sensitivity, recording schedules, and alert settings. Save all changes before exiting.

Pro Tips & Common Mistakes to Avoid

Even small errors can cause big headaches. Here are real-world insights to help you get it right the first time.

Pro Tip 1: Use a POE tester (like the Fluke MicroScanner) to verify power delivery before connecting the camera. This saves time and prevents damage.

Many injectors show a green light even if power isn’t reaching the end of the cable. A tester confirms actual voltage and pin continuity.

Pro Tip 2: For long cable runs (over 100 meters), consider a POE extender or switch. Standard Ethernet maxes out at 100 meters—beyond that, signal and power degrade.

For example, if your camera is 120 feet from the router, you’re fine. But at 350 feet, use a mid-span POE switch halfway to boost the signal.

Common Mistake 1: Using non-POE devices with a POE injector.

Never plug a laptop, phone, or non-POE device into the POE port. It can damage the device. Always use the “Data Only” port for non-POE equipment.

Common Mistake 2: Ignoring cable quality.

Cheap or damaged Ethernet cables cause intermittent power and data loss. Always use Cat5e or higher, and avoid kinks or sharp bends. A $10 cable tester can save hours of troubleshooting.

Pro Tip 3: Label your injectors and cables.

Use color-coded tags or labels: “Front Door Cam,” “Backyard,” “Garage.” This is especially helpful if you have multiple cameras. It makes upgrades or repairs a breeze.

Common Mistake 3: Forgetting firmware updates.

Manufacturers release updates to fix bugs, improve security, and add features. Check every 3–6 months. An outdated camera is vulnerable to hacking.

FAQs About How to Connect Wired Camera with POE Injector in 2025

Q1: Can I use any POE injector with my camera?

Not always. Check your camera’s specs. Most support 802.3af (15W) or 802.3at (30W). Use an injector that matches or exceeds this. For example, a 15W injector works fine for 802.3af cameras, but a 4W injector won’t.

Always verify voltage (usually 48V DC). Mismatched voltage can fry your camera.

Q2: Do I need a POE switch if I already have a POE injector?

No. A POE injector is a standalone device that adds power to one camera. A POE switch powers multiple devices and connects to your network. Use one or the other—not both on the same line.

For 1–3 cameras, an injector is simpler. For 4+, a POE switch is more efficient and scalable.

Q3: How far can I run an Ethernet cable with a POE injector?

The maximum distance is 100 meters (328 feet) for standard Ethernet. Beyond that, power and data weaken. Use a POE extender or switch to go farther.

For example, if your camera is 200 feet from the router, you’re within range. But at 400 feet, install a POE switch at 200 feet to boost the signal.

Q4: Can I connect a POE camera to a non-POE router?

Yes—that’s exactly what a POE injector is for. The injector sits between the camera and router. It takes power from the wall and data from the router, then sends both to the camera via one cable.

This is the most common setup for homes without POE switches.

Q5: Why isn’t my camera turning on even after connecting?

Check these first:

• Is the injector plugged in and lit?
• Is the cable connected to the POE port (not LAN)?
• Is the cable damaged or poorly crimped?
• Is the camera POE-compatible?

Use a network tester to check continuity. Try a different cable or injector to isolate the problem.

Q6: Can I use a POE injector for multiple cameras?

Only if it’s a multi-port POE injector (rare). Most injectors have one POE port. For multiple cameras, use a POE switch with 4, 8, or 16 ports.

For example, a Netgear GS308PP switch can power 8 cameras and connect to your router in one box.

Q7: Is POE safe for outdoor use?

Yes—but use outdoor-rated cables, injectors, and cameras. Look for IP66 or IP67 ratings. Protect connections with weatherproof enclosures. POE is low voltage (48V), so it’s safe in rain when properly installed.

Final Thoughts

Learning how to connect wired camera with POE injector in 2025 is easier than it looks—and the results are worth it. You get reliable power, crisp video, and a clean setup with just one cable.

Remember: plan your cable runs, match your injector to your camera, and always test before finalizing. A little patience now prevents big headaches later.

Whether you’re securing your home, monitoring a business, or just keeping an eye on your backyard, POE gives you professional-grade performance without the complexity.

So grab your tools, follow the steps, and enjoy peace of mind—one powered, connected camera at a time. And if you ever get stuck, refer back to this guide. You’ve got this!
