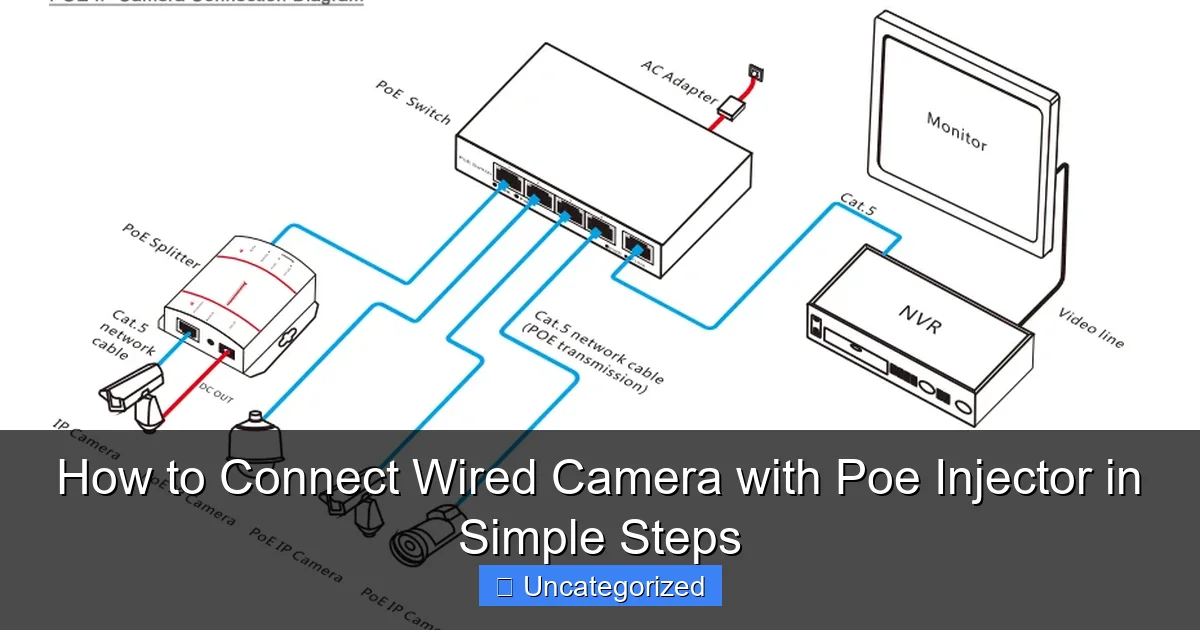

How to Connect Wired Camera with Poe Injector in Simple Steps

Key Takeaways

• Verify PoE compatibility: Ensure your camera supports PoE to avoid damage.
• Use quality Ethernet cables: Always choose Cat5e or higher for reliable connections.
• Connect injector to power: Plug the PoE injector into a stable power source first.
• Link camera via Ethernet: Connect the camera to the injector’s PoE port securely.
• Check network connectivity: Confirm the camera appears in your network settings.
• Test camera functionality: Verify video feed and remote access after setup.

Why This Matters / Understanding the Problem

Setting up a wired security camera can feel overwhelming—especially when you need to run power and data cables across a long distance. That’s where a PoE (Power over Ethernet) injector comes in. It simplifies your installation by sending both electricity and data through a single Ethernet cable. Whether you’re securing your home, monitoring a small business, or setting up surveillance for a remote shed, knowing how to connect wired camera with PoE injector in simple steps saves time, reduces clutter, and avoids the need for extra power outlets.

Many DIYers struggle with the idea of running two separate cables—one for power, one for data. This often leads to messy setups, voltage drops, or even damaged equipment. A PoE injector solves all that. It’s especially helpful when you’re installing a camera in a spot without nearby electrical outlets—like a garage, backyard, or attic. With the right tools and a clear plan, you can get your camera up and running in under an hour.

Understanding how to connect wired camera with PoE injector in simple steps isn’t just about plugging things in. It’s about knowing which cables to use, how to avoid signal loss, and ensuring your camera gets enough power. This guide walks you through everything you need to know—no technical degree required.

What You Need

Before you start, gather all the necessary tools and equipment. Having everything ready makes the process smooth and frustration-free. Here’s your checklist for a successful setup:

• PoE Injector (802.3af or 802.3at compliant) – Make sure it matches your camera’s power needs. Most standard cameras use 802.3af (15.4W), while PTZ or heated models may need 802.3at (30W).
• Wired IP Camera with PoE Support – Confirm it supports PoE (check the specs). Look for terms like “PoE,” “IEEE 802.3af,” or “802.3at.”
• Ethernet Cable (Cat 5e or higher, preferably Cat 6) – Use shielded (STP) if running near power lines or in noisy environments. Avoid Cat 5—it’s outdated and can cause signal issues.
• Router or Network Switch (PoE-capable or regular) – If your switch doesn’t support PoE, the injector will provide power. Otherwise, you can skip the injector entirely.
• Power Adapter for the Injector – Usually included, but double-check voltage and plug type (e.g., 48V DC).
• Drill, Screwdriver, Cable Ties, and Fish Tape (optional) – For mounting the camera and routing cables through walls or ceilings.
• Computer or Smartphone – To access the camera’s setup menu via a web browser or app.
• Network Cable Tester (recommended) – Helps verify continuity and pin alignment in your Ethernet cable.

Pro tip: Always buy a PoE injector that matches your camera’s voltage and power requirements. Mismatched injectors can damage your camera or cause it to reboot randomly.

Step-by-Step Guide to How to Connect Wired Camera with Poe Injector in Simple Steps

Step 1: Choose the Right Location for Your Camera

Start by deciding where to install your camera. Look for a spot that gives you a clear view of the area you want to monitor—like a front door, driveway, or back patio. Avoid direct sunlight, rain exposure, or areas with heavy wind, unless your camera is rated for outdoor use (IP66 or higher).

Make sure the location is within the maximum Ethernet cable distance—328 feet (100 meters) from the PoE injector or router. Going beyond this can cause signal loss or power drop, especially with thinner cables.

Tip: Use a ladder or extension pole to test the view before drilling. A few minutes of planning prevents a crooked or obstructed camera.

Step 2: Mount the Camera Securely

Once you’ve picked the spot, mount the camera using the included bracket and screws. If you’re drilling into brick, stucco, or concrete, use wall anchors and a masonry bit. For drywall, toggle bolts provide extra support.

Align the camera so it covers the area you need—adjust the angle before tightening the screws. Most outdoor cameras have a swivel base, so you can fine-tune the view after mounting.

Warning: Don’t overtighten the screws. This can crack the housing or damage the internal components.

Step 3: Run the Ethernet Cable from Camera to PoE Injector

Now, route a single Ethernet cable from the camera to the PoE injector location. If you’re running it through walls, use fish tape to pull the cable through. For outdoor runs, use conduit or weatherproof raceway to protect the cable from UV rays and moisture.

Label both ends of the cable with tape or tags—this makes troubleshooting easier later. Avoid sharp bends or kinks, as they can break internal wires or reduce signal quality.

At the camera end, plug the cable into the camera’s Ethernet port. At the other end (near the injector), leave enough slack—about 12 inches—to connect to the injector.

Tip: Use cable clips or staples every 3–4 feet to keep the cable tidy and prevent sagging.

How to Terminate Ethernet Cable (If Needed)

If you’re using raw cable, you’ll need to crimp on an RJ45 connector. Strip the outer jacket, untwist the pairs, and arrange them in the T568B standard (most common):

• Orange-White
• Orange
• Green-White
• Blue
• Blue-White
• Green
• Brown-White
• Brown

Insert the wires into the RJ45 plug, crimp with a tool, and test with a cable tester. A proper termination ensures full PoE power and data transfer.

Step 4: Connect the PoE Injector

The PoE injector has two ports: “Data In” and “PoE Out.” Here’s how to connect them:

1. Plug one end of a short Ethernet cable (called a patch cable) into your router or switch. Connect the other end to the “Data In” port on the injector.
2. Connect the long cable from your camera (from Step 3) to the “PoE Out” port on the injector.
3. Plug the power adapter into the injector and into a wall outlet.

When powered, the injector’s LED should light up (usually green or blue). This means it’s sending both data and power to the camera.

Warning: Never plug the camera directly into a router without PoE support unless you’re using an injector. Doing so can fry the camera.

Step 5: Power On and Check the Connection

Turn on the PoE injector. Wait 30–60 seconds for the camera to boot up. Most cameras will flash an LED during startup. Once it stabilizes, the LED usually turns solid or blinks slowly.

Now, check if your network recognizes the camera. You can do this in two ways:

• Using the manufacturer’s app – Open the app (e.g., Hik-Connect, Reolink, Lorex) and scan for new devices. It should detect the camera automatically.
• Using a web browser – Log into your router and look for the camera in the connected devices list. Note its IP address, then enter it into your browser (e.g., http://192.168.1.100).

If the camera doesn’t appear, double-check the cable connections and injector power. Use a network tester to verify the cable is fully functional.

Step 6: Access and Configure the Camera

Once you’ve accessed the camera (via app or browser), follow the setup wizard to:

• Create a secure password (never leave it as default).
• Set the correct time zone and date.
• Adjust video quality (1080p, 4K, etc.) and frame rate.
• Enable motion detection and set up alerts.
• Configure storage—either to an NVR, microSD card, or cloud service.

For remote viewing, enable port forwarding on your router or use the manufacturer’s P2P (peer-to-peer) service. This lets you check your camera from your phone, even when you’re away.

Tip: Use a strong, unique password and enable two-factor authentication (if available) to prevent hacking.

Step 7: Test and Optimize Performance

Now, test the camera in real-world conditions. Walk through the monitored area and check the live feed for clarity, motion detection accuracy, and night vision performance.

If the image is blurry or laggy, try these fixes:

• Reduce resolution or frame rate to ease network load.
• Move the PoE injector closer to the router to improve signal strength.
• Replace the cable if it’s longer than 300 feet or damaged.
• Use a PoE switch instead of an injector if you plan to add more cameras later.

For outdoor cameras, test night vision by checking the IR (infrared) illumination range. Most cameras work up to 30–100 feet in total darkness.

Pro Tips & Common Mistakes to Avoid

Use the Right Cable Type

Not all Ethernet cables are equal. For how to connect wired camera with PoE injector in simple steps, always use Cat 5e or Cat 6. Cat 5 cables can’t handle PoE reliably and may overheat. Shielded cables (STP) are best for outdoor or industrial use.

Tip: Buy pre-terminated cables if you’re not comfortable crimping. They save time and reduce errors.

Don’t Exceed Cable Length Limits

Ethernet has a 100-meter limit for full power and data. Beyond that, voltage drops occur, causing camera reboots or poor performance. If you need to go farther, use a PoE extender or switch to fiber.

Warning: Never splice Ethernet cables. It breaks the PoE circuit and introduces signal noise.

Avoid Power Mismatches

Using a 802.3af injector for a 802.3at camera can lead to underpowering. The camera may work at first, but it will lag, reboot, or fail during high-power modes (like zoom or heating). Always match the injector to the camera’s power class.

Label Everything

Label cables at both ends. When you expand your system later, you’ll thank yourself. Use color-coded tags or write the camera name and location (e.g., “Front Door – Cam 1”).

Protect Outdoor Connections

For outdoor cameras, use waterproof RJ45 connectors or seal the connection with heat-shrink tubing. A simple zip tie with a drip loop (loop the cable downward) prevents water from running into the connector.

Don’t Skip Firmware Updates

Manufacturers release firmware to fix bugs, improve security, and add features. Check for updates monthly through the camera’s app or web interface. An outdated camera is a security risk.

FAQs About How to Connect Wired Camera with Poe Injector in Simple Steps

Can I use a PoE injector with a non-PoE camera?

No. A non-PoE camera lacks the internal circuitry to receive power through Ethernet. You’ll need a separate power adapter. Plugging it into a PoE injector can damage the camera. Always verify PoE support before connecting.

What if my router already supports PoE?

Great! If your router or switch has PoE ports (usually labeled “PoE” or “PSE”), you can connect the camera directly—no injector needed. This simplifies setup and reduces clutter. Just plug the camera into the PoE port and skip the injector entirely.

How do I know if my PoE injector is working?

Check the injector’s LED. A solid or blinking light means it’s powered. Use a PoE tester (or a multimeter) to measure output voltage—should be 44–57V DC. If the camera doesn’t power on, test the cable with a network tester to rule out wiring issues.

Can I use a PoE injector for multiple cameras?

Not directly. A single injector powers one camera. For multiple cameras, use a PoE switch—it has multiple PoE ports and acts as a central hub. It’s more efficient and scalable than using multiple injectors.

Is it safe to run Ethernet cable near power lines?

Yes, but keep at least 12 inches of separation. If they cross, do so at a 90-degree angle to reduce interference. Use shielded Ethernet cable (STP) and metal conduit for added protection. Never bundle Ethernet and power cables together.

What if the camera doesn’t get an IP address?

This usually means a network issue. Try these steps:

• Restart the router and injector.
• Check the cable for breaks or loose connectors.
• Assign a static IP in the camera settings.
• Use a different Ethernet cable or port.

If it still fails, the camera may have a DHCP issue—contact the manufacturer.

Can I power a camera through a long cable (over 100 feet)?

Yes, up to 328 feet. But use Cat 6 cable and ensure the PoE injector provides enough voltage. For longer runs, consider a midspan PoE extender or switch to fiber-optic with media converters.

Final Thoughts

Learning how to connect wired camera with PoE injector in simple steps transforms a complex task into a quick, clean installation. By using a single cable for both power and data, you eliminate clutter, reduce costs, and make future expansions easier. Whether you’re protecting your home, monitoring a warehouse, or keeping an eye on your property, PoE is the smart choice.

Remember: plan your layout, use quality cables, match your injector to your camera, and test everything before finalizing. Don’t rush—take time to label, seal, and secure your setup. A little extra effort now prevents headaches later.

Ready to expand? Consider upgrading to a PoE switch for multiple cameras or adding an NVR for centralized recording. With the foundation you’ve built, scaling your system is simple and stress-free.

Now that you know the process, go ahead and set up your camera with confidence. Stay safe, stay smart, and enjoy the peace of mind that comes with a reliable, well-connected surveillance system.

“`
