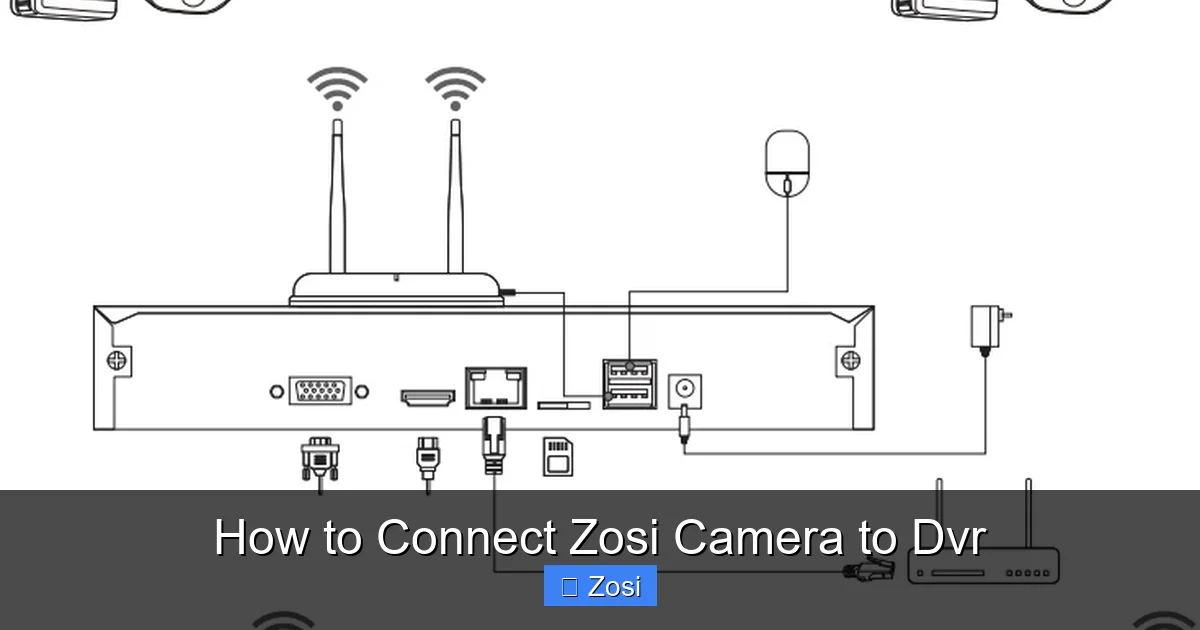

How to Connect Zosi Camera to Dvr

This guide walks you through the complete process of connecting a Zosi camera to a DVR, whether you’re setting up a new system or adding cameras to an existing one. You’ll learn about compatible equipment, wiring methods, and troubleshooting tips to ensure a smooth installation.

Key Takeaways

• Check compatibility: Ensure your Zosi camera and DVR model are compatible—most Zosi cameras work with Zosi DVRs, but verify specifications.
• Use the right cables: BNC cables for video and power cables (or Siamese cables) are essential for wired connections.
• Power matters: Always connect power before testing—cameras won’t transmit video without proper power supply.
• Follow the correct sequence: Connect video first, then power, and finally power on the DVR to avoid signal issues.
• Label your cables: Keep track of which camera connects to which channel to simplify setup and future maintenance.
• Test each step: Power on one camera at a time and verify video feed on the DVR monitor before moving to the next.
• Use the DVR menu: Access the camera settings via the DVR interface to adjust resolution, motion detection, and recording schedules.

Quick Answers to Common Questions

Should I connect power before or after the video cable?

Always connect the video cable first, then the power. This prevents potential signal interference during startup.

Can I use Cat5e cable instead of BNC for Zosi cameras?

Only if your camera and DVR support HD-TVI over Ethernet (HD-TVI Balun required). Standard analog Zosi cameras need BNC cables.

How far can I run a BNC cable from camera to DVR?

Up to 300–500 feet for clear video. Beyond that, use a signal booster or switch to IP cameras with Ethernet.

Do I need to configure each camera in the DVR menu?

Not always—most Zosi DVRs auto-detect cameras. But you should name them and adjust settings for better organization.

Can I mix different Zosi camera models with one DVR?

Yes, as long as they’re compatible formats (e.g., HD-TVI, AHD). Avoid mixing analog and IP cameras on the same DVR.

How to Connect Zosi Camera to DVR: A Complete Step-by-Step Guide

Setting up a home or business security system can feel overwhelming—especially if you’re new to surveillance technology. But don’t worry! Connecting a Zosi camera to a DVR is simpler than it seems, and with the right tools and guidance, you can have your system up and running in under an hour.

In this guide, we’ll walk you through every step of connecting your Zosi camera to a Zosi DVR, from checking compatibility to troubleshooting common issues. Whether you’re installing a single camera or expanding a multi-camera setup, this guide has you covered. By the end, you’ll understand not only how to connect Zosi camera to DVR, but also how to optimize your system for the best performance.

Let’s get started!

What You’ll Need Before You Begin

Before diving into the installation, make sure you have all the necessary equipment and tools. Skipping this step can lead to frustration and wasted time. Here’s a checklist of what you’ll need:

• Zosi DVR (Digital Video Recorder): This is the central hub that records and manages your camera feeds. Most Zosi DVRs support 4, 8, or 16 channels.
• Zosi Security Cameras: These can be bullet, dome, or PTZ cameras. Ensure they are analog (HD-TVI, AHD, or CVI) or IP, depending on your DVR type.
• BNC Cables: These transmit video signals from the camera to the DVR. Most Zosi kits include these, but you may need longer ones for distant cameras.
• Power Cables or Siamese Cables: Siamese cables combine video and power in one line, making installation cleaner. If using separate cables, you’ll need 18/2 power wires.
• Power Supply (12V DC): Each camera needs a power source. Many DVRs have built-in power supplies, or you can use individual adapters.
• Monitor or TV: To view the DVR interface and camera feeds during setup.
• HDMI or VGA Cable: To connect the DVR to your monitor.
• Screwdrivers and Drill (optional): For mounting cameras and running cables through walls.
• Cable Clips or Conduit: To secure and protect cables.

Having everything ready before you start will make the process smoother and faster.

Step 1: Check Compatibility Between Your Zosi Camera and DVR

Not all cameras work with all DVRs—even within the same brand. Before connecting anything, confirm that your Zosi camera and DVR are compatible.

Understand Camera and DVR Types

Zosi offers two main types of security systems:

• Analog Systems (HD-TVI, AHD, CVI): These use coaxial cables (like BNC) and are common in older or budget-friendly setups. Most Zosi DVRs support these formats.
• IP (Network) Systems: These use Ethernet cables (Cat5e/Cat6) and connect via a network. IP cameras require an NVR (Network Video Recorder), not a standard DVR.

If your Zosi camera is analog (look for a BNC connector), it should work with a Zosi DVR. If it has an Ethernet port and no BNC, it’s likely an IP camera and needs an NVR.

Check the DVR’s Supported Formats

Look at the back of your DVR or check the user manual. It should list supported formats like “HD-TVI 1080P,” “AHD,” or “CVI.” Most modern Zosi DVRs support multiple formats, so they can work with various Zosi cameras.

For example, a Zosi 8-channel DVR might support:
– HD-TVI up to 5MP
– AHD up to 2MP
– CVI up to 2MP

If your camera is 1080P HD-TVI, it will work. But a 4MP IP camera won’t.

Match Power Requirements

Zosi cameras typically run on 12V DC power. Check the camera’s label or manual to confirm. Most Zosi DVRs have built-in power outputs (e.g., 12V/2A), which can power multiple cameras. If you’re using a separate power supply, ensure it matches the voltage and provides enough current.

Step 2: Plan Your Camera Layout and Cable Routes

Good planning prevents messy installations and signal loss. Before drilling holes or running cables, map out where each camera will go and how the cables will reach the DVR.

Choose Camera Locations

Place cameras in key areas:
– Front and back doors
– Driveways
– Garages
– Hallways
– Backyards

Avoid pointing cameras directly at bright lights or reflective surfaces, which can cause glare.

Measure Cable Distances

BNC cables can transmit video up to 300–500 feet without signal loss. If your camera is farther, consider using a signal booster or switching to IP cameras with Ethernet.

Decide on Wiring Method

You have two main options:

• Siamese Cables: Combine video (BNC) and power in one cable. Easier to run and neater, but slightly more expensive.
• Separate Cables: Run BNC for video and 18/2 wire for power separately. Cheaper but requires more effort.

For most home setups, Siamese cables are recommended.

Label Your Cables

Use tape or labels to mark each cable with the camera number (e.g., “Cam 1 – Front Door”). This saves time when connecting to the DVR and during future troubleshooting.

Step 3: Mount the Zosi Cameras

Now it’s time to install the cameras. Proper mounting ensures stability and the best viewing angle.

Use the Mounting Template

Most Zosi cameras come with a mounting template. Tape it to the wall, drill pilot holes, and secure the bracket with screws.

Adjust the Camera Angle

Loosen the camera’s mounting screws, position it for the best view, then tighten. Test the angle by looking at the live feed later.

Protect from Weather (for Outdoor Cameras)

If installing outdoors, ensure the camera is rated for outdoor use (look for IP66 or IP67). Use weatherproof junction boxes for cable connections.

Step 4: Run the Cables from Cameras to DVR

This is often the most time-consuming part, but taking your time ensures a clean, safe installation.

Route Cables Through Walls or Conduit

For a professional look, run cables inside walls or use PVC conduit. Avoid sharp bends, which can damage wires.

Leave Slack at Both Ends

Leave 1–2 feet of extra cable at the camera and DVR ends. This gives you room to work and makes future adjustments easier.

Secure Cables

Use cable clips, staples, or zip ties to keep wires tidy and prevent tripping hazards.

Step 5: Connect the Camera to the DVR

Now for the main event: connecting your Zosi camera to the DVR. Follow these steps carefully.

Connect the Video Cable (BNC)

1. Take the BNC end of your cable and plug it into the camera’s video output.
2. Run the cable to the DVR.
3. Plug the other end into one of the DVR’s video input ports (usually labeled “CH1,” “CH2,” etc.).

Match the camera to the correct channel. For example, if you plug into CH3, remember that’s Camera 3.

Connect the Power Cable

There are two ways to power your camera:

• Use the DVR’s Built-in Power Supply: Many Zosi DVRs have a power terminal block on the back. Connect the camera’s power wire (usually red and black) to the corresponding terminals. Red to +12V, black to GND.
• Use Individual Power Adapters: Plug a 12V DC adapter into the camera’s power port and into a wall outlet. This is useful if the DVR doesn’t have enough power output.

If using a Siamese cable, you’ll have a BNC connector and a power connector. Plug the BNC into the DVR and the power into the DVR’s power terminals or a separate adapter.

Double-Check Connections

Before powering on, verify:
– BNC is securely plugged in
– Power wires are connected correctly (red to positive, black to negative)
– No loose strands touching other terminals

Step 6: Power On the System

Now it’s time to bring your system to life.

Connect the DVR to a Monitor

Use an HDMI or VGA cable to connect the DVR to a TV or monitor. Plug in the monitor and turn it on.

Power On the DVR

Plug the DVR into a power outlet and turn it on. You should see the ZOSI logo appear on the screen.

Wait for the System to Boot

It may take 30–60 seconds for the DVR to fully start up and detect cameras.

Step 7: Verify the Camera Feed

Once the DVR is on, check if your camera is working.

View the Live Feed

The DVR should automatically display the camera feed on the corresponding channel. If you connected to CH1, look at the first screen.

You should see a clear video image. If the screen is black or says “No Signal,” go to the troubleshooting section below.

Adjust Camera Settings (Optional)

Press the “Menu” button on the DVR remote or use the mouse to access settings. You can:
– Change the camera name (e.g., “Front Door”)
– Adjust brightness, contrast, or saturation
– Set up motion detection zones
– Schedule recording times

Step 8: Repeat for Additional Cameras

If you’re installing more than one camera, repeat the process:
1. Mount the camera
2. Run cables
3. Connect video and power
4. Power on and verify feed

Work one camera at a time to avoid confusion. Label each cable as you go.

Troubleshooting Common Issues

Even with careful installation, problems can happen. Here’s how to fix the most common issues when connecting Zosi camera to DVR.

No Video Signal or Black Screen

• Check power: Is the camera receiving power? Look for a small LED light on the camera (if it has one).
• Verify BNC connection: Ensure the BNC plug is fully inserted and not loose.
• Test the cable: Swap the cable with one from a working camera to see if it’s faulty.
• Check DVR input: Make sure you plugged into the correct channel and that the DVR recognizes it.

Fuzzy or Grainy Image

• Clean the camera lens: Dust or smudges can blur the image.
• Check cable length: Long cables can weaken the signal. Use a signal booster if over 300 feet.
• Adjust DVR settings: Increase sharpness or resolution in the camera settings menu.

Camera Not Powering On

• Check power connections: Ensure the red and black wires are connected to the correct terminals.
• Test the power supply: Use a multimeter to check if the DVR or adapter is outputting 12V.
• Try a different adapter: Borrow a known-working 12V adapter to test the camera.

Intermittent Signal or Flickering

• Secure all connections: Loose BNC or power plugs can cause flickering.
• Avoid electrical interference: Keep cables away from power lines, motors, or fluorescent lights.
• Use shielded cables: In noisy environments, shielded Siamese cables reduce interference.

Tips for a Professional Installation

Want your setup to look clean and last for years? Follow these pro tips:

• Use cable management: Bundle wires with Velcro straps and hide them in walls or conduit.
• Mount the DVR in a secure location: A closet or cabinet protects it from dust and tampering.
• Set up remote viewing: Download the ZOSI Smart app to view your cameras on your phone from anywhere.
• Enable motion alerts: Get notifications when the camera detects movement.
• Schedule regular maintenance: Clean lenses and check connections every 6 months.

Conclusion

Connecting a Zosi camera to a DVR doesn’t have to be complicated. With the right tools, a clear plan, and this step-by-step guide, you can set up a reliable security system in no time. Remember to check compatibility, use quality cables, and test each connection as you go.

Whether you’re protecting your home, business, or property, a well-installed Zosi system gives you peace of mind. And now that you know how to connect Zosi camera to DVR, you can expand your setup anytime with confidence.

If you run into issues, don’t panic—most problems are easy to fix with a little troubleshooting. And always refer to your camera and DVR manuals for model-specific details.

Stay safe, and enjoy your new security system!
