Introduction: Why Disassemble a Zosi Camera?
Zosi cameras are popular choices for home and business surveillance due to their reliability, affordability, and ease of installation. However, like any electronic device, they may eventually require maintenance, repair, or even a simple cleaning. Whether you’re dealing with a foggy lens, a malfunctioning IR sensor, or a loose internal connection, knowing how to disassemble your Zosi camera can save you time and money.
In this comprehensive guide, you’ll learn how to safely take apart your Zosi camera step by step. We’ll cover everything from gathering the right tools to reassembling the unit without damaging any components. Whether you’re a DIY enthusiast or a professional installer, this guide is designed to help you handle the process with confidence.
By the end of this article, you’ll be equipped with the knowledge to disassemble your Zosi camera for repairs, upgrades, or routine maintenance. Let’s get started!
Tools and Materials You’ll Need
Before you begin, it’s essential to gather all the necessary tools and materials. Using the right equipment will make the process smoother and reduce the risk of damaging your camera.

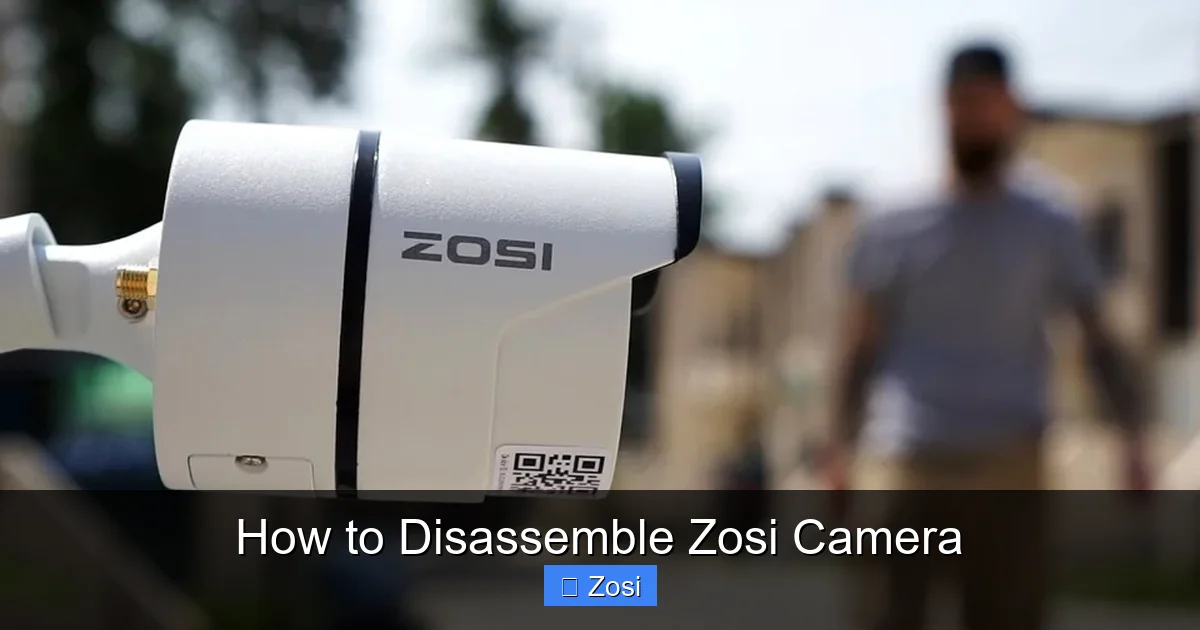

Visual guide about How to Disassemble Zosi Camera
Image source: i.ytimg.com
Precision Screwdriver Set
A high-quality precision screwdriver set is a must. Zosi cameras typically use small Phillips-head screws (often #00 or #0 size). Make sure your set includes these sizes, as using the wrong screwdriver can strip the screws and make removal difficult.
Plastic Spudger or Opening Tool
A plastic spudger helps pry open plastic casings without scratching or cracking them. Avoid using metal tools, as they can damage the housing or scratch internal components.
Anti-Static Wrist Strap or Mat
Static electricity can damage sensitive electronic components. An anti-static wrist strap or mat helps ground you and prevents electrostatic discharge (ESD) from harming the camera’s circuit board.
Tweezers
Fine-tipped tweezers are useful for handling small screws, cables, and connectors. They provide better control than fingers, especially in tight spaces.
Small Container for Screws
Use a magnetic tray or small compartment box to store screws as you remove them. Labeling compartments by step can help during reassembly.
Clean, Well-Lit Workspace
Choose a flat, clutter-free surface with good lighting. A white or light-colored table makes it easier to spot small parts. Avoid working on carpeted surfaces, where screws can easily get lost.
Camera Manual (Optional but Helpful)
If you still have the user manual for your Zosi camera, keep it nearby. It may include disassembly diagrams or model-specific tips.
Smartphone or Camera for Documentation
Take photos at each major step. Visual references are invaluable when it’s time to put everything back together.
Safety Precautions Before You Begin
Safety should always come first when working with electronics. Follow these precautions to protect yourself and your equipment.
Power Off and Unplug
Ensure the camera is completely powered off. If it’s connected to a power source, unplug it immediately. For wired cameras, disconnect both the power and video cables. For wireless models, remove the batteries if applicable.
Discharge Residual Power
Even after unplugging, capacitors inside the camera may retain a small charge. To be safe, press and hold the power button for 10–15 seconds to discharge any residual energy.
Work in a Dry Environment
Moisture can cause short circuits. Avoid working in humid or damp areas. If your camera was recently exposed to rain or condensation, let it dry completely before disassembly.
Avoid Static Buildup
Wear an anti-static wrist strap or touch a grounded metal object (like a doorknob) before handling internal components. This prevents static electricity from damaging the circuit board.
Handle with Care
Zosi cameras contain delicate parts like the image sensor, lens, and ribbon cables. Avoid touching these components directly with your fingers, as oils and dirt can affect performance.
Step-by-Step Guide to Disassembling Your Zosi Camera
Now that you’re prepared, let’s walk through the disassembly process. We’ll use a typical Zosi bullet or dome camera as a reference, but the steps are similar across most models.
Step 1: Remove the Mounting Bracket
Most Zosi cameras are attached to a wall or ceiling mount via a bracket. Start by loosening the mounting screws using your precision screwdriver. Once the bracket is free, set it aside in your parts container.
Tip: Some models have a quick-release mechanism. If yours does, simply press the release tab and slide the camera off the bracket.
Step 2: Open the Camera Housing
The main body of the camera is usually held together by several small screws. Locate these screws—they’re often hidden under rubber caps or stickers.
- Use a spudger to gently lift any rubber covers near the base or sides of the camera.
- Remove all visible screws and place them in your labeled container.
- If the housing doesn’t separate easily, check for hidden screws under labels or near the cable entry point.
Warning: Don’t force the housing apart. If it’s stuck, double-check for missed screws or clips.
Step 3: Separate the Front and Rear Casings
Once all screws are removed, gently pry the front and rear halves of the camera apart. Use the plastic spudger to work around the edges, releasing any plastic clips.
Tip: Start at the bottom or side where the cable exits, as this area often has fewer clips.
As the casing opens, you’ll see the internal components: the circuit board, lens assembly, IR LEDs, and wiring.
Step 4: Disconnect Internal Cables
Before removing any parts, disconnect the internal cables. These typically include:
- Ribbon cable connecting the lens to the main board
- Power cable from the circuit board to the housing
- IR LED wires (usually red and black)
Use tweezers or your fingers to gently lift the connectors. Most use a small latch or friction fit—don’t pull on the wires themselves.
Important: Take a photo of the cable layout before disconnecting anything. This will help during reassembly.
Step 5: Remove the Circuit Board
The main circuit board is usually secured with two or three screws. Remove these and carefully lift the board out of the housing.
Caution: The board is connected to the lens via a ribbon cable. If you’re not removing the lens, leave this connected. If you are, disconnect it now using the same gentle lifting motion.
Set the board aside on an anti-static surface. Avoid placing it on metal or carpet.
Step 6: Remove the Lens Assembly
The lens is often held in place by a retaining ring or screws. Use your screwdriver to loosen these, then carefully unscrew or lift the lens out.
Note: Some Zosi models have a fixed lens that’s not meant to be removed. If yours resists, don’t force it—consult your manual or contact Zosi support.
Once removed, inspect the lens for dirt, fogging, or damage. Clean it with a microfiber cloth if needed.
Step 7: Remove the IR Cut Filter (If Applicable)
Some Zosi cameras have an IR cut filter that slides in front of the image sensor at night. This small glass or plastic piece may be held by a clip or adhesive.
Gently lift it out using tweezers. Be careful—it’s fragile and can crack easily.
Step 8: Inspect and Clean Internal Components
With the camera fully disassembled, take the opportunity to clean and inspect each part:
- Use compressed air to blow dust from the circuit board and housing.
- Wipe the lens and IR cut filter with a lens cleaning solution and microfiber cloth.
- Check for loose solder joints, burnt components, or frayed wires.
If you find damage, note it for repair or replacement. Common issues include burnt resistors, loose connectors, or corroded contacts.
Troubleshooting Common Disassembly Issues
Even with careful preparation, you might run into problems. Here’s how to handle common issues.
Stripped Screws
If a screw head is stripped, try these fixes:
- Use a rubber band between the screwdriver and screw for extra grip.
- Apply a small drop of super glue to the screwdriver tip, press into the screw, and twist once dry (use sparingly).
- Use a screw extractor kit for severely damaged screws.
Stuck Housing
If the casing won’t open:
- Double-check for hidden screws under labels or rubber feet.
- Use a hairdryer on low heat to soften adhesive (if present).
- Gently tap the edges with a soft mallet to loosen clips.
Damaged Ribbon Cable
Ribbon cables are delicate. If one tears:
- Stop immediately—forcing it can worsen the damage.
- Look for replacement cables online (search by Zosi model number).
- Consider professional repair if soldering is required.
Lost Screws or Parts
If you lose a screw:
- Check your workspace thoroughly—use a flashlight and magnet.
- Use a spare screw of the same size if available.
- Contact Zosi support for replacement parts.
Reassembling Your Zosi Camera
Once you’ve completed your repair or cleaning, it’s time to put everything back together. Follow these steps in reverse order.
Step 1: Reinstall the Lens and IR Cut Filter
Carefully place the lens back into its housing and secure it with screws or the retaining ring. Reinsert the IR cut filter if removed.
Step 2: Reconnect the Circuit Board
Place the circuit board back into the housing and secure it with screws. Reconnect all cables, referring to your photos for correct placement.
Step 3: Reattach the Front and Rear Casings
Align the two halves of the housing and press them together. Ensure all clips snap into place. Reinsert and tighten all screws.
Step 4: Reattach the Mounting Bracket
Secure the camera back to its mounting bracket using the original screws. Make sure it’s tight and stable.
Step 5: Test the Camera
Before final installation, power on the camera and check:
- Video feed is clear and stable
- IR night vision activates in low light
- Motion detection and other features work
If everything works, you’re done! If not, double-check your connections and re-inspect internal components.
When to Seek Professional Help
While many Zosi camera issues can be fixed at home, some problems require professional assistance. Consider contacting a technician if:
- The circuit board shows visible burn marks or corrosion
- You’re uncomfortable soldering or handling tiny components
- The camera is still under warranty (disassembly may void it)
- You’ve tried troubleshooting but the issue persists
Zosi offers customer support and may provide replacement parts or repair services. Check their official website for contact information and warranty details.
Conclusion: Mastering Zosi Camera Disassembly
Disassembling a Zosi camera might seem daunting at first, but with patience and the right approach, it’s a manageable task. By following this guide, you’ve learned how to safely take apart your camera, inspect internal components, and reassemble it without damage.
Whether you’re cleaning a foggy lens, replacing a faulty sensor, or simply curious about how your camera works, this skill empowers you to maintain and repair your surveillance system independently. Remember to work slowly, document each step, and prioritize safety.
With practice, you’ll become more confident in handling not just Zosi cameras, but other electronic devices as well. So grab your tools, take your time, and enjoy the satisfaction of a job well done!
