How to Format Hard Disk in Dahua Dvr

This guide walks you through the complete process of formatting a hard disk in a Dahua DVR, from preparation to verification. You’ll learn essential tips, avoid common mistakes, and ensure your surveillance system runs smoothly.

Key Takeaways

• Step-by-step: Easy to follow instructions

How to Format Hard Disk in Dahua DVR: A Complete Step-by-Step Guide

If you’re managing a Dahua DVR (Digital Video Recorder) system, you may eventually need to format the hard disk. Whether you’re troubleshooting recording issues, replacing an old drive, or simply starting fresh, formatting is a critical maintenance task. However, doing it incorrectly can lead to data loss, system errors, or even hardware damage.

This comprehensive guide will walk you through the entire process of formatting a hard disk in a Dahua DVR—safely, efficiently, and with confidence. You’ll learn why formatting is necessary, how to prepare, the exact steps to follow, and how to avoid common pitfalls. By the end, you’ll know exactly how to format hard disk in Dahua DVR like a pro.

Why Format the Hard Disk in a Dahua DVR?

Before diving into the steps, it’s important to understand why formatting is needed. Over time, hard disks in DVRs can develop errors, fragmented data, or corrupted file systems—especially if the system has experienced power outages, improper shutdowns, or frequent write cycles.

Formatting the hard disk:

• Clears all stored video footage and system logs
• Resets the file system to a clean state
• Improves recording performance and stability
• Resolves playback or storage errors
• Prepares a new or replacement hard drive for use

Note: Formatting is irreversible. Once you format, all data on the disk will be permanently deleted. Always back up critical footage before proceeding.

When Should You Format the Hard Disk?

You don’t need to format your Dahua DVR hard disk regularly—only when necessary. Here are common scenarios when formatting is recommended:

• New hard disk installation: When adding a brand-new drive, formatting ensures it’s properly initialized for the DVR.
• Recording errors: If the DVR shows “No Disk,” “Disk Error,” or fails to record, formatting may fix the issue.
• Playback problems: Corrupted files or choppy playback can sometimes be resolved by reformatting.
• System upgrades or resets: After a firmware update or factory reset, formatting ensures compatibility.
• Suspected malware or corruption: Though rare, if you suspect system-level corruption, formatting is a safe reset.

Preparation: What You Need Before Formatting

Proper preparation minimizes risks and ensures a smooth process. Follow these steps before you begin:

1. Backup Important Footage

Since formatting erases all data, back up any critical recordings first. You can do this by:

• Connecting a USB drive or external hard disk to the DVR
• Using the DVR’s export function to copy specific clips or time ranges
• Accessing the DVR remotely via a computer or mobile app to download footage

Tip: Label your backups clearly with dates and camera names for easy retrieval.

2. Check Power Supply

Ensure the DVR is connected to a stable power source. Use a UPS (Uninterruptible Power Supply) if possible. A power failure during formatting can corrupt the hard disk or damage the DVR’s motherboard.

3. Verify Hard Disk Health

Before formatting, check if the hard disk is physically healthy. In the DVR menu:

• Go to Main Menu > Maintenance > HDD Manager
• Look for the disk status (e.g., “Normal,” “Abnormal,” “Not Formatted”)
• If the status shows “Bad Sectors” or “Error,” the disk may be failing and should be replaced

Warning: Formatting a failing disk may not fix the issue and could worsen the problem.

4. Gather Necessary Tools

You’ll need:

• The Dahua DVR unit
• A monitor connected to the DVR (HDMI or VGA)
• A mouse (USB or wireless)
• Optional: USB drive for backup

Step-by-Step Guide to Format Hard Disk in Dahua DVR

Now that you’re prepared, let’s walk through the actual formatting process. This method uses the DVR’s built-in formatting tool, which is the safest and most reliable way.

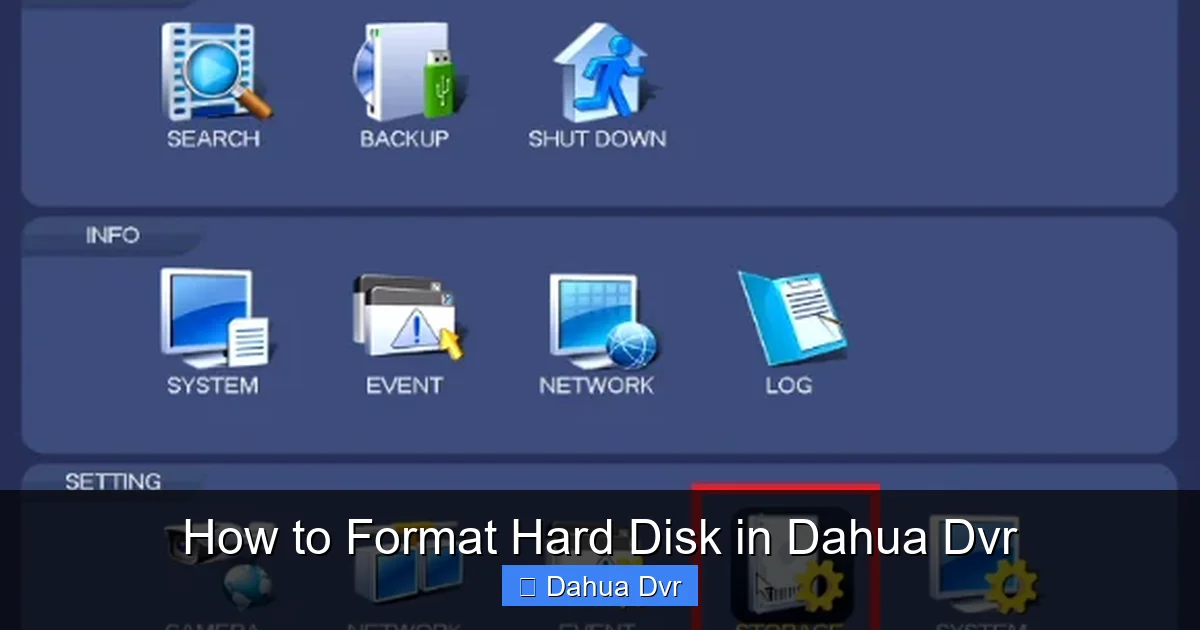

Step 1: Access the Main Menu

• Power on the DVR and wait for it to fully boot up
• Use the mouse to click the Menu button on the screen (usually in the bottom-right corner)
• Alternatively, press the Menu button on the remote control or front panel

Step 2: Navigate to HDD Manager

• In the main menu, find and click on Maintenance
• Then select HDD Manager from the submenu
• You’ll see a list of installed hard disks (e.g., HDD1, HDD2)

Step 3: Select the Disk to Format

• Click on the hard disk you want to format (usually HDD1 if only one is installed)
• Check the disk information: capacity, status, and usage
• Ensure you’re selecting the correct disk—formatting the wrong one will erase unintended data

Step 4: Initiate the Format Process

• Click the Format button (usually at the bottom of the screen)
• A warning message will appear: “Formatting will erase all data on the disk. Continue?”
• Click Yes or OK to confirm

Step 5: Wait for Formatting to Complete

• The DVR will begin formatting the disk. A progress bar will show the status
• This process can take anywhere from 30 minutes to several hours, depending on disk size (e.g., 1TB may take 1–2 hours, 4TB may take 4–6 hours)
• Do not power off the DVR or disconnect the hard disk during this time

Step 6: Verify the Format

• Once complete, the disk status should change to “Normal” or “Formatted”
• You may see a message: “Format completed successfully”
• Click OK to close the message

Step 7: Exit and Reboot (Optional)

• Close the HDD Manager and return to the main screen
• For best results, restart the DVR by going to Main Menu > Shutdown > Reboot
• This ensures the system recognizes the newly formatted disk properly

Post-Format Setup: What to Do Next

After formatting, your DVR is essentially “reset” in terms of storage. You’ll need to reconfigure certain settings to resume normal operation.

1. Set Up Recording Schedules

• Go to Main Menu > Storage > Schedule
• Choose the recording type: Continuous, Motion Detection, or Alarm-triggered
• Set the schedule for each camera (e.g., 24/7, business hours only)
• Save the settings

2. Enable Motion Detection (If Used)

• Navigate to Main Menu > Camera > Motion Detection
• Select the camera(s) you want to configure
• Draw detection zones and adjust sensitivity
• Link motion events to recording and alerts

3. Check Disk Usage and Health

• Return to HDD Manager to confirm the disk is being used
• Monitor the “Used Space” and “Free Space” indicators
• Ensure the system is writing new recordings

4. Test Playback

• Record a short test clip (e.g., wave at a camera)
• Go to Playback mode and verify the footage plays smoothly
• This confirms the disk is functioning correctly

Troubleshooting Common Formatting Issues

Even with careful preparation, issues can arise. Here’s how to handle the most common problems.

Issue 1: “Format Failed” or “Format Error”

• Cause: Corrupted file system, bad sectors, or incompatible disk
• Solution: Try formatting again. If it fails repeatedly, the disk may be faulty. Replace it with a Dahua-recommended hard drive.

Issue 2: DVR Doesn’t Recognize the Disk After Format

• Cause: Loose connection or incompatible file system
• Solution: Power off the DVR, reseat the hard disk, and power back on. If still not detected, try formatting again.

Issue 3: Slow Formatting or Freezing

• Cause: Large disk size, poor disk health, or system overload
• Solution: Be patient—large disks take time. Avoid using the DVR for other tasks during formatting.

Issue 4: Power Interruption During Format

• Cause: Sudden power loss
• Solution: Reconnect power and restart the DVR. The disk may be corrupted. Reformat if necessary.

Issue 5: “No Disk” Error After Format

• Cause: Disk not properly seated or damaged
• Solution: Open the DVR (if user-accessible), check SATA and power cables, and reinsert the disk.

Best Practices for Hard Disk Maintenance in Dahua DVRs

To avoid frequent formatting and extend the life of your hard disk, follow these best practices:

1. Use Surveillance-Grade Hard Drives

Not all hard drives are created equal. Use drives specifically designed for 24/7 surveillance, such as:

• Seagate SkyHawk
• Western Digital Purple
• Toshiba S300

These drives are built to handle constant writing and have better error recovery.

2. Perform Regular Health Checks

• Monthly, check the HDD status in HDD Manager
• Look for warnings like “Bad Sectors” or “Over Temperature”
• Replace the disk at the first sign of failure

3. Avoid Frequent Power Cycling

Turning the DVR on and off frequently can stress the hard disk. Use sleep mode or scheduled power management instead.

4. Keep the DVR Cool and Ventilated

Overheating is a major cause of hard disk failure. Ensure the DVR is in a well-ventilated area, away from direct sunlight or heat sources.

5. Update Firmware Regularly

Dahua releases firmware updates that improve stability and compatibility. Check for updates every 3–6 months via the Maintenance > Upgrade menu.

Advanced Tips for Power Users

If you’re managing multiple DVRs or a large surveillance system, consider these advanced strategies:

1. Use RAID for Redundancy (If Supported)

Some high-end Dahua DVRs support RAID 1 (mirroring). This duplicates data across two disks, so if one fails, the other keeps recording.

2. Schedule Automatic Backups

Use Dahua’s Smart PSS software or mobile app to automatically back up footage to a network drive or cloud storage.

3. Monitor Disk Usage Trends

Track how much storage is used per day. This helps you estimate how long footage will be retained and when to expand storage.

4. Label and Document Your Setup

Keep a log of disk models, installation dates, and formatting history. This simplifies troubleshooting and replacements.

Conclusion

Formatting the hard disk in your Dahua DVR is a straightforward process when done correctly. By following this guide, you’ve learned how to safely prepare, execute, and verify the formatting process. You now know how to avoid common mistakes, troubleshoot issues, and maintain your system for long-term reliability.

Remember: always back up your data first, use the DVR’s built-in tools, and never interrupt the process. With proper care, your Dahua DVR will continue to deliver high-quality surveillance footage for years to come.

Whether you’re a home user or a professional installer, mastering this skill ensures your security system remains efficient and dependable. So the next time you see a “Disk Error” message, you’ll know exactly what to do—format with confidence.
