How to Format Hdd in Dahua Dvr

This guide walks you through the complete process of formatting an HDD in a Dahua DVR system. You’ll learn why formatting is necessary, how to do it safely, and how to avoid common mistakes. Whether you’re setting up a new system or troubleshooting storage issues, this guide ensures your DVR runs smoothly.

Key Takeaways

• Formatting prepares your HDD for use: It erases old data and sets up the file system so your Dahua DVR can store video recordings efficiently.
• Always back up data first: Formatting deletes all information on the hard drive, so save any important footage before starting.
• Use the DVR’s built-in formatting tool: Avoid using a computer to format the drive—Dahua DVRs require a specific file system (like XFS) that only the device can create.
• Choose the right HDD: Use surveillance-rated drives (e.g., WD Purple, Seagate SkyHawk) for better performance and longevity in 24/7 recording environments.
• Check HDD health regularly: Monitor drive status in the DVR menu to prevent failures and ensure continuous recording.
• Format during low-activity times: The process can take 30 minutes to several hours, depending on drive size, so plan accordingly.
• Troubleshoot common issues: If the DVR doesn’t detect the HDD or formatting fails, check connections, power, and compatibility.

How to Format HDD in Dahua DVR: A Complete Step-by-Step Guide

Setting up a Dahua DVR for the first time—or replacing an old hard drive—can feel overwhelming if you’re not familiar with the process. One of the most important steps is formatting the HDD (Hard Disk Drive). This isn’t just about making space; it’s about preparing the drive so your DVR can record, store, and retrieve video footage reliably.

In this guide, you’ll learn exactly how to format HDD in Dahua DVR systems. We’ll cover why formatting is necessary, how to do it safely, what tools you need, and how to troubleshoot common problems. Whether you’re a security technician, a small business owner, or a home user, this guide will help you get your surveillance system up and running smoothly.

By the end, you’ll know how to format your HDD correctly, avoid data loss, and keep your DVR performing at its best.

Why Formatting the HDD Is Important

Before diving into the steps, it’s important to understand why formatting is such a critical step.

When you install a new hard drive—or reuse an old one—your Dahua DVR needs to recognize it and set it up properly. Formatting does three key things:

• Erases all existing data: This ensures no corrupted files or incompatible formats interfere with your DVR.
• Creates a compatible file system: Dahua DVRs typically use the XFS file system, which is optimized for continuous video recording and fast data access.
• Sets up storage partitions: The DVR organizes the drive into logical sections for recordings, logs, and system data.

Without formatting, your DVR might not detect the HDD, show errors, or fail to record video. Even if the drive appears to work at first, skipping this step can lead to crashes, lost footage, or premature drive failure.

Think of formatting like preparing a blank notebook before writing in it. You wouldn’t start writing on random pages—you’d organize it first. The same goes for your DVR’s storage.

What You’ll Need Before You Start

Before you begin formatting, make sure you have the following:

• A Dahua DVR with a compatible HDD installed: The drive should be properly seated in the drive bay and connected to both power and data cables.
• Access to the DVR’s user interface: This can be through a monitor connected directly to the DVR, or remotely via a computer or smartphone using Dahua’s SmartPSS or DMSS app.
• A mouse or remote control: Most Dahua DVRs require a pointing device to navigate the menu.
• Stable power supply: Avoid formatting during power outages or unstable electricity—this can corrupt the drive.
• Backup of important footage (if applicable): If you’re reformatting an existing drive, save any critical recordings to an external drive or cloud storage first.

Pro tip: Always use a surveillance-rated hard drive. Regular desktop drives aren’t built for 24/7 operation and may fail quickly under constant use. Look for drives labeled for surveillance use, such as WD Purple, Seagate SkyHawk, or Toshiba S300.

Step-by-Step Guide to Format HDD in Dahua DVR

Now that you’re prepared, let’s walk through the actual formatting process. We’ll cover both local (on-screen) and remote (via software) methods.

Method 1: Formatting via the DVR’s On-Screen Menu (Local)

This is the most common and reliable way to format your HDD. Follow these steps:

Step 1: Power On and Access the Main Menu

Turn on your Dahua DVR and connect it to a monitor using an HDMI or VGA cable. Wait for the system to boot up completely. You should see the live view of your cameras.

Once the system is ready, right-click anywhere on the screen (or press the Menu button on your remote) to open the main menu.

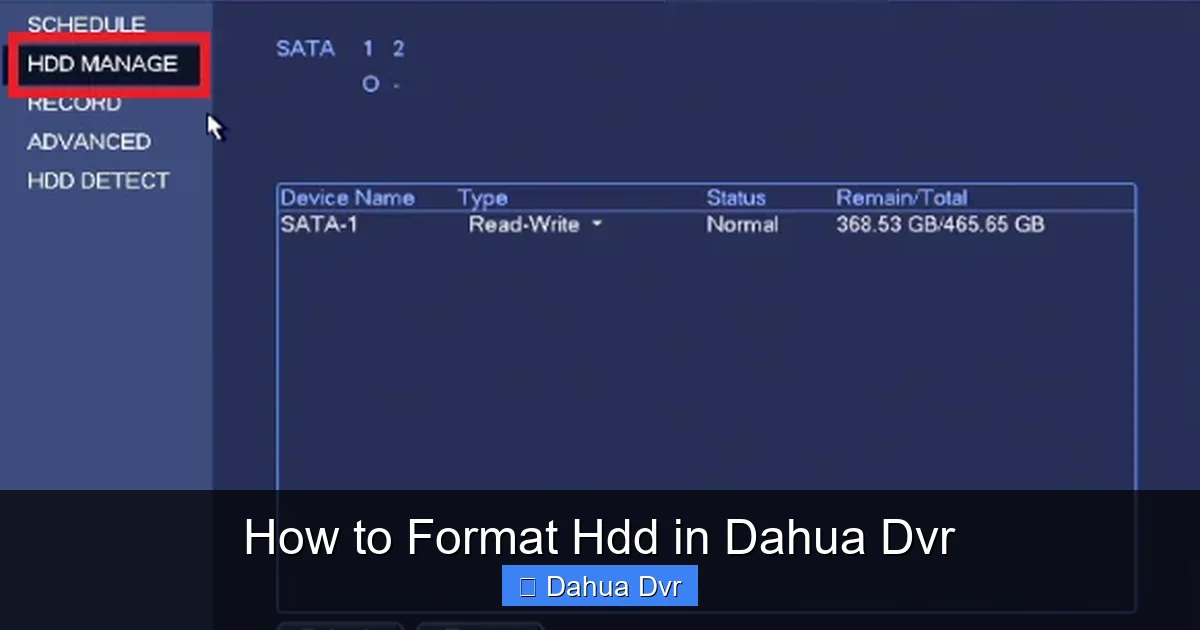

Step 2: Navigate to Storage Settings

In the main menu, look for an option labeled Storage, Device Manager, or HDD Management. The exact name may vary slightly depending on your DVR model and firmware version.

Click on it to enter the storage configuration section.

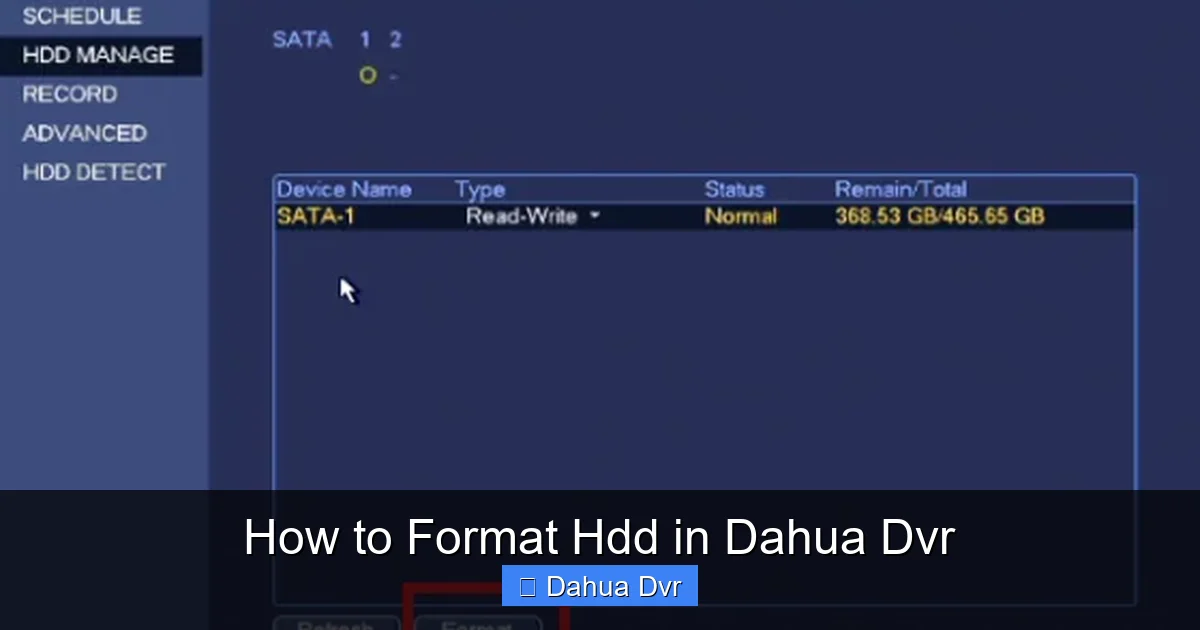

Step 3: Select the Hard Drive

You’ll see a list of detected storage devices. Most systems will show one internal HDD, but if you have multiple drives, make sure you select the correct one.

Look for details like drive capacity, model, and current status (e.g., “Normal,” “Not Formatted,” or “Error”).

If the drive shows as “Not Formatted,” that’s your cue—it’s ready to be formatted.

Step 4: Start the Formatting Process

Click on the drive you want to format, then look for a button or option labeled Format, Initialize, or Format HDD.

A warning message will appear, stating that all data on the drive will be erased. This is your final chance to back up any important footage.

Confirm the action by clicking OK or Yes.

Step 5: Wait for Formatting to Complete

The DVR will now begin formatting the drive. This process can take anywhere from 30 minutes to several hours, depending on the size of the HDD.

For example:

• A 1TB drive may take 30–60 minutes.
• A 4TB drive could take 2–4 hours.
• Larger drives (8TB+) may take 6+ hours.

During this time, do not power off the DVR or disconnect the drive. Interrupting the process can corrupt the file system and damage the drive.

You’ll see a progress bar or status message on the screen. Once it reaches 100%, the drive will be ready.

Step 6: Verify the Format

After formatting, return to the storage menu and check the drive status. It should now show as “Normal” or “Formatted.”

You can also check the available storage space and confirm that the DVR is ready to record.

Method 2: Formatting Remotely Using Dahua Software

If you can’t access the DVR directly, you can format the HDD using Dahua’s remote software. This is useful for systems installed in remote locations.

Step 1: Install and Open Dahua SmartPSS or DMSS

Download and install SmartPSS (for Windows) or DMSS (for mobile devices) from Dahua’s official website.

Launch the software and log in using your DVR’s IP address, username, and password.

Step 2: Connect to Your DVR

Add your DVR to the software by entering its network details. Once connected, you’ll see a list of cameras and system options.

Step 3: Access Device Management

In SmartPSS, go to Device Management > Device List, then right-click your DVR and select Remote Configuration.

In DMSS, tap the gear icon next to your device to open settings.

Step 4: Navigate to Storage Settings

Look for a section called Storage, HDD, or Device Maintenance.

Select the hard drive you want to format.

Step 5: Format the Drive

Click the Format button and confirm the action when prompted.

The software will send the command to the DVR, and the formatting process will begin. You’ll see a progress indicator in the software.

Step 6: Confirm Completion

Once done, check the drive status in the software. It should show as healthy and ready for recording.

Note: Remote formatting may be slower than local formatting due to network latency. Ensure a stable internet connection.

Tips for a Smooth Formatting Experience

To make the process as smooth as possible, keep these tips in mind:

• Format during off-peak hours: Since formatting can take hours, do it when the system isn’t actively recording important events.
• Use a UPS (Uninterruptible Power Supply): This protects against power outages that could interrupt formatting and damage the drive.
• Don’t skip the format: Even if the DVR seems to recognize the drive, always format it for optimal performance.
• Update your DVR firmware: Older firmware may have bugs that affect storage. Check Dahua’s website for updates.
• Label your drives: If you have multiple HDDs, label them to avoid formatting the wrong one.

Troubleshooting Common Formatting Issues

Sometimes, things don’t go as planned. Here’s how to fix the most common problems.

Issue 1: DVR Doesn’t Detect the HDD

If your DVR doesn’t show the hard drive in the menu, try these steps:

• Check physical connections: Make sure the SATA data and power cables are securely plugged in.
• Reseat the drive: Power off the DVR, remove the HDD, and reinsert it firmly.
• Test the drive in another DVR: This helps determine if the issue is with the drive or the DVR.
• Try a different SATA port: Some DVRs have multiple ports—try switching to another one.

Issue 2: Formatting Fails or Gets Stuck

If the formatting process stops or shows an error:

• Restart the DVR: Power it off, wait 30 seconds, then turn it back on and try again.
• Check drive health: Use a PC to run a diagnostic tool (like CrystalDiskInfo) to see if the drive is failing.
• Try a different drive: If possible, test with another known-good HDD to rule out hardware issues.
• Update firmware: Outdated firmware can cause compatibility problems.

Issue 3: Drive Shows as “Error” or “Abnormal”

This usually means the drive is corrupted or incompatible.

• Reformat the drive: Sometimes a second attempt works.
• Use a surveillance-rated drive: Avoid using old or consumer-grade drives.
• Check for bad sectors: Use a PC tool to scan the drive before installing it in the DVR.

Issue 4: DVR Records but Files Are Corrupted

If recordings are choppy or unplayable after formatting:

• Ensure the drive is properly formatted: Re-format if necessary.
• Check recording settings: High resolution or frame rates may overload a slow drive.
• Reduce the number of cameras: Too many streams can overwhelm the system.

Best Practices for HDD Maintenance

Formatting is just the first step. To keep your DVR running smoothly, follow these maintenance tips:

• Monitor drive health: Check the HDD status in the DVR menu weekly. Look for warnings like “SMART Error” or “Low Space.”
• Enable overwrite mode: Set the DVR to automatically delete old footage when the drive is full. This prevents recording stops.
• Schedule regular backups: Save important footage to an external drive or cloud storage.
• Keep the DVR cool: Ensure proper ventilation to prevent overheating, which can shorten drive life.
• Replace drives every 3–5 years: Even surveillance drives wear out over time.

Conclusion

Formatting the HDD in your Dahua DVR is a simple but essential task that ensures reliable video recording and system stability. By following the steps in this guide, you can safely prepare your hard drive, avoid common pitfalls, and keep your surveillance system running smoothly.

Remember: always back up data before formatting, use the DVR’s built-in tool (not a computer), and choose a surveillance-rated drive for best results. With proper setup and maintenance, your Dahua DVR will deliver clear, uninterrupted footage for years to come.

Whether you’re setting up a new system or troubleshooting an old one, this guide gives you everything you need to format your HDD with confidence.
