Powering an IP camera is essential for continuous operation and high-quality video recording. Whether you’re using Poe (Power over Ethernet), a DC adapter, or a battery, this guide walks you through every step. You’ll learn the best power method for your setup, how to wire it safely, and what to do if it doesn’t work.
Quick Answers to Common Questions
Can I use any USB cable to power my IP camera?
Only if your camera explicitly supports USB power (like some budget models). Most IP cameras require specific DC jacks. Using the wrong cable can cause poor performance or damage.
Do all IP cameras support PoE?
Nope! Only PoE-enabled models (often marked “PoE+” or “IEEE 802.3af/at”) can draw power through Ethernet. Others need a separate power adapter.
How far can PoE cables run?
Standard PoE maxes out at 100 meters (328 feet) over Cat5e/Cat6. For longer distances, use PoE extenders or fiber converters.
Will a 12V adapter work with a 24V camera?
No—it’s like giving someone too little water. Underpowered cameras won’t work or may shut down. Always match voltage exactly.
Can I daisy-chain multiple cameras on one power line?
Yes, but only if the total wattage stays under your adapter’s limit. A 12V 2A adapter powers two 12V 1A cameras, but not three.
How to Give Power to IP Camera: Complete Step-by-Step Guide
Setting up an IP camera is exciting—you’re taking control of your home or business security. But before you enjoy HD footage on your phone, you need one critical step: powering the camera properly. Without reliable power, even the smartest camera goes dark in minutes.
This guide will walk you through every way to power an IP camera—whether you’re using Power over Ethernet (PoE), a standard DC adapter, or even a battery backup. You’ll learn how to wire it safely, avoid common mistakes, and ensure your camera runs smoothly 24/7. Let’s get started!
What Is an IP Camera and Why Does It Need Power?
An IP camera, or Internet Protocol camera, captures video and sends it over a network—like your Wi-Fi or Ethernet. Unlike older analog cameras, IP cameras process images digitally and often include features like night vision, motion detection, and cloud storage.
But all that intelligence needs electricity. The camera draws power to run its sensor, processor, Wi-Fi module, and sometimes heaters or fans. If the power drops, so does your security feed. That’s why choosing the right power method matters.
Step 1: Identify Your IP Camera’s Power Requirements
Before plugging anything in, check your camera’s manual or label. You’ll find two key specs:

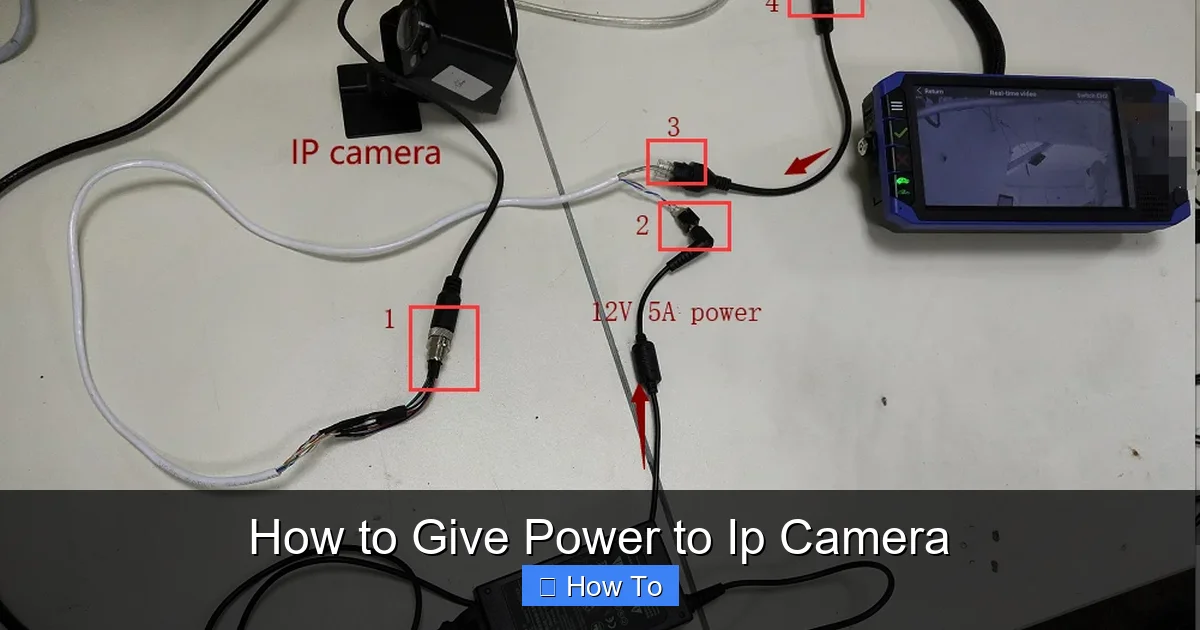

Visual guide about How to Give Power to Ip Camera
Image source: lh3.googleusercontent.com
- Voltage (V): Most IP cameras use 12 volts (V) or 24 volts (V).
- Current (A): Measured in amps—usually 0.5A to 2A depending on features.
For example, a typical dome IP camera might say “DC 12V 1A” on the back. Multiply voltage by current (12 × 1 = 12 watts) to get total wattage. Always match or exceed these values when selecting a power supply.
Tip: Look for the Label
If you can’t find the label, search online using your camera’s model number. Manufacturers like Hikvision, Dahua, or Reolink list power specs clearly on their websites.
Step 2: Choose the Best Power Method for Your Setup
There are three main ways to power an IP camera. Each has pros and cons depending on where you install it.
Option 1: Power over Ethernet (PoE)
PoE is the most popular method because it combines power and data in one cable. Here’s how it works:
- A PoE switch or injector sends both electricity and network signal through an Ethernet cable.
- The camera receives power directly from the cable—no extra adapter needed.
- Perfect for indoor or outdoor installations near a network rack.
Pros: Clean wiring, fewer adapters, built-in surge protection in many switches.
Cons: Requires a PoE-compatible camera and switch/injector.
Option 2: DC Adapter (Wall Plug)
This is the classic method: plug the camera into a power outlet using a DC adapter.
- The adapter converts household AC power (120V or 230V) to low-voltage DC (e.g., 12V).
- Cables run from the wall to the camera via conduit or cable raceways.
- Common for standalone cameras not near a network port.
Pros: Simple, cheap, works anywhere with an outlet.
Cons: More cables, risk of tripping, harder to hide outdoors.
Option 3: Battery or Solar Power
For remote locations without outlets, consider battery or solar kits.
- Battery-powered IP cameras (like some Wyze or Reolink models) last days or weeks on a charge.
- Solar panels recharge batteries during the day—ideal for farms, cabins, or off-grid sites.
Pros: No wiring, eco-friendly, great for hard-to-reach spots.
Cons: Limited runtime, weather dependency, higher upfront cost.
Step 3: Gather the Right Tools and Equipment
Whichever method you choose, gather these items first:
- IP camera (with mounting bracket)
- Power supply:
- PoE injector or switch (if using PoE)
- 12V/24V DC adapter (if using wall plug)
- Compatible battery pack or solar charger (for off-grid)
- Cables:
- Ethernet cable (Cat5e or Cat6 for PoE)
- DC power cable (2-core, 18–22 AWG)
- Conduit or zip ties for hiding wires
- Tools: Screwdriver, drill, wire strippers, electrical tape
- Safety gear: Gloves, goggles
Important Safety Note
Never work on live circuits unless trained. Turn off breakers when installing wall-mounted adapters. Outdoor setups require waterproof enclosures and GFCI outlets.
Step 4: Install the Camera and Run Cables
Start by mounting the camera securely—on a wall, ceiling, or pole. Drill holes for screws or bolts, ensuring the angle gives full coverage of your target area.
Running Wiring Safely
- Indoor: Use cable clips to attach wires along baseboards or inside walls (if accessible).
- Outdoor: Bury cables underground using conduit, or run them through PVC pipes above ground. Avoid sharp bends—minimum radius is usually 4× cable diameter.
- Protect connectors: Seal Ethernet and power plugs with silicone gel or heat shrink tubing.
Keep power and data cables at least 6 inches apart to reduce interference.
Step 5: Connect Power Based on Your Chosen Method
If Using PoE:
- Connect one end of the Ethernet cable to your router or PoE switch.
- Run the cable to the camera location.
- Plug the other end into the camera’s RJ45 port.
- The camera should light up within 30 seconds.
Note: Not all cameras support PoE. Check the manual—some need a separate power brick even if connected via Ethernet.
If Using DC Adapter:
- Strip about ½ inch of insulation from the power cable ends.
- Twist red (+) wire to positive terminal, black (-) to negative.
- Secure with solder or crimp connectors, then wrap with electrical tape.
- Plug the adapter into a grounded outlet nearby.
- Connect the other end to the camera’s DC jack.
Test by turning on the adapter—the camera LED should glow.
If Using Battery/Solar:
- Mount the camera and solar panel (if applicable) facing south (in northern hemisphere) for max sunlight.
- Connect the battery to the camera using the included cables.
- Ensure the battery is fully charged before first use.
Step 6: Test and Configure the Camera
Once powered, open your smartphone app (like Reolink, Hik-Connect, or Amcrest ViewPro). Follow the setup wizard to connect to Wi-Fi or Ethernet.
Verify These Settings:
- Video quality is clear (not pixelated)
- Night vision activates automatically in low light
- Motion alerts trigger correctly
- Cloud recording saves footage without interruption
If the camera appears offline, double-check:
- Is the power LED on?
- Are cables firmly plugged in?
- Did you assign it to the correct subnet?
Troubleshooting Common Power Issues
Camera Won’t Turn On
First, confirm the power supply matches the camera’s voltage and wattage. A 5V adapter won’t work with a 12V camera—and could damage it.
Also check:
- Is the fuse blown? (Look for a tiny glass tube on the adapter)
- Are terminals corroded or loose?
- Is the power outlet working? Try another device.
Intermittent Power or Restarting
This often means:
- Inadequate power supply (too weak)
- Poor grounding causing voltage drops
- Overheating due to enclosed space
Solution: Upgrade to a higher-wattage adapter or improve ventilation.
No Video Feed Despite Power
Even with power, the camera may fail if:
- Network cable is damaged
- Router firewall blocks traffic
- IP address conflict exists
Reset the camera and reconfigure network settings as needed.
Advanced Tips for Reliable Long-Term Operation
Use a UPS for Outage Protection
Uninterruptible Power Supplies (UPS) keep your camera running during blackouts. Choose one rated for at least 300VA—enough for most PoE setups.
Add Surge Protection
Install a whole-house surge protector or individual MOV-based protectors on outdoor lines. Lightning strikes or brownouts can fry expensive cameras.
Monitor Power Consumption
Smart plugs with energy meters let you track usage. If your camera suddenly draws more power, it might have a fault.
Conclusion: Keep Your Camera Powered, Secure, and Smart
Powering an IP camera isn’t complicated—but getting it right prevents headaches later. Whether you go with PoE for clean installs, a wall adapter for simplicity, or solar for remote areas, always match voltage, protect against surges, and test thoroughly.
Remember: a well-powered camera means reliable footage, instant alerts, and peace of mind. Take the time to wire it safely, and your surveillance system will serve you faithfully for years.
