Hooking a security camera to a floodlight combines illumination and surveillance for smarter home protection. This guide walks you through choosing compatible gear, wiring, mounting, and troubleshooting—whether you’re using a DIY kit or an all-in-one floodlight camera.
Key Takeaways
- Choose compatible hardware: Not all cameras work with all floodlights—match voltage, mounting style, and connectivity (wired vs. wireless).
- Turn off power before wiring: Always shut off the circuit breaker to avoid electrical shock when connecting wires.
- Use weatherproof components: Outdoor setups need IP65 or higher-rated enclosures and connectors to withstand rain and snow.
- Test before final mounting: Power up and check camera feed and light function before securing everything permanently.
- Optimize camera angle and light coverage: Position the camera to avoid glare from the floodlight while maximizing motion detection range.
- Secure Wi-Fi signal: For wireless models, ensure strong signal strength at the installation site to prevent dropouts.
- Follow local codes: Some areas require permits or licensed electricians for outdoor electrical work—check regulations first.
Introduction: Why Combine a Security Camera with a Floodlight?
Imagine walking up to your front door at night—only to be greeted by a bright, motion-activated floodlight that also records every movement. That’s the power of hooking a security camera to a floodlight. This combo doesn’t just scare off intruders; it gives you real-time alerts, crystal-clear footage, and peace of mind—all from one sleek unit.
Whether you’re upgrading your home security or building a DIY surveillance system, integrating a camera into your floodlight setup is smarter than running separate devices. You save space, reduce clutter, and eliminate blind spots. Plus, modern floodlight cameras often include night vision, two-way audio, and smart home integration (like Alexa or Google Assistant).
In this guide, we’ll walk you through everything you need to know—from picking the right equipment to wiring, mounting, and troubleshooting. By the end, you’ll have a fully functional, weather-resistant security system that lights up your yard and keeps an eye on it 24/7.
Step 1: Choose the Right Floodlight Camera Setup

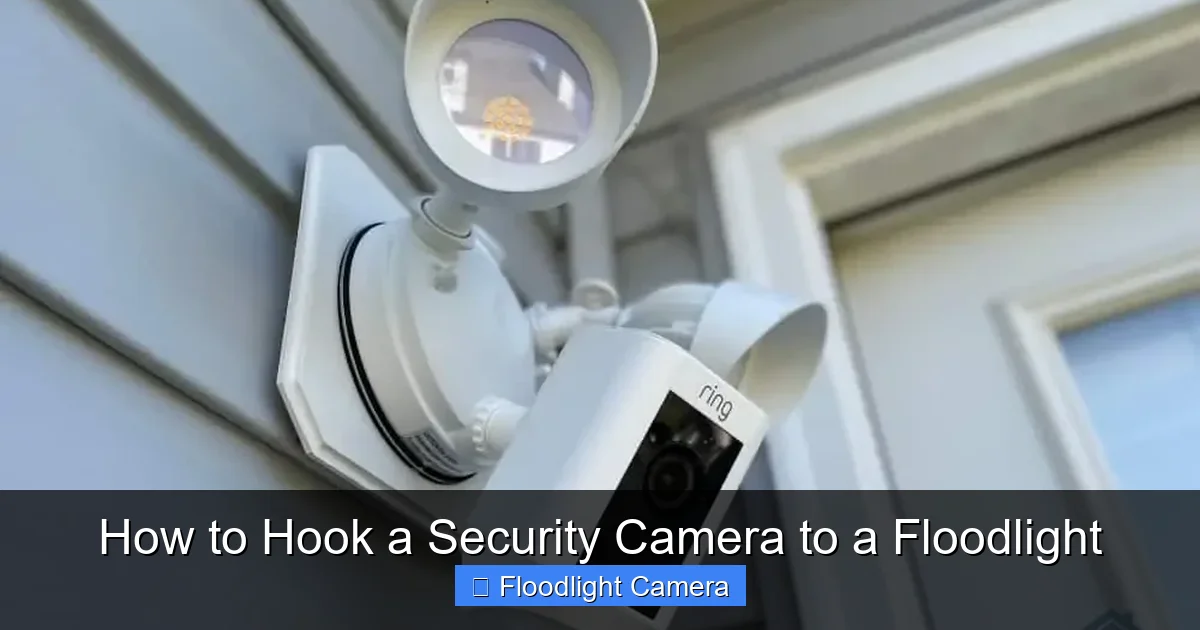

Visual guide about How to Hook a Security Camera to a Floodlight
Image source: safehome.org
Before you grab your tools, decide what kind of setup you want. There are three main options:
All-in-One Floodlight Cameras
These are the easiest to install. Brands like Ring, Arlo, and Eufy offer integrated units with built-in LEDs and cameras. Just replace your existing floodlight fixture—no separate camera mounting needed. Great for beginners or renters who want a plug-and-play solution.
DIY Camera + Floodlight Combo
If you already have a floodlight or prefer more customization, you can attach a standalone security camera (like a Wyze Cam or Reolink) to your existing fixture using brackets or mounts. This gives you flexibility but requires more planning.
Hardwired vs. Wireless
– Hardwired: Connects directly to your home’s electrical system. More reliable, no battery changes, but needs electrical know-how.
– Wireless: Runs on rechargeable batteries or solar panels. Easier to install but may need frequent charging.
Pro Tip: Check compatibility! If you’re mixing brands, ensure the camera supports external power (most do via micro-USB or DC jack) and that the floodlight’s voltage matches your camera’s input (usually 12V or 24V).
Step 2: Gather Your Tools and Materials
Here’s what you’ll need for a typical installation:
- Screwdriver set (Phillips and flathead)
- Wire strippers
- Voltage tester
- Ladder (stable and tall enough)
- Electrical tape
- Wire nuts (usually included with floodlight)
- Weatherproof junction box (if not using an all-in-one unit)
- Drill and drill bits (for mounting)
- Level
- Smartphone or tablet (for app setup)
If you’re going the DIY route, you’ll also need:
- Security camera with mounting bracket
- Camera power adapter (if not battery-powered)
- Extension cable (if needed)
- Zip ties or conduit for cable management
Safety First: Always wear rubber-soled shoes and avoid working in wet conditions. If you’re unsure about electrical work, hire a licensed electrician.
Step 3: Turn Off Power and Remove Old Fixture
Never skip this step—working on live wires is dangerous.
Locate Your Circuit Breaker
Find the breaker that controls your outdoor lighting. It’s usually labeled “Outdoor,” “Porch,” or “Floodlights.” Flip it to OFF.
Test the Wires
Use a non-contact voltage tester near the existing fixture. Touch it to the wires—if it beeps or lights up, the power is still on. Double-check your breaker or try another one.
Remove the Old Floodlight
Unscrew the mounting bracket and gently pull the fixture away from the wall. You’ll see three wires: black (hot), white (neutral), and green or bare copper (ground). Disconnect them by unscrewing the wire nuts.
Pro Tip: Take a photo of the wiring before disconnecting. It’ll help when you reconnect the new setup.
Step 4: Install the New Floodlight (or Prepare for Camera Mounting)
Now it’s time to install your new floodlight or prepare the area for your camera.
For All-in-One Floodlight Cameras
1. Attach the mounting bracket to the electrical box using the provided screws.
2. Connect the wires: black to black, white to white, ground to ground. Secure with wire nuts and wrap with electrical tape.
3. Tuck the wires neatly into the junction box.
4. Snap or screw the floodlight camera onto the bracket.
5. Turn the power back on and test the light.
For DIY Camera + Floodlight Setup
If you’re keeping your existing floodlight and adding a camera:
1. Ensure the floodlight is securely mounted and wired.
2. Choose a mounting spot nearby—ideally within 6–10 feet of the light for power and visibility.
3. Use a weatherproof camera mount or bracket. Drill pilot holes and secure with screws.
4. Route the camera’s power cable along the wall, using conduit or zip ties to keep it tidy.
Pro Tip: Avoid mounting the camera directly behind the floodlight—it can cause lens flare or wash out the image at night.
Step 5: Connect and Power the Security Camera
This step varies depending on your setup.
Wired Camera Connection
If your camera uses a DC power adapter:
1. Run the camera’s power cable to a nearby outdoor outlet or connect it to the floodlight’s wiring (if compatible).
2. For hardwired setups, splice the camera’s power wires into the floodlight’s circuit using a junction box. Match polarity: positive to positive, negative to negative.
3. Seal all connections with waterproof wire nuts and electrical tape.
Wireless Camera Setup
1. Charge the camera fully before mounting.
2. Mount the camera using the included bracket.
3. Download the manufacturer’s app (e.g., Ring, Arlo, Eufy).
4. Follow the in-app instructions to connect to Wi-Fi and pair the device.
5. Test the live feed on your phone.
Pro Tip: Use a Wi-Fi extender if your signal is weak outdoors. A strong connection ensures smooth video streaming and timely alerts.
Step 6: Adjust Camera Angle and Light Settings
Proper positioning is key to effective surveillance.
Camera Angle
– Tilt the camera slightly downward to cover entry points (doors, driveways).
– Avoid pointing it directly at the sun or bright lights to prevent glare.
– Use the app’s live view to fine-tune the angle before tightening the mount.
Floodlight Settings
Most smart floodlights let you adjust:
– Brightness: Set to 70–100% for maximum visibility.
– Motion Sensitivity: Start medium—too high causes false alarms from leaves or pets.
– Duration: How long the light stays on after motion (15–60 seconds is typical).
– Schedule: Set the light to turn on only at night or during specific hours.
Pro Tip: Enable “Smart Alerts” in the app to reduce notifications. The camera can distinguish between people, vehicles, and animals—so you only get alerts that matter.
Step 7: Secure Cables and Weatherproof Connections
Outdoor electronics need protection from the elements.
Use Conduit or Cable Clips
Run exposed wires through PVC conduit or use adhesive cable clips to secure them to the wall. This prevents tripping hazards and protects against rodents.
Seal All Junctions
Apply silicone sealant around wire entry points and use weatherproof electrical boxes. Look for IP65 or IP66 ratings—these mean the enclosure is dust-tight and protected against water jets.
Check for Gaps
Make sure the camera housing and floodlight cover fit snugly. Any gaps can let in moisture, causing corrosion or short circuits.
Pro Tip: Once a year, inspect your setup for loose wires, rust, or foggy camera lenses. Clean the lens with a microfiber cloth and check connections.
Step 8: Test and Optimize Your System
Before you call it done, run a full test.
Power On and Check Feed
Turn the breaker back on. Open the app and verify:
– Live video is clear and stable.
– Night vision works (look for infrared glow).
– Two-way audio functions (if supported).
– Motion alerts trigger correctly.
Test the Floodlight
Walk in front of the sensor. The light should turn on instantly. Adjust sensitivity if it’s too slow or too jumpy.
Review Footage
Check recorded clips for clarity, framing, and audio quality. If the image is too dark or washed out, reposition the camera or adjust the light angle.
Pro Tip: Set up cloud storage or a local SD card (if supported) to save footage. Most apps offer free rolling storage for 24–48 hours, but paid plans give longer retention.
Troubleshooting Common Issues
Even the best setups can have hiccups. Here’s how to fix common problems:
Camera Won’t Connect to Wi-Fi
– Move closer to the router during setup.
– Restart your router and camera.
– Ensure you’re using 2.4GHz Wi-Fi (most outdoor cameras don’t support 5GHz).
– Reset the camera to factory settings and try again.
Floodlight Doesn’t Turn On
– Check the breaker—it may have tripped.
– Test the bulb or LED array (replace if faulty).
– Verify wire connections are tight and correct.
– Ensure the motion sensor isn’t blocked by debris or paint.
Video Quality Is Poor
– Clean the camera lens.
– Adjust the angle to avoid backlighting.
– Upgrade to a higher-resolution camera (1080p or 2K recommended).
– Improve Wi-Fi signal with an extender.
Battery Drains Too Fast (Wireless Models)
– Reduce motion sensitivity.
– Shorten recording duration.
– Enable “Person Detection” only.
– Use a solar panel charger if available.
False Alarms
– Adjust motion zones in the app to exclude trees or busy streets.
– Lower sensitivity.
– Use AI filtering (if supported) to ignore pets under 40 lbs.
Conclusion: Enjoy 24/7 Protection with Your Floodlight Camera
Hooking a security camera to a floodlight isn’t just a smart upgrade—it’s a game-changer for home security. You’ve now combined bright, motion-activated lighting with real-time surveillance, creating a deterrent that works day and night.
From choosing the right hardware to wiring, mounting, and optimizing settings, this guide covered every step to ensure a safe, reliable installation. Whether you went with an all-in-one unit or a DIY combo, your home is now better protected against intruders, package thieves, and unexpected visitors.
Remember: regular maintenance and smart settings keep your system running smoothly. Test it monthly, update firmware when available, and adjust alerts to match your lifestyle.
With your new floodlight camera in place, you can rest easy knowing your home is watched over—and lit up—whenever it matters most.
