Hooking an IP PoE security camera to a DVR may sound technical, but it’s simpler than you think when you follow the right steps. This guide walks you through everything from checking compatibility to final testing—ensuring your cameras work reliably with your DVR. Whether you’re upgrading your home security or setting up a business system, we’ve got you covered.
Quick Answers to Common Questions
Tip/Question?
Answer: Can I use any Ethernet cable for IP PoE cameras? Yes, but use Cat5e or Cat6 for best results—especially over long distances. Older Cat3 cables may cause signal loss.
Tip/Question?
Answer: Do I need a router to connect an IP camera to a DVR? Not necessarily. Many DVRs and cameras communicate directly via crossover cables or auto-MDI/MDIX, but having a basic router helps manage IP assignments.
Tip/Question?
Answer: What happens if my DVR loses power? All recorded footage remains saved as long as the hard drive is intact. However, live monitoring and alerts stop until power is restored.
Tip/Question?
Answer: How far can a PoE cable run? Up to 100 meters (328 feet) for standard PoE. Beyond that, consider mid-span extenders or fiber optics.
Tip/Question?
Answer: Can I view my camera remotely? Yes, most modern DVRs support remote access via smartphone apps or web browsers—just enable port forwarding or use P2P services like Hik-Connect.
How to Hook IP PoE Security Camera to My DVR: A Complete Step-by-Step Guide
If you’re looking to upgrade your home or business security system, you might be wondering, “how do I hook an IP PoE security camera to my DVR?” While traditional analog cameras connect directly to a DVR via coaxial cables, IP cameras require a slightly different approach—especially when using Power over Ethernet (PoE). This guide will walk you through every step, from checking equipment compatibility to testing your setup, so you can enjoy reliable, high-definition surveillance without headaches.
By the end of this article, you’ll understand not only how to connect an IP PoE camera to a DVR, but also why certain steps matter, what tools you need, and how to avoid common mistakes. Let’s get started!
Understanding IP PoE Cameras and DVRs
Before diving into the wiring, it’s important to know what makes IP PoE cameras different and how they interact with DVRs.

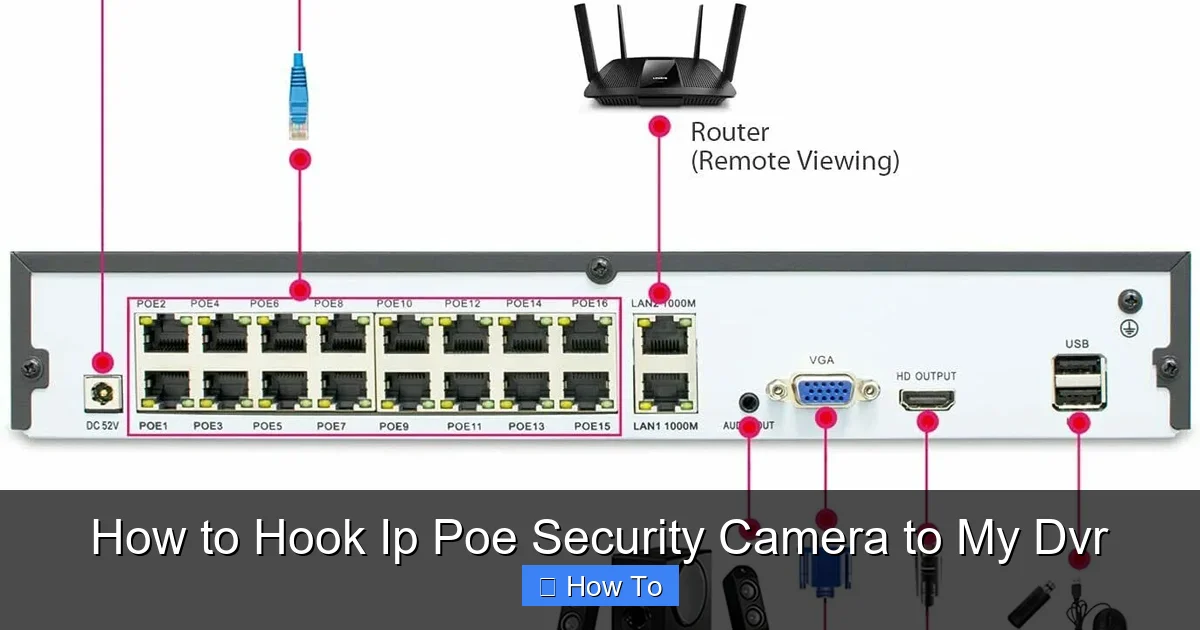

Visual guide about How to Hook Ip Poe Security Camera to My Dvr
Image source: media.loveitopcdn.com
What Is an IP PoE Camera?
An IP PoE camera is a network camera that receives both power and data through a single Ethernet cable using PoE technology. This eliminates the need for separate power adapters, making installation cleaner and more efficient. These cameras typically offer higher resolution than analog models and often include advanced features like motion detection, night vision, and two-way audio.
What Is a DVR?
A Digital Video Recorder (DVR) is a device that records video from security cameras. Traditional DVRs work best with analog cameras connected via coaxial cables. However, modern hybrid DVRs now support IP cameras, allowing you to mix analog and digital systems in one setup.
The Challenge: Bridging IP and Analog Systems
Most DVRs don’t have built-in PoE ports. So even if your camera uses PoE, the DVR itself won’t power it. That’s why you’ll need either:
- A PoE switch
- A PoE injector
- A PoE NVR (Network Video Recorder)
If you’re determined to use a DVR, you’ll need a PoE injector between the camera and the Ethernet cable going to the DVR.
Tools and Equipment You’ll Need
Gather these items before starting:
- IP PoE camera(s)
- Hybrid DVR with IP support
- Ethernet cable (Cat5e or Cat6 recommended)
- PoE injector or PoE switch
- Network cable tester (optional but helpful)
- Computer or mobile device for configuration
- Manufacturer’s software or app (like Hikvision iVMS, Dahua SADP, etc.)
Step 1: Check Your DVR Compatibility
Not all DVRs can handle IP cameras. Here’s how to check:
Look for These Indicators:
- The DVR has “IP” or “Hybrid” in its model name or manual.
- It supports ONVIF protocol (most modern brands do).
- The interface includes a section called “Add IP Camera” or “Manual Add.”
For example, models like the Hikvision DS-7204HQHI-K1 or Dahua NVR4104HS-P-4KS2 support both analog and IP inputs.
If your DVR doesn’t support IP, consider upgrading to an NVR instead. But if you’re committed to using a DVR, proceed with caution—you’ll need a bridge device.
Step 2: Choose Between PoE Injector or PoE Switch
This decision affects scalability and convenience.
Option A: PoE Injector (Best for One or Two Cameras)
A PoE injector sits between the camera and the Ethernet cable. It adds power to the data signal.
Example Setup:
- Camera → PoE Injector → Ethernet Cable → DVR
Pros: Inexpensive, simple, no extra hardware needed.
Cons: Only works for one camera unless you chain injectors (not recommended).
Option B: PoE Switch (Best for Multiple Cameras)
A PoE switch has multiple Ethernet ports, each delivering power. Ideal for expanding your system later.
Example Setup:
- Camera → PoE Switch → Ethernet Cable → DVR
Pros: Scalable, professional look, supports many cameras.
Cons: More expensive upfront.
Pro Tip: Ensure your PoE switch or injector matches the camera’s power requirements (usually 802.3af or 802.3at).
Step 3: Connect the Camera to the DVR
Now for the physical connection. Follow these steps carefully.
For PoE Injector Setup:
- Connect one end of the Ethernet cable to the IP camera.
- Plug the other end into the PoE injector’s DATA port.
- Connect a second Ethernet cable from the PoE injector’s OUTPUT port to your DVR’s LAN port.
- Plug the PoE injector into a power outlet.
For PoE Switch Setup:
- Run an Ethernet cable from the camera to any port on the PoE switch.
- Use another cable to connect the PoE switch to your DVR’s LAN port.
- Power on the PoE switch.
Note: The DVR must have at least one free LAN port. If all are used by analog channels, you may need to disable one temporarily during setup.
Step 4: Configure Network Settings
Even with correct wiring, the DVR won’t see the camera unless they’re on the same network.
Assign Static IP Addresses (Recommended)
Dynamic IPs can change, causing connection drops. Here’s how to set static IPs:
- Access your router’s admin panel (usually via browser at 192.168.1.1).
- Find the connected devices list and locate your DVR’s IP address.
- Reserve an IP address for the DVR and note it down.
- Log into the camera’s web interface (check manual for default IP, username, and password).
- Change the camera’s IP to something like 192.168.1.100 (same subnet as DVR).
- Save settings and reboot the camera.
Alternative: Use DHCP Reservation
If you prefer dynamic addressing, reserve the same IP for the camera in your router settings. This ensures it always gets the same address.
Step 5: Add the Camera to Your DVR
Now that the network is configured, tell the DVR to search for and add the camera.
Steps to Add IP Camera:
- Power on your DVR and log into its interface (via monitor or mouse).
- Go to Main Menu > Camera Management > IP Camera.
- Click “Add” or “Auto Detect.”
- If auto-detect fails, choose “Manual Add.”
- Enter the camera’s IP address, port (usually 80), username, and password.
- Select the stream type (main or sub-stream).
- Click OK and wait for detection.
If successful, you’ll see the camera feed appear on the DVR screen.
Step 6: Test and Adjust Settings
Once the camera appears, verify functionality:
- Is the video clear and stable?
- Does it record properly?
- Can you pan/tilt (if supported)?
If the image is blurry, adjust focus or angle. If there’s lag, reduce resolution in camera settings.
Step 7: Secure and Organize Cables
Clean wiring improves reliability and safety:
- Use cable clips or raceways to secure wires.
- Label cables near both ends.
- Keep Ethernet cables away from power lines to avoid interference.
Troubleshooting Common Issues
Even experts run into problems. Here’s how to solve them.
Issue 1: DVR Doesn’t Detect Camera
Solutions:
- Verify IP addresses are in the same subnet (e.g., 192.168.1.x).
- Ping the camera from a computer: Open Command Prompt and type
ping [camera_IP]. - Check firewall settings—disable temporarily to test.
- Reboot DVR and camera.
Issue 2: Poor Video Quality
Causes & Fixes:
- Low resolution: Increase bitrate or frame rate in camera settings.
- Network congestion: Limit bandwidth usage on the network.
- Faulty cable: Test with a known-good Cat6 cable.
Issue 3: Camera Not Receiving Power
Check:
- Is the PoE injector powered?
- Are you using a compatible cable?
- Does the camera light blink or stay off?
If the camera doesn’t power on, try a different PoE injector or switch port.
Advanced Tips for Better Performance
- Use VLANs: Isolate camera traffic from regular internet use for better performance.
- Update Firmware: Visit the manufacturer’s website regularly to download updates.
- Enable Motion Alerts: Reduce storage use by triggering recordings only when movement occurs.
- Use Cloud Backup (Optional): Some DVRs allow cloud storage for redundancy.
When Should You Upgrade to an NVR Instead?
If you plan to add more than 4–6 IP cameras, consider switching to an NVR. NVRs are designed specifically for IP cameras and offer better integration, including:
- Built-in PoE ports
- Simpler setup process
- Better analytics and AI features
But if you already own a hybrid DVR and only have a few cameras, sticking with it saves money.
Conclusion
Hooking an IP PoE security camera to a DVR isn’t magic—it’s just smart planning and careful execution. By confirming compatibility, using the right PoE equipment, configuring your network properly, and testing thoroughly, you can create a powerful, flexible surveillance system that grows with your needs.
Remember: the key is communication between devices. Whether through ONVIF protocols or manual IP entry, every piece must “speak” the same language. With this guide, you’re equipped to make it happen—even if you’re not a tech expert.
Ready to install? Grab your cables, fire up the DVR, and watch your security system come alive!
