How to Hook Multiple Poe Cameras Into One Nvr Port Easily

Key Takeaways

• Use a PoE switch: Connect multiple cameras to one NVR port via a PoE switch.
• Check power budgets: Ensure the switch supports total power needs of all cameras.
• Label cables clearly: Simplify troubleshooting and maintenance with organized connections.
• Verify NVR compatibility: Confirm the NVR supports multi-camera input per port.
• Test connections first: Validate each camera’s feed before final installation.
• Optimize cable runs: Reduce clutter and signal loss with shorter, direct cables.

Why This Matters / Understanding the Problem

Setting up a home or business security system shouldn’t mean running a jungle of cables or buying expensive extra hardware. If you’ve got Power over Ethernet (PoE) cameras, you’re already ahead—each camera gets power and data through a single cable. But what if your NVR (Network Video Recorder) only has a few PoE ports? That’s where the real challenge starts.

Trying to hook multiple PoE cameras into one NVR port easily sounds tricky, but it’s actually a common need. Maybe you’re expanding your camera coverage or your NVR is older with limited ports. Without the right setup, you risk overloading circuits, losing video quality, or even damaging equipment.

The good news? You don’t need a degree in networking. With the right tools and a few smart tricks, you can connect multiple PoE cameras to a single NVR port—cleanly, safely, and without breaking the bank. This guide walks you through how to hook multiple PoE cameras into one NVR port easily, step by step, so your system runs smoothly and looks professional.

We’ll cover everything from the gear you need to avoiding common pitfalls. Whether you’re a DIY homeowner or managing a small office, this method works for most modern PoE cameras and NVRs. Let’s get started!

What You Need

Before you begin, gather these tools and materials. Most are affordable and easy to find online or at electronics stores.

• PoE Switch (802.3af/at compliant) – A managed or unmanaged PoE switch with at least 4–8 ports. This is the heart of the solution. It connects to your NVR and powers multiple cameras.
• PoE Cameras – Any standard PoE IP cameras (Hikvision, Lorex, Reolink, etc.) that support 802.3af or 802.3at power standards.
• Network Cables (Cat5e or Cat6) – Use high-quality, shielded cables for longer runs (especially over 50 feet) to avoid signal loss.
• Network Video Recorder (NVR) – Your existing NVR, even if it has only 1–2 PoE ports. Make sure it supports ONVIF or is compatible with your camera brand.
• PoE Tester (optional but recommended) – Helps verify power levels and avoid overloading ports.
• Network Patch Panel or Wall Jacks (optional) – For clean, permanent installations.
• Power Strip or UPS – To safely power the PoE switch and NVR.

You don’t need a PoE injector or a router—just a PoE switch and your existing gear. The key is choosing a switch with enough power budget to handle all your cameras. For example, if you have 4 cameras drawing 5W each (20W total), pick a switch with at least 30W capacity to stay safe.

Pro Tip: Always check your camera’s power draw (in watts) on the spec sheet. Most PoE cameras use 5–12W, but some PTZ models can go up to 25W. Add them up and choose a switch with a higher total PoE budget than your cameras require.

Step-by-Step Guide to How to Hook Multiple Poe Cameras Into One Nvr Port Easily

Step 1: Choose the Right PoE Switch

Not all PoE switches are created equal. You need one that supports 802.3af (PoE) or 802.3at (PoE+) standards—most modern cameras do. Avoid “passive PoE” switches, which can damage equipment.

Look for a switch with:

• At least 4–8 PoE ports (depending on how many cameras you plan to add).
• Total PoE budget ≥ sum of all camera power needs (e.g., 50W for 4x 12W cameras).
• Auto-sensing power delivery (so it only sends power to PoE devices).
• Optional: VLAN support or QoS for advanced users (not required for basic setups).

Examples: TP-Link TL-SG108PE (8-port, 55W), Netgear GS308PP (8-port, 120W), or Ubiquiti USW-Flex (5-port, 46W).

Once you’ve picked one, plug it into a power outlet near your NVR. This keeps cable runs short and reduces clutter.

Warning: Don’t use a switch that doesn’t list its total PoE budget. Some cheap models claim “PoE” but can’t power more than one camera at a time.

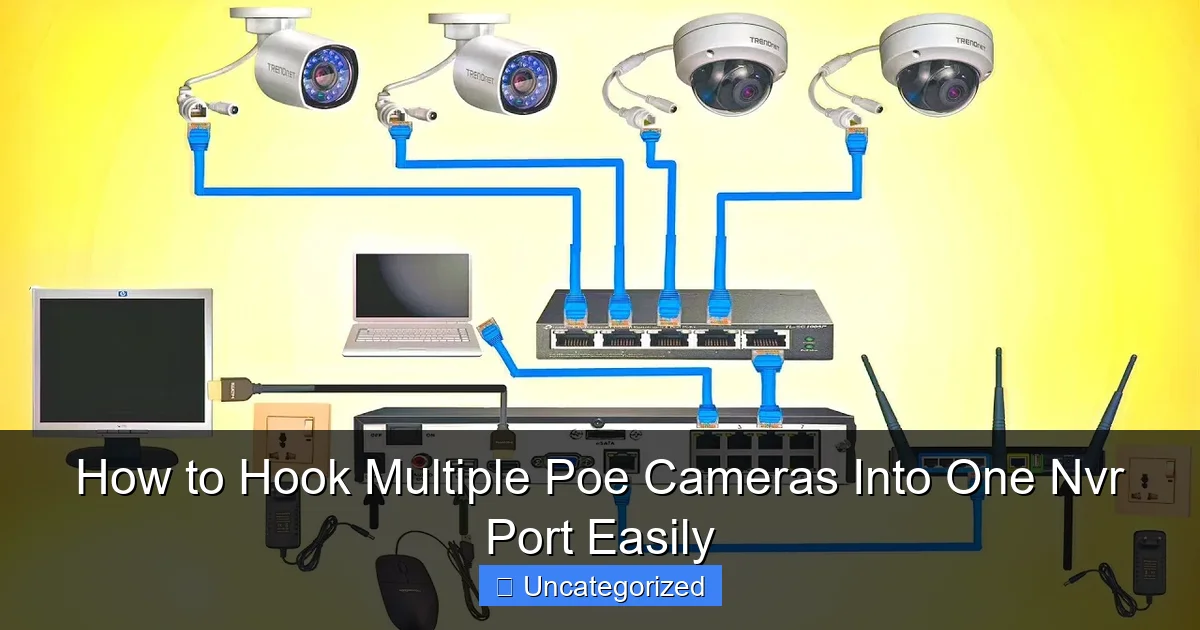

Step 2: Connect the PoE Switch to Your NVR

Now, link your NVR to the PoE switch. Use a standard Cat5e or Cat6 Ethernet cable (up to 328 feet).

• Plug one end into any non-PoE port on the switch (if available). Some switches label these “Uplink” or “LAN”.
• Plug the other end into a LAN or PoE port on your NVR. If your NVR only has PoE ports, use one of them—it will still work for data.

The switch acts as a “middleman.” The NVR sends data to the switch, and the switch powers and manages the cameras.

Pro Tip: Use the shortest cable possible between the NVR and switch to reduce latency. If you’re using a PoE port on the NVR, don’t plug a camera into it—save it for this connection.

Step 3: Connect Your PoE Cameras to the Switch

Now for the fun part—adding your cameras! Run Ethernet cables from each camera to an open PoE port on the switch.

• Plug one end into the camera’s Ethernet port.
• Plug the other end into a PoE port on the switch (usually marked with a lightning bolt icon).

Within 10–30 seconds, the camera should power up. You’ll see LED lights turn on, and the switch may show a “PoE active” indicator.

For outdoor cameras, use weatherproof cable glands or conduit to protect connections from rain and UV damage.

Warning: Don’t daisy-chain cameras (camera 1 to camera 2 to the switch). Always connect each camera directly to the switch. This ensures stable power and data.

Step 4: Power On and Check the Switch

Turn on the PoE switch (if it has a power button) and wait 1–2 minutes for it to boot up.

Check for these signs of success:

• Green or blue LED lights on the switch’s PoE ports (indicates power is being delivered).
• No red or amber error lights (which could mean overload or faulty cable).
• Cameras are powered on (listen for startup sounds or check IR LEDs).

If a camera isn’t powering on, try these fixes:

• Swap to a different PoE port on the switch.
• Test the cable with another device (like a laptop).
• Check the camera’s power requirements vs. the switch’s output.

Step 5: Access the NVR and Add Cameras

Now, log into your NVR. Most have a web interface or mobile app (e.g., Hik-Connect, Lorex Home, Reolink App).

Go to the camera setup menu—usually labeled “Add Camera,” “Device Search,” or “IP Camera.”

• Click “Auto Scan” or “Search.” The NVR should detect all cameras connected to the switch.
• Select the cameras you want to add and click “Add.”
• Wait for the status to change to “Online” or “Connected.”

If a camera doesn’t appear:

• Ensure the camera and NVR are on the same subnet (e.g., both 192.168.1.x).
• Restart the camera or NVR.
• Manually enter the camera’s IP address if needed.

Pro Tip: For brand-specific NVRs (like Hikvision), use the NVR’s built-in PoE port for one camera and the switch for others. This balances load and avoids overloading the switch.

Step 6: Configure Camera Settings (Optional)

Once cameras are added, customize them for your needs:

• Resolution: Set to 1080p or 4K (if supported).
• Motion Detection: Adjust sensitivity and zones.
• Storage: Assign recording schedules (e.g., 24/7 or motion-triggered).
• Network: Enable ONVIF if using mixed-brand cameras.

Test each camera’s live view on the NVR or app. Make sure video is clear, audio works (if equipped), and night vision activates properly.

Step 7: Secure and Organize Cables

A messy setup leads to future headaches. Use these tricks to keep things tidy:

• Bundle cables with velcro straps or cable ties.
• Label each cable (e.g., “Front Door,” “Backyard”) with tags or colored tape.
• Use wall clips or raceways to hide outdoor cables.
• Plug the switch and NVR into a surge protector or UPS.

For long-term installations, consider a network patch panel or wall-mounted rack. This makes future upgrades easier.

Pro Tips & Common Mistakes to Avoid

Even with the right gear, small mistakes can ruin your setup. Here’s how to avoid them:

• Don’t Overload the Switch: If your switch has a 30W PoE budget, don’t connect four 10W cameras (40W total). You’ll risk overheating or shutting down ports. Always leave a 20% buffer.
• Use Quality Cables: Cheap Cat5e cables can cause signal loss or power drop, especially over 100 feet. Stick to Cat6 for runs longer than 50 feet.
• Avoid Mixing Passive and Standard PoE: Some older cameras use “passive PoE” (24V or 48V without negotiation). These can fry your switch. Always check camera specs.
• Test Before Mounting: Set up cameras temporarily with zip ties before drilling holes. This lets you check angles and signal strength.
• Update Firmware: Outdated NVR or camera firmware can cause compatibility issues. Check for updates monthly.
• Use VLANs for Large Systems (Advanced): If you have 10+ cameras, segment traffic using VLANs on a managed switch. This improves performance and security.
• Don’t Skip Grounding: For outdoor setups, ground the switch and cameras to prevent lightning damage. Use a grounding kit or surge protector.

Warning: Never plug a non-PoE device (like a laptop) into a PoE port unless it supports PoE. The voltage can damage it. Use a PoE splitter or injector if needed.

Pro Tip: For future expansion, leave 1–2 free ports on the switch. This lets you add more cameras without buying a new switch.

FAQs About How to Hook Multiple Poe Cameras Into One Nvr Port Easily

Q1: Can I use a regular network switch instead of a PoE switch?

No. A regular switch can’t power PoE cameras. You’d need to add a PoE injector for each camera, which is messy and inefficient. A PoE switch is cheaper and cleaner.

Q2: What if my NVR doesn’t have extra ports?

That’s exactly why you need a PoE switch! The switch connects to one NVR port and expands it to 4–8 ports. This is the easiest way to hook multiple PoE cameras into one NVR port easily.

Q3: How far can I run the cable from the switch to the cameras?

Up to 328 feet (100 meters) with Cat5e/Cat6. Beyond that, use a fiber converter or wireless bridge. For runs under 50 feet, Cat5e is fine. For longer runs, go with Cat6.

Q4: Will this work with wireless cameras?

No. This setup is for wired PoE cameras only. Wireless cameras connect via Wi-Fi, not Ethernet. But you can mix wired and wireless cameras on the same NVR if it supports both.

Q5: Can I connect the switch to a router instead of the NVR?

Yes, but only if your NVR is on the same network. For example, connect the switch to your router, then connect the NVR to the router. The cameras will be on the same subnet. But for direct, low-latency recording, connecting the switch to the NVR is better.

Q6: What if my cameras aren’t showing up on the NVR?

First, check power and cables. Then:

• Restart the NVR and switch.
• Verify all devices are on the same network (e.g., 192.168.1.x).
• Manually add cameras using their IP addresses.
• Check firewall settings (rarely needed for local networks).

Q7: Is this safe for outdoor cameras?

Absolutely! Just use weatherproof cables (like Cat6 outdoor-rated) and protect connections with silicone sealant or conduit. The PoE switch can be indoors or in a weatherproof enclosure.

Final Thoughts

Hooking multiple PoE cameras into one NVR port doesn’t have to be a headache. With a PoE switch and a few quality cables, you can expand your security system without rewiring or buying a new NVR. This method is affordable, scalable, and works for homes, offices, and small businesses.

The key is planning: choose a switch with enough power, use good cables, and test each step. Remember, how to hook multiple PoE cameras into one NVR port easily comes down to one tool—the PoE switch—and one rule: connect each camera directly to the switch, never in a chain.

Once it’s set up, you’ll have a clean, professional-looking system that records smoothly and scales as needed. So grab that switch, plug in your cameras, and take control of your security setup today. Your future self will thank you!

Need help choosing a switch? Check our recommended models above, or leave a comment below—we’re happy to help!

“`
