How to Hook Up a 3Com Camera with PoE: A Complete Guide

Key Takeaways

• Verify PoE support: Ensure your 3Com camera model is PoE-compatible before setup.
• Use a PoE switch/injector: Connect the camera via Ethernet to a reliable PoE source.
• Check cable quality: Use Cat5e or higher for stable power and data transmission.
• Assign a static IP: Configure the camera’s IP to avoid network conflicts.
• Secure the network: Enable encryption and change default login credentials immediately.
• Test connectivity: Confirm live feed and remote access after installation.

Why This Matters / Understanding the Problem

Setting up a security camera shouldn’t require an engineering degree. Yet, many people struggle with how to hook up a 3Com camera with PoE, especially when dealing with power, data, and network configuration all in one.

Power over Ethernet (PoE) simplifies installations by delivering both power and data through a single cable. This means no extra power outlets, fewer cords, and a cleaner setup—especially useful for outdoor or hard-to-reach areas.

Whether you’re installing a 3Com PoE camera for home security, small business monitoring, or a remote site, this guide walks you through the process step by step. You’ll learn how to hook up a 3Com camera with PoE safely, efficiently, and without costly mistakes. Plus, we’ll cover troubleshooting, best practices, and what tools you actually need.

By the end, you’ll have a working 3Com PoE camera system that’s reliable, secure, and easy to manage. Let’s get started with the essentials.

What You Need

Before you begin, gather these tools and materials. Having everything ready saves time and prevents mid-installation delays.

• 3Com PoE camera (e.g., 3Com IP Camera 3C16700 or similar model)
• PoE switch or PoE injector (802.3af or 802.3at compliant)
• Cat5e or Cat6 Ethernet cable (preferably outdoor-rated if used outside)
• Router or network switch (to connect to your local network)
• Computer or smartphone (for configuration and viewing)
• PoE tester (optional but helpful) to verify power delivery
• Mounting hardware (screws, anchors, drill, screwdriver)
• Network cable crimper and tester (optional) if making custom cables
• Access to your network settings (IP address, subnet mask, gateway)

Pro tip: Not all 3Com cameras support PoE. Double-check your model’s specs. Most newer 3Com IP cameras (like the 3C167xx series) support PoE, but older analog models do not. This guide focuses on how to hook up a 3Com camera with PoE, so ensure your model is compatible.

Also, confirm your PoE source delivers the right voltage (typically 48V). Most 3Com PoE cameras use standard 802.3af (15.4W), but high-resolution or pan-tilt-zoom (PTZ) models may need 802.3at (25.5W).

Step-by-Step Guide to How to Hook Up a 3Com Camera with PoE: A Complete Guide

Step 1: Choose the Right Location and Mount the Camera

Start by picking a strategic spot. The camera should cover high-traffic areas, entry points, or blind spots—like your front door, back gate, or garage.

Look for a location within 100 meters (328 feet) of your PoE switch or injector. Beyond that, signal and power degrade.

Use the mounting bracket included with your 3Com camera. Mark the screw holes, drill pilot holes, and secure the bracket with screws and wall anchors. Attach the camera and adjust the angle. Make sure it’s not pointing directly at the sun or bright lights to avoid glare.

For outdoor setups, ensure the camera has an IP66 or higher weather rating. Seal cable entry points with waterproof tape or a junction box to protect connections.

Tip: Test the camera’s field of view by holding it in place before mounting. Use your phone’s camera to simulate the view.

Step 2: Connect the Camera to a PoE Source

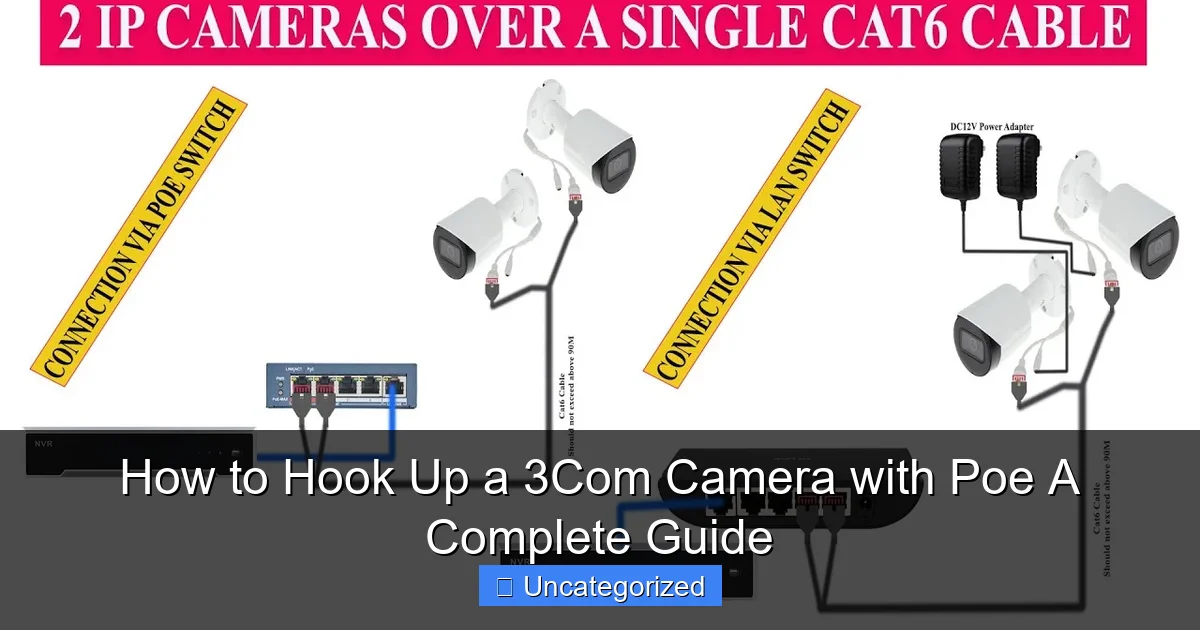

Now it’s time to deliver power and data. There are two main ways to power a 3Com PoE camera: using a PoE switch or a PoE injector.

Option A: PoE Switch (Recommended)

• Connect your router to the PoE switch using a standard Ethernet cable.
• Plug one end of a Cat5e/6 cable into a PoE-enabled port on the switch.
• Run the other end to the camera. Plug it into the camera’s Ethernet port.

Option B: PoE Injector (For Single Cameras)

• Plug the injector into a power outlet.
• Connect the router to the “Data In” port on the injector.
• Use a second cable to connect the “PoE Out” port to the camera.

Once connected, the camera should power on automatically. Look for an LED indicator (often green or red) on the camera or injector.

Warning: Never plug a standard Ethernet cable directly into a PoE port without checking compatibility. While most modern devices are safe, older non-PoE gear can be damaged. Always use PoE-ready cameras.

This step is crucial in how to hook up a 3Com camera with PoE—using the right power source ensures stable operation and avoids voltage issues.

Step 3: Connect to Your Network and Assign an IP Address

Your camera needs an IP address to communicate with your network. Most 3Com cameras use DHCP by default, meaning they grab an IP from your router automatically.

Wait 1–2 minutes after powering on. Then, access your router’s admin panel (usually via 192.168.1.1 or 192.168.0.1 in a web browser).

Log in (check your router manual for default credentials). Look for the “DHCP Client List” or “Connected Devices” section. Find your 3Com camera—it may appear as “3Com-IPCAM” or with a MAC address starting with 00:04:E2.

Note the assigned IP address. This is how you’ll access the camera’s settings.

If the camera doesn’t appear, it might be using a static IP. In that case, you’ll need to:

• Use the 3Com IP Finder tool (download from 3Com’s support site).
• Run the tool on a computer connected to the same network.
• It will scan and display all 3Com devices, including their IP addresses.

Once you have the IP, enter it into a web browser (e.g., http://192.168.1.100). The camera’s web interface will load.

Pro Tip: Assign a static IP to your camera in the web interface to prevent it from changing after reboots. This makes remote access and NVR setups much easier.

Step 4: Access the Camera’s Web Interface and Log In

With the IP address in hand, open your browser and type it in. You’ll see the 3Com camera’s login page.

Default credentials are often:

• Username: admin
• Password: admin or 123456

Check your camera’s manual for the exact default login. If you can’t log in, reset the camera (see FAQs).

Once logged in, you’ll see the dashboard. Here, you can:

• View the live feed
• Adjust video resolution and frame rate
• Set up motion detection
• Configure network settings

Change the default password immediately. Use a strong password (mix of letters, numbers, symbols) to prevent unauthorized access.

Security Alert: Never leave your camera with default credentials. Hackers scan the internet for exposed cameras with “admin/admin” logins.

Step 5: Configure Network and Streaming Settings

Go to the “Network” or “System” tab in the web interface. Here’s what to set up:

• IP Address: Set a static IP (e.g., 192.168.1.100) to avoid conflicts.
• Subnet Mask: Usually 255.255.255.0
• Gateway: Your router’s IP (e.g., 192.168.1.1)
• DNS: Use your router’s IP or Google DNS (8.8.8.8)

Next, go to the “Video” settings:

• Choose resolution (720p, 1080p, etc.) based on your storage and bandwidth.
• Set frame rate (15–30 fps). Higher = smoother video but more data.
• Enable H.264 or H.265 encoding to reduce file size.

For remote viewing, enable RTSP (Real-Time Streaming Protocol) or ONVIF (if supported). This lets you use third-party software like Blue Iris, Milestone, or mobile apps.

Save all changes. The camera may restart. Wait a minute, then refresh the page to confirm settings applied.

Step 6: Set Up Motion Detection and Alerts (Optional)

Most 3Com PoE cameras support motion detection. This is useful for getting alerts when someone enters a zone.

In the web interface, go to “Event” or “Alarm” settings. Enable “Motion Detection.”

Draw detection zones on the screen (avoid areas with moving trees or traffic). Set sensitivity (medium is usually best).

Choose what happens when motion is detected:

• Send an email alert (enter your email and SMTP settings)
• Trigger a snapshot or video clip
• Record to an SD card or network storage (NVR)

Test it by walking in front of the camera. Check if you get an alert. Adjust sensitivity if you get too many false positives.

Pro Tip: Use a scheduled motion detection (e.g., 7 PM to 7 AM) to reduce daytime false alarms from pets or wind.

Step 7: Integrate with NVR or Cloud Storage (Optional)

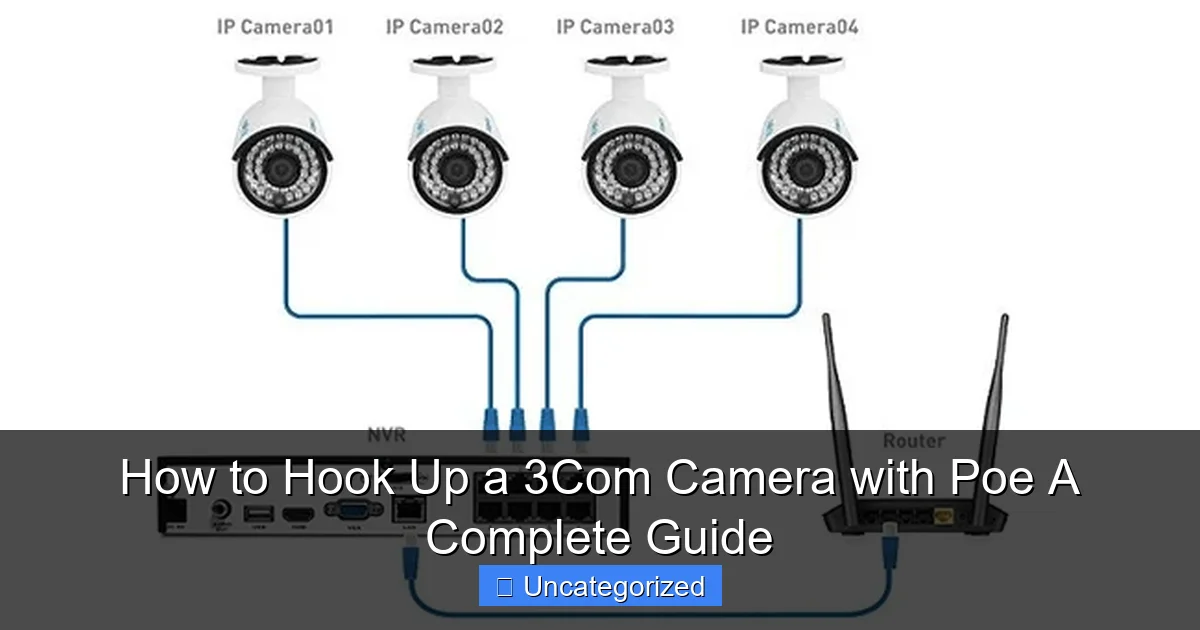

For professional monitoring, connect your 3Com camera to an NVR (Network Video Recorder) or cloud service.

Option A: NVR Setup

• Connect the NVR to the same network as the camera.
• Open the NVR’s interface and search for ONVIF or RTSP devices.
• Enter the camera’s IP, port (usually 554), and login details.
• The NVR will add the camera and start recording.

Option B: Cloud Storage

• Check if your 3Com model supports cloud (some older models don’t).
• If yes, sign up with a service like 3Com Cloud, Google Drive, or Dropbox.
• Follow the on-screen steps to link the camera.

Cloud storage is convenient but may have subscription fees. NVRs offer more control and no recurring costs (if you use local storage).

Step 8: Test and Optimize Your Setup

After everything is set, test the system:

• View the live feed on your phone, tablet, or computer.
• Check night vision (if applicable) by covering the IR sensors.
• Verify motion alerts arrive quickly.
• Ensure the camera stays online after a power cycle.

Optimize based on performance:

• If video is laggy, lower the resolution or frame rate.
• If the camera disconnects, check cable integrity and PoE voltage.
• If Wi-Fi is weak (for hybrid models), consider a wired Ethernet connection.

Run a 24-hour test to catch any issues. This final step ensures your how to hook up a 3Com camera with PoE process is complete and reliable.

Pro Tips & Common Mistakes to Avoid

Even with a solid plan, things can go wrong. Here’s how to stay ahead of the game.

Pro Tip #1: Use PoE testers to verify voltage and polarity before connecting. A bad cable or injector can fry your camera.

Pro Tip #2: Label your Ethernet cables with the camera location (e.g., “Front Door”). It saves hours of troubleshooting later.

Pro Tip #3: Update your camera’s firmware. 3Com (now part of HP/HPE) occasionally releases updates to fix bugs and improve security.

Common Mistake #1: Using a Non-PoE Switch
Many people plug the camera into a regular switch, thinking it will work. It won’t—no power, no video. Always use a PoE switch or injector.

Common Mistake #2: Long Cable Runs Without Testing
A 120-meter cable might work for data but fail to deliver enough power. Test with a PoE tester or use a midspan injector halfway.

Common Mistake #3: Ignoring Network Conflicts
If two devices have the same IP, the camera may not connect. Always assign a unique static IP.

Common Mistake #4: Poor Placement
Avoid backlighting (sun behind the camera), reflective surfaces, or tight angles. Use the camera’s field of view tool in the web interface.

Common Mistake #5: Skipping Security Settings
Leaving the camera open to the internet with weak passwords invites hackers. Use port forwarding only if needed, and always use a strong password.

By avoiding these pitfalls, your how to hook up a 3Com camera with PoE experience will be smooth and stress-free.

FAQs About How to Hook Up a 3Com Camera with PoE: A Complete Guide

Q1: Can I use a regular power adapter instead of PoE?
Yes, but you lose the benefit of single-cable installation. If your camera has a DC power port, you can use a 12V adapter. However, this defeats the purpose of PoE. Stick with PoE for cleaner setups.

Q2: What if my camera doesn’t power on?
Check these in order:

• Is the PoE switch/injector plugged in and on?
• Is the Ethernet cable damaged or loose?
• Does the cable exceed 100 meters?
• Is the camera PoE-compatible? (Check specs)
• Try a different PoE port or injector.

Q3: How do I reset my 3Com camera to factory settings?
Locate the reset button (usually a small hole on the back). Use a paperclip to press and hold it for 10–15 seconds. The camera will reboot and restore defaults. You’ll need to reconfigure it.

Q4: Can I connect the camera directly to my computer?
Yes, but only if your computer has a PoE-capable Ethernet port (rare). Otherwise, use a PoE injector between the computer and camera. Set a static IP on both devices in the same subnet (e.g., 192.168.0.100 and 192.168.0.101).

Q5: Why can’t I see the camera in my router’s client list?
It might have a static IP outside your router’s range. Use the 3Com IP Finder tool or set your computer to a matching subnet (e.g., 192.168.0.x) to scan the network.

Q6: Does 3Com support ONVIF?
Most newer 3Com IP cameras support ONVIF Profile S. Check your model’s manual. ONVIF lets you use the camera with third-party software like Synology Surveillance Station or Zoneminder.

Q7: How do I access the camera from outside my home?
Use port forwarding or a dynamic DNS (DDNS) service. Forward port 80 or 554 (RTSP) to the camera’s IP. Use a DDNS (like No-IP) if your ISP gives you a changing public IP. Never expose the admin interface—only the streaming ports.

Final Thoughts

You now know how to hook up a 3Com camera with PoE—from mounting to streaming, security to storage. This guide covers every step, tool, and troubleshooting tip you’ll need for a successful installation.

Remember: PoE isn’t just about convenience. It’s about reliability, scalability, and clean design. Whether you’re setting up one camera or ten, the process remains consistent and efficient.

Start simple. Test one camera first. Once it works, expand your system. Use static IPs, strong passwords, and regular firmware updates to keep your network safe.

And if you ever hit a snag? Revisit this guide. Bookmark it. Share it with a friend. Because knowing how to hook up a 3Com camera with PoE isn’t just a one-time task—it’s a skill that pays off every time you need security you can trust.

Now go install that camera. Your peace of mind is worth it.

“`
