Connect your CMOS bullet outdoor camera to a monitor in minutes using a simple BNC-to-HDMI converter for seamless, real-time surveillance. Ensure the camera is powered, link its coaxial output to the converter, then connect the HDMI output directly to your monitor for crisp, high-definition video. No complex setups—just plug, play, and protect your property with 2026-ready clarity.

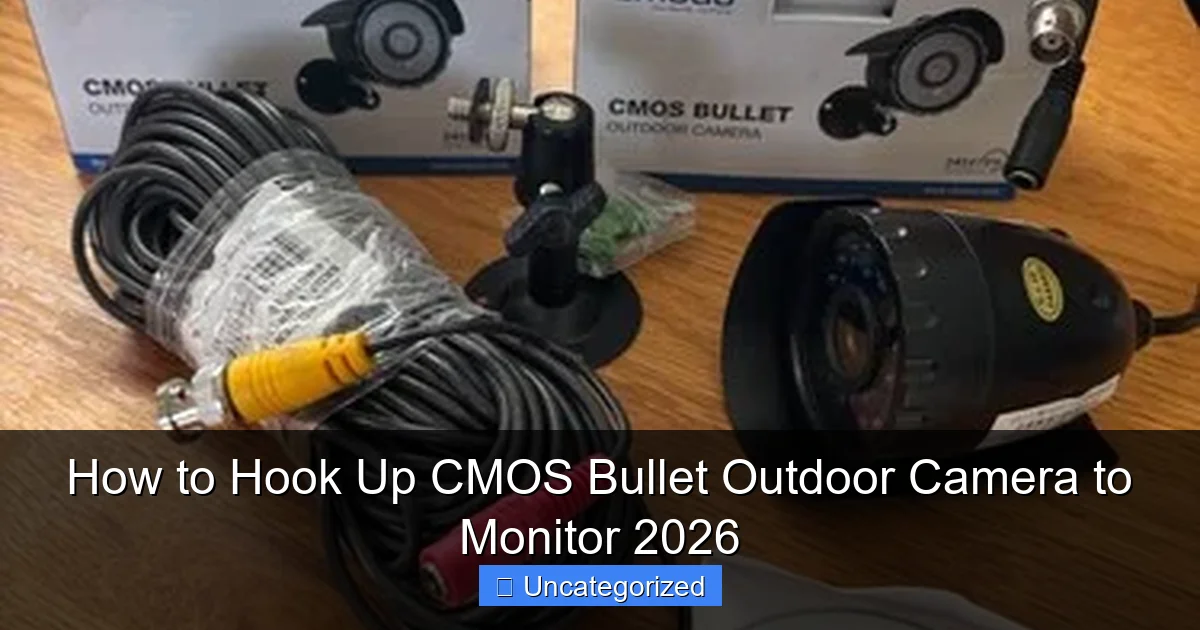

How to Hook Up CMOS Bullet Outdoor Camera to Monitor 2026

Key Takeaways

• Check compatibility first: Ensure your monitor supports BNC or HDMI input for seamless connectivity.
• Use a DVR/NVR: Most setups require one to convert camera signals for monitor display.
• Power the camera: Always connect to a stable 12V power source for uninterrupted operation.
• Secure cabling: Use weatherproof Siamese cables to protect connections from outdoor elements.
• Test signal strength: Verify video feed quality before finalizing camera placement or mounting.

Why This Matters / Understanding the Problem

Imagine this: you’ve just bought a sleek, weatherproof CMOS bullet outdoor camera to keep an eye on your front yard, driveway, or backyard. It promises 4K clarity, night vision, and motion alerts. But when you open the box, you’re hit with a wall of wires, confusing manuals, and zero idea how to hook up CMOS bullet outdoor camera to monitor 2026.

You’re not alone. Many homeowners and DIYers face this exact challenge. Unlike plug-and-play smart cameras, traditional CMOS bullet cameras often require physical connections to a monitor or DVR. Without proper setup, you might end up with no video feed, flickering images, or worse—damaged equipment.

But here’s the good news: connecting your camera to a monitor isn’t as scary as it sounds. With the right tools and a clear plan, you can get crisp, real-time surveillance footage in under an hour. Whether you’re upgrading your home security or setting up a small business system, mastering how to hook up CMOS bullet outdoor camera to monitor 2026 gives you full control over your security setup.

From choosing the right cables to troubleshooting signal loss, this guide walks you through every step—no technical degree required.

What You Need

Before you start, gather these essential tools and materials. Having everything ready saves time and avoids frustrating mid-installation trips to the hardware store.

• CMOS bullet outdoor camera (with power adapter and mounting hardware)
• Monitor (HDMI, VGA, or BNC-compatible)
• Video cable (BNC, HDMI, or VGA—check your camera and monitor specs)
• Power cable (usually 12V DC, often included with the camera)
• Power adapter or PoE injector (if using Power over Ethernet)
• Coaxial cable with BNC connectors (for analog cameras; typically RG59 or RG6)
• Ethernet cable (Cat5e or Cat6) (for IP cameras with HDMI output)
• Drill and screws (for mounting the camera)
• Cable clips or conduit (to protect outdoor wiring)
• Voltage tester (optional, but great for safety)
• Smartphone or tablet (for camera setup app, if applicable)

Pro Tip: Always check your camera’s manual to confirm whether it’s analog (BNC) or IP (Ethernet/HDMI). Mixing cable types can cause signal loss or no feed at all.

For example, if your camera is analog (common in older or budget models), you’ll need a BNC-to-HDMI converter if your monitor only has HDMI ports. IP cameras with HDMI output are simpler—just plug and play.

Now, let’s get into the nitty-gritty of how to hook up CMOS bullet outdoor camera to monitor 2026.

Step-by-Step Guide to How to Hook Up CMOS Bullet Outdoor Camera to Monitor 2026

Step 1: Choose the Right Location and Mount the Camera

Start by picking a spot with a clear view of the area you want to monitor—like a front door, garage, or side yard. The ideal height is 8 to 10 feet, high enough to avoid tampering but low enough to capture faces.

• Use a level to ensure the camera is straight.
• Mark screw holes with a pencil, then drill pilot holes.
• Secure the mounting bracket with screws (included in most kits).
• Attach the camera to the bracket and tighten the swivel joint.

Warning: Avoid placing the camera directly facing bright lights or the sun. Glare can wash out the image, especially at night with IR illumination.

For outdoor use, make sure the camera is rated IP66 or higher for weather resistance. If you’re installing near a downspout or gutter, angle it slightly downward to avoid rain buildup on the lens.

Step 2: Run the Video and Power Cables

This step is critical—especially if you’re wiring through walls or eaves. The goal is to keep cables protected and organized.

• Route the video cable (BNC or Ethernet) from the camera to the monitor location.
• Use conduit or weatherproof cable clips to secure outdoor sections.
• For indoor runs, drill small holes behind baseboards or use crown molding for a clean look.
• Run the power cable separately (don’t bundle it with video cable to reduce interference).

Pro Tip: Leave a 6–12 inch loop of cable at both ends. This gives you slack for adjustments and prevents strain on connectors.

If you’re using a PoE (Power over Ethernet) camera, you can run a single Cat6 cable for both power and video. Plug one end into the camera and the other into a PoE switch or injector connected to your monitor or NVR.

For analog cameras, use RG59 coaxial cable with BNC connectors. Strip the ends carefully and crimp BNC connectors using a compression tool (or use pre-made cables for simplicity).

Step 3: Connect the Camera to the Monitor (Analog Setup)

If your camera is analog (BNC output), follow these steps:

• Plug the BNC end of the coaxial cable into the camera’s video output.
• At the monitor end, connect the BNC cable to a BNC-to-HDMI converter (if your monitor only has HDMI).
• Connect the converter’s HDMI output to your monitor.
• Plug the camera’s power adapter into a nearby outlet or use a PoE splitter if using Ethernet.

Note: BNC-to-HDMI converters often require external power (via USB or DC plug). Make sure it’s powered before expecting a signal.

Turn on the monitor and switch to the correct HDMI input. You should see a live feed—possibly black and white if it’s night mode.

If you have a DVR or hybrid system, connect the BNC cable to the DVR’s input port instead. Then use the DVR’s HDMI output to link to the monitor.

Step 4: Connect the Camera to the Monitor (IP/HDMI Setup)

For IP cameras with HDMI output (common in newer 2026 models), the process is much simpler:

• Plug one end of an HDMI cable into the camera’s HDMI port.
• Run the HDMI cable to your monitor (use an HDMI extender or balun for long runs).
• Connect the other end to the monitor’s HDMI input.
• Power the camera using the included 12V adapter or PoE.

Pro Tip: HDMI cables lose signal quality beyond 50 feet. For longer distances, use an HDMI over Ethernet extender or switch to a network-based setup.

Once powered, the camera should boot up in 1–2 minutes. Switch your monitor to the correct HDMI input. You’ll see the camera’s live view, often with a small menu overlay for settings.

Step 5: Power Up and Test the Connection

Now it’s time to bring everything to life.

• Plug in the camera’s power supply (or PoE switch).
• Turn on the monitor.
• Check that the camera boots up (listen for a click or watch for LED indicators).
• Confirm the monitor displays a clear, stable image.

Warning: Never plug in the power while the camera is wet or during rain. Even weatherproof cameras need time to dry after installation.

If the screen is black, flickering, or shows “No Signal,” double-check:

• All cable connections are tight.
• The correct HDMI input is selected.
• The converter (if used) is powered.
• The camera is receiving power (check the power LED).

For IP cameras, you may need to access the camera’s web interface via a browser or mobile app to adjust resolution, frame rate, or network settings.

Step 6: Adjust Camera Settings for Optimal View

A live feed is great, but fine-tuning ensures you get the best footage.

• Access the camera’s on-screen display (OSD) menu by pressing a button on the cable or using the monitor’s remote.
• Adjust brightness, contrast, and sharpness to match the lighting.
• Set the IR cut filter to auto—this switches between color (day) and black & white (night).
• Enable motion detection if you want alerts (some cameras send signals to DVRs or apps).
• Rotate the camera lens to focus on key areas (e.g., front door, not the street).

Pro Tip: Use a smartphone flashlight to temporarily brighten the scene while adjusting settings. This helps you see details without waiting for daylight.

For outdoor use, enable WDR (Wide Dynamic Range) if available. It balances light and dark areas—perfect for scenes with backlighting (e.g., a dark yard with a bright street behind).

Step 7: Secure and Weatherproof All Connections

This is the final—and often overlooked—step. A loose cable or exposed connector can ruin your entire setup.

• Use weatherproof junction boxes for outdoor power and video splices.
• Wrap connections with self-fusing silicone tape or electrical tape.
• Secure cables to walls or soffits with UV-resistant clips.
• For wall penetrations, use cable grommets to prevent water leaks.

Warning: Never leave bare wires exposed. Moisture can corrode connections and cause shorts.

If you’re running cables through eaves, use flexible conduit. For underground runs, bury cables in PVC pipe at least 18 inches deep (check local codes).

Pro Tips & Common Mistakes to Avoid

Even with a perfect plan, small mistakes can derail your setup. Here are expert insights to save you time and frustration.

Pro Tip #1: Label your cables at both ends. Use colored tape or tags to identify “Front Door Cam” or “Garage Power.” This saves hours during troubleshooting.

Pro Tip #2: Test the camera and monitor indoors first. Plug everything in on a table before mounting. It’s easier to fix issues on the ground than on a ladder.

Pro Tip #3: Use a video amplifier for long cable runs (over 100 feet). It boosts the signal to prevent degradation.

Common Mistake #1: Mixing Cable Types
Don’t try to connect an HDMI camera to a BNC monitor without a converter. The signals are incompatible. Always match or convert.

Common Mistake #2: Ignoring Power Requirements
CMOS cameras need a clean 12V DC supply. Cheap or undersized power adapters can cause flickering, reboots, or permanent damage. Use the manufacturer-recommended adapter.

Common Mistake #3: Poor Cable Management
Loose, dangling cables are tripping hazards and attract pests. Use clips, conduit, or raceways to keep everything tidy and safe.

Common Mistake #4: Overlooking Grounding
In areas with lightning, install a grounding block on coaxial lines. It protects your camera and monitor from voltage surges.

Common Mistake #5: Forgetting Firmware Updates
Many IP cameras have bugs or security flaws out of the box. After setup, connect to Wi-Fi or Ethernet and update the firmware via the manufacturer’s app.

By avoiding these pitfalls, you’ll ensure your system lasts for years. Remember: how to hook up CMOS bullet outdoor camera to monitor 2026 isn’t just about wires—it’s about smart, durable installation.

FAQs About How to Hook Up CMOS Bullet Outdoor Camera to Monitor 2026

Q1: Can I connect a CMOS bullet camera directly to a TV?
Yes—if your TV has HDMI, VGA, or BNC inputs. Use the appropriate cable or converter. For HDMI TVs, an IP camera with HDMI output is the easiest option. Analog cameras need a BNC-to-HDMI converter.

Q2: How far can I run a cable from the camera to the monitor?
It depends on the cable type:

• HDMI: Up to 50 feet (use extenders for longer).
• RG59 coaxial: Up to 1,000 feet (with signal boosters).
• Cat6 Ethernet (IP): Up to 328 feet (100 meters).

Beyond these limits, signal loss or delay may occur.

Q3: Do I need a DVR to connect the camera to a monitor?
Not always. A DVR is only needed if you want to record footage or manage multiple cameras. For a single camera with live viewing, you can connect directly to a monitor—especially with IP or HDMI models.

Q4: What if my monitor shows “No Signal”?
Check these in order:

• Is the camera powered? (Look for LEDs.)
• Are all cables firmly connected?
• Is the monitor on the correct input?
• Is the converter (if used) powered?
• Try a different cable or port.

If all else fails, test the camera on another monitor.

Q5: Can I use Wi-Fi to connect the camera to the monitor?
Only if the camera supports Wi-Fi and the monitor has a built-in receiver or runs a surveillance app (e.g., via a smart TV or NVR). Most direct monitor setups use wired connections for reliability and lower latency.

Q6: How do I hide the cables when mounting on a brick wall?
Use concealed raceways or drill a small hole behind the camera and run cables through the wall to a nearby outlet. For brick, use a masonry bit and silicone sealant to waterproof the hole.

Q7: Is it safe to leave the camera on 24/7?
Yes—most CMOS bullet cameras are designed for continuous operation. Just ensure proper ventilation (don’t cover vents) and use a surge protector to guard against power spikes.

Final Thoughts

Setting up a CMOS bullet outdoor camera doesn’t have to be a headache. With the right tools, a clear plan, and a little patience, you can master how to hook up CMOS bullet outdoor camera to monitor 2026 in no time.

Start by choosing a strategic location, running cables safely, and connecting power and video correctly. Test everything indoors first, then fine-tune settings for the best image quality. Don’t forget to weatherproof connections—it’s the key to long-term reliability.

Whether you’re securing your home, monitoring a construction site, or keeping an eye on your business, a properly installed camera gives you peace of mind. And with today’s high-resolution CMOS sensors, you’ll get crystal-clear footage day or night.

So grab your tools, follow this guide, and take control of your security. Once you’ve got your camera live, consider adding more units or integrating with a smart system for full coverage. The power to protect what matters is now in your hands.

Ready to get started? Your safer, smarter home is just one installation away.
