How to Hook Up Multiple Poe Camera in One Area Easily

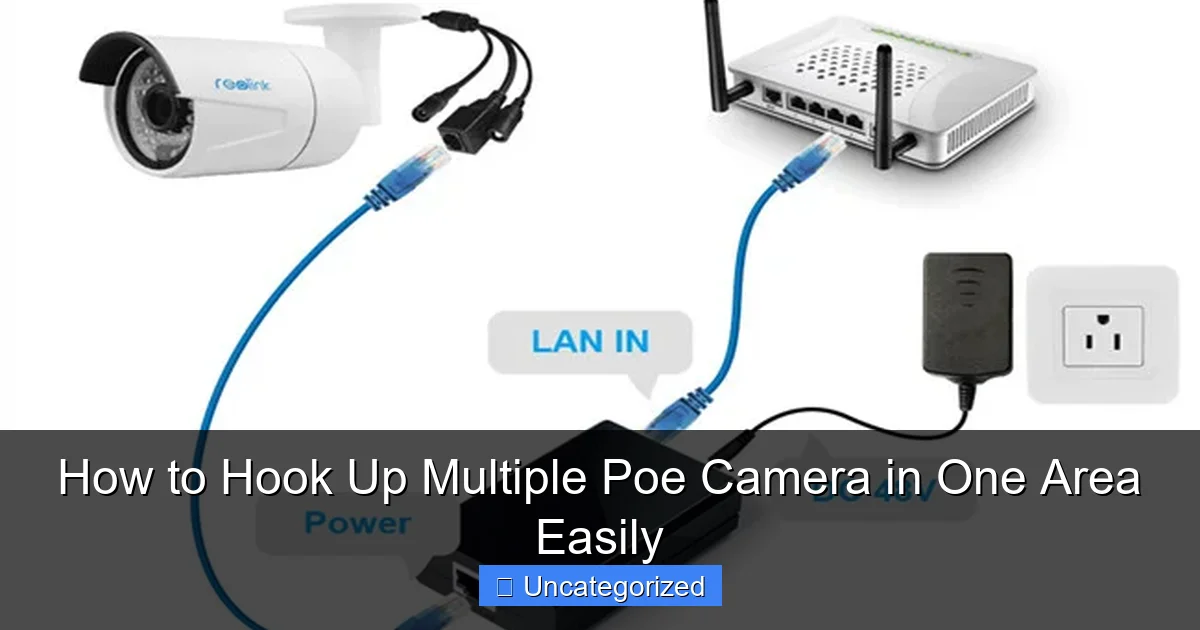

Connecting multiple PoE cameras in one area is simple and efficient using a single PoE switch or injector to power and link all devices to your network. Ensure your switch supports the total power demand and use Cat5e/Cat6 cables for reliable data and power transmission. This streamlined setup reduces clutter, saves time, and scales effortlessly for comprehensive surveillance coverage.

Key Takeaways

• Plan camera placement: Map coverage zones to avoid blind spots and optimize views.
• Use a PoE switch: Connect multiple cameras with one switch for power and data.
• Check cable limits: Keep Ethernet runs under 100m for reliable signal and power.
• Centralize the NVR: Link all cameras to one NVR for unified monitoring and storage.
• Label all cables: Simplify troubleshooting and future upgrades with clear cable identification.
• Test before finalizing: Verify camera feeds and power delivery during installation.

Why You Need Multiple PoE Cameras (And How to Set Them Up Right)

Imagine this: You’ve invested in a high-quality PoE (Power over Ethernet) camera system for your home or business, but one camera just isn’t cutting it. Maybe you’re missing blind spots, or the coverage isn’t as comprehensive as you need. This is where setting up multiple PoE cameras comes into play. Whether you’re monitoring a large warehouse, securing your sprawling property, or keeping an eye on multiple entry points, a multi-camera PoE system offers unparalleled flexibility, reliability, and scalability.

Unlike traditional analog cameras or Wi-Fi-based IP systems, PoE cameras simplify installation by combining power and data transmission over a single cable. This eliminates the need for separate power outlets and reduces clutter. However, setting up multiple PoE cameras in one area requires thoughtful planning to avoid bottlenecks, ensure consistent performance, and maintain security. In this guide, we’ll walk you through every step—from choosing the right equipment to troubleshooting common issues—so you can build a robust, high-performance surveillance system that covers every angle.

1. Understanding PoE Basics: Power, Data, and Standards

How PoE Works: The One-Cable Advantage

PoE technology delivers both electrical power and network data to devices like security cameras using a single Ethernet cable (typically Cat5e or Cat6). This dual functionality is enabled by a PoE switch or injector that sends power through the unused wires in the Ethernet cable while transmitting data through the standard data pairs. For example, a PoE camera connected to a PoE switch receives 48V DC power and a 100 Mbps or 1 Gbps data stream—all through one cable.

This setup is especially beneficial in areas where installing electrical outlets is difficult or costly, such as rooftops, parking garages, or remote corners of a warehouse. With PoE, you can place cameras exactly where you need them without worrying about power access.

PoE Standards: 802.3af, 802.3at, and 802.3bt

Not all PoE is created equal. Understanding the different PoE standards ensures you choose equipment that delivers sufficient power to all your cameras without overloading circuits.

• 802.3af (PoE): Delivers up to 15.4W of power (12.95W available at the device). Ideal for standard HD cameras without heaters or motors.
• 802.3at (PoE+): Provides up to 30W (25.5W to device). Suitable for PTZ (Pan-Tilt-Zoom) cameras, outdoor models with heaters, or cameras with IR illuminators.
• 802.3bt (PoE++): Offers up to 60W (Type 3) or 100W (Type 4). Used for advanced devices like multi-sensor cameras, thermal imaging units, or cameras with built-in speakers and analytics.

Example: If you’re installing four 10W outdoor cameras with IR lights, an 802.3af switch may suffice. But if you add a PTZ camera requiring 25W, you’ll need at least an 802.3at (PoE+) switch or a PoE++ switch for future expansion.

Power Budgeting: Why It Matters

Every PoE switch has a total power budget—the maximum wattage it can deliver across all ports. Exceeding this budget can cause cameras to reset, shut down, or perform poorly. For instance, a 16-port PoE+ switch might have a 150W total budget. If each camera draws 10W, you can safely connect up to 15 cameras. But if one PTZ camera uses 25W, your usable capacity drops to 12 cameras.

Tip: Always calculate your power needs before purchasing. Use the formula: Total Power Needed = (Number of Cameras × Average Power per Camera) + 20% Buffer.

2. Planning Your Multi-Camera Layout: Coverage, Placement, and Zones

Conducting a Site Survey

Before buying a single cable, conduct a thorough site survey. Walk the area and identify:

• Critical entry points (doors, windows, gates)
• Blind spots (corners, alleys, parking areas)
• Lighting conditions (low-light zones, glare from sunlight)
• Physical obstacles (trees, walls, signage)

Use a floor plan or satellite image to sketch camera locations. For large properties, consider dividing the area into zones (e.g., perimeter, parking lot, interior corridors) to simplify management and recording.

Camera Placement Best Practices

• Height: Mount cameras 8–10 feet above ground to avoid tampering while maintaining facial recognition.
• Angle: Aim cameras slightly downward (10–15 degrees) to capture faces and license plates.
• Overlap: Ensure 20–30% overlap between adjacent cameras to eliminate blind spots.
• Weatherproofing: For outdoor cameras, use models with IP66/67 ratings and install in sheltered locations (under eaves or canopies).

Example: A warehouse with two loading docks and a parking lot might use:

• 2x wide-angle cameras covering each dock
• 1x PTZ camera for the parking lot (allows zooming into license plates)
• 1x dome camera at the main entrance

Network Topology: Star, Daisy-Chain, or Hybrid?

The way you connect cameras to your network affects performance and scalability.

• Star Topology: Each camera connects directly to a central PoE switch. This offers the best performance and fault isolation (if one camera fails, others remain online). Ideal for small to medium installations (up to 24 cameras).
• Daisy-Chain: Cameras connect in a line using PoE pass-through. Saves cabling but risks cascading failures. Only recommended for short chains (2–3 cameras).
• Hybrid: Combines star and daisy-chain. Use PoE switches at strategic points (e.g., one switch per building) and connect switches via fiber for long-distance links.

Tip: For large sites, use a hierarchical network design with core, distribution, and access layers to manage traffic efficiently.

3. Choosing the Right Hardware: Switches, Cameras, and Cabling

PoE Switches: Managed vs. Unmanaged

Your choice of PoE switch impacts system reliability and remote management.

• Unmanaged Switches: Plug-and-play with no configuration. Affordable but lacks VLAN support, QoS, or monitoring. Suitable for basic setups (e.g., 4–8 cameras).
• Managed Switches: Allow advanced features like VLANs (to segment camera traffic), QoS (to prioritize video), and SNMP monitoring. Essential for large systems or when integrating with other network devices.

Example: A retail store with 12 cameras might use a 16-port managed switch to:

• Create a VLAN for cameras (isolates them from customer Wi-Fi)
• Set QoS to ensure smooth video streaming
• Monitor port status remotely

Camera Selection: Resolution, Lens, and Features

Match camera specs to your coverage needs:

• Resolution: 1080p (2MP) for general surveillance; 4K (8MP) for facial/license plate recognition.
• Lens Type: Fixed (wide-angle for entry points), varifocal (adjustable zoom for flexible coverage), or PTZ (for active tracking).
• Low-Light Performance: Look for cameras with IR LEDs (for night vision) or starlight sensors (for color night vision).
• Analytics: Smart features like motion detection, intrusion zones, or people counting reduce false alerts.

Tip: Use dome cameras for indoor areas (discreet) and bullet cameras for outdoor (weather-resistant with long IR range).

Cabling and Connectors: Cat5e vs. Cat6, and More

Ethernet cable quality affects signal integrity and maximum distance.

• Cat5e: Supports 1 Gbps up to 100 meters. Cost-effective for most setups.
• Cat6: Supports 1 Gbps up to 100 meters or 10 Gbps up to 55 meters. Better for high-resolution cameras or future upgrades.
• Plenum vs. Riser: Use plenum-rated cables (for air ducts) or riser-rated (for vertical runs between floors) to meet fire codes.

Pro Tip: For runs over 100 meters, use PoE extenders or fiber-to-copper media converters to avoid voltage drop.

4. Step-by-Step Installation: From Cabling to Configuration

Step 1: Install Cabling and Mount Cameras

1. Run Ethernet cables from the central switch location to each camera site. Use cable trays, conduits, or wall clips to secure runs.
2. Leave 1–2 feet of slack at each end for future adjustments.
3. Mount cameras using appropriate brackets (wall, ceiling, or pole). Ensure they’re level and aimed correctly.

Safety Note: Always shut off power before drilling near electrical wiring. For outdoor installations, seal cable entry points with silicone to prevent moisture.

Step 2: Connect and Power On

1. Connect one end of each cable to the PoE switch and the other to the camera’s Ethernet port.
2. Power on the switch. Most PoE cameras will auto-negotiate power and data.
3. Verify each camera powers up (look for status LEDs).

Example: If a camera doesn’t power on, check for:

• Loose connections
• Damaged cables (use a cable tester)
• Insufficient switch power budget

Step 3: Configure Cameras and NVR

1. Access each camera’s web interface (via its IP address) to set:
• Resolution and frame rate (e.g., 1080p @ 15fps)
• Motion detection zones
• Recording schedule (continuous, motion-triggered, or scheduled)
2. Connect the PoE switch to a Network Video Recorder (NVR) or a VMS (Video Management System) like Milestone or Blue Iris.
3. Add cameras to the NVR by scanning the network or entering IP addresses manually.

Tip: Use DHCP reservations or static IPs to prevent IP conflicts when cameras reboot.

Step 4: Test and Optimize

1. Check video quality in the NVR interface. Adjust camera angles or focus if needed.
2. Test motion detection by walking through coverage areas.
3. Verify remote access (via mobile app or web browser) from outside the network.

5. Managing and Troubleshooting Your System

Bandwidth and Storage Calculations

Multiple cameras generate significant data. Calculate your storage needs to avoid overfilling drives.

Formula: Daily Storage (GB) = (Camera Resolution in Mbps × 3600 seconds) ÷ 8 bits × 24 hours × Number of Cameras × 0.001

Example: 8x 4K cameras at 8 Mbps:

• Daily: (8 × 3600 ÷ 8 × 24 × 8 × 0.001) = 7,488 GB
• Monthly: ~224 TB → Requires a 24TB RAID 6 system for 30-day retention

Tip: Use H.265 compression (saves 50% storage vs. H.264) and set variable bitrate (VBR) for efficient recording.

Common Issues and Fixes

• Cameras Offline: Check switch port status, cable continuity, and power budget.
• Flickering Video: Caused by voltage drop. Shorten cable runs or use a PoE extender.
• Laggy Remote Access: Enable QoS on your router to prioritize camera traffic.
• False Alarms: Refine motion detection zones and sensitivity settings.

Remote Monitoring and Alerts

Configure your NVR to send email or push notifications for:

• Camera disconnections
• Motion detection events
• Storage full warnings

Use apps like Blue Iris, Hik-Connect, or Milestone Mobile to monitor cameras from anywhere.

6. Future-Proofing and Scalability

Expanding Your System

Plan for growth by:

• Choosing a PoE switch with extra ports (e.g., 24-port switch for 16 cameras).
• Using a managed switch with VLANs to add new cameras without disrupting existing ones.
• Installing conduit for future cable runs (e.g., pre-run pipes for new buildings).

Upgrading to Higher-Resolution Cameras

When upgrading to 4K or 8K cameras, ensure your network can handle the bandwidth. Use Cat6 cables and gigabit switches. For 10 Gbps needs, consider fiber backbones.

Data Table: PoE Camera System Requirements

Number of Cameras	Recommended PoE Switch	Total Power Budget	Cable Type	Storage (30-Day, 1080p)
4–8	8-port managed PoE+	100–150W	Cat5e	2–4 TB
9–16	16-port managed PoE+	200–250W	Cat6	4–8 TB
17–24	24-port managed PoE++	300–400W	Cat6	8–16 TB
25+	Multiple switches + fiber backbone	500W+	Cat6 + Fiber	16+ TB (RAID)

Conclusion: Build a Smarter, More Secure Surveillance System

Setting up multiple PoE cameras in one area isn’t just about adding more devices—it’s about creating a cohesive, intelligent surveillance ecosystem. By understanding PoE standards, planning your layout strategically, choosing the right hardware, and following best practices for installation and management, you’ll avoid common pitfalls and build a system that scales with your needs.

Remember, the key to success lies in preparation and flexibility. Conduct a thorough site survey, calculate power and bandwidth needs, and leave room for future expansion. Whether you’re securing a small business or a sprawling campus, a well-designed PoE camera system delivers peace of mind, reduces blind spots, and provides actionable insights—all with the simplicity of a single cable.

Now that you have the roadmap, it’s time to take action. Start with a pilot setup (e.g., 2–4 cameras), test the system rigorously, and expand confidently. With the right approach, your multi-camera PoE system will be a reliable, high-performance asset for years to come.

Frequently Asked Questions

How do I connect multiple PoE cameras to one network switch?

To hook up multiple PoE cameras in one area, use a PoE switch with enough ports to support all cameras. Ensure the switch’s power budget exceeds the total power draw of all connected cameras.

Can I use a non-PoE switch for multiple PoE cameras?

Yes, but you’ll need PoE injectors for each camera to supply power. This method works but creates more cable clutter than using a dedicated PoE switch.

What’s the maximum distance for running cables to hook up multiple PoE cameras?

For reliable power and data, keep Ethernet cables under 100 meters (328 feet) per run. Exceeding this can cause voltage drop and connectivity issues for your PoE cameras.

Do I need a special router to manage multiple PoE cameras in one area?

Not necessarily. Most standard routers work if they support VLANs or QoS for traffic prioritization. However, a managed switch simplifies monitoring and bandwidth allocation for multiple PoE cameras.

How can I organize cables when setting up multiple PoE cameras?

Use cable trays, conduits, or raceways to bundle Ethernet cables neatly. Label each cable at both ends to identify camera connections easily during troubleshooting.

Is a PoE NVR required for recording footage from multiple PoE cameras?

A PoE NVR simplifies setup by providing power and recording in one unit, but you can use a regular NVR with a separate PoE switch. Ensure your NVR supports the number of cameras you plan to install.
