Connecting multiple PoE cameras in one area is simple and efficient using a single PoE switch or NVR with built-in power and data ports. This setup eliminates messy cabling and ensures reliable, synchronized surveillance by delivering both power and network connectivity over one Ethernet cable per camera. Just daisy-chain the cameras to the switch, configure via the NVR, and enjoy a scalable, plug-and-play security system.

How to Hook Up Multiple POE Cameras in One Area Easily

Key Takeaways

• Plan camera placement first: Map coverage zones to avoid blind spots and overlap.
• Use a PoE switch: Centralize power and data for all cameras with one device.
• Verify cable lengths: Keep Ethernet runs under 100m to prevent signal loss.
• Label each cable: Simplify troubleshooting and maintenance with clear identifiers.
• Test before finalizing: Check camera feeds and power levels during setup.
• Secure the network: Enable encryption and strong passwords to prevent unauthorized access.

Why This Matters / Understanding the Problem

Setting up a home or business security system? You’ve probably heard about POE cameras—those smart devices that get power and data through a single Ethernet cable. But if you’re trying to hook up multiple POE cameras in one area easily, things can get tricky fast.

Maybe you’ve tried daisy-chaining cameras or running long cables only to face flickering feeds, power drops, or network lag. That’s because most people overlook the core challenge: how to manage power, data, and network traffic efficiently when multiple cameras share the same space.

The good news? With the right plan, you can install 2, 4, or even 8 POE cameras in one area—like a backyard, warehouse, or office hallway—without overloading your system. This guide walks you through how to hook up multiple POE cameras in one area easily, so your setup stays smooth, secure, and scalable.

What You Need

Before you start drilling holes or running wires, gather these essential tools and components. A solid checklist ensures your POE camera installation goes off without a hitch.

• POE Cameras (2–8, depending on your needs): Choose models with IR night vision, motion detection, and weather resistance (IP66 or higher).
• POE Network Switch (8-port or more, with 802.3af/at support): This powers and connects all cameras. Look for a managed switch if you plan to expand later.
• Ethernet Cables (Cat6 or Cat6a): Use shielded cables for outdoor runs or areas with electrical interference.
• POE NVR (Network Video Recorder): Stores video footage and manages camera feeds. Ensure it supports the number of cameras you plan to install.
• Network Router: Connects your NVR to the internet for remote viewing.
• Power Drill, Fish Tape, Cable Clips, and Wall Anchors: For mounting and routing cables safely.
• Label Maker or Tags: Label each cable at both ends to avoid confusion.
• Smartphone or Tablet: For initial camera setup and app pairing.
• Optional: POE Extender or Midspan Injector: Useful for runs longer than 100 meters or areas without a switch nearby.

Pro Tip: Buy a POE switch with surge protection if your cameras are outdoors. Lightning strikes and voltage spikes can fry electronics.

Step-by-Step Guide to How to Hook Up Multiple POE Cameras in One Area Easily

Step 1: Plan Your Camera Layout and Coverage

Before touching a tool, sketch out your area on paper or use a digital floor planner. Identify blind spots, entry points, and high-traffic zones.

For example, in a backyard, you might place one camera at the gate, one at the back door, and two covering the sides. Overlap coverage slightly to avoid gaps.

Use the “line of sight” rule: Each camera should have a clear view of its zone without obstructions like tree branches or awnings. This ensures your POE camera system captures usable footage.

Warning: Don’t just point cameras at the sky or ground. Tilt them slightly downward to capture faces and license plates at eye level or lower.

Step 2: Choose the Right POE Switch and NVR

Your switch is the heart of the system. For 4–8 cameras, a 16-port managed POE switch (like the TP-Link TL-SG1016PE or Netgear GS316PP) is ideal.

Why managed? It lets you:

• Assign IP addresses automatically (DHCP).
• Monitor power usage per port.
• Set up VLANs to separate camera traffic from home Wi-Fi.

Pair it with an NVR that supports your camera count and resolution. For 4K cameras, pick an NVR with at least 8TB storage and H.265 compression to save space.

Pro Tip: Buy an NVR with AI-powered motion detection. It reduces false alerts from leaves or pets—common issues when setting up how to hook up multiple POE cameras in one area easily.

Step 3: Run Ethernet Cables to Each Camera Location

Measure the distance from your switch/NVR to each camera. Cat6 cable maxes out at 100 meters (328 feet) for reliable power and data.

For runs under 100m:

• Use in-wall rated (CMR or CMP) cables for indoor use.
• Use outdoor-rated (PE jacket) cables for exterior runs. Bury them in conduit or use weatherproof clips.

For runs over 100m:

• Add a POE extender every 100m.
• Or use a fiber-to-Ethernet converter for ultra-long distances.

Label each cable at the camera end and switch end. Use a label like “Cam3-BackLeft” to avoid mix-ups later.

Common Mistake: Don’t staple cables tightly or run them near power lines. This causes interference and signal loss. Use cable trays or clips with slack.

Step 4: Mount the Cameras Securely

Use the included mounting template to mark drill spots. For outdoor mounts:

• Drill into brick or siding with a masonry bit.
• Use stainless steel anchors to prevent rust.
• Angle the camera 10–15 degrees downward for optimal coverage.

For indoor mounts (e.g., warehouse ceiling), use ceiling brackets or drop-ceiling clamps. Tighten screws firmly—wobbly cameras cause shaky footage.

After mounting, connect the Ethernet cable to the camera. Most POE cameras have a waterproof seal—tighten it fully to keep out moisture.

Pro Tip: Test camera alignment with your phone’s camera app. Point it at the scene to preview the view before finalizing.

Step 5: Connect Everything to the Network

Now it’s time to plug things in:

1. Connect the POE switch to your router using a standard Ethernet cable.
2. Connect the NVR to the switch.
3. Plug in all camera Ethernet cables to the switch ports.
4. Power on the switch and NVR.

Wait 1–2 minutes. Most POE switches power on cameras automatically. You’ll see LEDs light up on each camera and the switch.

Log into your NVR’s web interface (via computer or app). It should auto-detect all connected cameras. If not, click “Search” or “Add Camera” in the settings.

Warning: Don’t use a regular network switch. POE cameras need 802.3af/at power delivery. A standard switch won’t power them.

Step 6: Configure Camera Settings and Network

Open the NVR interface or camera app. Adjust these key settings:

• Resolution & Frame Rate: Set to 1080p at 15fps for balance. Use 4K only if you have storage and bandwidth.
• Motion Detection Zones: Draw boxes around driveways, doors, or paths. Exclude trees or roads to reduce false alerts.
• IR Night Vision: Enable “Smart IR” to prevent overexposure of close objects (like a person’s face).
• Audio (if available): Turn off or enable based on privacy needs.

For network stability:

• Assign static IP addresses to cameras and NVR to prevent IP conflicts.
• Enable QoS (Quality of Service) on your router to prioritize camera traffic.

Pro Tip: Use a separate VLAN for cameras if your router supports it. This isolates security traffic from home devices and boosts privacy.

Step 7: Test the System and Optimize

Walk through each camera’s field of view. Check for:

• Clear, stable video feed.
• No flickering or lag.
• Motion detection triggers only in set zones.

Test night vision by covering the camera’s IR sensor or waiting until dark. Ensure the IR LEDs turn on and illuminate the scene.

Try remote access: Open the NVR’s app on your phone (via 4G or Wi-Fi). Verify you can view live feeds and playback recordings.

Common Mistake: Skipping a stress test. Simulate heavy use: Record 24/7, trigger motion alerts, and check if the system handles it without freezing.

Step 8: Secure and Maintain Your System

Security isn’t just about cameras—it’s about data.

• Change default passwords on NVR, cameras, and router.
• Enable encryption (HTTPS, AES) for remote access.
• Update firmware monthly to patch vulnerabilities.

For maintenance:

• Wipe camera lenses monthly with a microfiber cloth.
• Check cable seals every 3 months for cracks.
• Review storage: Delete old footage or add a second hard drive if needed.

Pro Tip: Set up cloud backup for critical footage. Even if an intruder steals the NVR, cloud copies stay safe.

Pro Tips & Common Mistakes to Avoid

Use a UPS for Power Backup

During storms or outages, a UPS (Uninterruptible Power Supply) keeps your POE switch and NVR running for 30+ minutes. This ensures cameras stay active when you need them most.

Don’t Overload the POE Switch

Check your switch’s total power budget (e.g., 120W). Most POE cameras use 5–12W each. For 8 cameras, you’ll need at least 96W—leaving little room for future expansion. Always buy a switch with 20–30% extra capacity.

Avoid “Daisy-Chaining” Cameras

Some people try to connect Camera 1 → Camera 2 → Camera 3. This doesn’t work with standard POE cameras. Each camera needs a direct connection to the switch or a POE extender.

Label Everything

Unlabeled cables turn troubleshooting into a nightmare. Use color-coded tags or a label maker. Write: “Cam4-FrontDoor” on both ends.

Test Before You Seal

Before closing walls or sealing outdoor boxes, test all cameras and connections. Fixing a faulty cable behind drywall is a pain.

Mind the Weather

Even IP66-rated cameras can fail if installed upside-down (trapping water) or in direct sun. Use a sun shield or mount under eaves.

Final Warning: Never use a POE switch with non-POE devices (like laptops) on the same port. It can damage equipment.

FAQs About How to Hook Up Multiple POE Cameras in One Area Easily

Q1: Can I use a regular router instead of a POE switch?

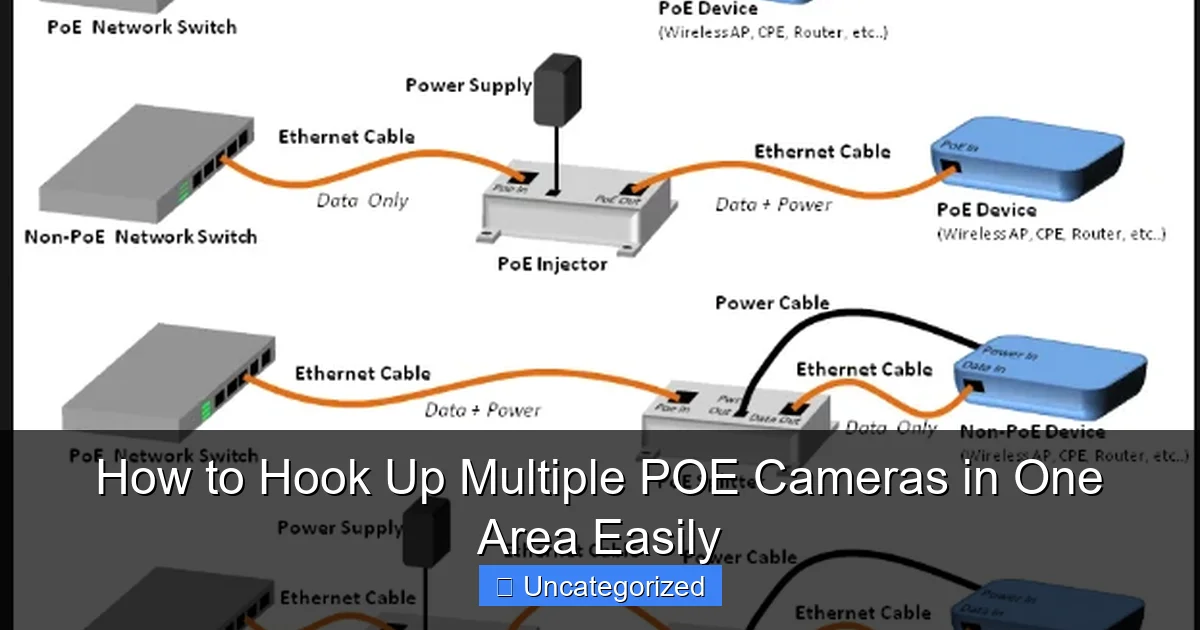

No. Regular routers don’t supply power over Ethernet. You’d need a POE injector for each camera—clunky and inefficient. A POE switch is the cleanest way to handle how to hook up multiple POE cameras in one area easily.

Q2: What’s the maximum distance for POE cables?

The standard limit is 100 meters (328 feet) for Cat5e/6 cables. Beyond that, use a POE extender or fiber converter. For example, run 90m to an extender, then another 90m to the camera.

Q3: Do I need Wi-Fi if I have POE cameras?

No. POE cameras use wired Ethernet, which is more reliable than Wi-Fi. But you’ll need Wi-Fi or Ethernet for remote access (viewing footage on your phone).

Q4: How much storage do I need for 4 cameras?

Depends on resolution and retention:

• 4 x 1080p cameras @ 15fps: ~4TB for 30 days.
• 4 x 4K cameras @ 30fps: ~16TB for 30 days.

Use H.265 compression to cut storage needs by 50%.

Q5: Can I mix different camera brands?

Yes, but it’s tricky. Most NVRs support ONVIF, a universal standard. Check if your cameras are ONVIF-compliant. Otherwise, you might lose features like AI detection or two-way audio.

Q6: Why is my camera not getting power?

Check:

• Is the switch port enabled?
• Is the cable damaged or too long?
• Is the switch’s power budget exceeded?
• Is the camera’s POE mode set correctly (e.g., 802.3af vs. passive)?

Try a different cable or port first.

Q7: Can I add more cameras later?

Absolutely! That’s the beauty of POE systems. Just ensure your switch, NVR, and network can handle the load. Buy components with scalability in mind—like a 24-port switch or NVR with expansion slots.

Final Thoughts

Setting up a multi-camera POE system doesn’t have to be overwhelming. By planning your layout, choosing the right gear, and following a clear process, you can hook up multiple POE cameras in one area easily—and enjoy 24/7 peace of mind.

Remember: Quality beats quantity. A few well-placed, properly configured cameras are better than a dozen poorly installed ones. Test everything, secure your network, and maintain it regularly.

Now that you know how to hook up multiple POE cameras in one area easily, grab your tools and get started. Whether it’s your home, store, or warehouse, a reliable POE system is one of the best investments you can make for safety and security.

And if you ever get stuck? Revisit this guide. Your future self will thank you.
