How to Hook Up Poe Cameras to the Power Supply Easily

Power over Ethernet (PoE) cameras simplify installation by delivering both power and data through a single cable, eliminating the need for separate power supplies. Just connect the camera to a PoE switch or injector using a Cat5e/Cat6 cable, and you’re done—no extra wiring, no hassle, and full remote management. Ideal for DIYers and pros alike, PoE setups save time and reduce clutter.

Key Takeaways

• Use a PoE switch: Connect cameras directly for power and data via one cable.
• Check power requirements: Ensure your PoE source meets the camera’s wattage needs.
• Verify cable quality: Use Cat5e or higher for reliable power and data transmission.
• Test connections first: Confirm camera functionality before final installation.
• Follow safety protocols: Power off devices before connecting to avoid damage.
• Use PoE injectors: For non-PoE switches, inject power into the Ethernet line.

Understanding PoE Cameras and Their Power Needs

Power over Ethernet (PoE) cameras have revolutionized the surveillance industry by simplifying installation and reducing costs. Unlike traditional security cameras that require separate power and data cables, PoE cameras receive both power and data through a single Ethernet cable. This technology leverages the IEEE 802.3af, 802.3at, and newer 802.3bt standards to deliver power directly over the same Cat5e or Cat6 cabling used for network connectivity. For homeowners, businesses, and security professionals, this means cleaner installations, easier scalability, and reduced dependency on nearby power outlets.

But how exactly do you hook up PoE cameras to the power supply? While the process may seem straightforward, several factors—such as cable type, power budget, PoE standards, and network infrastructure—must be considered to ensure reliable and safe operation. Whether you’re installing a single camera for home security or deploying a multi-camera system for a commercial property, understanding the nuances of PoE power delivery is essential. This guide walks you through every step, from selecting the right equipment to troubleshooting common issues, ensuring your cameras are powered efficiently and securely.

Components You Need for a PoE Camera Setup

PoE Cameras: Choosing the Right Model

Before connecting your PoE cameras, it’s crucial to select models that match your security needs and PoE compatibility. PoE cameras come in various types: fixed dome, PTZ (pan-tilt-zoom), bullet, and fisheye, each with different power requirements. For example, a basic dome camera may consume 5–7 watts, while a motorized PTZ camera can draw up to 15–25 watts under full load. Always check the manufacturer’s specifications to confirm the camera’s PoE class (e.g., Class 0, 3, 4, or 6) and whether it supports 802.3af (PoE), 802.3at (PoE+), or 802.3bt (PoE++).

For instance, if you’re installing a high-end PTZ camera with infrared night vision and audio capabilities, ensure it’s rated for PoE+ or PoE++. Using a PoE injector or switch that only supports the older 802.3af standard may result in insufficient power, leading to camera reboots or performance issues. Always opt for cameras with built-in surge protection and weather resistance for outdoor installations.

PoE Switches: Centralized Power and Data Distribution

A PoE switch is the backbone of most PoE camera systems. These network switches come with built-in power sourcing equipment (PSE) that delivers power to connected devices. When choosing a PoE switch, consider:

• Number of PoE ports: Match the number of cameras you plan to install. For example, a 16-port switch can support up to 16 cameras.
• Total power budget: Most switches list a maximum power output (e.g., 150W). Add up the power draw of all cameras to ensure you don’t exceed this limit. For example, 10 cameras drawing 12W each require a 120W budget.
• PoE standard support: A PoE+ (802.3at) switch can deliver up to 30W per port, ideal for high-power devices. PoE++ (802.3bt) supports up to 60W or 100W per port for future-proofing.
• Managed vs. unmanaged: Managed switches offer VLANs, QoS, and remote monitoring—ideal for large-scale deployments.

Example: A Netgear GS724TP 24-port PoE+ switch delivers 380W total power, sufficient for 15–20 mid-range cameras. It also supports LLDP for automatic power negotiation.

PoE Injectors: For Single or Isolated Cameras

When you need to power just one or two cameras without upgrading your entire network infrastructure, a PoE injector is the perfect solution. This standalone device connects between your existing router and the camera, injecting power into the Ethernet cable. Injectors come in various power ratings (15.4W for 802.3af, 30W for 802.3at).

For example, if your office router has no PoE ports, you can use a TP-Link TL-PoE150S injector to power a single outdoor dome camera. Simply connect the injector’s data-in port to the router, the data-out port to the camera, and plug the injector into a wall outlet. This method is cost-effective and ideal for retrofitting older systems.

Ethernet Cables: The Lifeline of PoE

The type and quality of Ethernet cable directly impact PoE performance. Use Cat5e, Cat6, or Cat6a cables, which are designed to handle both data and power transmission efficiently. Key considerations:

• Cable length: PoE standards allow up to 100 meters (328 feet). Beyond this, voltage drop can occur, leading to insufficient power.
• Shielded vs. unshielded: For outdoor or industrial environments, use shielded (STP) cables to reduce electromagnetic interference (EMI).
• Cable gauge: Thicker wires (e.g., 23 AWG) reduce resistance and heat buildup, especially important for long runs.

Tip: Always use solid-core cables for permanent installations and stranded-core for patch cables.

Step-by-Step Guide to Hooking Up PoE Cameras

Step 1: Plan Your Camera Layout and Cable Runs

Before drilling holes or running cables, create a detailed site plan. Identify camera locations, cable pathways, and the central PoE switch/injector position. Use tools like Google Earth or floor plans to map distances and estimate cable lengths. Consider:

• Proximity to power sources (for switches/injectors)
• Obstacles (walls, ceilings, trees)
• Weather exposure (for outdoor cameras)

Example: For a warehouse, place cameras at entry points, loading docks, and high-value storage areas. Run cables through ceiling conduits to avoid tripping hazards.

Step 2: Install the PoE Switch or Injector

Mount the PoE switch in a secure, ventilated location—ideally in a network closet or rack. Connect the switch to your main router via an Ethernet cable. If using a PoE injector, place it near a power outlet and your network source (e.g., router). Plug the switch/injector into a surge-protected power strip.

Pro tip: Use a UPS (Uninterruptible Power Supply) to keep cameras running during power outages. A 1500VA UPS can support a 100W PoE switch for 30–60 minutes.

Step 3: Run Ethernet Cables to Camera Locations

Use cable management tools (fish tape, conduit, cable staples) to run Ethernet cables from the switch/injector to each camera. For outdoor runs:

• Use waterproof conduit or direct-burial cables.
• Install drip loops to prevent water from entering the camera housing.
• Label both ends of each cable (e.g., “Cam 1 – Front Door”).

Example: For a backyard camera, bury a Cat6 cable in a 12-inch-deep trench with PVC conduit for protection.

Step 4: Connect Cameras to the Network

Once cables are in place, connect one end to the PoE switch/injector and the other to the camera. Most PoE cameras have an RJ45 port labeled “PoE” or “LAN.” Power will be delivered automatically when the camera is connected. Wait 1–2 minutes for the camera to boot up and establish a network connection.

Tip: Use a PoE tester (e.g., Klein Tools POE Tester) to verify voltage and polarity before connecting the camera.

Step 5: Configure Cameras and Network Settings

Access the camera’s web interface via a browser (e.g., http://192.168.1.100) or manufacturer’s software (e.g., Hikvision iVMS-4200). Configure:

• IP address: Assign a static IP or enable DHCP reservation.
• Video settings: Resolution, frame rate, motion detection.
• User accounts: Set strong passwords for admin and user roles.
• Firmware updates: Check for and install the latest firmware.

Example: For a Reolink camera, use the Reolink App to scan the QR code on the camera for instant setup.

Power Budgeting and Troubleshooting

Calculating Total Power Requirements

Overloading your PoE switch can cause system crashes or damage. To calculate your power needs:

1. List all cameras and their maximum power draw (in watts).
2. Sum the total power (e.g., 8 × 7W cameras = 56W).
3. Add a 20% safety margin (56W × 1.2 = 67.2W).
4. Ensure your switch’s total power budget exceeds this value.

For example, a 150W PoE+ switch can safely support up to 10 mid-range cameras (12W each) with a 20% buffer.

Common PoE Power Issues and Fixes

Even with proper planning, power issues can arise. Here are common problems and solutions:

• Camera not powering on: Check cable continuity with a network tester. Replace damaged cables.
• Intermittent power loss: Use shorter cables or higher-gauge (thicker) wires to reduce resistance.
• Overheating switch: Ensure adequate ventilation. Add cooling fans if necessary.
• Insufficient power for PTZ: Upgrade to a PoE+ or PoE++ switch.
• Voltage drop over long distances: Use PoE extenders or local power injectors.

Example: A camera 90 meters from the switch may experience voltage drop. Install a PoE extender halfway to boost power.

Using Power Budgeting Tools

Many PoE switches display real-time power usage per port. Use this data to:

• Identify power-hungry devices.
• Reallocate power during peak loads.
• Plan future expansions.

For managed switches, use SNMP monitoring tools (e.g., PRTG) to track power consumption trends.

Advanced Tips for Reliable PoE Camera Systems

Future-Proofing with PoE++ (802.3bt)

The 802.3bt (PoE++) standard delivers up to 100W per port, enabling support for high-end cameras with features like:

• 4K/8K video
• AI analytics
• Heaters and blowers (for extreme climates)
• Integrated lighting and speakers

Invest in PoE++ switches and cameras to avoid costly upgrades later. For example, a Cisco C9300-48UXM switch supports 90W per port, ideal for next-gen surveillance.

Surge Protection and Grounding

PoE cameras are vulnerable to power surges, especially in lightning-prone areas. Protect your system with:

• PoE surge protectors: Install at the switch and camera end (e.g., Ubiquiti ETH-SP-G2).
• Grounding: Bond all metal enclosures to a grounding rod.
• Lightning arrestors: For outdoor cameras on poles or tall structures.

Tip: Use gas discharge tubes (GDT) for high-surge environments.

Redundancy and Failover Solutions

For critical installations, implement redundancy:

• Dual power supplies: Some switches support backup power inputs.
• Local power injection: Use a PoE injector as a backup for the main switch.
• Network redundancy: Configure STP (Spanning Tree Protocol) to prevent loops.

Example: A hospital security system might use a PoE++ switch with a 240W UPS and a secondary PoE injector for key cameras.

PoE Camera Power Supply: Data Table

Component	PoE Standard	Max Power per Port	Max Power Budget (Typical)	Best Use Case
PoE Switch (8-port)	802.3af (PoE)	15.4W	60W–75W	Small homes, 5–8 low-power cameras
PoE Switch (16-port)	802.3at (PoE+)	30W	150W–250W	Businesses, 10–15 mixed cameras
PoE Switch (24-port)	802.3bt (PoE++)	60W–100W	380W–720W	Large facilities, PTZ and AI cameras
PoE Injector (Single)	802.3af/at	15.4W–30W	N/A	Retrofit or single-camera setups
PoE Extender	802.3af/at	15.4W–30W	N/A	Long-distance camera runs (>100m)

Conclusion

Hooking up PoE cameras to the power supply is a straightforward process when you understand the key components and best practices. By selecting the right PoE switch or injector, using quality Ethernet cables, and carefully planning your power budget, you can create a reliable, scalable surveillance system. Whether you’re securing a home, office, or industrial site, PoE technology eliminates the complexity of traditional power setups while providing flexibility for future upgrades.

Remember, the success of your PoE camera system hinges on attention to detail: from calculating total power needs to protecting against surges and ensuring proper grounding. Use the data table and troubleshooting tips in this guide to avoid common pitfalls. With PoE++ and advanced management tools, your system can evolve alongside your security needs—supporting higher-resolution cameras, AI analytics, and integrated smart features. By following these steps, you’ll not only hook up your PoE cameras easily but also ensure they operate efficiently, safely, and reliably for years to come.

Frequently Asked Questions

How do I connect a PoE camera to a power supply without a PoE switch?

You can use a PoE injector, which splits data and power to connect your PoE camera to a non-PoE switch or router. Simply plug the injector into a power outlet and connect the Ethernet cables from the router, injector, and camera.

Can I use a standard power adapter instead of PoE for my camera?

Most PoE cameras require Power over Ethernet, but some models support both PoE and DC power. Check your camera’s manual—if it accepts DC power, you can bypass PoE with a compatible 12V/24V adapter.

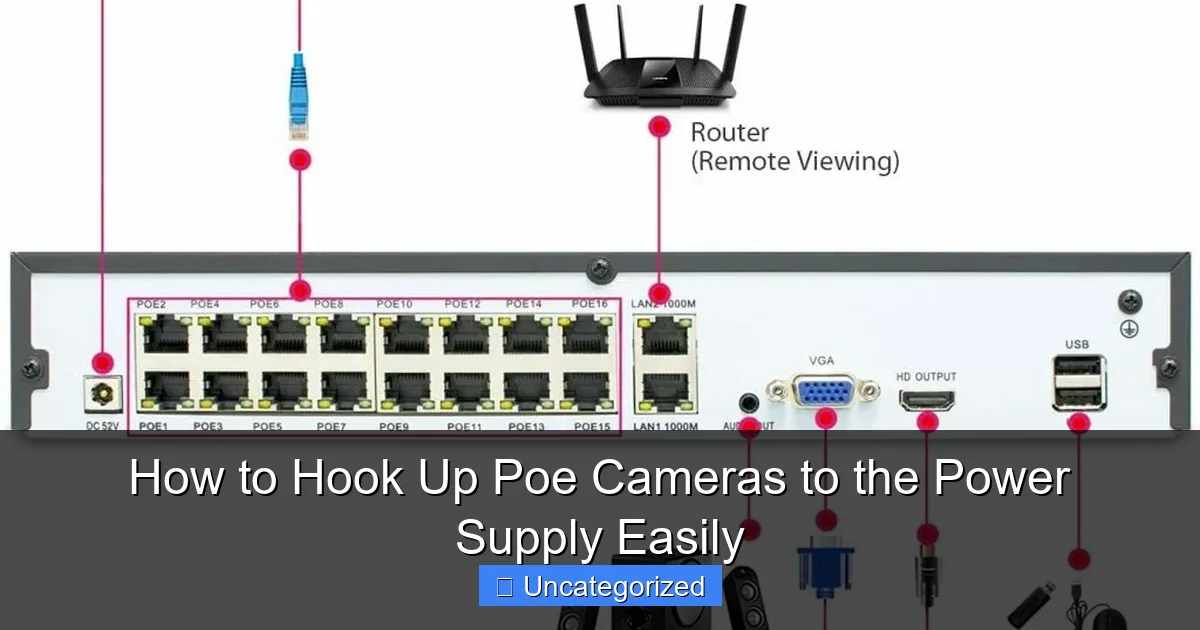

How to hook up PoE cameras using a PoE NVR?

PoE NVRs (Network Video Recorders) have built-in PoE ports. Connect your camera directly to the NVR’s PoE port using an Ethernet cable, and both power and video transmission will be handled automatically.

What type of Ethernet cable is needed for PoE cameras?

Use Cat5e, Cat6, or higher Ethernet cables for reliable PoE power and data transfer. Ensure the cable length is within 100 meters (328 ft) to avoid voltage drops or signal loss.

How do I troubleshoot if my PoE camera isn’t powering on?

Check the cable connections, PoE switch/injector power, and ensure the camera is PoE-compatible. Test with a different cable or PoE port to isolate the issue.

Is it safe to mix PoE and non-PoE devices on the same network?

Yes, modern PoE switches and injectors only deliver power to PoE-compatible devices. Non-PoE devices will receive data only, making it safe to mix them on the same network.
