How to Hook Up Poe Cameras Using Poe Switch Easily

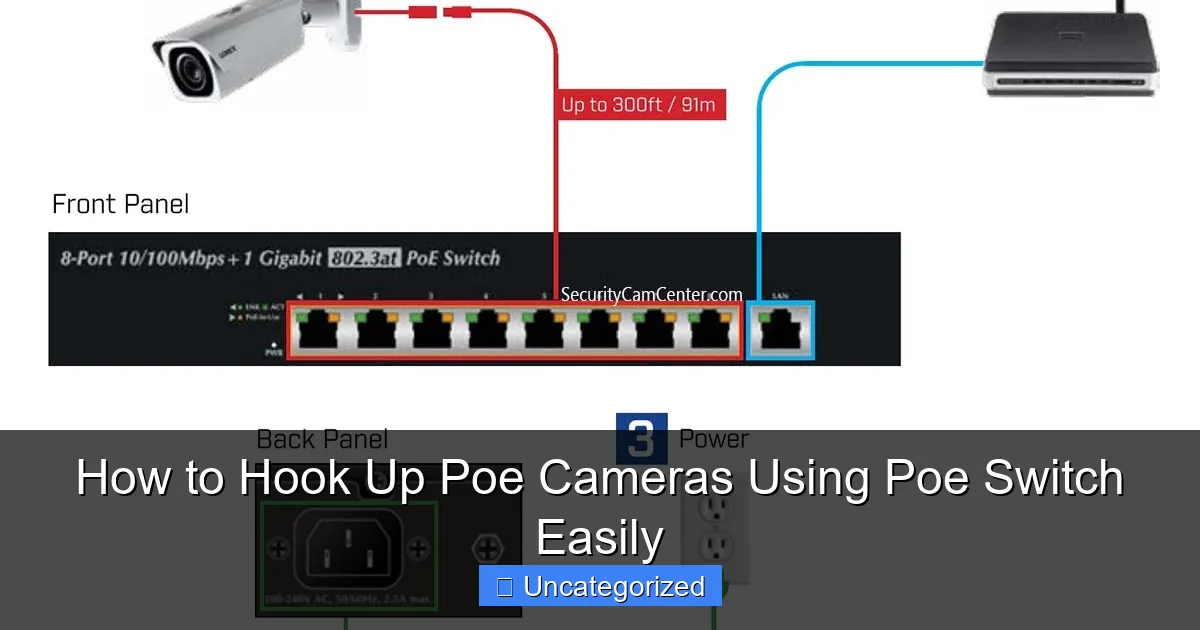

Connecting PoE cameras using a PoE switch is the fastest, most reliable way to power and stream video over a single Ethernet cable—no extra power adapters needed. Simply plug your cameras into the PoE switch, connect the switch to your router or NVR, and configure via the network for instant plug-and-play surveillance. This streamlined setup reduces clutter, saves time, and ensures stable performance for both home and business security systems.

Key Takeaways

• Choose a PoE switch with sufficient power and ports for your cameras.
• Connect cameras directly to the PoE switch using Cat5e/Cat6 cables.
• Ensure firmware is updated on both switch and cameras for compatibility.
• Use VLANs to segment camera traffic for improved network performance.
• Verify power delivery with a PoE tester before final installation.
• Label all cables to simplify troubleshooting and future maintenance.
• Secure the switch in a ventilated, dry location to prevent overheating.

Understanding PoE Cameras and PoE Switches: The Foundation of Modern Surveillance

Power over Ethernet (PoE) technology has revolutionized the way we approach surveillance systems, making it easier than ever to install and manage security cameras without the hassle of separate power cables. PoE cameras are IP (Internet Protocol) cameras that draw both power and data through a single Ethernet cable, simplifying installation and reducing clutter. Whether you’re setting up a home security system or deploying a commercial-grade surveillance network, understanding how to hook up PoE cameras using a PoE switch is essential for a seamless and efficient setup.

The beauty of PoE lies in its simplicity and scalability. With a PoE switch at the heart of your system, you can connect multiple cameras, NVRs (Network Video Recorders), and other network devices over a single infrastructure. This not only reduces costs and installation time but also enhances reliability by minimizing points of failure. In this comprehensive guide, we’ll walk you through every step of the process, from selecting the right equipment to troubleshooting common issues. Whether you’re a DIY enthusiast or a professional installer, this guide will equip you with the knowledge to set up a robust and scalable PoE camera system using a PoE switch with ease.

Essential Components and Tools for a PoE Camera Setup

1. PoE Cameras

PoE cameras come in various types, including bullet, dome, PTZ (pan-tilt-zoom), and fisheye models. When choosing a camera, consider factors like resolution (1080p, 4K), night vision capabilities, weather resistance (IP rating), and field of view. For example, the Hikvision DS-2CD2143G0-I is a popular 4MP dome camera with IR night vision and IP67 weatherproofing, ideal for both indoor and outdoor use. Ensure your cameras are IEEE 802.3af or 802.3at (PoE/PoE+) compliant to guarantee compatibility with standard PoE switches.

2. PoE Switch: Types and Specifications

A PoE switch is the backbone of your system. It delivers both data and power to your cameras over Ethernet cables. There are two main types:

• Standard PoE (802.3af): Delivers up to 15.4W per port, suitable for most fixed cameras.
• PoE+ (802.3at): Provides up to 30W per port, ideal for PTZ cameras or those with heaters/IR illuminators.

When selecting a switch, consider:

• Port count: Ensure the switch has enough ports for your current and future cameras.
• Total power budget: The sum of all port power outputs must exceed your cameras’ combined power draw.
• Managed vs. Unmanaged: Managed switches offer VLANs, QoS, and remote monitoring, while unmanaged switches are plug-and-play.

Example: The Netgear GS108PP is an 8-port PoE+ switch with a 120W total budget, supporting up to 15.4W per port, perfect for a mid-sized setup.

3. Ethernet Cables and Connectors

Use Cat5e or Cat6 Ethernet cables for optimal performance. Cat6 is recommended for 4K cameras or long runs (over 100m). Ensure cables are shielded (STP) for outdoor installations to reduce interference. Always terminate cables with RJ45 connectors using a crimping tool and verify connections with a cable tester.

4. Additional Tools and Accessories

• PoE Tester: Verifies power delivery and polarity.
• Network Video Recorder (NVR): Stores and manages footage. Some NVRs include built-in PoE ports.
• Surge Protectors: Protect equipment from voltage spikes, especially in outdoor installations.
• Mounting Hardware: Brackets, screws, and conduit for secure camera installation.

Step-by-Step Guide to Hooking Up PoE Cameras with a PoE Switch

1. Plan Your Network Layout

Before installation, map out camera locations and cable routes. Use tools like Google Maps or a floor plan to visualize coverage. Key considerations:

• Distance: PoE has a 100-meter (328-foot) limit. For longer runs, use fiber media converters or PoE extenders.
• Power Budget: Calculate total power needs. For example, 6 cameras @ 7W each = 42W (use a switch with ≥60W budget).
• Cable Pathways: Avoid running cables near electrical wires to prevent interference.

2. Install the PoE Switch

1. Place the switch in a ventilated, dry location (e.g., a network closet or rack).
2. Connect the switch to your router/switch using an Ethernet cable.
3. Plug the switch into a surge-protected power outlet.
4. Power on the switch and verify the status LEDs (green = active, amber = power issue).

3. Run Ethernet Cables to Camera Locations

• Use cable clips or conduit to secure cables along walls or ceilings.
• Label both ends of each cable (e.g., “Front Door,” “Backyard”) for easy identification.
• For outdoor runs, use waterproof conduit and gel-filled RJ45 connectors.

Tip: Leave 1-2 feet of slack at both ends for adjustments.

4. Mount and Connect the Cameras

1. Secure the camera using the included mounting bracket.
2. Connect the Ethernet cable to the camera’s RJ45 port.
3. Power on the camera. The camera should boot automatically, and the status LED will turn green/blue.
4. Repeat for all cameras.

Example: For a dome camera mounted on a soffit, drill a hole for the cable, feed it through, and seal gaps with silicone to prevent water ingress.

5. Configure the NVR and Cameras

• Connect the NVR to the PoE switch via Ethernet.
• Power on the NVR and follow the setup wizard to detect cameras.
• Assign static IP addresses or use DHCP reservations to prevent IP conflicts.
• Adjust camera settings (resolution, motion detection, night mode) via the NVR interface.

Pro Tip: Use VLANs on managed switches to isolate camera traffic for better security and performance.

Optimizing Your PoE Network for Performance and Reliability

1. Power Management and Load Balancing

PoE switches prioritize power delivery, but overloading can cause failures. To optimize:

• Distribute cameras evenly: Avoid clustering high-power cameras on a single switch.
• Use PoE+ for high-draw devices: PTZ cameras with heaters may require 30W.
• Monitor power usage: Managed switches often display real-time power per port.

Example: A 24-port switch with 300W budget can support 12 PoE+ cameras (25W each) with 100W to spare.

2. Network Bandwidth and QoS

Cameras generate significant data. To prevent congestion:

• Calculate bandwidth needs: A 4K camera @ 30fps uses ~20 Mbps. 10 cameras = 200 Mbps (use a gigabit switch).
• Enable QoS (Quality of Service): Prioritize camera traffic over other devices (e.g., laptops).
• Use VLANs: Segment cameras into a separate VLAN to isolate traffic and enhance security.

3. Cable Management and Signal Integrity

• Avoid sharp bends: Maintain a 4x cable diameter bend radius to prevent signal loss.
• Use cable trays or raceways: Organize cables neatly to reduce interference.
• Test cable runs: Use a cable tester to verify continuity and PoE delivery.

4. Environmental Considerations

For outdoor installations:

• Use IP66/67-rated cameras: Resistant to dust, rain, and extreme temperatures.
• Install surge protectors: Protect against lightning strikes and voltage spikes.
• Insulate connections: Apply dielectric grease to outdoor RJ45 connectors.

Common Issues and Troubleshooting Tips

1. Camera Not Powering On

• Check PoE mode: Some switches have “PoE Auto” and “PoE Forced” modes. Try switching modes.
• Test the cable: Use a PoE tester to verify voltage (48V DC) and polarity.
• Inspect the camera: A faulty camera port may require replacement.

2. Poor Video Quality or Lag

• Bandwidth overload: Reduce camera resolution or frame rate.
• Cable issues: Replace damaged cables or upgrade to Cat6.
• Switch performance: Use a managed switch with QoS to prioritize video traffic.

3. IP Address Conflicts

• Use DHCP reservations: Assign fixed IPs to cameras via the router or NVR.
• Reboot the network: Power cycle the switch and NVR to refresh IP assignments.

4. Intermittent Power or Connectivity

• Check power budget: Add a secondary PoE switch if the total power draw exceeds capacity.
• Inspect cable length: Replace cables longer than 100m with fiber or extenders.

Data Table: PoE Switch Comparison and Camera Power Requirements

PoE Switch Model	Ports	PoE Standard	Total Power Budget	Best Use Case
Netgear GS108PP	8	PoE+ (802.3at)	120W	Small to medium businesses, 6-8 cameras
TP-Link TL-SG1016PE	16	PoE+ (802.3at)	200W	Retail stores, 10-12 cameras
Ubiquiti UniFi Switch Pro 24 PoE	24	PoE++ (802.3bt)	400W	Large enterprises, 15+ cameras with high power needs

Camera Type	Power Draw (W)	PoE Standard	Example Models
Fixed Bullet/Dome	3-7W	PoE (802.3af)	Hikvision DS-2CD2343G0-I, Reolink RLC-410
PTZ Camera	12-25W	PoE+ (802.3at)	Dahua SD5A432XA-HNR, Axis Q6155-E
Thermal Camera	15-30W	PoE+ (802.3at)	FLIR FC-608, Hanwha XNP-6320RH

Conclusion: Building a Future-Proof PoE Surveillance System

Hooking up PoE cameras using a PoE switch is a straightforward process that combines simplicity, efficiency, and scalability. By selecting the right components—PoE cameras, a switch with adequate power and ports, and high-quality Ethernet cables—you create a system that’s easy to install, maintain, and expand. The step-by-step approach outlined in this guide ensures a reliable setup, while optimization strategies like VLANs, QoS, and proper cable management enhance performance and security.

Remember, the key to a successful PoE network lies in planning and attention to detail. From calculating power budgets to troubleshooting connectivity issues, every step contributes to a robust surveillance system. Whether you’re securing a small home or a large facility, PoE technology offers unparalleled flexibility and cost savings. As your needs grow, your PoE switch can accommodate additional cameras, making it a future-proof investment. With this guide in hand, you’re ready to build a surveillance system that’s not only effective today but adaptable for tomorrow’s challenges.

Frequently Asked Questions

How do I connect PoE cameras using a PoE switch?

To hook up PoE cameras using a PoE switch, simply connect each camera to an available port on the switch using a Cat5e or Cat6 Ethernet cable. The switch will automatically power the cameras and transmit data without extra power cables.

Can I use any PoE switch with my PoE cameras?

Not all PoE switches are universal—check that your switch supports the same PoE standard (like 802.3af/at) as your cameras. Mismatched standards may lead to power issues or damage.

How far can I run an Ethernet cable from a PoE switch to a camera?

Ethernet cables can reliably transmit power and data up to 100 meters (328 feet) when using a PoE switch. Beyond this, consider PoE extenders or injectors for longer distances.

Do I need a PoE switch if my NVR already has PoE ports?

If your NVR has enough PoE ports for all cameras, you don’t need a separate PoE switch. However, a switch helps expand capacity when adding more cameras to your system.

How do I troubleshoot if my PoE cameras aren’t powering on?

Verify the PoE switch is active, the Ethernet cable is undamaged, and the camera is compatible with the switch’s PoE standard. Use a PoE tester to confirm power delivery.

Is a managed or unmanaged PoE switch better for hooking up PoE cameras?

For most home or small setups, an unmanaged PoE switch works fine—it’s plug-and-play. Use a managed PoE switch if you need remote monitoring, VLANs, or bandwidth control for larger systems.
