How to Hook Up Poe for Camera A Simple Step by Step Guide

Power over Ethernet (PoE) simplifies camera installation by delivering both power and data over a single cable, eliminating the need for separate power sources. Follow our step-by-step guide to safely connect your PoE camera using a PoE switch or injector, ensuring a reliable, professional-grade surveillance setup in minutes.

Key Takeaways

• Verify PoE compatibility: Ensure your camera and switch support PoE standards.
• Use a PoE switch/injector: Connect the camera via Ethernet to a PoE source.
• Check cable quality: Use Cat5e or higher for reliable power and data transfer.
• Secure connections: Firmly plug in Ethernet cables to avoid signal loss.
• Test power delivery: Confirm the camera powers on without voltage issues.
• Label cables: Organize and mark PoE lines for easy troubleshooting.

Understanding PoE and Its Benefits for Security Cameras

What Is Power over Ethernet (PoE)?

Power over Ethernet (PoE) is a technology that allows electrical power and data to be transmitted simultaneously over a single Ethernet cable, typically Cat5e or Cat6. This innovation eliminates the need for separate power cables and outlets near your security camera, making installations cleaner, more efficient, and cost-effective. Originally developed to power devices like VoIP phones and wireless access points, PoE has become a cornerstone in modern security camera systems—especially IP (Internet Protocol) cameras.

PoE works by sending power through unused wire pairs in the Ethernet cable. For example, in a standard 8-wire Cat5e or Cat6 cable, four wires are used for data (10/100 Mbps), while the other four can carry power. With newer standards like Gigabit Ethernet (1000 Mbps), all eight wires are used for data, but PoE still functions by using a technique called phantom power, where power is transmitted over the same pairs carrying data without interference.

Why Use PoE for Security Cameras?

There are several compelling reasons to choose PoE when setting up your surveillance system:

• Simplified Installation: One cable handles both power and data, reducing clutter and minimizing potential points of failure.
• Flexibility in Camera Placement: Cameras can be installed anywhere within 100 meters (328 feet) of the PoE switch or injector, even where power outlets are unavailable.
• Reliability: PoE systems are less prone to power surges and outages because they often use centralized power sources with battery backups.
• Scalability: Adding new cameras is as simple as connecting another cable to the PoE switch—no need to run additional electrical wiring.
• Remote Management: PoE switches often include network management tools, allowing you to remotely reboot cameras or monitor power usage.

For example, imagine installing a camera on a tall warehouse wall. With traditional power, you’d need an electrician to run a dedicated line or use extension cords, which are unsafe and unsightly. With PoE, you simply run a single Ethernet cable from the switch to the camera—clean, safe, and fast.

Essential Equipment Needed for a PoE Camera Setup

PoE Cameras

The first requirement is a PoE-compatible IP camera. These cameras are designed to accept power and data through an Ethernet connection. They come in various types: bullet, dome, PTZ (pan-tilt-zoom), and fisheye, each suited for different environments. When purchasing, look for cameras labeled “IEEE 802.3af” or “IEEE 802.3at,” which indicate compliance with PoE standards.

Tip: Always verify the camera’s PoE requirements (voltage, wattage) to ensure compatibility with your power source.

PoE Switch or PoE Injector

You’ll need either a PoE switch or a PoE injector to deliver power to your cameras:

• PoE Switch: A network switch with built-in PoE ports. Ideal for multiple cameras (e.g., 4, 8, 16, or 24 ports). Offers centralized power and data management. Example: Netgear GS308PP (8-port, 150W total budget).
• PoE Injector: A standalone device that adds PoE to a single non-PoE switch port. Best for one or two cameras. Example: TP-Link TL-PoE150S.

Pro Tip: If you already have a non-PoE switch, use injectors. For larger setups, invest in a managed PoE switch with VLAN support and remote monitoring.

Ethernet Cables (Cat5e or Cat6)

Use high-quality Cat5e or Cat6 shielded Ethernet cables for reliable performance. Cat6 is preferred for longer runs or Gigabit speeds. Ensure cables are rated for outdoor use if installed outside (look for “UV-resistant” or “direct burial” labels).

Length matters: The maximum distance for PoE is 100 meters (328 feet) without signal degradation. For longer distances, use PoE extenders or fiber optic converters.

Network Video Recorder (NVR) or Cloud Storage

PoE cameras require a storage solution:

• NVR (Network Video Recorder): A dedicated device that records video from IP cameras. Many NVRs include built-in PoE ports, simplifying setup. Example: Reolink RLN8-410.
• Cloud Storage: Some cameras support cloud recording (subscription-based), but an NVR offers better privacy and control.

Optional but Recommended Accessories

• Surge Protectors: Protect PoE equipment from voltage spikes, especially in outdoor installations.
• PoE Testers: Verify power delivery before installing cameras (e.g., Klein Tools PoE Detector).
• Junction Boxes: Protect cable connections from weather and tampering.

Step-by-Step Guide: How to Hook Up PoE for Camera

Step 1: Plan Your Camera Locations and Network Layout

Before buying equipment, sketch a site plan:

• Identify camera positions (e.g., front door, driveway, backyard).
• Measure distances from the central hub (NVR/switch) to each camera.
• Ensure no cable exceeds 100 meters.
• Consider obstacles (walls, trees) that may require conduit or wireless bridges.

Example: For a 4-camera home system, place the NVR in a basement closet with a PoE switch. Run cables through walls to cameras at the front, back, garage, and side gate.

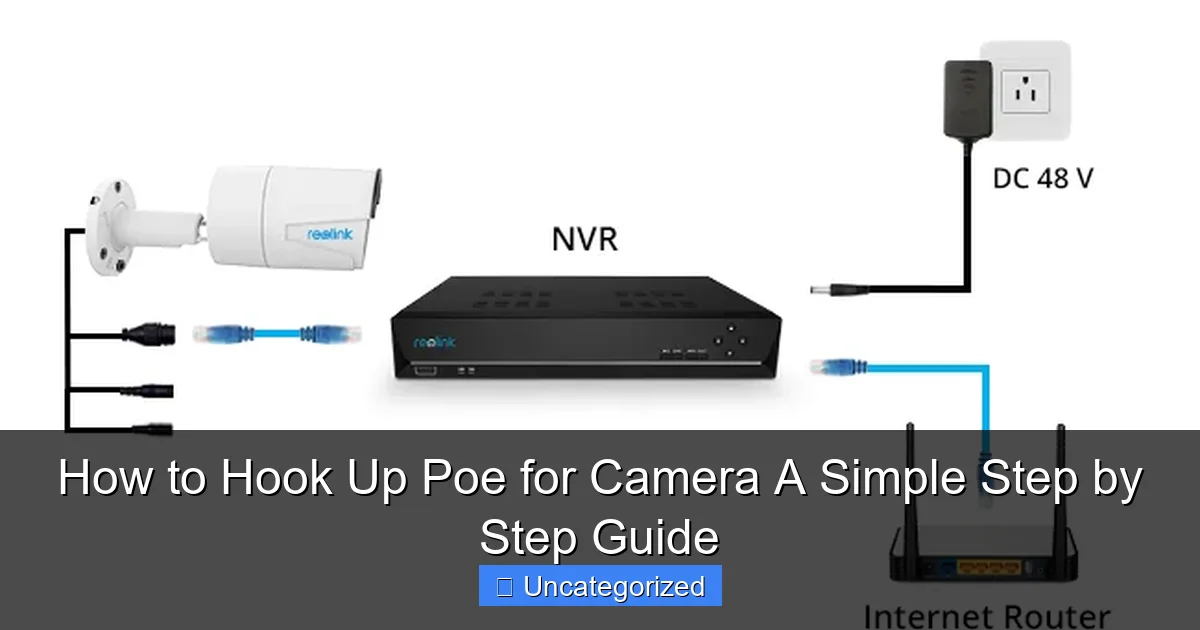

Step 2: Install the NVR and PoE Switch

1. Place the NVR: Choose a secure, dry location (e.g., a closet or server rack).

2. Connect the PoE Switch:

• Plug the switch into a surge-protected outlet.
• Connect the NVR to the PoE switch using a standard Ethernet cable.
• If using a standalone PoE switch (not built into the NVR), ensure it’s powered.

Tip: Label each PoE port (e.g., “Front Door,” “Garage”) for easy troubleshooting.

Step 3: Run Ethernet Cables to Camera Locations

1. Drill Holes: Use a 1/2-inch drill bit to create cable pathways through walls, ceilings, or eaves.

2. Fish Cables: Use a fish tape or pull string to guide cables through walls. For outdoor runs, use conduit or direct-burial cables.

3. Terminate Cables: Crimp RJ45 connectors using a punch-down tool or use pre-terminated cables. Test with a cable tester.

Safety Note: Turn off power to walls before drilling. Avoid electrical wires.

Step 4: Mount and Connect the Cameras

1. Attach Mounting Brackets: Use screws and anchors suitable for the surface (e.g., masonry, wood).

2. Connect Cables:

• Plug the Ethernet cable into the camera’s PoE port.
• Secure the connection with a waterproof sealant or junction box (outdoor cameras).

3. Power On: The camera should boot automatically when connected to the PoE switch.

Pro Tip: Use a PoE tester to confirm the camera is receiving power before finalizing the mount.

Step 5: Configure the NVR and Cameras

1. Access the NVR Interface: Connect a monitor and keyboard to the NVR, or use a web browser.

2. Add Cameras: Most NVRs auto-detect PoE cameras. If not, manually assign IP addresses.

3. Adjust Settings: Set motion detection, recording schedules, and resolution (e.g., 4K).

4. Test Viewing: Verify live feeds and playback via the NVR app (e.g., Reolink, Hik-Connect).

Troubleshooting Common PoE Camera Issues

Camera Not Powering On

If a camera doesn’t power on, check:

• Cable Quality: Replace damaged or low-quality cables.
• PoE Budget: Ensure the switch’s total power budget isn’t exceeded. Example: A 48W switch can’t power four 15W cameras (60W total).
• Port Functionality: Test the PoE port with another camera.
• Voltage Drop: Long cables (>50 meters) may reduce voltage. Use thicker cables (Cat6) or PoE extenders.

Example: A camera 80 meters away flickers. Solution: Replace Cat5e with Cat6 or add a PoE extender.

Intermittent Video or Lag

Causes and fixes:

• Network Congestion: Reduce camera resolution or use a dedicated VLAN.
• Faulty Cables: Test with a network analyzer (e.g., Fluke LinkRunner).
• Bandwidth Limits: Upgrade to a Gigabit PoE switch for high-resolution cameras.

PoE Switch Overheating

Overheating can occur if:

• Cameras draw more power than the switch can handle.
• The switch is in a poorly ventilated area.

Solution: Add a fan, relocate the switch, or use a higher-wattage model.

IP Address Conflicts

When multiple devices share the same IP:

• Use DHCP reservation in your router to assign fixed IPs to cameras.
• Manually set static IPs in the camera’s web interface.

Advanced Tips for Optimizing Your PoE System

Use Managed PoE Switches for Control

Managed switches (e.g., Cisco SG350, Netgear GS724TP) offer:

• Port Monitoring: Check power usage per camera.
• Remote Reboot: Restart unresponsive cameras.
• QoS (Quality of Service): Prioritize camera data to reduce lag.

Example: Set QoS to ensure a doorbell camera always has bandwidth for live viewing.

Implement VLANs for Security

Create a separate VLAN for cameras to:

• Isolate camera traffic from other devices (e.g., laptops).
• Prevent unauthorized access to the camera network.

Most managed switches support VLANs. Configure via the switch’s web interface.

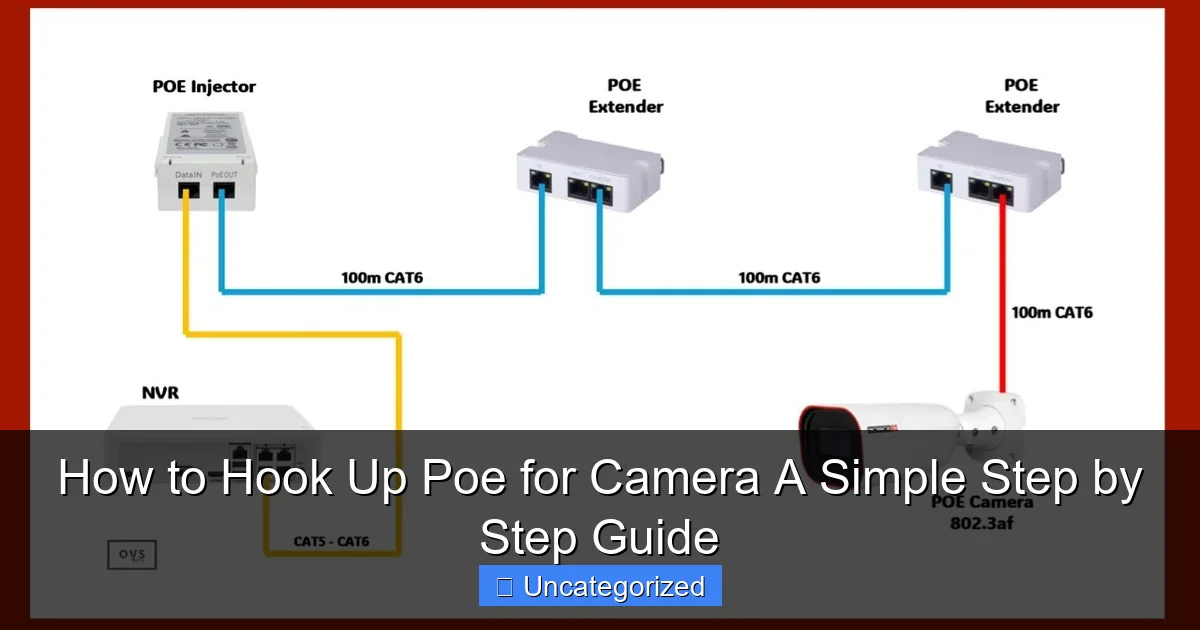

Extend PoE Beyond 100 Meters

For long-distance setups:

• PoE Extenders: Repeat power and data signals (e.g., Ubiquiti PoE Extender).
• Fiber Optic Conversion: Use media converters to extend up to 10+ km.

Power Budgeting Table

PoE Standard	Max Power per Port	Typical Camera Type	Switch Example
IEEE 802.3af (PoE)	15.4W	Standard HD camera (e.g., 1080p)	TP-Link TL-SG108PE (60W total)
IEEE 802.3at (PoE+)	30W	PTZ, 4K, or IR cameras	Netgear GS308PP (150W total)
IEEE 802.3bt (PoE++)	60W–100W	High-end PTZ or thermal cameras	Cisco SG350-10P (150W total)

Note: Always check your camera’s power draw. A 4K PTZ camera may use 25W, requiring PoE+.

Conclusion: Streamlining Security with PoE

Hooking up PoE for security cameras is a game-changer for both DIY enthusiasts and professionals. By eliminating the need for separate power sources, PoE simplifies installation, reduces costs, and enhances reliability. Whether you’re setting up a single camera for your front porch or a 20-camera system for a business, the step-by-step process—planning, installing, configuring, and optimizing—remains consistent.

Remember, the key to success lies in choosing the right equipment (PoE cameras, switches, and cables), planning your layout to avoid distance limitations, and leveraging advanced features like VLANs and managed switches for scalability. With the power budgeting table and troubleshooting tips, you’re equipped to handle common challenges, from overheating switches to IP conflicts.

As security technology evolves, PoE will continue to be the backbone of efficient, scalable surveillance. Start small, test thoroughly, and expand as needed. In no time, you’ll have a robust, professional-grade camera system that delivers peace of mind—powered by a single Ethernet cable.

Frequently Asked Questions

What is PoE and how does it work for security cameras?

Power over Ethernet (PoE) delivers both power and data to cameras through a single Ethernet cable, eliminating the need for separate power adapters. It uses a PoE switch or injector to send low-voltage DC power safely along with the network signal. This simplifies installation and reduces cable clutter.

How do I hook up PoE for camera systems without a PoE switch?

You can use a PoE injector to power your camera if your router or switch doesn’t support PoE. Connect the injector between your network source and the camera, then plug it into a power outlet. This method is ideal for single-camera setups or small installations.

Can I connect a non-PoE camera to a PoE switch?

Yes, but you’ll need a PoE splitter to separate the power and data signals for non-PoE cameras. The splitter converts PoE into a standard power output compatible with your camera. Always verify voltage compatibility to avoid damage.

What type of Ethernet cable do I need to hook up PoE for camera?

Use Cat5e, Cat6, or higher-rated cables to ensure stable power and data transmission for PoE cameras. Higher categories support faster data speeds and longer cable runs (up to 100 meters). Avoid using damaged or low-quality cables to prevent performance issues.

Do I need special tools to set up PoE for cameras?

Most PoE setups require only a crimping tool and RJ45 connectors to terminate Ethernet cables. If using pre-made cables, no tools are needed—just plug and play. Always check cable connections to ensure proper power delivery.

How can I troubleshoot PoE connection issues with my camera?

First, verify that your PoE switch/injector is working and the camera is PoE-compatible. Check cable integrity, connections, and ensure the camera isn’t drawing excessive power. Restarting the PoE source often resolves minor handshake failures.
