Setting up your Ring Floodlight Camera is easier than you think. This guide walks you through mounting, wiring, app configuration, and testing—so you can secure your home in under an hour.
Key Takeaways
- Turn off power at the breaker before installation to avoid electrical shock.
- Use the Ring app for guided setup, Wi-Fi connection, and device activation.
- Ensure strong Wi-Fi signal at the installation site for reliable video streaming.
- Properly seal wiring connections to protect against weather and moisture.
- Test motion zones and alerts after setup to customize detection areas.
- Adjust brightness and sensitivity in the app to reduce false alarms.
- Schedule regular maintenance to keep lights and camera functioning smoothly.
How to Hook Up Ring Floodlight Camera: A Complete Step-by-Step Guide
So, you’ve just unboxed your new Ring Floodlight Camera—congratulations! You’re about to take a big step toward smarter, safer home security. Whether you’re replacing an old floodlight or installing one for the first time, this guide will walk you through every step of how to hook up your Ring Floodlight Camera with confidence.
From turning off the power to testing your motion alerts, we’ll cover everything you need to know. No electrical degree required—just a few tools, a little patience, and this guide. By the end, you’ll have a powerful outdoor security system that streams HD video, detects motion, and lights up your yard like a Hollywood premiere.
Let’s get started.
What You’ll Need Before You Begin

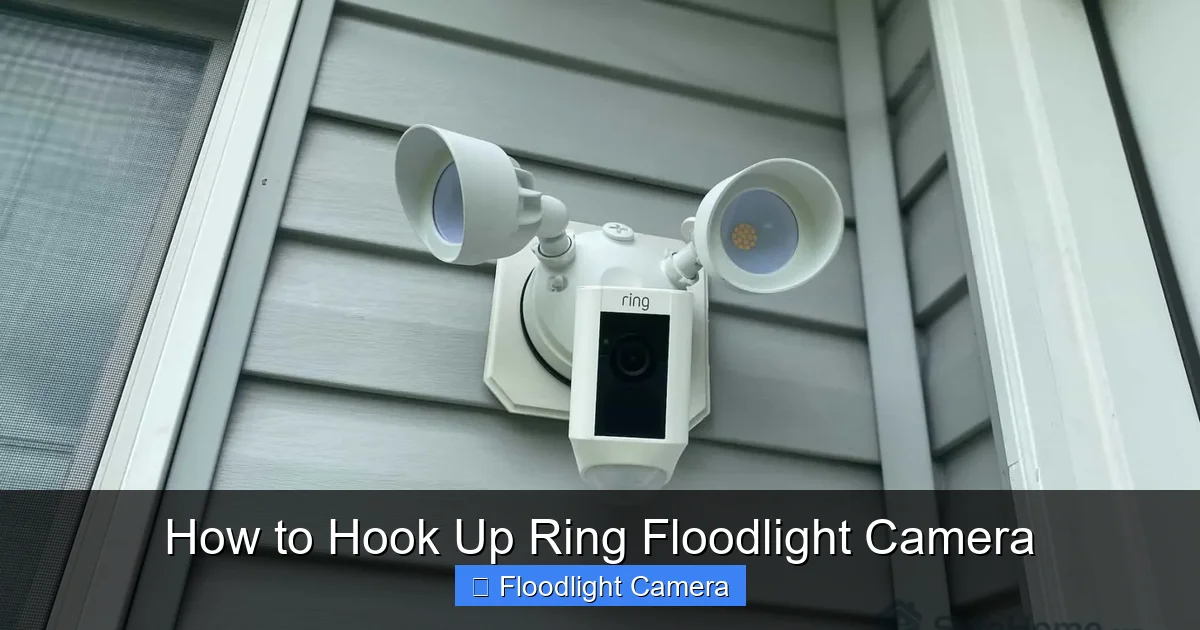

Visual guide about How to Hook Up Ring Floodlight Camera
Image source: safehome.org
Before you even think about climbing a ladder, make sure you have the right tools and materials. Here’s a quick checklist:
- Ring Floodlight Camera (obviously!)
- Phillips-head screwdriver
- Wire strippers
- Voltage tester (non-contact type recommended)
- Ladder (stable and tall enough for your mounting height)
- Electrical tape
- Wire nuts (usually included with the camera)
- Smartphone or tablet with the Ring app installed
- Wi-Fi network with 2.4 GHz band (5 GHz is not supported)
- Optional: Drill and wall anchors (if mounting on brick or concrete)
Pro tip: Download the Ring app from the App Store or Google Play before you start. You’ll need it for setup, and having it ready saves time.
Step 1: Turn Off the Power
Safety first—always. Before touching any wires, turn off the power to the existing light fixture at your home’s main electrical panel (breaker box).
How to Safely Shut Off Power
- Locate the breaker that controls your outdoor light. It’s usually labeled “Outdoor,” “Porch,” or “Floodlight.”
- Flip the switch to the “OFF” position.
- Use a non-contact voltage tester to double-check that the wires are not live. Touch the tester to the wires inside the junction box—if it beeps or lights up, the power is still on.
Never skip this step. Even if you think the power is off, always test. Electricity doesn’t care if you’re in a hurry.
Step 2: Remove the Old Fixture (If Applicable)
If you’re replacing an existing floodlight, you’ll need to remove it first.
Removing the Old Light
- Unscrew the mounting screws or nuts holding the old fixture to the wall or junction box.
- Gently pull the fixture away from the wall to expose the wiring.
- Take a photo of the wiring setup for reference (this helps if you get confused later).
- Disconnect the wires by unscrewing the wire nuts. Typically, you’ll see black (hot), white (neutral), and green or bare copper (ground).
- Set the old fixture aside.
If there’s no existing light, skip to the next step. You’ll be installing the Ring Floodlight Camera directly to the junction box or mounting bracket.
Step 3: Prepare the Mounting Location
Now it’s time to get the area ready for your new camera.
Check the Junction Box
Make sure your junction box is securely attached to the wall and can support the weight of the Ring Floodlight Camera (about 3.5 lbs). If it’s loose, tighten the mounting screws or replace the box.
Ensure Proper Height and Angle
For best performance, mount the camera between 9 and 12 feet above the ground. This height gives you a wide field of view while minimizing blind spots. Avoid pointing it directly at the sun or bright lights, which can cause glare.
Clear Obstructions
Trim back any tree branches, ivy, or debris that might block the camera’s view or interfere with the motion sensors.
Step 4: Connect the Wires
This is the part that makes some people nervous—but don’t worry. It’s simpler than it looks.
Identify the Wires
Your Ring Floodlight Camera comes with three wires:
- Black wire – Hot (connects to black)
- White wire – Neutral (connects to white)
- Green wire – Ground (connects to ground)
Match these to the corresponding wires in your junction box.
Strip the Wires (If Needed)
If the wires aren’t already stripped, use wire strippers to remove about ½ inch of insulation from each wire end. Be careful not to cut the copper strands.
Connect the Wires
- Twist the black wire from the camera to the black (hot) wire from the wall using a wire nut. Give it a gentle tug to make sure it’s secure.
- Repeat with the white (neutral) wires.
- Connect the green ground wire from the camera to the ground wire in the wall (usually bare copper or green). If there’s a grounding screw on the junction box, you can wrap the ground wire around it and tighten.
Secure and Tuck the Wires
Once connected, wrap each wire nut with electrical tape for extra protection. Then, carefully tuck the wires back into the junction box so they don’t get pinched when you mount the camera.
Step 5: Mount the Ring Floodlight Camera
Now it’s time to attach the camera to the wall.
Attach the Mounting Bracket
- Hold the mounting bracket against the wall, aligning it with the junction box.
- Use the included screws to secure the bracket. If you’re mounting on brick or concrete, use a drill and wall anchors.
Attach the Camera
- Align the camera’s base with the mounting bracket.
- Slide the camera down until it clicks into place.
- Tighten the security screw (usually on the side or bottom) to prevent tampering.
Double-check that the camera is level and facing the desired direction. You can adjust the angle later, but it’s easier to get it right now.
Step 6: Turn the Power Back On
Once the camera is mounted and wired, it’s time to restore power.
- Go back to your breaker panel and flip the switch back to “ON.”
- Wait about 30 seconds for the camera to power up.
- Look for the status light on the camera. It should flash blue, indicating it’s ready to connect.
If the light doesn’t come on, double-check your wiring and make sure the breaker is fully on.
Step 7: Set Up the Ring App
Now for the fun part—connecting your camera to your phone.
Download and Open the Ring App
If you haven’t already, download the Ring app (free on iOS and Android). Open it and log in to your Ring account. If you don’t have one, create it using your email and a strong password.
Add a New Device
- Tap the three-line menu icon (☰) in the top-left corner.
- Select “Set Up a Device.”
- Choose “Security Cameras” and then “Floodlight Cam.”
- Follow the on-screen prompts.
Scan the QR Code
The app will ask you to scan the QR code on the back of your camera. Hold your phone about 6 inches away and let the camera focus. Once scanned, the app will detect the device.
Connect to Wi-Fi
- Select your home Wi-Fi network from the list.
- Enter your Wi-Fi password. Make sure you’re on the 2.4 GHz band—Ring cameras don’t support 5 GHz.
- Wait while the camera connects. This can take 1–2 minutes.
If the connection fails, move closer to your router or check your Wi-Fi signal strength at the camera location.
Name Your Camera
Give your camera a name like “Front Porch” or “Backyard Floodlight” so you can easily identify it in the app.
Complete Setup
The app will guide you through final steps, including enabling motion alerts, setting up chimes (if you have a Ring doorbell), and testing the live view.
Step 8: Adjust Settings for Best Performance
Your camera is now live—but let’s make it work smarter, not harder.
Customize Motion Zones
- In the Ring app, go to your camera’s settings.
- Tap “Motion Settings” and then “Motion Zones.”
- Draw zones on the camera’s field of view. For example, you might want alerts for the driveway but not the sidewalk.
This reduces false alarms from passing cars or animals.
Adjust Motion Sensitivity
Slide the sensitivity bar to low, medium, or high. Start with medium and adjust based on how often you get alerts.
Set Light and Camera Schedules
You can program the lights to turn on at dusk and off at dawn, or create custom schedules. You can also set the camera to record only during certain hours.
Enable Smart Alerts
Turn on person detection to get alerts only when a person is detected—not every squirrel or leaf.
Step 9: Test Everything
Before you call it a day, test your setup.
Test the Live View
Open the Ring app and tap “Live View.” You should see a clear, real-time video feed. If the image is blurry or laggy, check your Wi-Fi signal.
Test the Lights
Walk in front of the camera to trigger the motion sensors. The lights should turn on automatically. You can also manually turn them on in the app.
Test Motion Alerts
Have someone walk through your motion zones while you watch the app. You should receive a push notification and see a recording start.
Check Night Vision
Wait until it’s dark and test the camera again. The infrared LEDs should provide a clear black-and-white image.
Troubleshooting Common Issues
Even with careful setup, things can go wrong. Here’s how to fix the most common problems.
Camera Won’t Power On
- Double-check that the breaker is on.
- Verify all wire connections are tight and correct.
- Use a voltage tester to confirm power is reaching the junction box.
Wi-Fi Connection Fails
- Ensure you’re using 2.4 GHz Wi-Fi (not 5 GHz).
- Move closer to the router during setup.
- Restart your router and try again.
- Check for interference from metal objects or thick walls.
Video is Laggy or Buffering
- Your Wi-Fi signal may be weak. Consider a Wi-Fi extender.
- Reduce the video quality in the app (HD uses more bandwidth).
- Close other apps using bandwidth on your network.
False Motion Alerts
- Narrow your motion zones.
- Lower the sensitivity setting.
- Trim bushes or trees that sway in the wind.
- Enable person detection to filter out animals and vehicles.
Lights Don’t Turn On
- Check that the lights are enabled in the app.
- Ensure the motion sensors are detecting movement.
- Verify the bulb wattage isn’t too high (Ring recommends ≤ 150W per bulb).
Maintenance Tips to Keep Your Camera Running Smoothly
Your Ring Floodlight Camera is built to last, but a little maintenance goes a long way.
Clean the Lens Monthly
Use a soft, dry cloth to wipe the camera lens. Avoid harsh chemicals or paper towels, which can scratch the surface.
Check for Obstructions
Every few months, inspect the area around the camera. Remove spider webs, dirt, or debris that could block the view or sensors.
Update the App and Firmware
Ring regularly releases updates to improve performance and security. Enable automatic updates in the app settings.
Test the System Seasonally
Every 3–6 months, test the lights, motion detection, and live view to ensure everything is working.
Replace Bulbs as Needed
If the lights start to dim or flicker, replace the bulbs with compatible LED or halogen bulbs (check Ring’s compatibility list).
Final Thoughts: Enjoy Your Smarter, Safer Home
Congratulations—you’ve successfully learned how to hook up your Ring Floodlight Camera! You’ve not only installed a powerful security device, but you’ve also taken control of your home’s safety with smart technology.
From wiring the camera to customizing motion zones, you now have a system that watches over your property day and night. Whether you’re at home or away, you’ll get instant alerts, see who’s at your door, and deter potential intruders with bright, motion-activated lights.
Remember, the key to great performance is proper installation and regular maintenance. Keep your Wi-Fi strong, your lens clean, and your settings optimized.
And if you ever run into issues, don’t hesitate to consult the Ring support team or revisit this guide. You’ve got this.
Now go enjoy the peace of mind that comes with knowing your home is protected—24/7.
