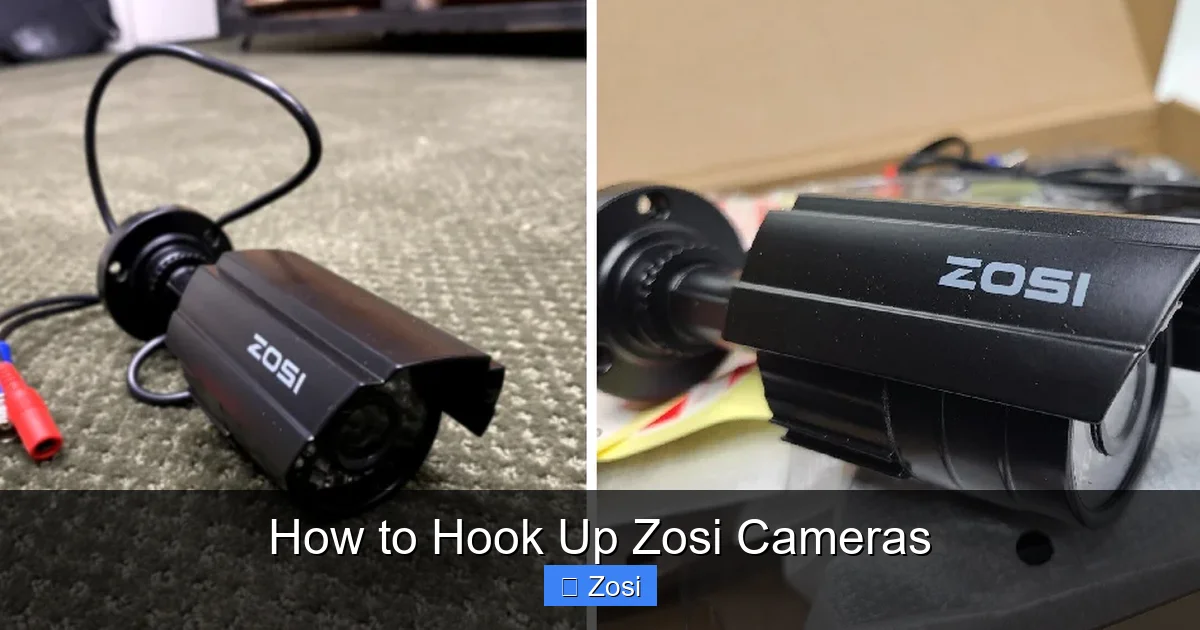

How to Hook Up Zosi Cameras

Setting up Zosi cameras doesn’t have to be complicated. This guide walks you through every step—from unboxing to live viewing—so you can secure your home or business with confidence. Whether you’re using a wired DVR system or a wireless setup, we’ve got you covered.

Key Takeaways

• Choose the right Zosi camera system: Decide between wired (DVR/NVR) or wireless (Wi-Fi) models based on your needs and installation environment.
• Plan your camera placement: Identify key areas like entry points, driveways, and blind spots before mounting to maximize coverage.
• Use proper cables and power sources: For wired systems, ensure you have enough coaxial or Ethernet cables and nearby power outlets or use PoE switches.
• Connect to a monitor or smartphone: Most Zosi systems support HDMI monitors for local viewing and mobile apps for remote access.
• Configure network settings carefully: Assign static IPs, enable port forwarding if needed, and secure your Wi-Fi to prevent unauthorized access.
• Test each camera after installation: Verify video quality, night vision, motion detection, and recording functionality before finalizing setup.
• Update firmware regularly: Keep your Zosi system secure and running smoothly by checking for firmware updates through the app or DVR interface.

Quick Answers to Common Questions

Should I use wired or wireless Zosi cameras?

Wired systems (DVR/NVR) are more reliable and secure, ideal for permanent installations. Wireless cameras offer flexibility but depend on strong Wi-Fi—best for renters or temporary setups.

Can I add more cameras later?

Yes! Most Zosi DVRs/NVRs have extra channels. Just make sure your recorder supports the total number of cameras you plan to install.

Do Zosi cameras work without internet?

Yes, for local viewing and recording. But you’ll need internet for remote access via the app, firmware updates, and cloud features.

How far can I run cables from the DVR/NVR?

For coaxial cables (DVR), max distance is about 300 feet. For Ethernet (NVR), it’s 328 feet (100 meters) per run. Use extenders if needed.

Are Zosi cameras secure from hacking?

Zosi uses encryption and P2P technology, but always change default passwords, update firmware, and secure your Wi-Fi network to minimize risks.

How to Hook Up Zosi Cameras: A Complete Step-by-Step Guide

So, you’ve just unboxed your new Zosi security camera system—congratulations! Whether you’re protecting your home, monitoring your small business, or keeping an eye on your backyard, Zosi offers reliable, affordable surveillance solutions. But now comes the big question: How do I actually hook up Zosi cameras?

Don’t worry—you’re in the right place. This comprehensive guide will walk you through every step of setting up your Zosi cameras, whether you’re using a traditional wired DVR system, a modern NVR with PoE (Power over Ethernet), or even a wireless Wi-Fi model. We’ll cover planning, installation, connection, configuration, and troubleshooting—all in plain English, with no tech jargon overload.

By the end of this guide, you’ll have a fully functional security system that you can monitor from your phone, tablet, or TV. Let’s get started!

Understanding Your Zosi Camera System

Before you start drilling holes or running cables, it’s important to understand what kind of Zosi system you have. Zosi offers several types of security camera kits, and the setup process varies slightly depending on the model.

Wired DVR Systems (Analog Cameras)

These are the most common Zosi setups. They include analog CCTV cameras connected via coaxial cables (like RG59) to a Digital Video Recorder (DVR). The DVR processes the video and stores recordings on an internal hard drive. These systems are reliable, cost-effective, and ideal for fixed locations.

Wired NVR Systems (IP Cameras with PoE)

Newer Zosi models use IP cameras connected via Ethernet cables (Cat5e or Cat6) to a Network Video Recorder (NVR). Many support Power over Ethernet (PoE), meaning both data and power travel through a single cable—simplifying installation. These offer higher resolution (often 1080p or 4MP+) and better remote access features.

Wireless Wi-Fi Cameras

Some Zosi cameras connect directly to your home Wi-Fi network without needing a DVR or NVR. These are great for quick setups or renters who can’t run cables. However, they rely heavily on strong Wi-Fi signals and may experience lag or dropouts in areas with poor coverage.

Knowing your system type will help you prepare the right tools and follow the correct steps below.

What You’ll Need Before Starting

Gather these items before beginning your installation:

• Zosi camera kit (cameras, DVR/NVR, power adapters)
• Coaxial cables (for DVR) or Ethernet cables (for NVR/Wi-Fi)
• Power outlets near each camera location (or PoE switch for NVR)
• Monitor with HDMI or VGA input (for initial setup)
• Screwdriver, drill, and mounting hardware (usually included)
• Ladder (for ceiling or high-wall mounts)
• Smartphone or tablet (for app setup)
• Wi-Fi network name and password (for wireless models)

Pro tip: If you’re installing outdoors, make sure your cameras are rated for outdoor use (look for IP66 or higher weather resistance).

Step 1: Plan Your Camera Placement

Good placement is half the battle. Take time to map out where each camera will go.

Identify Key Areas

Focus on:
– Front and back doors
– Driveways and walkways
– Garages and sheds
– Windows facing public areas
– Blind spots in your yard

Avoid pointing cameras directly at bright lights, reflective surfaces, or neighbor’s property (to respect privacy laws).

Check Line of Sight and Power Access

For wired systems, ensure you can run cables from each camera to the DVR/NVR location (usually near your router or main monitor). For wireless cameras, test Wi-Fi signal strength at each spot using your phone.

Sketch a Simple Layout

Draw a quick diagram showing camera locations, cable routes, and the DVR/NVR position. This helps avoid surprises during installation.

Step 2: Mount the Cameras

Now it’s time to physically install your cameras.

Use the Included Mounting Template

Most Zosi kits come with a paper template. Tape it to the wall or ceiling where you want to mount the camera, then drill pilot holes using the marked spots.

Secure the Mounting Bracket

Attach the bracket with screws (usually provided). Make sure it’s tight and level—especially for outdoor mounts that face wind or rain.

Connect Cables Before Final Mounting

For wired systems, thread the cable through the mounting hole and connect it to the camera before snapping the camera onto the bracket. This prevents tangled wires later.

Adjust the Camera Angle

Once mounted, tilt and swivel the camera to frame your desired view. Tighten any adjustment screws to lock it in place.

Safety tip: Always turn off power at the circuit breaker when working near electrical outlets or wiring.

Step 3: Connect Cables to the DVR or NVR

This is where your cameras “talk” to the recording unit.

For DVR Systems (Coaxial Cables)

1. Plug one end of the coaxial cable into the camera’s BNC connector.
2. Run the cable back to the DVR.
3. Insert the other end into an available BNC port on the DVR (labeled CH1, CH2, etc.).
4. Connect the camera’s power cable to a power adapter, then plug it into an outlet.

Note: Some DVR kits include a power distribution box that lets you power multiple cameras from one outlet—use it to reduce cable clutter.

For NVR Systems (Ethernet/PoE)

1. Plug one end of the Ethernet cable into the camera’s RJ45 port.
2. Run the cable to the NVR.
3. Insert the other end into an available PoE port on the NVR (these usually provide both data and power).
4. No separate power adapter is needed if using PoE.

If your NVR doesn’t have built-in PoE, you’ll need a PoE injector or switch between the camera and NVR.

For Wireless Wi-Fi Cameras

Skip physical connections to a recorder. Instead:
1. Power the camera using its adapter.
2. Wait for the LED light to blink (indicating it’s ready to pair).
3. Follow the app instructions to connect it to your Wi-Fi network (more on this below).

Step 4: Set Up the DVR or NVR

Your recorder is the brain of the system. Let’s get it running.

Connect to a Monitor

Use an HDMI or VGA cable to connect the DVR/NVR to a TV or computer monitor. Plug in the recorder’s power adapter and turn it on.

Initial Setup Wizard

Most Zosi systems launch a setup wizard on first boot. Follow the on-screen prompts to:
– Set the date and time
– Create a admin password (choose something strong!)
– Format the hard drive (if new)

Add Cameras Automatically

In DVR/NVR systems, cameras connected via cable should appear automatically. If not, go to the “Camera” or “Channel” menu and click “Search” or “Auto-add.”

For wireless cameras, you’ll add them through the mobile app instead (see next section).

Step 5: Install the Zosi App and Enable Remote Viewing

One of the best features of Zosi cameras is remote access—letting you check your feeds from anywhere.

Download the App

Search for “Zosi Smart” or “Zosi Pro” in the Apple App Store or Google Play Store. Install it on your smartphone or tablet.

Create an Account

Open the app and sign up with your email. Verify your account if required.

Add Your Device

1. Tap “+” or “Add Device.”
2. Select your recorder type (DVR, NVR, or Wi-Fi camera).
3. Choose “Scan QR Code” (most Zosi recorders have a QR code on the back or in the menu) or enter the device’s serial number manually.
4. Enter the admin password you set earlier.
5. The app will connect to your system over the internet.

Enable P2P (Peer-to-Peer) Connection

Zosi uses P2P technology, which simplifies remote access without complex port forwarding. As long as your DVR/NVR is connected to the internet (via Ethernet cable to your router), the app should find it automatically.

Pro tip: Keep your recorder connected to your router 24/7 for uninterrupted remote access.

Step 6: Configure Recording and Alerts

Now that everything’s connected, customize how your system behaves.

Set Recording Mode

Go to the DVR/NVR menu or app settings and choose:
– **Continuous**: Records 24/7 (uses more storage)
– **Motion Detection**: Only records when movement is detected (saves space)
– **Schedule**: Records only during specific hours (e.g., nighttime)

Adjust Motion Sensitivity

Too sensitive? You’ll get alerts for leaves blowing. Not sensitive enough? You’ll miss intruders. Test and tweak the sensitivity in the camera settings.

Enable Push Notifications

In the Zosi app, turn on notifications so you get alerts on your phone when motion is detected.

Set Up Email Alerts (Optional)

Some models allow email alerts with snapshot attachments. Configure this in the DVR/NVR network settings.

Step 7: Test Everything

Don’t assume it’s working—verify!

Check Live View

Look at each camera feed on the monitor and in the app. Ensure the image is clear, properly framed, and not too dark or washed out.

Test Night Vision

Turn off the lights or wait for dusk. Confirm the IR LEDs activate and the image remains visible.

Trigger Motion Detection

Walk in front of a camera and check if it starts recording and sends you a notification.

Review Playback

Go to the playback section and watch a recorded clip to ensure audio (if supported) and video are synced and clear.

Troubleshooting Common Issues

Even with careful setup, problems can happen. Here’s how to fix the most common ones.

Camera Not Showing Up on Screen

– Check cable connections (BNC or Ethernet).
– Ensure the camera is powered (listen for a click or check LED).
– Try swapping cables or ports to isolate the issue.

Poor Video Quality

– Clean the camera lens.
– Adjust camera angle to avoid glare.
– For wireless cameras, move closer to the router or use a Wi-Fi extender.

Can’t Access Remotely

– Confirm the DVR/NVR is connected to the internet (check router lights).
– Restart the recorder and router.
– Re-scan the QR code in the app.

False Motion Alerts

– Lower motion sensitivity.
– Exclude areas like trees or busy streets from the detection zone (if supported).
– Use “Human Detection” mode (on newer models) to reduce pet or vehicle triggers.

Hard Drive Not Recognized

– Re-format the drive in the DVR/NVR menu.
– Ensure the drive is compatible (most Zosi systems support up to 6TB).

Maintaining Your Zosi System

A little maintenance goes a long way.

– **Clean lenses monthly** with a microfiber cloth.
– **Check cables annually** for wear, especially outdoors.
– **Update firmware** when prompted in the app or DVR menu.
– **Back up important footage** to a USB drive or cloud service (if available).
– **Review recordings weekly** to ensure everything’s working.

Conclusion

Hooking up Zosi cameras might seem daunting at first, but with the right preparation and step-by-step approach, it’s totally doable—even for beginners. From planning your layout to testing motion alerts, each step builds toward a smarter, safer space.

Remember: the key to success is patience and attention to detail. Don’t rush the mounting or cable routing. Take notes if needed. And always prioritize safety when working at heights or near electricity.

Once your system is live, you’ll enjoy peace of mind knowing your property is under watch—whether you’re at home, at work, or on vacation. And with the Zosi app, that peace of mind fits right in your pocket.

So grab your tools, follow this guide, and get your Zosi cameras up and running today. Your future self will thank you!
