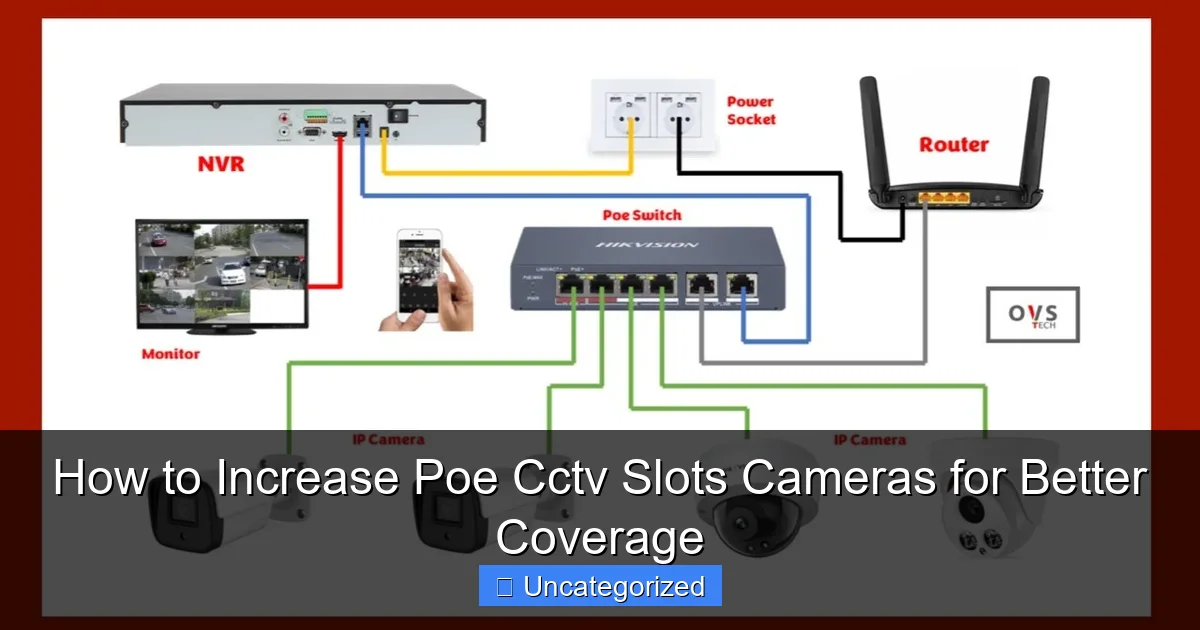

How to Increase Poe Cctv Slots Cameras for Better Coverage

Maximize your surveillance coverage by upgrading your PoE switch to one with higher port density or adding a secondary PoE switch to expand available CCTV slots. This simple hardware expansion allows seamless integration of additional cameras without overloading your network, ensuring stable power and data transmission. For optimal performance, always use high-quality Cat6 cables and verify your NVR’s channel limit before scaling up.

Key Takeaways

• Upgrade your PoE switch: Use a higher-port or PoE+ switch to support more cameras.
• Optimize camera placement: Strategically position cameras to maximize coverage with fewer blind spots.
• Use PoE extenders: Extend reach and add slots in distant areas without rewiring.
• Choose efficient IP cameras: Select low-power models to fit more devices on one switch.
• Daisy-chain with caution: Link cameras via PoE injectors only when switches are at capacity.
• Monitor power budgets: Calculate total power draw to avoid overloading your PoE network.

How to Increase Poe Cctv Slots Cameras for Better Coverage

Imagine having a state-of-the-art surveillance system that leaves blind spots in your property’s most vulnerable areas. This is a common frustration for homeowners and business owners alike—especially when their PoE CCTV slots cameras reach capacity on the switch or NVR. Power over Ethernet (PoE) technology has revolutionized the way we install and manage surveillance systems, allowing for simplified cabling, centralized power, and remote management. However, as the need for better coverage grows—whether due to expanding property size, increased security threats, or regulatory compliance—many find themselves hitting a wall: their current PoE infrastructure simply can’t support more cameras.

Increasing your PoE CCTV slots cameras isn’t just about adding more devices; it’s about optimizing your entire network infrastructure to deliver reliable, high-definition video without compromising performance. Whether you’re upgrading an existing system or planning a new installation, understanding how to scale your PoE setup is crucial. This guide will walk you through practical, cost-effective strategies to expand your camera capacity, improve coverage, and future-proof your surveillance network. From selecting the right PoE switch to leveraging network segmentation and power budgeting, we’ll cover everything you need to know to maximize your system’s potential.

Understanding PoE CCTV Systems and Camera Slot Limitations

Before diving into expansion strategies, it’s essential to understand the core components and limitations of a PoE CCTV system. Unlike traditional analog systems, PoE cameras use a single Ethernet cable to transmit both power and data, simplifying installation and reducing clutter. However, this integration also means that every camera consumes both bandwidth and electrical power, and these resources are finite on your network infrastructure.

What Defines a “Camera Slot”?

In PoE CCTV terminology, a “camera slot” refers to the physical and logical capacity of your network to support one camera. This includes:

• Port availability on the PoE switch or Network Video Recorder (NVR)
• Power budget—the total wattage the PoE switch can deliver
• Bandwidth capacity on the network link
• NVR recording and decoding limits (how many streams it can handle simultaneously)

For example, a 16-port PoE switch with a 120W power budget can support up to 16 cameras—but only if each camera consumes less than 7.5W (120W ÷ 16). If you add high-resolution 4K cameras or PTZ models that draw 12–15W, you may max out the power budget before filling all ports.

Common Bottlenecks in PoE CCTV Systems

Many users hit expansion limits due to one or more of the following:

• Insufficient PoE switch ports: You simply run out of physical connection points.
• Power overload: Total camera power demand exceeds the switch’s PoE budget.
• NVR limitations: Older or budget NVRs can’t decode more than 8–16 camera streams.
• Network congestion: Adding more cameras increases data traffic, potentially degrading video quality.
• Backhaul bandwidth: The connection between switches or to the NVR may become a bottleneck.

Recognizing these constraints is the first step toward a scalable, high-coverage surveillance system.

Upgrading Your PoE Switch: The Foundation of Expansion

The PoE switch is the backbone of your CCTV network. If you’re struggling to add more PoE CCTV slots cameras, upgrading your switch is often the most effective and immediate solution. A modern, high-capacity PoE switch not only provides more ports but also delivers higher power budgets and better network management features.

Choosing the Right PoE Switch for Expansion

When selecting a new PoE switch, consider the following specifications:

• Port count: Choose a switch with 25–50% more ports than your current camera count to allow for future growth. For example, if you have 12 cameras, go for a 24-port switch.
• PoE budget (total wattage): Calculate your total power needs. Standard PoE (802.3af) delivers up to 15.4W per port, while PoE+ (802.3at) provides up to 30W. High-power PoE++ (802.3bt) supports up to 60W or 90W per port for PTZ or thermal cameras.
• PoE standards compliance: Ensure the switch supports the same PoE standards as your cameras to avoid compatibility issues.
• Managed vs. Unmanaged: Managed switches allow VLANs, QoS, port monitoring, and remote configuration—critical for large or complex systems.
• Backplane bandwidth and forwarding rate: For 24+ cameras, look for a switch with at least 10 Gbps backplane and 14.88 Mpps forwarding rate to prevent bottlenecks.

Example: Expanding from 16 to 48 Cameras

Suppose you currently have a 16-port PoE switch with a 120W budget, supporting 16 1080p cameras (each drawing ~6W). You want to add 32 more cameras, including 8 4K PTZ models (15W each).

• Total power needed: (40 × 6W) + (8 × 15W) = 360W
• Port requirement: 48 ports
• Recommended solution: A 48-port PoE+ managed switch with 500W+ power budget (e.g., Netgear GS752TP, Ubiquiti USW-48-PoE)

This switch provides ample ports, sufficient power, and advanced features like traffic prioritization for video streams. You can connect it directly to your NVR or use it as a core switch with additional edge switches in large installations.

Stacking and Link Aggregation for Scalability

For very large properties (e.g., campuses, warehouses), consider switch stacking or link aggregation:

• Stacking: Combines multiple switches into a single logical unit, simplifying management and increasing total port count. Example: Stack two 24-port switches to create a 48-port virtual switch.
• Link Aggregation (LACP): Combines multiple Ethernet links between switches to increase bandwidth. Use 2x 1Gbps links instead of one to handle 50+ camera streams without congestion.

These techniques ensure your network can grow without redesigning the entire topology.

Leveraging NVR Upgrades and Network Video Management

Your Network Video Recorder (NVR) plays a critical role in determining how many PoE CCTV slots cameras you can effectively use. Even with a powerful switch, an outdated or underpowered NVR can bottleneck your system by failing to decode, record, or stream video from additional cameras.

Assessing Your NVR’s Capacity

Check your NVR’s specifications for:

• Maximum camera channels: Most consumer-grade NVRs support 4–16 channels; enterprise models handle 32, 64, or even 128.
• Decoding capability: Measured in “decoding streams” or “total bandwidth.” Example: A 32-channel NVR may decode 8 streams at once but record all 32 at lower resolution.
• Storage and RAID support: More cameras require more storage. Ensure your NVR supports large drives (e.g., 8TB+) and RAID configurations for redundancy.
• Remote access and AI features: Advanced NVRs support facial recognition, license plate detection, and mobile viewing—features that become essential as camera count increases.

When and How to Upgrade Your NVR

You should upgrade your NVR if:

• You’ve hit the camera limit and can’t add more.
• Video playback lags or buffers during live viewing.
• You need AI analytics or multi-site management.
• You’re adding high-resolution (4K/8MP) or multi-sensor cameras.

Recommended upgrades:

• Mid-range NVR: 32-channel, 200 Mbps bandwidth, 4x HDD bays (e.g., Hikvision DS-7600NI-K2/4P, Dahua NVR5232-16P)
• Enterprise NVR: 64–128 channels, 4K decoding, dual NICs, cloud integration (e.g., Milestone XProtect, Synology Surveillance Station)

For large-scale deployments, consider a hybrid NVR setup: Use multiple NVRs in a cluster or integrate with a Video Management Software (VMS) like Milestone or Genetec for centralized control.

Network Segmentation and VLANs for Performance

As camera count grows, so does network traffic. To prevent congestion and improve security, segment your CCTV traffic using VLANs (Virtual Local Area Networks):

• Create a dedicated VLAN for all PoE cameras.
• Assign QoS (Quality of Service) rules to prioritize video streams over other traffic (e.g., VoIP, web browsing).
• Use a managed switch and NVR that support VLAN tagging (IEEE 802.1Q).

This ensures your cameras get the bandwidth they need, even during network spikes.

Optimizing Power Budget and Using PoE Extenders

Power limitations are a frequent roadblock when expanding PoE CCTV slots cameras. Even with a high-budget switch, long cable runs or high-power cameras can strain your system. Smart power management and extenders can help you overcome these challenges.

Calculating and Managing Your PoE Power Budget

Follow these steps to ensure you don’t exceed your switch’s power limits:

1. List all cameras and their power draw (check datasheets or labels).
2. Sum the total power: Total Power = Σ (Camera Power × Quantity)
3. Include a 20% safety margin for future upgrades.
4. Compare with your switch’s PoE budget. If the total exceeds, either:
   • Upgrade the switch
   • Use PoE extenders
   • Switch to lower-power cameras

Example: You have a 240W switch and 30 cameras averaging 7W (210W total). With a 20% margin, you’re at 252W—over budget. Solution: Replace 10 cameras with 5W models (saving 20W) or upgrade to a 300W switch.

Using PoE Extenders and Midspans for Long Runs

For cameras installed beyond 100 meters (the Ethernet limit), use PoE extenders or midspan injectors:

• PoE Extenders: Re-amplify power and data every 100–150 meters. Ideal for large properties (e.g., farms, parking lots).
• Midspan PoE Injectors: Add power to non-PoE switches or extend existing PoE lines. Useful when you can’t replace a legacy switch.

Tip: Use fiber-to-Ethernet media converters for runs over 300 meters. Fiber provides virtually unlimited distance and immunity to electrical interference.

Power-Saving Camera Settings

Reduce power consumption without sacrificing coverage:

• Enable motion-activated recording to lower average power use.
• Use lower resolution or frame rates for non-critical cameras.
• Choose cameras with smart IR or low-light modes that reduce LED power draw.
• Schedule night-only operation for perimeter cameras.

Strategic Camera Placement and Network Topology

Expanding your PoE CCTV slots cameras isn’t just about adding more devices—it’s about maximizing coverage with intelligent placement and network design. Poor placement can lead to redundant cameras, blind spots, or wasted resources.

Conducting a Site Survey for Optimal Coverage

Before adding cameras, perform a thorough site survey:

• Map all entry/exit points, blind spots, and high-traffic areas.
• Use a heat map to identify coverage gaps.
• Consider lighting, weather, and obstructions (e.g., trees, walls).
• Prioritize cameras with wide dynamic range (WDR) for high-contrast areas.

For large properties, divide the site into zones and assign cameras strategically (e.g., 2–3 cameras per zone for 360° coverage).

Choosing the Right Camera Types

Match camera types to your needs:

• Fixed bullet cameras: For focused, long-distance viewing (e.g., driveways).
• PTZ (Pan-Tilt-Zoom) cameras: For wide areas; one PTZ can cover what multiple fixed cameras would.
• Fisheye or 360° cameras: For open spaces; reduce camera count by 50–70% in lobbies or parking garages.
• Thermal cameras: For night vision or perimeter detection without lighting.

Example: A warehouse with 10 entry points and a large open floor. Instead of 12 fixed cameras, use 4 fisheye cameras (floor) + 4 PTZ (entries) + 2 bullet (loading docks) = 10 cameras with better coverage.

Network Topology for Scalability

Design your network to scale easily:

• Star topology: All cameras connect directly to the central switch (best for small to medium systems).
• Hierarchical (tree) topology: Use edge switches in different zones connected to a core switch (ideal for large properties).
• Redundant ring topology: For mission-critical sites; provides failover if a link breaks.

Use Cat6 or Cat6a cables to support 1Gbps speeds and future 10Gbps upgrades.

Data Table: PoE Switch Comparison for CCTV Expansion

Model	Ports	PoE Budget	PoE Standard	Managed	Best For
Netgear GS308PP	8	120W	PoE+ (802.3at)	No	Small homes, 4–8 cameras
Ubiquiti USW-24-PoE	24	200W	PoE+	Yes	Medium businesses, 16–20 cameras
TP-Link TL-SG1024PE	24	250W	PoE+	Yes	Offices, schools, 20–24 cameras
Netgear GS752TP	48	500W	PoE+	Yes	Large properties, 40+ cameras
Cisco CBS250-48P-4G	48	370W	PoE/PoE+	Yes	Enterprise, VLANs, QoS
Hikvision DS-3E0526P-E	24	250W	PoE+	Yes	Hikvision ecosystem, 20+ cameras

Conclusion: Building a Future-Proof PoE CCTV System

Expanding your PoE CCTV slots cameras is a strategic investment in security, scalability, and peace of mind. By upgrading your PoE switch, optimizing your NVR, managing power budgets, and designing intelligent camera placement, you can transform a limited system into a comprehensive surveillance network that adapts to your evolving needs.

Remember: scalability isn’t just about adding more cameras—it’s about building a robust infrastructure that supports growth without performance loss. Use managed switches, VLANs, and high-capacity NVRs to future-proof your system. Conduct regular site surveys to ensure optimal coverage, and leverage advanced camera types (like fisheye or PTZ) to reduce device count while improving visibility.

Whether you’re securing a home, office, warehouse, or campus, the principles remain the same: plan ahead, invest in quality hardware, and design for flexibility. With the right approach, your PoE CCTV system can grow from 10 cameras to 100—and still deliver crystal-clear, reliable coverage. Start today by auditing your current setup, and take the first step toward a smarter, safer environment.

Frequently Asked Questions

How can I increase the number of PoE CCTV slots on my existing NVR?

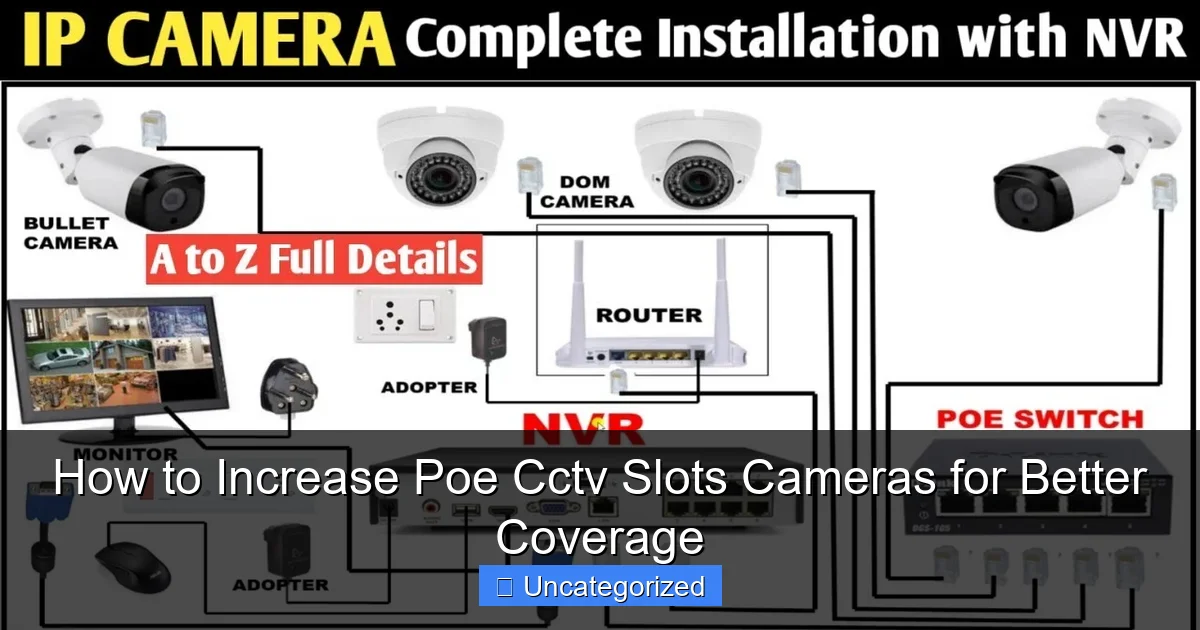

You can increase PoE CCTV slots by connecting an external PoE switch to your NVR’s LAN port. This expands the number of available PoE ports, allowing you to add more cameras without replacing your current setup.

What is the best way to expand PoE camera capacity for better coverage?

The most efficient method is using a high-power PoE switch or PoE extender to connect additional cameras. Ensure the switch supports the same PoE standard (e.g., 802.3af/at) as your cameras for compatibility.

Can I use a PoE injector to add more cameras to my system?

Yes, a PoE injector lets you power individual cameras without relying on the NVR’s built-in PoE slots. Simply plug the injector into your network and connect the camera to add it to your system.

Does daisy-chaining PoE switches help increase CCTV slots?

Daisy-chaining PoE switches is a practical way to scale your system, but ensure each switch has enough power and bandwidth. Avoid exceeding the maximum distance (100 meters per run) to prevent signal loss.

Are there wireless options to expand PoE CCTV coverage without adding slots?

Yes, you can use wireless PoE camera systems or Wi-Fi bridges to extend coverage without physical ports. However, wired PoE connections are more stable and recommended for critical areas.

How do I ensure my PoE switch can handle additional cameras?

Check the PoE switch’s total power budget (in watts) and compare it to the power requirements of your cameras. Leave 20-30% headroom for future expansion or high-power devices like PTZ cameras.
