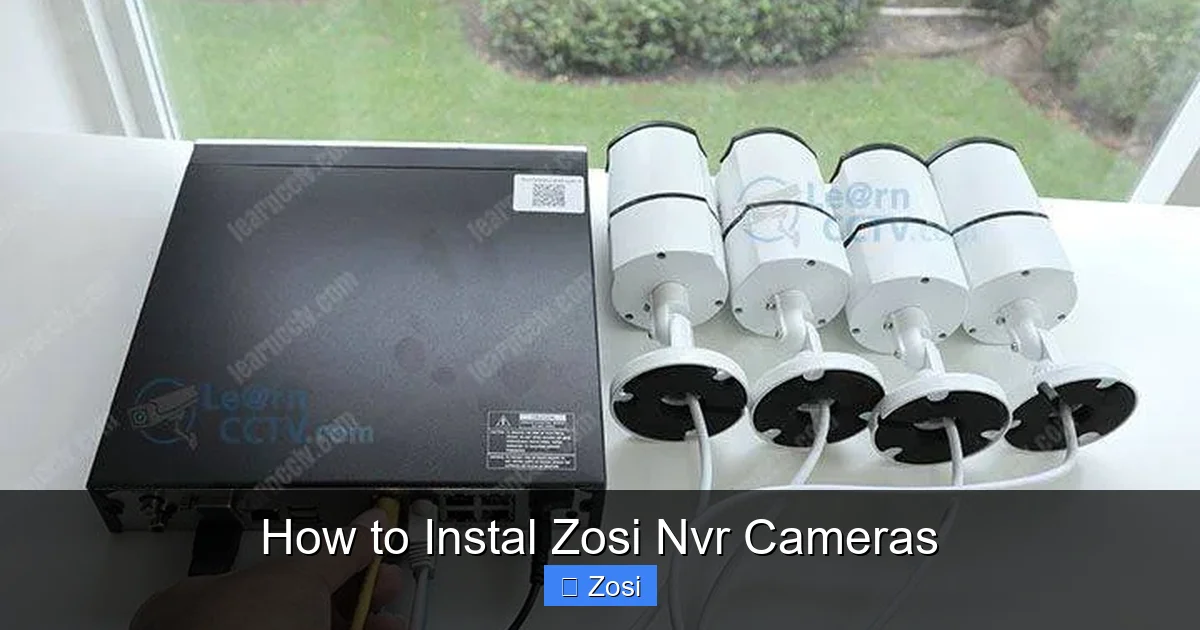

How to Instal Zosi Nvr Cameras

This guide walks you through the complete process of installing Zosi NVR cameras, from unboxing to live monitoring. Whether you’re securing your home or business, we cover every step—including wiring, configuration, and remote access—so you can get your system up and running with confidence.

Key Takeaways

• Plan your camera layout first: Identify key areas like entry points, driveways, and blind spots before mounting to ensure full coverage.
• Use the right cables and power sources: Zosi systems typically use BNC and power cables; ensure you have enough length and weatherproof connections for outdoor cameras.
• Connect cameras to the NVR before powering on: This helps the system auto-detect devices and avoids configuration issues.
• Set up remote viewing via the Zosi app: Download the Zosi Cloud app on your phone to monitor your cameras from anywhere with an internet connection.
• Update firmware for security and performance: Always check for the latest firmware after installation to fix bugs and improve functionality.
• Label cables and organize wiring: This makes future maintenance, troubleshooting, and upgrades much easier.
• Test each camera after installation: Verify video quality, motion detection, and night vision to ensure everything works as expected.

Quick Answers to Common Questions

Should I install cameras before or after connecting the NVR?

It’s best to connect all cameras to the NVR before powering on the system. This allows the NVR to auto-detect each camera and assign channels automatically, reducing setup time.

Can I use wireless cameras with a Zosi NVR?

Most Zosi NVR systems are wired (using BNC and power cables), but some newer models support wireless cameras. Check your specific model’s compatibility before purchasing.

How far can I run BNC cables from the NVR?

Standard BNC cables can run up to 300 feet without signal loss. For longer distances, use a signal booster or switch to a PoE (Power over Ethernet) system.

Do I need a monitor to set up the NVR?

Yes, you’ll need a monitor during initial setup to configure settings. After that, you can manage the system remotely via the app.

What happens if the power goes out?

The NVR will stop recording during a power outage. To prevent this, connect the system to a UPS (uninterruptible power supply) for backup power.

How to Install Zosi NVR Cameras: A Complete Step-by-Step Guide

Setting up a Zosi NVR camera system might sound complicated, but with the right guidance, it’s actually quite straightforward. Whether you’re protecting your home, monitoring your business, or keeping an eye on your property while you’re away, Zosi offers reliable, high-definition surveillance solutions that are user-friendly and affordable. In this comprehensive guide, we’ll walk you through every step of installing your Zosi NVR camera system—from planning your layout to accessing your cameras remotely on your smartphone.

By the end of this guide, you’ll know exactly how to install Zosi NVR cameras, configure your network settings, set up motion alerts, and troubleshoot common issues. We’ll keep things simple, practical, and jargon-free so even beginners can follow along with confidence. Let’s get started!

What You’ll Need Before You Begin

Before diving into the installation, it’s important to gather all the necessary tools and components. Most Zosi NVR camera kits come with everything you need, but double-checking ensures a smooth process.

Included in the Zosi NVR Kit

• Network Video Recorder (NVR)
• Security cameras (typically 4, 8, or 16 depending on the model)
• BNC video cables (usually pre-attached to cameras)
• Power adapters or a centralized power supply
• Mouse (for NVR setup)
• HDMI or VGA cable (for monitor connection)
• Quick start guide and software CD (optional)

Additional Tools and Supplies

• Drill and drill bits (for mounting cameras)
• Screws and wall anchors (if not included)
• Ladder (for high mounting points)
• Cable clips or conduit (to secure and hide wires)
• Ethernet cable (if using PoE models)
• Monitor or TV with HDMI/VGA input
• Smartphone or tablet (for remote viewing)

Pro Tip: If you’re installing outdoor cameras, make sure all connections are weatherproof. Use silicone sealant or outdoor-rated junction boxes to protect power and video connectors from rain and moisture.

Step 1: Plan Your Camera Placement

Good planning is the foundation of a successful security system. Before you drill any holes or run any wires, take time to map out where each camera will go.

Identify Key Monitoring Areas

• Front and back doors: These are prime entry points and should always be covered.
• Driveway and garage: Great for monitoring vehicles and detecting suspicious activity.
• Yard and perimeter: Helps catch intruders before they reach your home.
• Stairwells and hallways (indoor cameras): Useful for monitoring movement inside.
• Blind spots: Areas not visible from windows or existing lighting.

Consider Camera Types

Zosi offers different camera models, including bullet, dome, and PTZ (pan-tilt-zoom) cameras. Bullet cameras are great for long-range viewing, while dome cameras are more discreet and vandal-resistant. Choose based on your needs and environment.

Check for Obstructions and Lighting

Avoid placing cameras where trees, fences, or walls might block the view. Also, consider lighting—cameras with infrared (IR) night vision work best in low-light areas, but avoid pointing them directly at bright lights or reflective surfaces, which can cause glare.

Example: If your front door is under a porch light, angle the camera slightly downward to avoid overexposure at night.

Step 2: Mount the Cameras

Once you’ve planned your layout, it’s time to mount the cameras. This step requires precision to ensure optimal coverage and durability.

Choose the Right Height

Mount cameras 8 to 10 feet high for the best balance of coverage and tamper resistance. This height allows a wide field of view while making it difficult for someone to reach and disable the camera.

Use a Drill and Secure Mounting Brackets

1. Hold the camera bracket against the wall or ceiling where you want to install it.
2. Use a pencil to mark the screw holes.
3. Drill pilot holes and insert wall anchors if needed.
4. Screw the bracket securely into place.
5. Attach the camera to the bracket and adjust the angle.

Pro Tip: For outdoor installations, tilt the camera slightly downward to prevent rain from pooling on the lens.

Run and Protect the Cables

Zosi cameras typically use BNC cables for video and separate power cables. Run these cables through walls, under eaves, or through conduit to protect them from weather and tampering.

• Use cable clips to secure wires along the wall.
• If running cables through walls, use a fish tape to guide them.
• For long runs, consider using a centralized power supply to reduce voltage drop.

Safety Note: Always turn off power at the breaker before drilling near electrical outlets or wiring.

Step 3: Set Up the NVR

The NVR (Network Video Recorder) is the brain of your system. It records video, stores footage, and connects to your network for remote access.

Connect the NVR to a Monitor

1. Use the included HDMI or VGA cable to connect the NVR to a TV or monitor.
2. Plug in the mouse—this will help you navigate the NVR’s interface.
3. Power on the NVR using the provided adapter.

Once powered on, the NVR should display a setup wizard or home screen. If not, check the input source on your monitor.

Connect Cameras to the NVR

Most Zosi NVRs have built-in BNC ports on the back. Simply plug each camera’s BNC cable into an available port. The NVR will auto-detect the cameras and assign them channels.

• Match each camera to a numbered port (e.g., Camera 1 to Port 1).
• If using a centralized power supply, connect all camera power cables to it, then plug the supply into an outlet.
• Ensure all connections are tight and secure.

Pro Tip: Label each cable at both ends with tape or tags (e.g., “Front Door,” “Backyard”) to make troubleshooting easier later.

Step 4: Configure the NVR Settings

Now that everything is connected, it’s time to configure the NVR for optimal performance.

Set the Date and Time

Accurate timestamps are crucial for security footage. Go to the NVR menu and set the correct date, time, and time zone. Enable daylight saving time if applicable.

Adjust Recording Settings

• Recording Mode: Choose between continuous, motion-activated, or scheduled recording. Motion detection is recommended to save storage space.
• Video Quality: Set resolution to 1080p or higher for clear footage. Higher quality uses more storage.
• Frame Rate: 15–30 FPS is ideal for smooth video without excessive file sizes.

Enable Motion Detection

Motion detection alerts you when activity is detected. To set it up:

1. Go to the camera settings for each channel.
2. Enable motion detection and adjust the sensitivity.
3. Draw detection zones to focus on important areas (e.g., ignore trees swaying in the wind).
4. Set up alerts to send notifications to your phone.

Example: For a driveway camera, set a detection zone that covers the road but excludes the sidewalk to reduce false alarms.

Set Up Storage and Overwrite

The NVR records to an internal hard drive. Most Zosi systems come with a pre-installed drive, but you can upgrade it if needed.

• Check available storage in the system menu.
• Enable “Overwrite” so old footage is automatically deleted when the drive is full.
• For critical footage, consider backing up to a USB drive or cloud service.

Step 5: Connect to the Internet for Remote Viewing

One of the best features of Zosi NVR systems is the ability to view your cameras from anywhere using your smartphone or computer.

Connect the NVR to Your Router

1. Use an Ethernet cable to connect the NVR’s LAN port to your home router.
2. Power cycle the NVR and router if the connection isn’t detected.

Download the Zosi Cloud App

Available on iOS and Android, the Zosi Cloud app lets you monitor your cameras remotely.

• Search “Zosi Cloud” in your app store and download it.
• Create a free account using your email.

Add Your NVR to the App

1. Open the app and tap “Add Device.”
2. Select “NVR” and enter the device ID (found on the NVR label or in the system info).
3. Enter your NVR’s username and password (default is usually “admin” with no password).
4. The app will search for the device and connect automatically.

Pro Tip: Change the default password immediately for security. Use a strong, unique password.

Test Remote Access

Once connected, you should see live video from all cameras. Test the app from outside your home network (e.g., on mobile data) to confirm remote access works.

Step 6: Fine-Tune and Test Your System

After installation, take time to test and adjust your system for the best performance.

Check Video Quality

Review footage from each camera. Look for:

• Clear, sharp images during the day and night.
• Proper focus and field of view.
• No glare, shadows, or blind spots.

If a camera is blurry, adjust the focus ring (on some models) or reposition the camera.

Test Night Vision

Turn off the lights and check if the IR LEDs activate and provide clear black-and-white footage. Ensure no objects are too close to the camera, as this can cause IR reflection.

Verify Motion Alerts

Walk in front of each camera to trigger motion detection. Check if you receive a push notification on your phone and if the NVR starts recording.

Review Playback

Go to the playback section on the NVR or app and review recorded footage. Ensure timestamps are accurate and video is smooth.

Troubleshooting Common Issues

Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.

Camera Not Detected by NVR

• Check BNC and power connections—ensure they’re fully inserted.
• Verify the camera is powered on (look for a red LED).
• Try swapping cables or ports to isolate the issue.
• Reset the camera by unplugging it for 10 seconds.

No Video or Black Screen

• Confirm the camera is receiving power.
• Check the monitor input source (HDMI/VGA).
• Test the camera on another port or NVR if possible.
• Inspect cables for damage or loose connections.

Poor Video Quality

• Clean the camera lens with a soft cloth.
• Adjust camera angle to avoid backlighting.
• Increase video resolution in NVR settings.
• Ensure the hard drive has enough free space.

Can’t Access Cameras Remotely

• Confirm the NVR is connected to the internet (check LAN light).
• Verify the device ID and password in the app.
• Restart the router and NVR.
• Check if your ISP blocks certain ports (contact Zosi support if needed).

Motion Alerts Not Working

• Ensure motion detection is enabled for each camera.
• Adjust sensitivity and detection zones.
• Check that the app has notification permissions.
• Update the app and NVR firmware.

Maintaining Your Zosi NVR System

To keep your system running smoothly, perform regular maintenance.

Monthly Checks

• Clean camera lenses and housings.
• Check cable connections for wear or damage.
• Review storage usage and delete old footage if needed.

Software Updates

Check for firmware updates every few months. Updated firmware improves security, adds features, and fixes bugs. Visit the Zosi website or use the NVR’s update tool.

Backup Important Footage

Save critical recordings to a USB drive or cloud storage. This protects against hard drive failure or tampering.

Conclusion

Installing Zosi NVR cameras is a smart investment in your home or business security. With this guide, you’ve learned how to plan your layout, mount cameras, connect and configure the NVR, set up remote viewing, and troubleshoot common issues. The process may take a few hours, but the peace of mind it provides is well worth the effort.

Remember, a well-installed system not only deters crime but also gives you real-time access to what matters most. Whether you’re checking on your pets, monitoring deliveries, or keeping an eye on your property while traveling, your Zosi NVR system has you covered. Take your time, follow the steps, and don’t hesitate to reach out to Zosi support if you need help. Stay safe and secure!
