Installing a Ring Floodlight Camera is a straightforward DIY project that enhances your home security. This guide walks you through every step—from choosing the right location to connecting to Wi-Fi—so you can enjoy bright lighting and 1080p video monitoring in minutes.
Key Takeaways
- Choose the right location: Mount the camera 8–10 feet high for optimal coverage and minimal blind spots.
- Turn off power before installing: Always shut off electricity at the circuit breaker to prevent shocks or damage.
- Use the Ring app for setup: The app guides you through mounting, wiring, and connecting to your Wi-Fi network.
- Ensure strong Wi-Fi signal: Place the camera within range of your router or use a Wi-Fi extender for reliable streaming.
- Test motion zones and lighting: Customize detection areas and light sensitivity to reduce false alerts.
- Secure all connections: Tighten wires and use wire nuts to prevent loose connections or weather damage.
- Maintain regularly: Clean the lens and check settings periodically for peak performance.
How to Install a Ring Floodlight Camera: A Complete Step-by-Step Guide
So, you’ve decided to upgrade your home security with a Ring Floodlight Camera—great choice! These smart devices combine bright LED floodlights with HD video recording, motion detection, and two-way audio, giving you peace of mind whether you’re home or away. But before you can enjoy those crisp night-time videos and instant alerts, you need to install it properly.
In this comprehensive guide, we’ll walk you through how to install a Ring Floodlight Camera from start to finish. Whether you’re replacing an old floodlight or installing one for the first time, we’ve got you covered. You’ll learn how to choose the best location, safely wire the device, connect it to your Wi-Fi, and customize settings for maximum effectiveness. By the end, you’ll have a fully functional security system that lights up your yard and keeps an eye on things 24/7.
Don’t worry—this isn’t a complicated process. With basic tools and about 30–45 minutes of your time, you can complete the installation yourself. Let’s get started!
What You’ll Need Before You Begin
Before you climb that ladder, make sure you have all the necessary tools and materials. Having everything ready will save time and prevent frustration mid-installation.

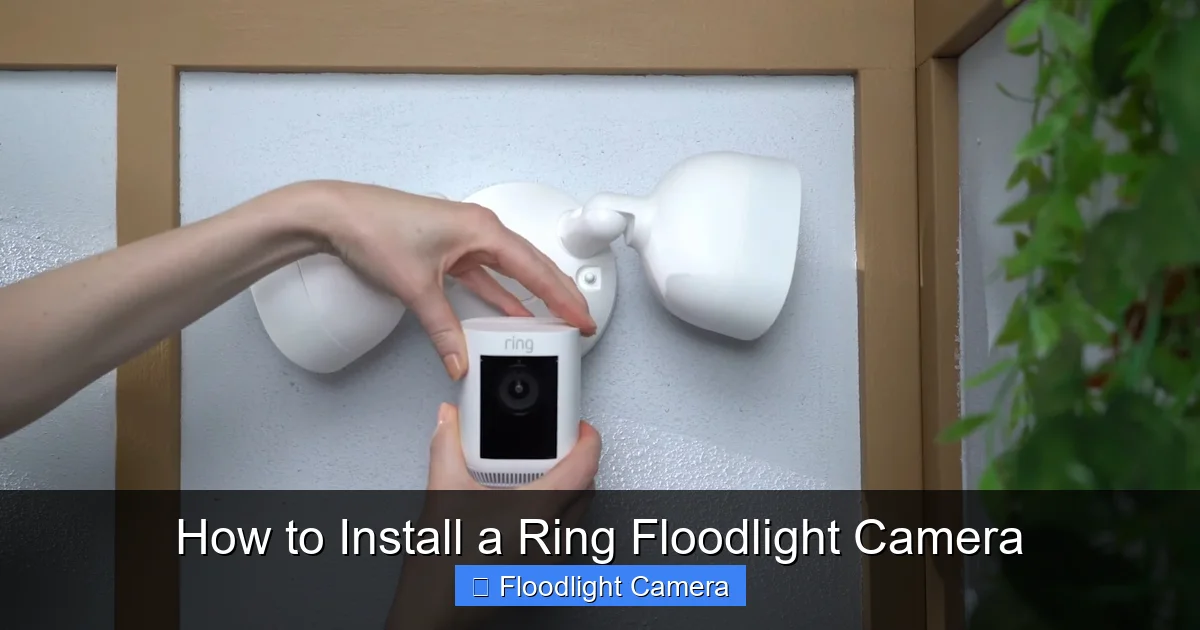

Visual guide about How to Install a Ring Floodlight Camera
Image source: techinspection.net
Tools Required
- Screwdriver (Phillips and flathead)
- Wire strippers
- Voltage tester (non-contact)
- Ladder (stable and tall enough to reach the mounting area)
- Drill and drill bits (if mounting to brick or concrete)
- Electrical tape
- Wire nuts (usually included with the camera)
Materials Included with Your Ring Floodlight Camera
- Ring Floodlight Camera unit
- Mounting bracket
- Screws and anchors
- Wire nuts
- Mounting template (helpful for marking drill holes)
- Quick start guide
Optional but Helpful
- Wi-Fi extender (if your signal is weak in the installation area)
- Smartphone or tablet with the Ring app installed
- Assistant (to help hold the camera while wiring)
Pro Tip: Download the Ring app on your smartphone before starting. It’s essential for setup and will guide you through each step with clear instructions and visuals.
Step 1: Choose the Right Location
The success of your Ring Floodlight Camera starts with where you place it. A poorly chosen location can lead to weak Wi-Fi, blind spots, or frequent false alerts.
Ideal Mounting Height
Mount the camera 8 to 10 feet above the ground. This height provides a wide field of view while minimizing the risk of tampering. It also ensures the motion sensors can detect movement effectively without being triggered by small animals or blowing leaves.
Best Areas to Install
- Front or back porch: Great for monitoring entry points and driveways.
- Side of the house: Ideal for covering side yards or alleys.
- Garage or shed: Useful for monitoring tools, vehicles, or storage areas.
Avoid These Spots
- Directly facing the sun (can cause glare and overheating)
- Areas with heavy tree cover or constant shadows
- Too close to windows (may cause reflections or privacy concerns)
- Locations with weak Wi-Fi signal
Example: If you’re installing the camera above your front door, make sure it’s not blocked by a porch roof or overhang. You want a clear view of the walkway and driveway.
Check Wi-Fi Signal Strength
Use your phone to check the Wi-Fi signal at the installation spot. If the signal is weak, consider installing a Wi-Fi extender or choosing a different location. Ring recommends a minimum signal strength of -60 dBm for reliable performance.
Step 2: Turn Off the Power
Safety first! Working with electrical wiring can be dangerous if you don’t take the proper precautions.
Locate Your Circuit Breaker
Find the circuit breaker that controls the power to your existing floodlight or the outlet where you’ll be installing the new camera. It’s usually labeled, but if not, turn off breakers one by one and test the light until it goes off.
Turn Off the Power
Switch the breaker to the “OFF” position. For extra safety, turn off the main breaker if you’re unsure which circuit controls the light.
Test the Wires
Use a non-contact voltage tester to confirm that the wires are not live. Touch the tester to each wire—if it beeps or lights up, the power is still on. Double-check your breaker and try again.
Important: Never assume the power is off just because the light is out. Always test the wires before touching them.
Step 3: Remove the Old Fixture (If Applicable)
If you’re replacing an existing floodlight, you’ll need to remove it first.
Unscrew the Mounting Bracket
Use a screwdriver to remove the screws holding the old fixture to the wall or ceiling. Carefully lower the fixture and disconnect the wires.
Disconnect the Wires
Unscrew the wire nuts and separate the wires. You should see three wires: black (hot), white (neutral), and green or bare copper (ground).
Cap the Wires Temporarily
Twist wire nuts onto each exposed wire to prevent them from touching each other or the mounting box. This keeps everything safe while you prepare for the new installation.
Note: If there’s no existing wiring, you’ll need to run new electrical cable from a power source. This may require professional help unless you’re experienced with electrical work.
Step 4: Install the Mounting Bracket
The mounting bracket is the foundation of your Ring Floodlight Camera. It must be securely attached to support the weight of the camera and withstand weather conditions.
Position the Bracket
Hold the mounting bracket against the wall or ceiling where you want to install the camera. Use the included mounting template to mark the screw holes with a pencil.
Drill Pilot Holes
If you’re mounting into wood, drill pilot holes slightly smaller than the screws. For brick, concrete, or stucco, use a masonry drill bit and insert plastic anchors.
Secure the Bracket
Align the bracket with the holes and screw it into place using the provided screws. Make sure it’s level and tightly fastened.
Pro Tip: Use a level to ensure the bracket is straight. A crooked mount can affect the camera’s angle and coverage.
Step 5: Connect the Wires
Now it’s time to connect the Ring Floodlight Camera to your home’s electrical system.
Prepare the Wires
Strip about ½ inch of insulation from the ends of the black, white, and ground wires coming from the wall. Do the same for the wires on the camera’s mounting plate.
Match the Wires
- Black to Black: Connect the hot wire from the wall to the black wire on the camera.
- White to White: Connect the neutral wire from the wall to the white wire on the camera.
- Ground to Ground: Connect the green or bare copper wire from the wall to the green wire on the camera.
Twist and Secure with Wire Nuts
Twist the matching wires together clockwise, then screw on a wire nut. Give each connection a gentle tug to ensure it’s secure. Wrap electrical tape around the wire nuts for added protection.
Safety Reminder: Never leave exposed wires. All connections must be covered with wire nuts and tucked safely into the electrical box.
Step 6: Attach the Camera to the Bracket
With the wiring complete, it’s time to mount the camera.
Align the Camera
Hold the Ring Floodlight Camera up to the mounting bracket. Slide it into place so the screw holes align.
Secure with Screws
Insert the provided screws through the camera and into the bracket. Tighten them firmly, but don’t over-tighten, as this can crack the housing.
Adjust the Angle
Once mounted, adjust the camera and floodlights to your desired angle. The camera should face the area you want to monitor, and the lights should illuminate the space without blinding neighbors or passing cars.
Example: If you’re monitoring a driveway, angle the camera slightly downward and the lights outward to cover the entire path.
Step 7: Restore Power and Test the Lights
Before connecting to Wi-Fi, make sure the camera and lights are receiving power.
Turn the Power Back On
Go to your circuit breaker and switch the power back on.
Check the Lights
The floodlights should turn on immediately. If they don’t, turn the power off and double-check your wiring.
Test the Camera
The camera’s status light should blink blue, indicating it’s ready for setup. If it doesn’t light up, recheck the connections and power supply.
Note: The camera won’t record or send alerts until it’s connected to Wi-Fi via the Ring app.
Step 8: Set Up the Camera Using the Ring App
The Ring app is your control center for the camera. It guides you through setup, connects to Wi-Fi, and lets you customize settings.
Download and Open the Ring App
If you haven’t already, download the Ring app from the App Store (iOS) or Google Play (Android). Create an account or log in if you already have one.
Tap “Set Up a Device”
On the home screen, tap the “+” icon or “Set Up a Device” button. Select “Security Cameras” and then “Floodlight Cam.”
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of the camera or inside the battery compartment (for battery-powered models). This links the device to your account.
Follow the On-Screen Instructions
The app will guide you through naming the camera, connecting to Wi-Fi, and testing the connection. Make sure your phone is connected to the same Wi-Fi network you want the camera to use.
Complete the Setup
Once connected, the app will confirm successful setup. You’ll see a live video feed from the camera.
Pro Tip: Name your camera something descriptive, like “Front Door” or “Backyard,” to easily identify it in the app.
Step 9: Customize Settings for Optimal Performance
Now that your camera is online, it’s time to fine-tune the settings for the best experience.
Adjust Motion Zones
In the app, go to Device Settings > Motion Settings > Motion Zones. Draw zones on the video feed to specify where you want motion detection. Avoid areas like busy streets or neighbor’s yards to reduce false alerts.
Set Light and Motion Sensitivity
Adjust the sensitivity sliders for both motion and lighting. Lower sensitivity reduces false alarms but may miss subtle movements. Higher sensitivity catches more activity but may trigger alerts from leaves or shadows.
Enable Smart Alerts
Turn on Person Detection to receive alerts only when a person is detected, not animals or vehicles. You can also set up scheduled alerts or quiet hours.
Test Two-Way Audio
Tap the microphone icon in the live view to speak through the camera. Test the audio quality and volume.
Set Up Linked Devices
Link your camera to other Ring devices, like doorbells or indoor cameras, for a complete security system.
Troubleshooting Common Installation Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.
Camera Won’t Power On
- Check that the circuit breaker is on.
- Verify all wire connections are secure and properly capped.
- Use a voltage tester to confirm power is reaching the wires.
Weak or No Wi-Fi Connection
- Move your router closer or install a Wi-Fi extender.
- Ensure the camera is within 100 feet of the router (less if there are walls).
- Restart your router and the camera.
Floodlights Won’t Turn On
- Check the light settings in the app—make sure they’re not set to “Off.”
- Test the motion sensor by walking in front of the camera.
- Ensure the ambient light sensor isn’t blocked.
Blurry or Dark Video
- Clean the camera lens with a soft, dry cloth.
- Adjust the camera angle to avoid glare from windows or lights.
- Check the night vision settings and ensure the IR LEDs are unobstructed.
False Motion Alerts
- Reduce motion sensitivity in the app.
- Adjust motion zones to exclude trees, bushes, or busy roads.
- Enable Person Detection to filter out non-human movement.
Maintenance Tips to Keep Your Camera Working Like New
To ensure long-term performance, perform regular maintenance on your Ring Floodlight Camera.
Clean the Lens Monthly
Use a microfiber cloth to wipe away dust, dirt, and fingerprints. Avoid harsh chemicals that can damage the lens coating.
Check for Obstructions
Trim back branches or plants that may block the camera’s view or trigger false alerts.
Update Firmware
The Ring app will notify you when updates are available. Keep your camera’s firmware up to date for security and performance improvements.
Inspect Wiring Annually
Check the wire connections for corrosion or looseness, especially after storms or extreme weather.
Test Monthly
Open the live view in the app once a month to ensure the camera is recording and the lights are working.
Conclusion
Installing a Ring Floodlight Camera is a smart, practical way to boost your home’s security. With this guide, you’ve learned how to choose the perfect location, safely wire the device, connect it to Wi-Fi, and customize settings for optimal performance. Whether you’re deterring intruders, monitoring deliveries, or keeping an eye on your property at night, your Ring camera is now ready to protect what matters most.
Remember, the key to a successful installation is preparation and attention to detail. Take your time, follow the steps carefully, and don’t hesitate to consult the Ring support team if you run into issues. Once everything is set up, you’ll enjoy peace of mind knowing your home is under 24/7 surveillance—with bright lights and clear video to back it up.
So go ahead—mount that camera, connect it, and start enjoying the benefits of smart home security today!
