This guide walks you through how to install a wired Ring Floodlight Camera safely and correctly. You’ll learn everything from turning off power and mounting the unit to connecting wires and setting up the app for real-time alerts and HD video.
Key Takeaways
- Turn off power at the breaker before starting installation to avoid electrical shock.
- Use the included mounting bracket to securely attach the camera to your wall or eave.
- Connect existing floodlight wires to the Ring camera’s wiring harness for power and lighting control.
- Download the Ring app and follow in-app prompts to connect the camera to Wi-Fi and complete setup.
- Test motion zones and alerts after installation to ensure optimal coverage and performance.
- Adjust camera angle and sensitivity in the app to reduce false alarms from passing cars or animals.
- Schedule regular maintenance like cleaning the lens and checking connections to keep your system running smoothly.

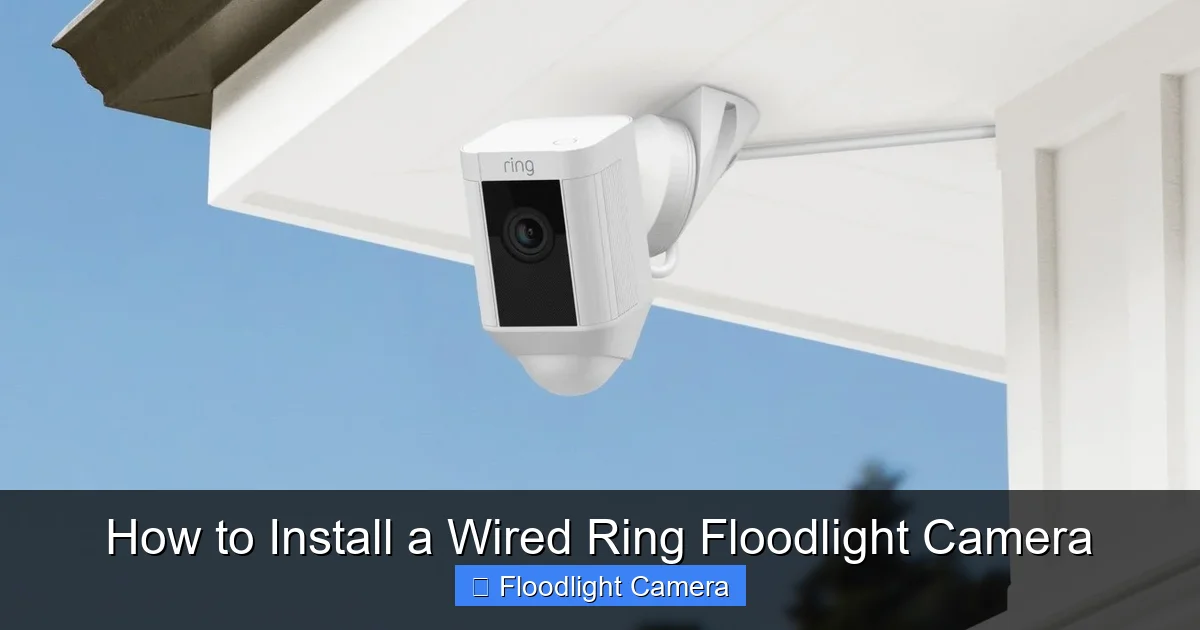

How to Install a Wired Ring Floodlight Camera
Installing a wired Ring Floodlight Camera is a smart way to boost your home security. These devices combine bright LED floodlights with a high-definition security camera, motion detection, and two-way audio—all powered by your existing electrical wiring. Unlike battery-powered models, wired Ring Floodlight Cameras offer continuous power, so you never have to worry about recharging.
In this guide, we’ll walk you through the entire process of installing a wired Ring Floodlight Camera, from preparing your workspace to finalizing the setup in the Ring app. Whether you’re replacing an old floodlight or installing a new one, this step-by-step tutorial will help you get your camera up and running safely and efficiently.
By the end of this guide, you’ll know how to:
– Safely turn off power and remove your old fixture
– Mount the Ring Floodlight Camera securely
– Connect the wires correctly
– Pair the camera with your smartphone
– Customize settings for the best performance
Let’s get started!
What You’ll Need
Before you begin, gather all the tools and materials to make the installation smooth and safe. Here’s a checklist:
- Wired Ring Floodlight Camera (model: Ring Floodlight Cam Wired or Wired Plus)
- Screwdriver (Phillips and flathead)
- Wire strippers
- Voltage tester (non-contact)
- Ladder (stable and tall enough to reach the installation area)
- Electrical tape
- Wire nuts (usually included with the Ring kit)
- Smartphone or tablet with the Ring app installed
- Wi-Fi network with strong signal at the installation location
Pro Tip: If you’re replacing an existing floodlight, check that your current wiring includes a neutral wire (usually white). Most modern homes have this, but older homes might not. The Ring Floodlight Camera requires a neutral wire to function properly.
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Before touching any wires, you must turn off the power to the circuit you’ll be working on.
Locate Your Electrical Panel
Go to your home’s main electrical panel (also called the breaker box). Look for the circuit breaker that controls the floodlight you’re replacing. It’s usually labeled “Outdoor Lights,” “Porch,” or something similar. If it’s not labeled, you may need to test each breaker by turning them off one at a time and checking if the light goes out.
Turn Off the Correct Breaker
Switch the breaker to the “OFF” position. To be extra safe, use a non-contact voltage tester to confirm that the power is off. Touch the tester to the wires inside the electrical box—if it doesn’t beep or light up, the power is off.
Lock Out the Breaker (Optional but Recommended)
If someone else might access the panel, consider using a breaker lock or placing a note to prevent accidental reactivation.
Important: Never assume the power is off just because the light is out. Always test with a voltage tester.
Step 2: Remove the Old Floodlight (If Applicable)
If you’re replacing an existing floodlight, you’ll need to remove it before installing the Ring camera.
Unscrew the Mounting Bracket
Use a screwdriver to remove the screws holding the old fixture to the wall or eave. Carefully lower the fixture and let it hang by the wires.
Disconnect the Wires
Inside the electrical box, you’ll see three wires: black (hot), white (neutral), and green or bare copper (ground). Loosen the wire nuts and separate the wires. Take a photo of the wiring setup before disconnecting—this can help if you need to reference it later.
Remove the Old Fixture
Once the wires are disconnected, remove the old floodlight completely. Set it aside or dispose of it properly.
Tip: If the old fixture is heavy or awkward, have a helper hold it while you disconnect the wires.
Step 3: Prepare the Ring Floodlight Camera
Now it’s time to get your Ring Floodlight Camera ready for installation.
Unbox the Camera
Open the Ring package and remove all components. You should find:
– The Ring Floodlight Camera unit
– Mounting bracket
– Screws and anchors
– Wire nuts
– Quick Start Guide
Attach the Mounting Bracket
The mounting bracket is what secures the camera to your wall. Hold it against the wall where you want to install the camera. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
If you’re installing into wood, you can screw directly into the surface. For brick, concrete, or stucco, drill pilot holes and insert wall anchors for a secure fit.
Secure the Bracket
Use the provided screws to attach the mounting bracket to the wall. Make sure it’s tight and level—this ensures the camera sits properly and doesn’t tilt.
Pro Tip: Choose a location with a clear view of your driveway, yard, or entryway. Avoid pointing the camera directly at the sun or bright lights, which can cause glare.
Step 4: Connect the Wires
This is the most technical part of the installation. Take your time and double-check each connection.
Identify the Wires
Inside the electrical box, you should see:
– Black wire (hot/live)
– White wire (neutral)
– Green or bare copper wire (ground)
On the Ring Floodlight Camera, you’ll find a wiring harness with matching colored wires.
Strip the Wire Ends
Use wire strippers to remove about ½ inch of insulation from the ends of the house wires and the camera wires. This exposes the copper for a solid connection.
Connect the Wires
Match the wires by color:
– Black to black (hot)
– White to white (neutral)
– Green/bare to green/bare (ground)
Twist the matching wires together and secure them with wire nuts. Wrap electrical tape around the wire nuts for extra safety.
Tuck the Wires into the Box
Carefully push the connected wires back into the electrical box. Make sure nothing is pinched or strained.
Warning: Do not connect the wires while the power is on. Always double-check that the breaker is off before handling wires.
Step 5: Mount the Camera
With the wires connected, it’s time to attach the camera to the mounting bracket.
Align the Camera
Hold the Ring Floodlight Camera up to the mounting bracket. The bracket has slots or hooks that the camera slides into.
Secure the Camera
Slide the camera down onto the bracket until it clicks into place. Some models have a locking screw—tighten it with a screwdriver to prevent tampering.
Adjust the Angle
Tilt the camera up or down to get the best view of your property. The ideal angle is slightly downward, covering the area you want to monitor (like a front door or driveway).
Tip: Use the Ring app’s live view (once connected) to fine-tune the angle. You can see exactly what the camera sees and adjust accordingly.
Step 6: Restore Power and Test
Now that everything is connected, it’s time to turn the power back on and test the system.
Turn On the Breaker
Go back to the electrical panel and switch the breaker to the “ON” position.
Check for Power
The Ring Floodlight Camera should power on automatically. You’ll see lights on the camera and the floodlights may flash briefly.
Listen for Sounds
The camera may make a chime or voice prompt indicating it’s ready to connect.
Note: If nothing happens, double-check your wiring and ensure the breaker is fully on. Use a voltage tester to confirm power is reaching the box.
Step 7: Set Up the Ring App
The Ring app is essential for controlling your camera, receiving alerts, and viewing live footage.
Download the Ring App
If you haven’t already, download the Ring app from the Apple App Store or Google Play Store. Create an account or log in if you already have one.
Add a New Device
Open the app and tap the “+” icon to add a new device. Select “Security Cameras” and then “Floodlight Cam Wired.”
Scan the QR Code
The app will prompt you to scan the QR code on the back of the camera or the Quick Start Guide. Hold your phone steady until it scans successfully.
Follow the On-Screen Instructions
The app will guide you through:
– Connecting to your Wi-Fi network
– Naming your camera (e.g., “Front Porch”)
– Setting up motion zones
– Enabling notifications
Test the Connection
Once setup is complete, tap “Live View” to see the camera feed. Speak into your phone to test two-way audio. Walk in front of the camera to trigger motion detection.
Pro Tip: Use the “Motion Settings” in the app to adjust sensitivity. Lower sensitivity reduces false alerts from leaves or small animals.
Step 8: Customize Your Settings
Take full advantage of your Ring Floodlight Camera by customizing its features.
Set Up Motion Zones
In the app, go to Device Settings > Motion Settings > Motion Zones. Draw zones on the camera view to focus on specific areas (like your driveway) and ignore others (like a busy street).
Adjust Light Settings
You can set the floodlights to turn on when motion is detected, stay on for a set time, or remain off. Go to Device Settings > Light Settings to customize.
Enable Smart Alerts
Ring offers person detection, which reduces alerts from non-human motion. Enable this in the app under Motion Settings.
Set Up Chimes (Optional)
If you have a Ring Chime or Chime Pro, link it to your camera so you hear alerts inside your home.
Share Access
Invite family members to view the camera by going to Account > Linked Users. You can give them full access or view-only permissions.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common ones.
Camera Won’t Power On
– Check that the breaker is on.
– Verify all wire connections are tight and correct.
– Use a voltage tester to confirm power at the box.
No Wi-Fi Connection
– Make sure your Wi-Fi signal is strong at the camera location.
– Move your router closer or use a Wi-Fi extender.
– Re-enter your Wi-Fi password in the app.
Floodlights Not Turning On
– Check the light settings in the app.
– Ensure the motion sensor is detecting movement.
– Test the lights manually in the app under Device Health.
Blurry or Dark Video
– Clean the camera lens with a soft, dry cloth.
– Adjust the camera angle to avoid backlighting.
– Check for condensation inside the lens (rare, but possible in humid climates).
False Motion Alerts
– Lower motion sensitivity in the app.
– Narrow motion zones to exclude trees or roads.
– Enable person detection to filter out animals and vehicles.
Maintenance Tips
To keep your Ring Floodlight Camera working perfectly, follow these maintenance tips:
- Clean the lens monthly with a microfiber cloth to ensure clear video.
- Check wiring connections every 6 months to make sure they’re secure.
- Update the app and firmware regularly for new features and security patches.
- Trim nearby bushes or trees that might block the camera’s view or trigger false alerts.
- Test the system after storms or power outages to ensure everything is working.
Conclusion
Installing a wired Ring Floodlight Camera is a straightforward DIY project that can significantly improve your home’s security. By following this guide, you’ve learned how to safely turn off power, remove an old fixture, connect wires, mount the camera, and set up the Ring app for optimal performance.
With features like HD video, motion-activated floodlights, two-way audio, and smart alerts, your Ring camera acts as a vigilant guardian for your property. Plus, because it’s wired, you’ll never have to worry about dead batteries.
Remember to customize your settings, test the system regularly, and keep the camera clean for the best experience. Whether you’re monitoring your front yard, driveway, or backyard, your Ring Floodlight Camera gives you peace of mind—day and night.
Now that you know how to install a wired Ring Floodlight Camera, you’re ready to protect your home like a pro. Stay safe, stay connected, and enjoy the added security!
