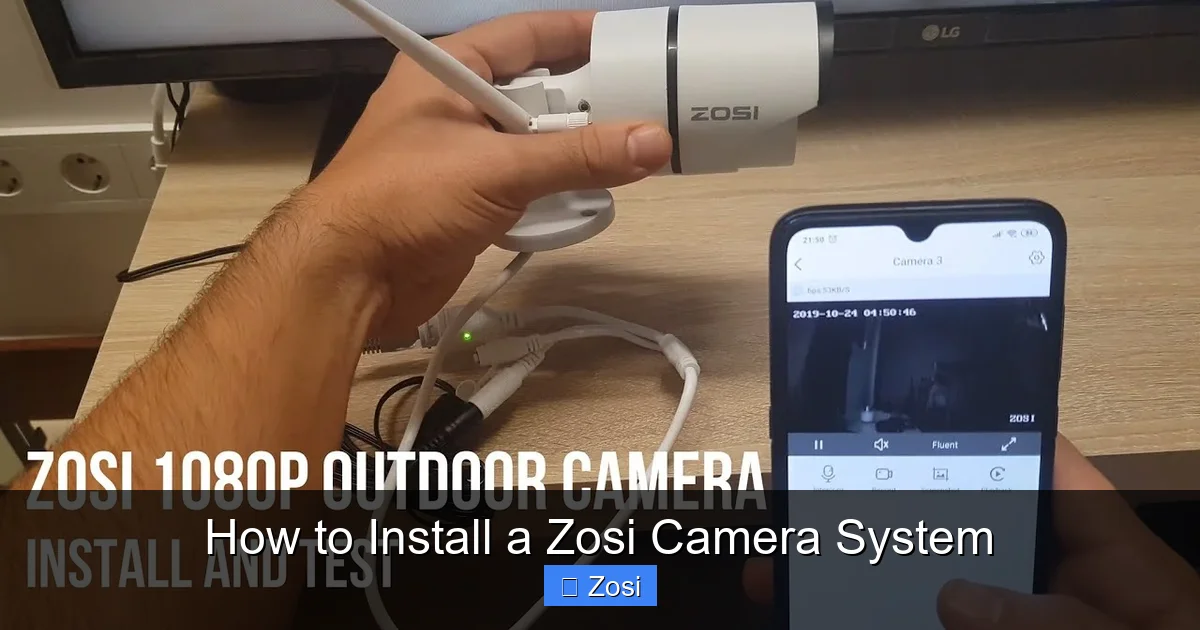

How to Install a Zosi Camera System

This guide walks you through how to install a Zosi camera system from unboxing to live monitoring. Whether you’re securing your home or business, we cover wiring, DVR setup, camera placement, and remote viewing—all in simple, beginner-friendly steps.

Key Takeaways

• Plan your camera layout first: Identify key areas like entrances, driveways, and blind spots before drilling or wiring.
• Use the right tools: A drill, screwdriver, ladder, and cable clips make installation faster and safer.
• Connect cameras to the DVR properly: Match BNC and power cables to the correct ports to avoid signal loss.
• Test each camera before final mounting: Power up and check the live feed on the monitor to ensure everything works.
• Set up remote viewing via the Zosi app: Scan the QR code on the DVR to connect your system to your smartphone.
• Keep cables organized and protected: Use conduit or cable covers to prevent weather damage and tripping hazards.
• Update firmware regularly: Check for updates in the DVR menu to improve performance and security.

Quick Answers to Common Questions

Should I install cameras indoors or outdoors?

Most Zosi cameras are weatherproof and designed for outdoor use. However, if you’re placing one indoors, ensure it has a clear view through windows and isn’t affected by reflections.

Can I add more cameras later?

Yes! Most Zosi DVRs support 4, 8, or 16 channels. If you have an 8-channel DVR, you can add up to 8 cameras. Just make sure the DVR has available ports.

Do I need internet for the cameras to work?

No. The cameras will record and display locally without internet. However, internet is required for remote viewing via the app.

How long does the hard drive store footage?

It depends on the hard drive size and recording settings. A 1TB drive can store about 7–10 days of continuous HD footage. Motion-activated recording extends this significantly.

Can I use my own hard drive?

Yes, as long as it’s compatible with the DVR. Check the Zosi website for supported drives. Formatting may be required through the DVR menu.

How to Install a Zosi Camera System: A Complete Step-by-Step Guide

Installing a Zosi camera system is one of the smartest moves you can make to protect your home or business. These reliable, high-definition security cameras offer clear night vision, motion detection, and remote access—all at an affordable price. Whether you’re a DIY enthusiast or a first-time installer, this guide will walk you through every step of setting up your Zosi system with confidence.

In this comprehensive guide, you’ll learn how to unbox your equipment, plan your camera layout, run cables, connect cameras to the DVR, configure settings, and access your cameras from your smartphone. We’ll also cover common pitfalls and how to avoid them. By the end, you’ll have a fully functional security system that gives you peace of mind 24/7.

Let’s get started!

What’s in the Box?

Before you begin, it’s important to know what you’re working with. Most Zosi camera systems come as a complete kit, which typically includes:

• 4, 8, or 16 security cameras (depending on the model)
• A digital video recorder (DVR)
• Power adapters and splitter cables
• BNC video cables (usually 60 feet each)
• Mounting screws and wall anchors
• A mouse (for DVR navigation)
• An HDMI or VGA cable (to connect to a monitor)
• Quick start guide and software CD (optional)

Some newer models may include PoE (Power over Ethernet) cameras or wireless options, but the most common setup uses wired analog or HD-TVI cameras with a central DVR.

Take a moment to lay out all components and verify nothing is missing. If you’re missing a cable or camera, contact Zosi customer support before proceeding.

Step 1: Plan Your Camera Layout

The success of your Zosi camera system starts with smart planning. You don’t want to mount cameras only to realize they’re pointing at a wall or missing a key area.

Identify High-Priority Areas

Think about the most vulnerable or important spots around your property. Common locations include:

• Front and back doors
• Driveway and garage
• Side gates or backyard entrances
• Windows on the ground floor
• Dark corners or alleys

Avoid pointing cameras directly at bright lights, the sun, or reflective surfaces like windows, as this can cause glare or wash out the image.

Check Camera Range and Viewing Angle

Most Zosi cameras have a viewing angle of around 75 to 90 degrees. That means they capture a wide field of view, but objects farther away may appear smaller. For best results:

• Mount cameras 8 to 10 feet high for optimal coverage.
• Angle them slightly downward to capture faces and activity.
• Ensure there’s at least 10–15 feet of clear line of sight between the camera and the area you want to monitor.

Use painter’s tape to mark where each camera will go. This helps you visualize the layout before drilling.

Plan Your Cable Routes

Since Zosi systems use wired connections, you’ll need to run cables from each camera back to the DVR. Consider:

• Running cables through walls, attics, or basements for a clean look.
• Using outdoor-rated conduit if cables are exposed to the elements.
• Avoiding power lines and sources of electrical interference.

If you’re not comfortable drilling through walls, you can run cables along baseboards or under eaves—just use cable clips to keep them secure and out of sight.

Step 2: Set Up the DVR and Monitor

The DVR is the brain of your Zosi system. It records footage, manages settings, and connects to your network for remote viewing.

Choose a Location for the DVR

Place the DVR in a secure, dry, and well-ventilated area—like a closet, basement, or home office. It should be:

• Close enough to a power outlet.
• Near your router if you plan to use remote viewing.
• Out of reach of children or pets.

Avoid placing it in direct sunlight or near heat sources like radiators.

Connect the DVR to a Monitor

Use the included HDMI or VGA cable to connect the DVR to a TV or computer monitor. Plug one end into the DVR’s video output and the other into the monitor.

Then, connect the mouse to a USB port on the DVR. This lets you navigate the menu system.

Power On and Initial Setup

Plug the DVR into a power outlet and turn it on. You should see the Zosi logo appear on the screen.

The first time you power it up, the system will guide you through a setup wizard. Follow the prompts to:

• Set the date and time.
• Choose your language.
• Create a password (write it down and store it safely).

This password protects your system from unauthorized access, so choose something strong but memorable.

Step 3: Mount the Cameras

Now it’s time to install the cameras. Take your time—this step affects both performance and appearance.

Gather Your Tools

You’ll need:

• A drill and drill bits
• A screwdriver
• A ladder (for high mounts)
• Cable clips or conduit
• A level (to keep cameras straight)

Wear safety goggles when drilling, especially outdoors.

Drill Mounting Holes

Hold the camera mounting bracket against the wall or ceiling where you want to install it. Use a pencil to mark the screw holes.

Drill pilot holes slightly smaller than the screws to prevent cracking. Insert wall anchors if you’re mounting into drywall or brick.

Attach the Camera

Secure the mounting bracket with screws, then attach the camera. Most Zosi cameras twist or snap into place.

Adjust the angle so it points at your target area. Use the level to ensure it’s straight.

Run the Cables

Each camera has two cables: a BNC video cable and a power cable. Run both from the camera back to the DVR location.

If you’re running cables through walls, use a fish tape or coat hanger to pull them through. For outdoor runs, protect cables with PVC conduit or outdoor-rated cable covers.

Label each cable at both ends with tape and a marker (e.g., “Front Door,” “Backyard”) to avoid confusion later.

Step 4: Connect Cameras to the DVR

With the cameras mounted and cables run, it’s time to connect everything.

Connect Video Cables

Each camera’s BNC cable plugs into a video input port on the back of the DVR. These ports are usually labeled “CH1,” “CH2,” etc.

Match each camera to a channel. For example, if your front door camera is connected to CH1, make a note of it.

Connect Power Cables

The power cables from the cameras connect to the power splitter, which then plugs into a single power adapter. This reduces clutter and makes wiring easier.

Plug the power adapter into a surge protector or UPS (uninterruptible power supply) to protect against power surges.

Power On the System

Turn on the DVR and power adapter. Within a few seconds, you should see live video feeds from each camera on the monitor.

If a camera isn’t showing up, double-check the BNC and power connections. Make sure the camera is powered and the cable isn’t damaged.

Step 5: Configure System Settings

Now that your cameras are live, it’s time to customize your system for optimal performance.

Adjust Camera Settings

Use the mouse to navigate the DVR menu. Go to “Camera Settings” to:

• Change the camera name (e.g., “Front Door”).
• Adjust brightness, contrast, and saturation.
• Enable night vision or motion detection.

For night vision, ensure the IR LEDs aren’t blocked by glass or plastic covers.

Set Up Motion Detection

Motion detection alerts you when activity is detected. To enable it:

• Go to “Alarm” or “Motion Detection” in the menu.
• Select the camera(s) you want to monitor.
• Draw detection zones (avoid areas with trees or moving shadows).
• Set sensitivity (start with medium and adjust as needed).

You can also choose to receive alerts via email or push notifications if your system supports it.

Configure Recording Settings

Decide how you want your system to record:

• Continuous Recording: Records 24/7. Uses more storage but ensures nothing is missed.
• Motion-Activated Recording: Only records when motion is detected. Saves space and makes playback easier.
• Scheduled Recording: Records only during certain hours (e.g., nighttime).

Go to “Record” or “Schedule” in the menu to set your preferences.

Set Up Remote Viewing

One of the best features of Zosi systems is remote access. You can view your cameras from anywhere using the Zosi app.

Download the Zosi App

Search for “Zosi” in the App Store (iOS) or Google Play (Android). Download and install the app.

Connect the DVR to Your Network

Use an Ethernet cable to connect the DVR to your router. This gives it internet access.

Add the DVR to the App

Open the app and tap “Add Device.” Choose “Scan QR Code” and point your phone at the QR code on the DVR (usually on the back or in the menu).

Follow the prompts to complete the setup. You’ll need to enter your DVR password.

Once connected, you can view live feeds, playback recordings, and receive alerts on your phone.

Step 6: Test and Fine-Tune

Before calling the job done, test your system thoroughly.

Check All Camera Feeds

Verify that each camera shows a clear, stable image. Walk in front of each camera to test motion detection.

Test Night Vision

Turn off the lights or wait until dark. Check that the cameras switch to night vision mode and provide usable footage.

Review Playback

Go to the playback section in the DVR menu and review a few minutes of recorded video. Make sure the timestamp, audio (if available), and image quality are correct.

Adjust Camera Angles if Needed

If a camera is too high, too low, or pointing the wrong way, loosen the mount and reposition it. Tighten the screws when done.

Troubleshooting Common Issues

Even with careful installation, problems can happen. Here’s how to fix the most common ones.

No Video Feed from a Camera

• Check BNC and power connections.
• Test the camera with another cable or port.
• Ensure the camera is powered (look for a red LED near the lens).

Poor Image Quality

• Clean the camera lens with a soft cloth.
• Adjust brightness and contrast in the DVR menu.
• Ensure the camera isn’t pointed at a bright light source.

Remote Viewing Not Working

• Confirm the DVR is connected to the internet.
• Check that the correct port (usually 80 or 8000) is open on your router.
• Restart the app and DVR.

Motion Alerts Not Working

• Verify motion detection is enabled for the camera.
• Check detection zones and sensitivity settings.
• Ensure the camera has a clear view of the area.

DVR Not Recording

• Check the recording schedule and mode.
• Ensure the hard drive is installed and formatted.
• Verify there’s enough storage space.

Maintenance Tips for Long-Term Performance

To keep your Zosi system running smoothly:

• Clean camera lenses every few months.
• Check cables for wear or damage, especially outdoors.
• Update the DVR firmware when new versions are available.
• Back up important footage to a USB drive or cloud service.
• Test the system monthly to ensure everything works.

Conclusion

Installing a Zosi camera system is a straightforward process when you follow the right steps. From planning your layout to setting up remote viewing, this guide has covered everything you need to know to get your security system up and running.

With your cameras in place, you’ll enjoy 24/7 monitoring, motion alerts, and the peace of mind that comes from knowing your property is protected. Whether you’re watching over your home, business, or vacation property, a Zosi system delivers reliable performance at a great value.

Take your time, follow the instructions, and don’t hesitate to reach out to Zosi support if you run into issues. Your safety is worth the effort.
