How to Install an Additional HDD to Hikvision NVR in 2026

Key Takeaways

• Power off first: Always shut down the NVR before installing the HDD.
• Check compatibility: Verify HDD specs match Hikvision NVR requirements.
• Secure the drive: Mount the HDD properly to avoid physical damage.
• Use admin login: Format the new HDD via the NVR’s web interface.
• Enable overwrite: Set storage settings to auto-overwrite old footage.
• Test recording: Confirm the new HDD records and saves video correctly.

Why This Matters / Understanding the Problem

Running out of storage on your Hikvision NVR can turn your security system into a ticking time bomb. Imagine a break-in happening, only to realize your oldest footage was automatically overwritten because the hard drive was full. This is why knowing how to install an additional HDD to Hikvision NVR in 2026 is more than just a technical upgrade—it’s peace of mind.

Whether you’re a small business owner monitoring a retail store or a homeowner with a multi-camera setup, expanding your NVR storage ensures continuous recording, longer retention, and better forensic coverage. Hikvision NVRs support multiple hard drives, but many users don’t take advantage of this because they think it’s complicated. Spoiler: it’s not.

In this guide, we’ll walk you through every detail—from choosing the right drive to configuring it in your system—so you can keep your footage safe and your system running smoothly. This isn’t just about adding storage; it’s about building a smarter, more reliable security setup.

What You Need

Before you start, gather the right tools and components. Installing an additional HDD to your Hikvision NVR is straightforward, but skipping any of these items can lead to delays or even damage.

• Compatible HDD: Use a surveillance-rated hard drive (e.g., WD Purple, Seagate SkyHawk, or Toshiba S300). These drives are built for 24/7 operation and can handle constant read/write cycles.
• Screwdriver: Usually a Phillips #2. Most Hikvision NVRs use standard screws for the case and drive mounting.
• Anti-static wrist strap (optional but recommended): Prevents electrostatic discharge that could damage internal components.
• Spare SATA data and power cables (if not included): Most NVRs come with extra connectors, but check your model’s manual to confirm.
• Your Hikvision NVR: Make sure it has available drive bays and supports the total storage capacity you plan to add.
• Backup power source (recommended): A UPS (Uninterruptible Power Supply) protects your system during power outages during setup.

Pro tip: Check your NVR model number (e.g., DS-7608NI-K2/8P or DS-7716NI-M4) on the Hikvision website to confirm max drive count and capacity. This ensures your how to install an additional HDD to Hikvision NVR in 2026 project stays within safe limits.

Step-by-Step Guide to How to Install an Additional HDD to Hikvision NVR in 2026

Step 1: Power Down and Disconnect

Start by turning off your NVR and unplugging it from the power source. This is non-negotiable. Working on a powered system risks short circuits, data corruption, or personal injury.

Wait at least 30 seconds after unplugging to let internal capacitors discharge. Then, disconnect all external cables—network, HDMI, USB, and any connected cameras (if possible).

Warning: Never open the NVR while it’s powered on. Even if the system appears off, residual power can damage sensitive electronics.

Step 2: Open the NVR Chassis

Place the NVR on a clean, flat surface. Flip it over and locate the screws on the bottom panel. Use your Phillips screwdriver to remove them—usually 4 to 6 screws.

Once removed, gently slide the cover off. Some models have a latch or clip; if it feels stuck, double-check for hidden screws near ventilation slots or rubber feet.

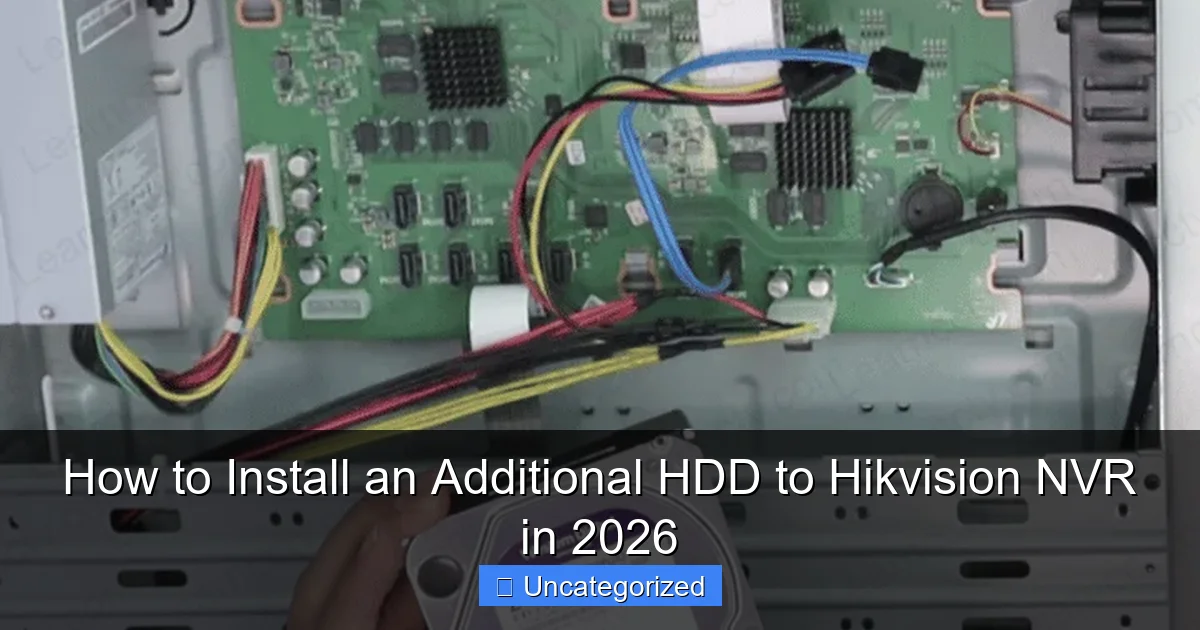

Inside, you’ll see the motherboard, existing HDD(s), SATA ports, and power connectors. Look for an empty drive bay—this is where your new HDD will go.

Step 3: Mount the New Hard Drive

Most Hikvision NVRs have tool-less drive trays or screw-mount bays. If your model uses trays:

• Pull out the empty tray (usually by pressing a release lever).
• Place the new HDD into the tray with the SATA ports facing the rear.
• Secure it with the provided screws or slide the tray back until it clicks.

If your NVR uses fixed bays, you’ll need to screw the HDD directly into the chassis. Use the mounting holes on the sides or bottom of the drive. Don’t overtighten—snug is enough.

Pro Tip: Label your HDDs (e.g., “Main” and “Backup”) with a sticker. This helps during future maintenance or troubleshooting.

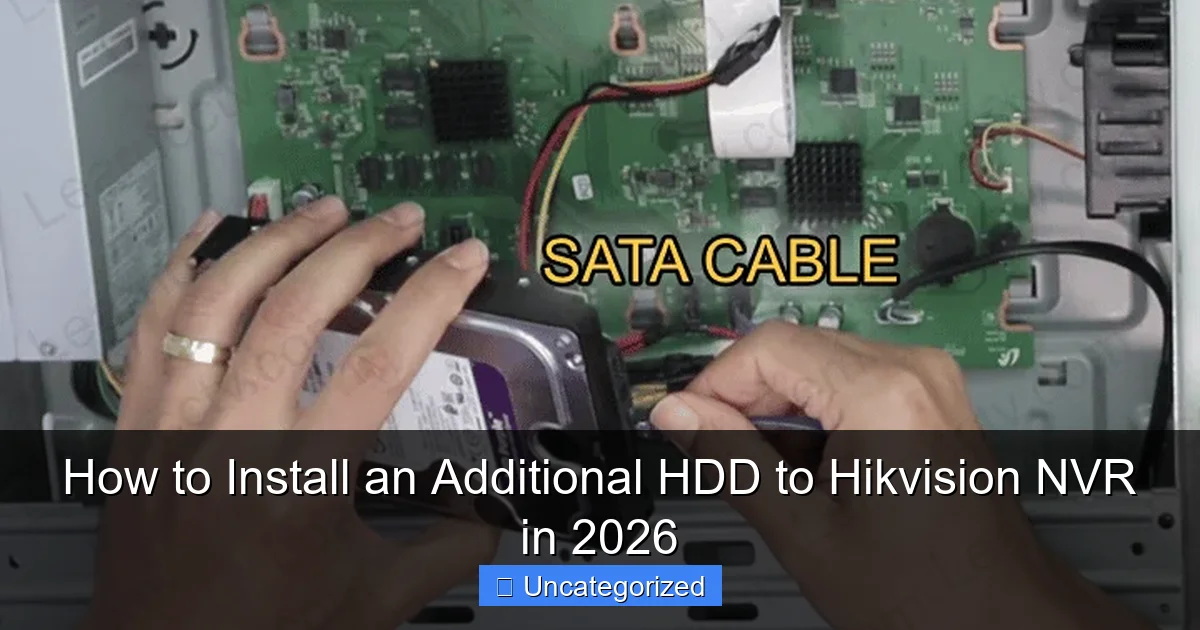

Step 4: Connect SATA Data and Power Cables

Now, connect the SATA data cable from an available port on the motherboard to the back of your new HDD. These cables are L-shaped and only fit one way—don’t force them.

Next, plug in the SATA power cable from the NVR’s power supply. It’s thicker than the data cable and also keyed to prevent incorrect insertion.

If your NVR has multiple power connectors, use the next available one. Avoid daisy-chaining unless you’re using an official Hikvision expansion board.

Warning: Loose cables can block airflow or get caught in fans. Route cables neatly along the chassis edges using built-in clips or zip ties.

Step 5: Reassemble and Power On

Double-check all connections. Ensure the HDD is securely mounted and cables aren’t pinched. Then, reattach the NVR cover and tighten the screws.

Reconnect all external cables—network, monitor, power. Plug the NVR back into the outlet and turn it on.

The NVR should boot normally. You’ll hear the fan spin up and see the Hikvision logo on your monitor. If it doesn’t power on, immediately unplug and recheck all connections.

Step 6: Access the NVR Interface

Once the NVR boots, access the main menu. You can do this via:

• The NVR’s front panel buttons
• A connected monitor and mouse
• Hik-Connect app or iVMS-4200 software on a computer

Navigate to Storage > Storage Management or HDD Management. The exact menu name varies by firmware, but it’s always under the storage section.

Here, you should see your new HDD listed as “Uninitialized” or “Not Formatted.” If it doesn’t appear, power off and recheck the SATA connections.

Step 7: Initialize and Format the New HDD

Select the new drive and click Initialize or Format. The NVR will prepare the drive for use. This may take 1–5 minutes, depending on drive size.

During formatting, the NVR assigns a file system (usually EXT4 or HFS+) optimized for surveillance use. This ensures fast writes and reliable playback.

Choose a recording mode:

• Continuous Recording: Records 24/7.
• Motion Detection: Records only when motion is detected (saves space).
• Event-Based: Records during alarms or sensor triggers.

You can also set the drive to Overwrite (oldest footage deleted first) or Stop Recording when full. For security, we recommend Overwrite unless you need manual retention.

Pro Tip: Use the new HDD as a backup drive if your NVR supports RAID or dual-drive mirroring. This protects against single-drive failure.

Step 8: Assign Recording Channels (Optional)

If you have multiple drives, you can assign specific cameras to the new HDD. This is useful for:

• Storing high-priority cameras (e.g., entrances) on the new drive.
• Splitting storage to balance load or retention time.

Go to Camera Settings > Recording Schedule. Select a camera, then choose the new HDD as its storage location. Save and apply.

Now, your system will use the new drive intelligently—no manual file management needed.

Step 9: Test and Verify

After setup, test the system:

• Trigger motion on a camera and verify recording.
• Check the Storage Info screen to see the new drive’s usage.
• Play back a recent clip to ensure quality and sync.

If everything works, you’re done! The NVR will now use the additional HDD for storage, giving you longer retention and better reliability.

Real-Life Example: A convenience store owner added a 4TB drive to their 8-channel NVR. Before, they had 10 days of footage. After, they got 30 days—enough to investigate a theft that happened weeks earlier.

Pro Tips & Common Mistakes to Avoid

Even simple upgrades like how to install an additional HDD to Hikvision NVR in 2026 can go wrong if you skip key details. Here’s how to stay ahead:

• Use Surveillance-Grade Drives: Regular desktop HDDs (like WD Blue) aren’t built for 24/7 operation. They overheat, fail faster, and may void your warranty. Stick with WD Purple, Seagate SkyHawk, or Hikvision’s own drives.
• Check Total Capacity Limits: Some NVRs cap at 64TB total storage. If you add an 8TB drive to a 10TB one, you might hit the limit. Always verify in your manual.
• Don’t Mix Drive Sizes in RAID: If using RAID 1 (mirroring), both drives must be identical. Mixing sizes wastes space and causes instability.
• Update Firmware First: Outdated firmware can cause compatibility issues. Before installing, go to System > Maintenance > Upgrade and install the latest version.
• Label Your Cables: Use colored tags or labels for SATA cables. If you ever need to remove a drive, you’ll know which cable goes where.
• Monitor Drive Health: Hikvision NVRs support SMART monitoring. Enable it in Storage > HDD Health to get early warnings of drive failure.

Common Mistake: Forgetting to initialize the drive. The NVR won’t recognize it as usable storage until you do. Always check the HDD Management menu after physical installation.

Pro Tip: Schedule a monthly “storage check” to review drive usage, health, and retention. This prevents surprises and keeps your system running smoothly.

FAQs About How to Install an Additional HDD to Hikvision NVR in 2026

1. Can I use a regular hard drive instead of a surveillance drive?
You can, but it’s not recommended. Surveillance drives (like WD Purple) are built for constant write cycles, vibration resistance, and 24/7 operation. Regular drives may fail within months. For reliable how to install an additional HDD to Hikvision NVR in 2026, invest in the right drive.

2. My NVR doesn’t detect the new HDD. What should I do?
First, power off and recheck all connections. Ensure the SATA data and power cables are fully seated. Try swapping the SATA cable with one from a working drive. If the issue persists, test the HDD in another system or contact Hikvision support. The drive may be DOA (dead on arrival).

3. Can I install an SSD instead of an HDD?
Yes, but with caveats. SSDs are faster and quieter, but Hikvision NVRs are optimized for HDDs. Some models may not recognize SSDs, or the firmware may limit write cycles. Also, SSDs are more expensive per GB. For large storage needs, HDDs are more cost-effective.

4. How much storage do I need for my cameras?
It depends on:

• Number of cameras
• Resolution (1080p vs. 4K)
• Frame rate (15fps vs. 30fps)
• Recording mode (continuous vs. motion)

As a rule: 1TB stores about 1 week of 4-camera 1080p continuous recording. Use Hikvision’s Storage Calculator (online) for exact numbers.

5. Can I add more than one HDD?
Yes! Most Hikvision NVRs support 2–8 drives. Check your model’s specs. For example, the DS-7716NI-M4 supports up to 4 drives (16TB each). You can add multiple drives for redundancy (RAID) or extended retention.

6. Will adding an HDD erase my existing footage?
No. The new drive is initialized separately. Your existing recordings remain untouched. However, always back up critical footage to a USB drive or cloud before making hardware changes.

7. How do I remove a drive later?
Go to Storage > HDD Management, select the drive, and click Remove or Offline. Wait for the confirmation, then power off the NVR and unmount the drive physically. Never remove a drive while the NVR is recording.

Final Thoughts

Adding an extra hard drive to your Hikvision NVR isn’t just a technical task—it’s a smart investment in your security system’s longevity and reliability. Whether you’re extending storage for a home setup or scaling up for a business, knowing how to install an additional HDD to Hikvision NVR in 2026 gives you control, peace of mind, and better evidence retention.

Follow the steps above, use the right tools, and avoid common pitfalls. In under an hour, you can double or even triple your footage retention. And with surveillance-grade drives, your system will run smoothly for years.

Now that you’re equipped with the know-how, don’t wait until you’re out of space. Open that NVR, add that drive, and keep your cameras recording—every second matters.

Ready to upgrade? Grab your tools, check your model, and get started today. Your future self (and your security) will thank you.

“`
