This guide walks you through the complete process of installing your Blink Wired Floodlight Camera safely and correctly. From choosing the right location to final app setup, we cover everything you need for a reliable outdoor security solution.
Key Takeaways
- Choose the right location: Install the camera 8–10 feet high with a clear view of entry points and minimal glare from lights or sun.
- Turn off power before wiring: Always shut off electricity at the circuit breaker to prevent shocks or damage during installation.
- Use compatible wiring: The Blink Wired Floodlight Camera requires standard 16–18 AWG low-voltage wire connected to an existing floodlight circuit.
- Follow the Blink app setup: Download the Blink app, scan the QR code, and connect to Wi-Fi for live streaming and motion alerts.
- Test lighting and camera functions: After installation, verify both the floodlights and camera operate correctly using the app controls.
- Secure all connections: Use wire nuts and electrical tape to protect connections from moisture and weather damage.
- Maintain signal strength: Ensure your Wi-Fi signal reaches the installation site; consider a Wi-Fi extender if needed.
How to Install Blink Wired Floodlight Camera: A Complete Step-by-Step Guide
Installing a Blink Wired Floodlight Camera is a smart way to boost your home’s security with 24/7 surveillance and bright LED lighting. Unlike battery-powered models, the wired version offers continuous power and reliable performance—no more worrying about dead batteries or frequent recharging. Whether you’re replacing an old floodlight or installing a new one, this guide will walk you through the entire process, from planning to final testing.
In this comprehensive how-to guide, you’ll learn everything you need to safely and correctly install your Blink Wired Floodlight Camera. We’ll cover essential tools, wiring basics, app setup, and troubleshooting tips. By the end, you’ll have a fully functional outdoor security system that deters intruders and keeps your property under watchful eyes—day and night.
What You’ll Need Before Starting
Before you begin, gather all the necessary tools and materials to ensure a smooth installation. Having everything ready will save time and reduce frustration.

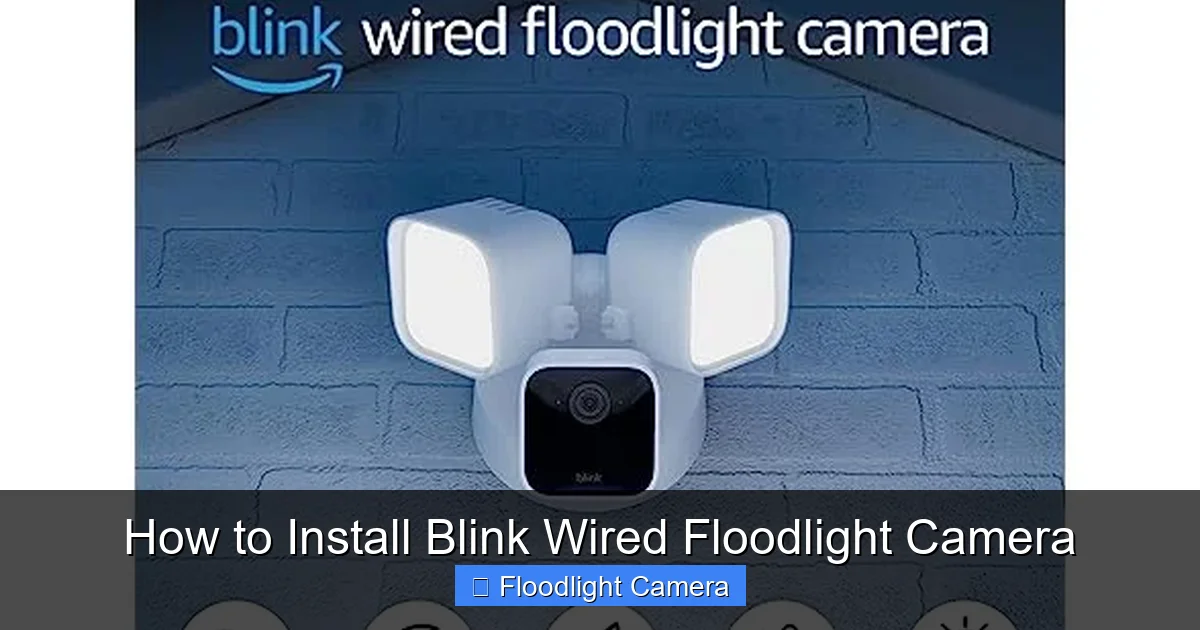

Visual guide about How to Install Blink Wired Floodlight Camera
Image source: slashgear.com
Tools and Materials
- Blink Wired Floodlight Camera (includes camera, floodlight fixture, mounting bracket, and screws)
- Screwdriver (Phillips and flathead)
- Wire strippers
- Voltage tester (non-contact)
- Ladder (stable and tall enough to reach the installation height)
- Electrical tape
- Wire nuts (usually included, but have extras on hand)
- Drill and drill bits (if mounting to brick or concrete)
- Level (to ensure the camera is straight)
- Smartphone or tablet with the Blink app installed
- Wi-Fi network with 2.4 GHz band (required for Blink cameras)
Optional but Helpful
- Assistant (to hold the fixture while wiring)
- Weatherproof junction box (if not using the existing one)
- Wi-Fi signal extender (if your outdoor area has weak coverage)
- Gloves and safety goggles (for protection)
Pro Tip: Always read the manufacturer’s manual that comes with your Blink Wired Floodlight Camera. It contains model-specific details and safety warnings.
Step 1: Choose the Right Location
The success of your security system starts with proper placement. A poorly positioned camera can miss critical activity or produce false alerts due to shadows, glare, or obstructions.
Ideal Height and Angle
- Mount the camera 8 to 10 feet above the ground. This height provides a wide field of view while minimizing tampering risks.
- Aim the camera slightly downward to capture faces and movement at entry points like doors, driveways, or walkways.
- Avoid pointing the camera directly at the sun or bright lights, which can cause glare and wash out footage.
Best Spots to Install
- Above garage doors
- Near front or back entrances
- Alongside driveways or pathways
- Corners of buildings (for wider coverage)
Things to Avoid
- Trees or bushes that may block the view or trigger motion alerts
- Areas with frequent shadows from moving objects (like flags or wind chimes)
- Locations exposed to heavy rain or direct sprinkler spray (unless the fixture is rated for wet locations)
Example: If your front door is on the east side of your house, avoid installing the camera where morning sun will shine directly into the lens. Instead, position it under an eave or awning for shade.
Step 2: Turn Off the Power
Safety is paramount when working with electrical wiring. Never skip this step—even if you think the power is off.
How to Safely Shut Off Power
- Locate your home’s main electrical panel (breaker box).
- Find the circuit breaker that controls the existing floodlight or outdoor outlet.
- Flip the breaker to the “OFF” position.
- Use a non-contact voltage tester to confirm no electricity is flowing to the wires. Touch the tester to each wire—if it beeps or lights up, the power is still on.
Warning: If you’re unsure which breaker controls the light, turn off the main breaker to cut power to the entire house. This is safer than guessing.
Label the Breaker (Optional but Smart)
After turning off the correct breaker, label it with a piece of tape and a note like “Floodlight – Front Yard.” This helps you and others identify it quickly in the future.
Step 3: Remove the Old Floodlight (If Applicable)
If you’re replacing an existing floodlight, you’ll need to remove it carefully to access the wiring.
Steps to Remove the Old Fixture
- Use a screwdriver to remove the mounting screws or bolts holding the old floodlight in place.
- Gently lower the fixture and disconnect the wires. Most fixtures have three wires: black (hot), white (neutral), and green or bare copper (ground).
- Unscrew the wire nuts and separate the wires.
- Remove the old mounting bracket if it’s not compatible with the Blink camera.
Tip: Take a photo of the wiring before disconnecting anything. This serves as a reference if you get confused later.
Inspect the Junction Box
Make sure the electrical box is secure, dry, and rated for outdoor use. If it’s rusted, cracked, or loose, replace it before installing the new camera.
Step 4: Prepare the Wiring
The Blink Wired Floodlight Camera connects directly to your home’s electrical system using low-voltage wiring. It does not require a separate transformer—it uses the existing 120V circuit that powered your old floodlight.
Identify the Wires
- Black wire: Hot (carries electricity from the breaker)
- White wire: Neutral (completes the circuit)
- Green or bare copper wire: Ground (safety wire that prevents shocks)
Strip the Wire Ends
Use wire strippers to remove about ½ inch of insulation from each wire end. This exposes fresh copper for a solid connection.
Caution: Don’t strip too much wire—exposed copper can cause short circuits if it touches other wires or metal parts.
Step 5: Install the Mounting Bracket
The Blink Wired Floodlight Camera comes with a universal mounting bracket that fits most standard junction boxes.
Attach the Bracket
- Hold the bracket against the junction box and align the screw holes.
- Secure it with the provided screws using a screwdriver or drill.
- Use a level to ensure the bracket is straight. A crooked mount will tilt the camera and distort the view.
Pro Tip: If mounting to brick or concrete, use a masonry drill bit and plastic anchors for a secure hold.
Step 6: Connect the Wires
This is the most critical part of the installation. Proper wiring ensures the camera and lights work safely and reliably.
Match the Wires
Connect the wires from the Blink camera to the corresponding house wires:
- Black (camera) → Black (house)
- White (camera) → White (house)
- Green or bare (camera) → Green or bare (house)
Secure with Wire Nuts
- Twist the matching wires together clockwise using pliers.
- Screw on a wire nut over each connection. It should fit snugly and not come loose when tugged gently.
- Wrap each wire nut with electrical tape for added protection against moisture.
Important: Never leave wires exposed or loosely connected. Moisture can cause corrosion or short circuits.
Tuck Wires into the Junction Box
Gently push the connected wires back into the electrical box. Don’t force them—this can damage the insulation or connections.
Step 7: Attach the Camera and Floodlight
Now it’s time to mount the Blink Wired Floodlight Camera to the bracket.
Secure the Fixture
- Align the camera’s mounting plate with the bracket.
- Slide it into place and tighten the mounting screws.
- Ensure the camera is level and aimed at your desired area.
Tip: Have a helper hold the fixture while you tighten the screws—it’s easier and prevents dropping.
Adjust the Camera Angle
Most Blink models allow you to tilt and swivel the camera. Use the adjustment knobs to fine-tune the viewing angle before final tightening.
Step 8: Restore Power and Test
Once everything is securely installed, it’s time to turn the power back on and test the system.
Turn On the Breaker
- Go back to the electrical panel.
- Flip the breaker to the “ON” position.
- Listen for the floodlights to turn on—this confirms power is flowing.
Check the Camera
The camera should power up within 30–60 seconds. You’ll see a solid blue light on the front, indicating it’s ready to connect.
Note: If the lights don’t turn on or the camera doesn’t power up, turn off the breaker and double-check your wiring.
Step 9: Set Up the Blink App
The Blink app is your control center for live viewing, motion alerts, and settings. Download it from the App Store (iOS) or Google Play (Android) if you haven’t already.
Create or Log In to Your Account
- Open the Blink app.
- Sign in with your existing account or create a new one using your email and a secure password.
Add the Camera
- Tap the “+” icon to add a new device.
- Select “Blink Wired Floodlight Camera.”
- Scan the QR code on the camera’s label using your phone’s camera.
- Follow the on-screen prompts to connect to your Wi-Fi network.
Connect to Wi-Fi
The camera only works on 2.4 GHz Wi-Fi networks. If your router broadcasts both 2.4 GHz and 5 GHz, make sure your phone is connected to the 2.4 GHz band during setup.
Tip: If the camera fails to connect, move your phone closer to the camera or use a Wi-Fi extender to boost the signal.
Step 10: Configure Settings and Test Features
Once connected, customize your camera to suit your needs.
Adjust Motion Zones
In the app, go to “Camera Settings” > “Motion Zones.” Draw areas where you want to detect motion (e.g., driveway) and exclude areas like busy streets or trees.
Set Alert Preferences
- Choose when to receive notifications (always, only at night, etc.).
- Adjust sensitivity to reduce false alarms.
- Enable “Smart Alerts” to distinguish between people, animals, and vehicles (if supported).
Test the Floodlights
Use the app to turn the lights on and off manually. Check that both bulbs illuminate evenly and respond quickly.
Test the Camera
- View the live feed in the app.
- Walk in front of the camera to trigger a motion recording.
- Check that the video is clear, in color during the day, and in night vision at night.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common ones.
Camera Won’t Power On
- Check that the breaker is on and the voltage tester confirms power.
- Inspect wire connections—loose or reversed wires can prevent power flow.
- Ensure the junction box is receiving electricity (test with a lamp or outlet tester).
Wi-Fi Connection Fails
- Make sure you’re using a 2.4 GHz network.
- Move the router closer or install a Wi-Fi extender.
- Restart the camera by turning off the breaker for 10 seconds, then turning it back on.
Floodlights Don’t Turn On
- Verify the wiring connections—especially the black (hot) wire.
- Check if the bulbs are properly seated in the sockets.
- Test the lights manually in the app to rule out motion sensor issues.
Poor Video Quality
- Clean the camera lens with a soft, dry cloth.
- Ensure the camera isn’t pointed at a reflective surface (like a window or shiny car).
- Adjust the angle to reduce glare from lights or the sun.
False Motion Alerts
- Narrow the motion zones to exclude moving branches or shadows.
- Lower the sensitivity setting in the app.
- Install the camera under an eave to reduce wind-triggered movement.
Maintenance Tips for Long-Term Performance
To keep your Blink Wired Floodlight Camera working flawlessly, follow these simple maintenance steps.
Monthly Checks
- Clean the lens and floodlight covers with a damp cloth.
- Check for loose screws or mounting hardware.
- Review motion alert logs to spot patterns or issues.
Seasonal Care
- In winter, remove snow or ice buildup that could block the camera view.
- In summer, ensure vents aren’t clogged with dust or debris.
- Inspect wiring for signs of wear or animal damage.
Software Updates
The Blink app automatically checks for firmware updates. Keep your app updated to ensure you have the latest features and security patches.
Conclusion
Installing a Blink Wired Floodlight Camera is a straightforward project that enhances your home’s safety and gives you peace of mind. By following this guide, you’ve learned how to choose the right location, wire the camera safely, set up the app, and troubleshoot common issues. With continuous power and reliable connectivity, your wired floodlight camera will deliver clear footage and bright lighting whenever you need it.
Remember, proper installation is key to performance. Take your time, double-check connections, and don’t hesitate to consult a licensed electrician if you’re unsure about any electrical work. Once everything is up and running, you’ll enjoy 24/7 surveillance, motion-activated lighting, and instant alerts—all from the convenience of your smartphone.
Stay safe, stay secure, and enjoy the confidence that comes with a well-protected home.
