Installing a bullet security camera on a junction box in 2026 is faster and safer than ever, thanks to updated wiring standards and tool-free mounting systems. Always power off the circuit, secure the camera base with tamper-proof screws, and use weatherproof conduit connections to ensure a reliable, long-lasting outdoor setup. This method delivers professional-grade stability and streamlined cable management for modern surveillance systems.

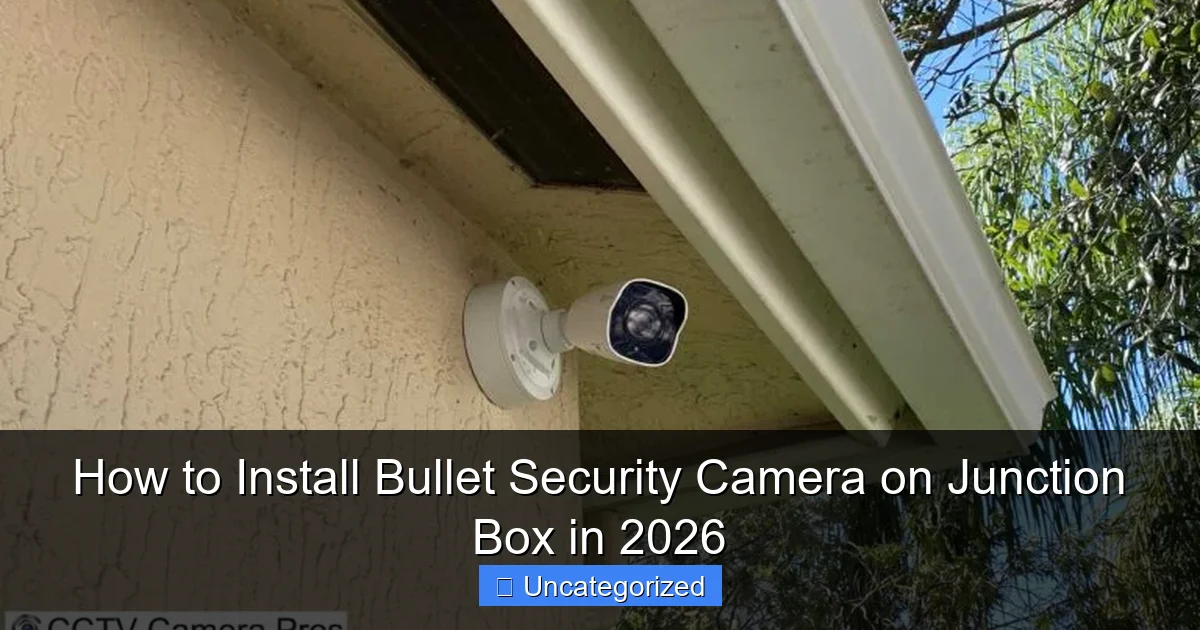

How to Install Bullet Security Camera on Junction Box in 2026

Key Takeaways

• Choose the right junction box: Ensure it’s weatherproof and matches your camera’s mounting specs.
• Turn off power first: Always disconnect electricity before wiring for safety.
• Use proper tools: A drill, screwdriver, and cable tester simplify installation.
• Secure wiring tightly: Prevent loose connections with waterproof seals and conduit.
• Test camera alignment: Adjust angle and focus before finalizing the mount.
• Follow local codes: Comply with electrical and building regulations for outdoor setups.

Why This Matters / Understanding the Problem

Home security is no longer a luxury—it’s a necessity. With rising property crime and the increasing sophistication of smart devices, more homeowners and small businesses are turning to bullet security cameras for their durability, visibility, and weather resistance.

But here’s the catch: installing a bullet camera isn’t just about mounting it on a wall. For a clean, professional, and long-lasting setup, you need to connect it properly to a junction box—a small electrical box that hides wires, protects connections, and ensures compliance with safety standards.

That’s where the How to Install Bullet Security Camera on Junction Box in 2026 process becomes essential. Whether you’re upgrading an existing system or building a new one, using a junction box prevents exposed cables, reduces tripping hazards, and makes future repairs easier. Plus, in 2026, with stricter building codes and smarter cameras, this method is becoming the industry standard.

Imagine this: You’ve spent hundreds on a high-end 4K bullet camera with night vision and motion tracking. But if you just screw it to the wall with loose wires dangling, you’re inviting weather damage, tampering, and a messy look. Not to mention, it might void your warranty.

This guide walks you through every detail of how to install a bullet security camera on a junction box—safely, cleanly, and efficiently—so your security system looks sharp and works flawlessly for years.

What You Need

Before you start, gather the right tools and materials. Skipping this step can lead to delays, mistakes, or even electrical hazards. Here’s your checklist:

• Bullet security camera (with power and video/data cables)
• Weatherproof junction box (NEMA 4-rated or higher)
• Mounting screws and anchors (usually included with camera)
• Power drill with masonry or wood bits (depending on surface)
• Screwdriver set (Phillips and flathead)
• Wire strippers and crimpers
• Electrical tape or heat shrink tubing
• Fish tape or coat hanger (for pulling wires)
• Level tool (to keep camera aligned)
• Measuring tape
• Voltage tester (if using PoE or hardwired power)
• Silicone sealant (optional, for extra weatherproofing)
• Ethernet cable (for PoE models) or power adapter (for 12V DC models)

Pro Tip: Always check your camera’s manual first. Some models come with pre-attached cables or require specific junction box sizes. For outdoor installations, use a weatherproof junction box with a gasketed cover to prevent water intrusion.

For the How to Install Bullet Security Camera on Junction Box in 2026 process, using the right gear from the start ensures a smooth, professional-grade install. Don’t cut corners here—your safety and camera longevity depend on it.

Step-by-Step Guide to How to Install Bullet Security Camera on Junction Box in 2026

Step 1: Choose the Right Location

Start by scouting the perfect spot for your bullet camera. You want maximum coverage with minimal blind spots.

Look for areas like front porches, backyards, driveways, or side gates. Avoid placing it under overhangs (where rain can drip directly on the lens) or near bright lights (which cause glare).

Use a measuring tape to mark the spot. Hold the camera (or its mounting plate) against the wall to visualize the view. A common mistake is mounting too high—aim for 8–10 feet above ground for optimal facial recognition.

Warning: Don’t mount directly on vinyl siding. It’s too thin and can crack. Use a wooden backing board or choose a brick/wooden surface.

For the How to Install Bullet Security Camera on Junction Box in 2026 process, location is half the battle. A well-placed camera deters crime and captures usable footage—don’t rush this step.

Step 2: Install the Junction Box

The junction box acts as the “home base” for all cables. It keeps everything tidy and protected.

First, trace the outline of the junction box on the wall using a pencil. Use your level to ensure it’s perfectly horizontal—crooked boxes look unprofessional and can cause alignment issues later.

Drill pilot holes using a masonry bit (for brick/concrete) or wood bit (for wood). Insert wall anchors if needed. Then, screw the junction box into place using the included mounting screws.

Make sure the box is flush with the wall and secure. Wiggle it gently—if it moves, tighten the screws or add more anchors.

Pro Tip: For extra weather protection, apply a thin bead of silicone sealant around the edges of the box after installation. This seals gaps and prevents moisture buildup inside.

This step is crucial for the How to Install Bullet Security Camera on Junction Box in 2026 method. A sturdy, well-sealed box means fewer maintenance headaches down the road.

Step 3: Run and Prepare the Cables

Now it’s time to connect your camera to power and data. This is where the junction box shines.

Start by running your cables from the power source (like a PoE switch or wall outlet) to the junction box. Use fish tape to pull wires through walls or conduit. If you’re going through a wall, drill a small hole (1/2 inch) at a downward angle to keep water out.

Once the cables reach the junction box, feed them through the knockouts (pre-drilled holes) on the box. Leave about 6–8 inches of slack inside the box—this gives you room to work during connections.

Strip the ends of the power and data cables using wire strippers. For PoE (Power over Ethernet) models, you only need one Ethernet cable. For analog or 12V DC models, you’ll have separate power and video cables.

Warning: Never run power and data cables in the same conduit unless they’re shielded. Electrical interference can cause signal loss or camera glitches.

For the How to Install Bullet Security Camera on Junction Box in 2026 process, proper cable management inside the box prevents tangles and makes future upgrades easier.

Step 4: Connect the Camera Cables Inside the Junction Box

Inside the junction box, you’ll connect your camera’s cables to the incoming power and data lines.

For PoE models: Simply plug the Ethernet cable into the camera’s port. The other end goes to your PoE switch or NVR (Network Video Recorder).

For 12V DC models: Match the positive (+) and negative (-) wires. Use crimp connectors or wire nuts to join them. Wrap connections with electrical tape or use heat shrink tubing for a cleaner finish.

For analog (BNC) cameras: Connect the video cable (BNC end) and power wires separately. Again, use proper connectors and insulate all exposed metal.

Label each cable with a tag or marker. This helps during troubleshooting. For example: “Front Door – PoE” or “Backyard – 12V.”

Pro Tip: Use a small zip tie inside the box to bundle cables neatly. This prevents strain on the connections and keeps the box organized.

This step is the heart of the How to Install Bullet Security Camera on Junction Box in 2026 method. Clean, secure connections mean fewer failures and longer camera life.

Step 5: Mount the Camera to the Junction Box

Now attach the camera to the junction box. Most bullet cameras use a mounting bracket that screws into the box or wall.

First, feed the camera’s pigtail cables (the short wires coming out of the camera) through the bracket. Then, align the bracket with the junction box and secure it with the included screws.

Once the bracket is tight, connect the pigtail to the cables inside the junction box. For PoE, just plug in the Ethernet. For DC, match the wires and secure them.

Now, attach the camera body to the bracket. Some models twist into place; others use a locking screw. Refer to your manual.

Warning: Don’t overtighten the camera. This can crack the housing or misalign the lens. Hand-tight is usually enough.

For the How to Install Bullet Security Camera on Junction Box in 2026 process, a secure but gentle mount ensures your camera stays in place during wind, rain, or accidental bumps.

Step 6: Seal and Weatherproof All Connections

Outdoor security cameras face rain, snow, dust, and insects. Without proper sealing, moisture can corrode wires and ruin your system.

After connecting everything, close the junction box cover and tighten the screws. If your box has a rubber gasket, make sure it’s intact and seated properly.

Apply silicone sealant around the knockouts where cables enter the box. This blocks water and pests. For extra protection, use a drip loop—create a small “U” in the cable just before it enters the box so water drips off instead of running in.

For the camera itself, check the manufacturer’s weather rating (e.g., IP66 or IP67). If it’s not fully sealed, add a camera hood or silicone around the lens housing.

Pro Tip: Use a small amount of dielectric grease on electrical connections. It repels moisture and prevents corrosion—perfect for long-term outdoor use.

Sealing is a must for the How to Install Bullet Security Camera on Junction Box in 2026 method. A well-sealed system can last 5–10 years with minimal maintenance.

Step 7: Test and Adjust the Camera

Before calling it a day, test your camera to make sure it’s working.

Power on the system. For PoE, check your NVR or router. For DC, plug in the adapter. Look for the camera’s indicator light (usually red or green).

Access the camera feed via your app, NVR, or monitor. Adjust the angle by loosening the bracket, pointing it where you want, then tightening again. Use the level tool to keep it straight.

Check the field of view. Can you see key areas like doors, walkways, or driveways? If not, tweak the position or height.

Warning: Don’t point the camera directly at the sun. This can damage the sensor and cause glare in daytime recordings.

For the How to Install Bullet Security Camera on Junction Box in 2026 process, testing ensures you get the coverage you paid for—no blind spots, no glitches.

Step 8: Finalize and Label

Once everything works, do a final check.

Double-check all screws, connections, and seals. Trim any excess zip ties or cable slack inside the junction box.

Label the camera on your NVR or app (e.g., “Front Door,” “Backyard”). This helps during playback or remote viewing.

Take a photo of the installed camera and junction box. Save it with your manual—it’s helpful for future repairs or insurance claims.

Clean the lens with a microfiber cloth. A dirty lens ruins footage, especially at night.

Pro Tip: Set a reminder to inspect the camera every 6 months. Check for spider webs, dust, or loose screws. Prevention is cheaper than replacement.

This final step wraps up the How to Install Bullet Security Camera on Junction Box in 2026 process with professionalism and peace of mind.

Pro Tips & Common Mistakes to Avoid

Even small mistakes can ruin your installation. Here’s what to watch for:

• Using a non-weatherproof junction box: Indoor boxes fail outdoors in months. Always use NEMA 4-rated or higher.
• Skipping the level tool: A crooked camera looks unprofessional and misses key areas.
• Over-tightening screws: This cracks plastic housings or strips metal threads.
• Ignoring cable slack: Too little slack stresses connections. Too much creates clutter.
• Forgetting to seal knockouts: Water and insects love to sneak in.
• Not labeling cables: You’ll regret it when troubleshooting later.
• Placing near heat sources: AC units, grills, or vents cause lens fogging.

Pro Tip: Use a camera with a motorized zoom or varifocal lens. You can adjust the field of view remotely—no ladder needed.

For the How to Install Bullet Security Camera on Junction Box in 2026 process, avoiding these pitfalls saves time, money, and frustration.

Bonus Tip: If you’re installing multiple cameras, color-code the junction boxes (e.g., red for front, blue for back). It makes future upgrades a breeze.

FAQs About How to Install Bullet Security Camera on Junction Box in 2026

Q: Can I install a bullet camera without a junction box?
A: Technically, yes—but it’s not recommended. Exposed wires are vulnerable to weather, tampering, and code violations. The How to Install Bullet Security Camera on Junction Box in 2026 method is the safest, cleanest option.

Q: What size junction box do I need?
A: Most bullet cameras need a 4-inch square box (about 21 cubic inches). Check your camera’s manual—some require more space for thick cables or extra connectors.

Q: Can I use a junction box for wireless cameras?
A: Yes, if the camera needs power (like a 12V DC model). The box hides the power cable. For fully wireless (battery-powered) cameras, a box isn’t needed—but you’ll need a solar panel or regular battery changes.

Q: How do I hide the cables inside the wall?
A: Use a fish tape to run cables through walls. For exterior walls, drill a hole at a downward angle to prevent water entry. Use conduit if required by local codes.

Q: What if my camera has a long cable?
A: You can extend it, but use proper connectors (like RJ45 for PoE or BNC for analog). Avoid splicing low-voltage cables with electrical tape—it’s unsafe and unreliable.

Q: Is this installation DIY-friendly?
A: Absolutely! With basic tools and this guide, most homeowners can complete the How to Install Bullet Security Camera on Junction Box in 2026 process in 1–2 hours. For complex wiring (like in-ceiling runs), consider hiring an electrician.

Q: How often should I inspect the junction box?
A: Every 6 months. Open it (with power off) and check for moisture, loose connections, or pests. Re-seal if needed.

Final Thoughts

Installing a bullet security camera on a junction box might sound technical, but it’s totally doable—even for beginners. The How to Install Bullet Security Camera on Junction Box in 2026 process combines safety, professionalism, and long-term reliability.

By following these steps, you’re not just setting up a camera—you’re building a durable, low-maintenance security system. No more messy wires, no more weather damage, and no more guesswork.

So grab your tools, pick a sunny day, and get started. Your property—and your peace of mind—will thank you.

Action Tip: Bookmark this guide and keep your manual handy. When it’s time to add more cameras or upgrade your system, you’ll already know the drill.
