This guide walks you through the complete installation of the Eufy E340 Floodlight Camera, from unboxing to final setup. You’ll learn how to safely wire, mount, and connect the camera to your Wi-Fi for 24/7 home security.
Key Takeaways
- Turn off power at the breaker before starting installation to avoid electrical hazards.
- Use the included mounting bracket for secure and level placement on your wall or eave.
- Connect the camera to your 2.4GHz Wi-Fi network using the Eufy Security app for remote access.
- Adjust motion zones and sensitivity in the app to reduce false alerts from trees or passing cars.
- Test the floodlights and camera after installation to ensure everything works properly.
- Keep the camera firmware updated for the latest features and security improvements.
- Use weatherproofing techniques if installing in exposed areas to protect wiring and connections.
How to Install Eufy E340 Floodlight Camera
Installing a Eufy E340 Floodlight Camera is a smart way to boost your home’s security. This all-in-one device combines bright LED floodlights with a high-definition security camera, motion detection, and two-way audio. Whether you’re replacing an old floodlight or installing a new one, this guide will walk you through every step—safely and efficiently.
By the end of this guide, you’ll know how to:
– Prepare your installation site
– Safely turn off power and remove old fixtures (if needed)
– Mount the Eufy E340 securely
– Wire the camera to your home’s electrical system
– Connect it to your Wi-Fi using the Eufy Security app
– Adjust settings for optimal performance
Let’s get started!
What’s in the Box?

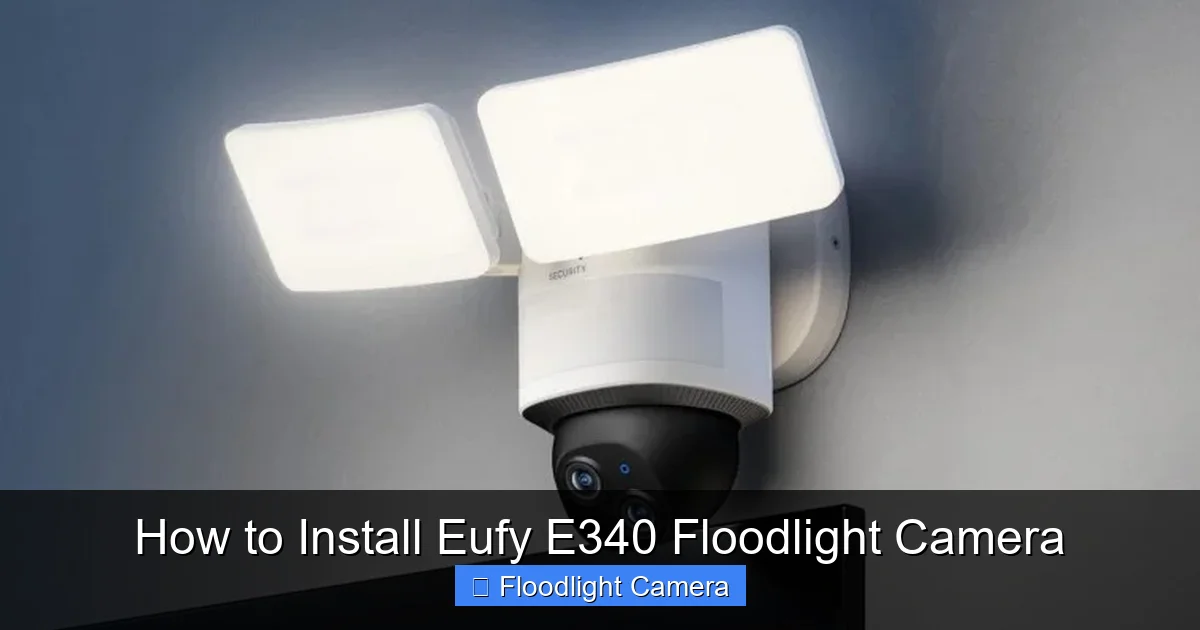

Visual guide about How to Install Eufy E340 Floodlight Camera
Image source: i.pcmag.com
Before you begin, make sure you have all the components that come with your Eufy E340 Floodlight Camera. Here’s what you should find inside the box:
– Eufy E340 Floodlight Camera unit
– Mounting bracket
– Screws and wall anchors
– Wire nuts (usually black or yellow)
– User manual and quick start guide
– Optional: Extension cable (if included in your model)
It’s a good idea to lay everything out on a clean surface so you can easily access each part during installation.
Tools You’ll Need
You don’t need to be an electrician to install the Eufy E340, but having the right tools will make the job easier and safer. Here’s a list of recommended tools:
– Screwdriver (Phillips and flathead)
– Drill with drill bits (for masonry or wood, depending on your wall)
– Voltage tester (non-contact type)
– Wire strippers
– Ladder (stable and tall enough to reach the installation height)
– Electrical tape
– Pencil or marker
– Level (to ensure the camera is straight)
If you’re replacing an existing floodlight, you may also need pliers to loosen old wire connections.
Step 1: Choose the Right Location
Picking the perfect spot for your Eufy E340 is crucial for both security and performance. Here are some tips to help you decide:
– Install the camera at a height of 8 to 10 feet for optimal coverage.
– Choose a location with a clear view of entry points like doors, driveways, or backyards.
– Avoid pointing the camera directly at bright lights or the sun to prevent glare.
– Make sure the area has access to your home’s electrical wiring.
– Ensure the location is within range of your Wi-Fi signal (test with your phone or tablet).
A good example is mounting the camera above your front door or garage. This gives you a wide-angle view of anyone approaching your home.
Step 2: Turn Off the Power
Safety first! Before touching any wires, you must turn off the power to the existing light fixture.
Locate Your Circuit Breaker
Go to your home’s electrical panel (usually in the basement, garage, or utility closet). Find the breaker that controls the outdoor light you’re replacing. It may be labeled “Outdoor Lights,” “Porch,” or something similar.
Switch Off the Breaker
Flip the breaker to the “OFF” position. To double-check, use a non-contact voltage tester on the wires where the old light was connected. The tester should not beep or light up if the power is truly off.
Pro Tip: Place a piece of tape over the breaker switch with a note like “Do Not Turn On – Working on Outdoor Light.” This prevents someone else from accidentally restoring power while you’re working.
Step 3: Remove the Old Fixture (If Applicable)
If you’re replacing an existing floodlight, you’ll need to remove it first.
Unscrew the Mounting Bracket
Use a screwdriver to remove the screws holding the old light to the wall or eave. Carefully lower the fixture and let it hang by the wires.
Disconnect the Wires
You’ll typically see three wires: black (hot), white (neutral), and green or bare copper (ground). Unscrew the wire nuts and separate the wires. If the wires are twisted together, gently untwist them.
Remove the Old Mounting Bracket
Unscrew and remove the old bracket. Clean the area if there’s old caulk or debris.
Now you’re ready to install the Eufy E340.
Step 4: Install the Mounting Bracket
The Eufy E340 comes with a sturdy mounting bracket that attaches to your wall or eave.
Position the Bracket
Hold the bracket against the wall where you want to install the camera. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes
If you’re drilling into wood, use a drill bit slightly smaller than the screws. For brick or concrete, use a masonry bit and wall anchors.
Secure the Bracket
Line up the bracket with the holes and screw it into place. Make sure it’s tight and doesn’t wobble.
Tip: If you’re installing on vinyl siding, consider using a siding block to create a flat, secure surface.
Step 5: Prepare the Wires
Now it’s time to connect the Eufy E340 to your home’s electrical system.
Strip the Wire Ends
Use wire strippers to remove about ½ inch of insulation from the ends of the black, white, and ground wires coming from your wall. This exposes the copper for a solid connection.
Identify the Camera Wires
The Eufy E340 has three wires:
– Black (hot)
– White (neutral)
– Green or bare copper (ground)
Match these to the corresponding wires from your wall.
Step 6: Connect the Wires
This is the most important electrical step. Take your time and double-check everything.
Connect Black to Black
Twist the black wire from the wall to the black wire from the camera. Secure them with a wire nut. Give it a gentle tug to make sure it’s tight.
Connect White to White
Do the same with the white wires—twist them together and cover with a wire nut.
Connect Ground Wires
Twist the ground wire from the wall to the ground wire from the camera. If your wall has a grounding screw, you can also wrap the ground wire around it and tighten the screw.
Secure with Electrical Tape
For extra safety, wrap each wire nut and connection with electrical tape. This prevents moisture from getting in and adds strain relief.
Important: Never leave exposed wire. All connections must be covered with wire nuts and tape.
Step 7: Attach the Camera to the Bracket
With the wires connected, it’s time to mount the camera.
Align the Camera
Lift the Eufy E340 and align the mounting holes on the back of the camera with the bracket. The camera should slide or snap into place.
Secure with Screws
Use the provided screws to fasten the camera to the bracket. Tighten them firmly, but don’t over-tighten, as this could crack the housing.
Tuck in the Wires
Gently push the connected wires back into the electrical box. Make sure nothing is pinched or strained.
Step 8: Restore Power and Test
Now that everything is connected, it’s time to turn the power back on.
Flip the Breaker
Go back to your electrical panel and switch the breaker to “ON.”
Check for Power
The Eufy E340 should power up immediately. You’ll see indicator lights on the camera and the floodlights may turn on briefly.
Note: If nothing happens, turn the power off again and double-check your wire connections.
Step 9: Download the Eufy Security App
To complete the setup, you’ll need the Eufy Security app.
Get the App
Download “Eufy Security” from the Apple App Store or Google Play Store. It’s free and works on both iOS and Android.
Create an Account
Open the app and sign up with your email address. Verify your account via email.
Log In
Use your new credentials to log in.
Step 10: Add the Camera to the App
Now let’s connect your Eufy E340 to the app.
Tap “Add Device”
In the app, tap the “+” icon or “Add Device” button.
Select “Floodlight Camera”
Choose the E340 model from the list.
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of the Eufy E340 or in the user manual.
Follow On-Screen Instructions
The app will guide you through the setup process. It may ask you to press a button on the camera to put it in pairing mode.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. The E340 only works with 2.4GHz networks, so make sure you’re not trying to connect to a 5GHz band.
Tip: If your router broadcasts both 2.4GHz and 5GHz under the same name, temporarily rename the 5GHz network so your phone connects to 2.4GHz during setup.
Step 11: Configure Camera Settings
Once connected, customize your Eufy E340 for the best experience.
Set Motion Zones
In the app, go to “Device Settings” > “Motion Detection.” Draw zones where you want the camera to detect motion. Avoid areas like busy streets or swaying trees to reduce false alerts.
Adjust Sensitivity
Lower the sensitivity if you’re getting too many notifications. Increase it if the camera is missing activity.
Enable Two-Way Audio
Test the microphone and speaker by talking through the app. This lets you communicate with visitors or deter intruders.
Schedule Floodlights
Set the floodlights to turn on at dusk and off at dawn, or customize the schedule based on your routine.
Enable Night Vision
The E340 has infrared night vision. Make sure it’s turned on in the settings for clear footage after dark.
Step 12: Test Everything
Before calling the job done, run a few tests.
Check Video Quality
Watch the live feed in the app. Make sure the image is clear and the field of view covers the intended area.
Test Motion Alerts
Walk in front of the camera to trigger a motion alert. You should receive a notification on your phone.
Test the Floodlights
Trigger the lights manually in the app or wait for motion to activate them. Ensure they’re bright and cover the desired area.
Test Two-Way Audio
Speak through the app and listen for sound from the camera. Then speak near the camera and check if you hear it on your phone.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix them.
Camera Won’t Power On
– Double-check that the breaker is on.
– Verify all wire connections are tight and secure.
– Use a voltage tester to confirm power is reaching the box.
Can’t Connect to Wi-Fi
– Make sure you’re using a 2.4GHz network.
– Move your phone closer to the camera during setup.
– Restart your router and try again.
Floodlights Don’t Turn On
– Check the light settings in the app.
– Ensure motion detection is enabled.
– Test the lights manually in the app.
Blurry or Dark Video
– Clean the camera lens with a soft cloth.
– Adjust the camera angle to avoid glare.
– Make sure night vision is enabled.
False Motion Alerts
– Reduce motion sensitivity.
– Adjust motion zones to exclude moving objects like trees.
– Enable “Human Only” detection if available.
Maintenance Tips
To keep your Eufy E340 working perfectly, follow these maintenance tips:
– Clean the camera lens and floodlights every few months.
– Check for loose screws or mounting issues after storms.
– Update the firmware regularly through the app.
– Trim nearby bushes or trees that might block the view.
– Replace the camera if you notice significant performance drops.
Conclusion
Installing the Eufy E340 Floodlight Camera is a straightforward project that can significantly enhance your home security. By following this guide, you’ve safely wired the camera, mounted it securely, and connected it to your Wi-Fi network. With features like motion detection, two-way audio, and bright LED floodlights, the E340 gives you peace of mind day and night.
Remember to test all functions after installation and adjust settings in the Eufy Security app to suit your needs. Regular maintenance will ensure long-term reliability.
Now that your Eufy E340 is up and running, you can monitor your property from anywhere, receive instant alerts, and even scare off intruders with a bright light and your voice. Stay safe and enjoy your smarter, safer home!
