How to Install Foscam Camera on Qnap

How to Install Foscam Camera on Qnap

by

This guide walks you through the complete process of installing a Foscam camera on a QNAP NAS using Surveillance Station. You’ll learn how to connect, configure, and manage your camera for secure remote monitoring.

Key Takeaways

  • Compatibility matters: Ensure your Foscam model is supported by QNAP Surveillance Station before starting.
  • Firmware updates are essential: Always update both your Foscam camera and QNAP NAS to the latest firmware for optimal performance.
  • Network configuration is key: Assign a static IP to your Foscam camera to avoid connection issues.
  • Surveillance Station simplifies setup: QNAP’s built-in app makes adding and managing cameras intuitive.
  • Remote access requires port forwarding or myQNAPcloud: Use myQNAPcloud for secure, easy remote viewing without complex router settings.
  • Motion detection and alerts enhance security: Configure notifications to stay informed of activity.
  • Troubleshooting tools help resolve common issues: Use QNAP’s logs and Foscam’s web interface to diagnose problems.

Introduction: Why Install a Foscam Camera on Your QNAP NAS?

If you’re serious about home or small business security, combining a Foscam IP camera with a QNAP NAS is a smart move. Foscam cameras offer high-quality video, night vision, motion detection, and two-way audio—great features on their own. But when you connect them to a QNAP network-attached storage (NAS) device, you unlock powerful centralized surveillance capabilities.

By installing your Foscam camera on QNAP, you gain access to QNAP’s Surveillance Station—a robust, user-friendly platform that lets you manage multiple cameras, record footage locally, set up motion alerts, and view live feeds from anywhere. Plus, storing video on your NAS means you control your data, avoid cloud subscription fees, and enjoy faster playback and better privacy.

In this guide, we’ll walk you through the entire process of installing and configuring a Foscam camera on your QNAP NAS. Whether you’re a tech beginner or a seasoned user, we’ll keep things simple, clear, and practical. By the end, you’ll have a fully functional surveillance system that’s secure, reliable, and easy to manage.

What You’ll Need Before You Start

How to Install Foscam Camera on Qnap

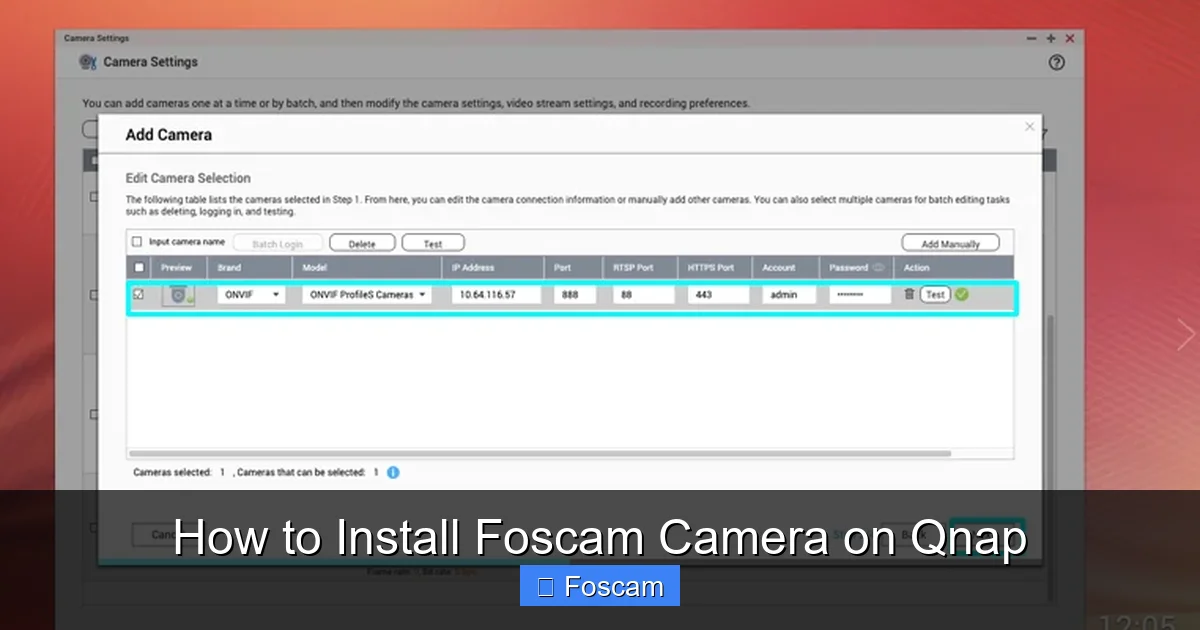

Visual guide about How to Install Foscam Camera on Qnap

Image source: foscam.com

Before diving into the installation, make sure you have the following:

  • A compatible Foscam IP camera: Models like the Foscam R2, R4, FI9805EP, FI9821P, and C1 are widely supported. Check QNAP’s official compatibility list to confirm.
  • A QNAP NAS device: Any modern QNAP NAS (TS-x51, TS-x53D, TVS-x63 series, etc.) running QTS 4.3 or later.
  • Surveillance Station installed: This app comes preloaded or can be downloaded from the QNAP App Center.
  • A stable network connection: Both the camera and NAS should be on the same local network (via Ethernet or Wi-Fi).
  • Access to your router: For initial setup and optional remote access configuration.
  • A computer or mobile device: To access the QNAP web interface and Foscam camera settings.

Having these ready will save you time and frustration during setup.

Step 1: Update Your QNAP NAS and Foscam Camera

Before connecting anything, ensure both your QNAP NAS and Foscam camera are running the latest firmware. Outdated software can cause compatibility issues, bugs, or security vulnerabilities.

Update Your QNAP NAS

  1. Log in to your QNAP NAS via the web interface (usually http://[your-nas-ip]).
  2. Go to Control Panel > System > Firmware Update.
  3. Click Check for Updates. If a new version is available, download and install it.
  4. Wait for the update to complete. The NAS will restart automatically.

Tip: Always back up your data before updating firmware.

Update Your Foscam Camera

  1. Connect your Foscam camera to power and your network (via Ethernet or Wi-Fi).
  2. Use the Foscam app (available on iOS and Android) or access the camera’s web interface by entering its IP address in a browser.
  3. Log in with your admin credentials (default is usually admin with no password).
  4. Navigate to Settings > System > Upgrade.
  5. Download the latest firmware from the Foscam website for your specific model.
  6. Upload the firmware file and wait for the update to finish. Do not power off the camera during this process.

Updating ensures smooth integration and access to the latest features and security patches.

Step 2: Assign a Static IP to Your Foscam Camera

To avoid connection drops, assign a static IP address to your Foscam camera. This ensures the camera always has the same network address, making it easier for your QNAP NAS to find and communicate with it.

Method 1: Set Static IP via Foscam Web Interface

  1. Access your Foscam camera’s web interface (e.g., http://192.168.1.100).
  2. Go to Settings > Network > TCP/IP.
  3. Change the IP assignment from DHCP to Static.
  4. Enter an available IP address (e.g., 192.168.1.150), subnet mask (255.255.255.0), gateway (your router’s IP, e.g., 192.168.1.1), and DNS server.
  5. Save the settings. The camera will reboot with the new IP.

Method 2: Reserve IP via Router DHCP

Alternatively, log into your router and reserve an IP address for your Foscam camera using its MAC address. This method keeps DHCP enabled but ensures the camera always gets the same IP.

Tip: Write down the camera’s IP, username, and password—you’ll need them later.

Step 3: Install and Open Surveillance Station on QNAP

Surveillance Station is QNAP’s dedicated surveillance management app. It supports hundreds of IP camera brands, including Foscam.

Install Surveillance Station

  1. Log in to your QNAP NAS web interface.
  2. Open the App Center.
  3. Search for Surveillance Station.
  4. Click Install. Wait for the installation to complete.

Launch Surveillance Station

  1. Once installed, click the Surveillance Station icon on the QNAP desktop.
  2. The first time you open it, you may be prompted to set up storage locations and recording schedules. You can configure these later.
  3. Click Start to enter the main dashboard.

You’re now ready to add your Foscam camera.

Step 4: Add Your Foscam Camera to Surveillance Station

Now comes the core step: connecting your Foscam camera to QNAP.

Add Camera Manually

  1. In Surveillance Station, go to Camera > Add Camera.
  2. Select Add IP Camera.
  3. Choose Manual Setup.
  4. Enter the following details:
    • Camera Name: e.g., “Front Door Camera”
    • IP Address: The static IP you assigned (e.g., 192.168.1.150)
    • Port: Usually 80 or 88 (check your Foscam settings)
    • Username: Default is often admin
    • Password: Leave blank if not set, or enter your custom password
    • Protocol: Select HTTP or RTSP (RTSP is better for video streaming)
  5. Click Next.

Select Camera Model

  1. Surveillance Station will attempt to auto-detect your camera.
  2. If it recognizes the Foscam model, select it from the list.
  3. If not, choose Generic RTSP Camera or ONVIF Camera (if your Foscam supports ONVIF).
  4. Click Next.

Configure Camera Settings

  1. Set the Recording Mode: Choose between Continuous, Motion Detection, or Schedule-based recording.
  2. Enable Motion Detection if desired. Adjust sensitivity and detection zones.
  3. Set up Alerts: Choose to receive email or mobile notifications when motion is detected.
  4. Assign the camera to a Storage Pool or Volume on your NAS.
  5. Click Finish.

Your Foscam camera should now appear in the Surveillance Station camera list. Click on it to view the live feed.

Tip: If the camera doesn’t connect, double-check the IP, port, username, and password. Also, ensure the camera and NAS are on the same subnet.

Step 5: Configure Recording and Storage

Storing footage efficiently is crucial for long-term surveillance.

Set Up Recording Schedule

  1. In Surveillance Station, go to Camera > [Your Camera] > Recording.
  2. Choose Schedule Recording.
  3. Set recording times (e.g., 24/7, business hours, or custom intervals).
  4. Enable Motion-Triggered Recording to save space and focus on important events.

Manage Storage

  1. Go to Storage > Storage Manager.
  2. Ensure you have enough free space on your NAS.
  3. Set up Auto Cleanup to delete old recordings after a set period (e.g., 30 days).
  4. Consider using RAID for data redundancy and protection against drive failure.

Tip: A 1TB drive can store about 7–10 days of HD footage from one camera, depending on motion and resolution.

Step 6: Enable Remote Access with myQNAPcloud

Want to check your camera from your phone while traveling? Set up remote access.

Enable myQNAPcloud

  1. In QNAP web interface, go to myQNAPcloud.
  2. Sign in with your QNAP ID or create one.
  3. Enable myQNAPcloud Link.
  4. Set a friendly domain name (e.g., myhome.qnap.to).
  5. Enable Surveillance Station under Service Port Settings.

Access Remotely

  1. Download the QNAP Mobile App (QVR Pro or Qget) on your smartphone.
  2. Log in with your QNAP ID.
  3. Select your NAS and open Surveillance Station.
  4. View live feeds and playback recordings from anywhere.

Note: myQNAPcloud uses secure tunneling, so you don’t need to open ports on your router—making it safer than manual port forwarding.

Step 7: Fine-Tune Camera Settings

Optimize your Foscam camera for the best performance.

Adjust Video Quality

  1. In Surveillance Station, go to Camera > [Your Camera] > Video.
  2. Set resolution (e.g., 1080p), frame rate (15–30 fps), and bitrate.
  3. Lower bitrate if you have bandwidth or storage concerns.

Enable Night Vision and Audio

  1. Access the Foscam camera’s web interface.
  2. Go to Settings > Video > Night Vision and enable auto mode.
  3. Enable two-way audio if your camera supports it.
  4. Test audio in Surveillance Station by clicking the microphone icon.

Set Up Motion Detection Zones

  1. In Surveillance Station, go to Camera > [Your Camera] > Motion Detection.
  2. Draw detection zones on the video preview (e.g., exclude trees or busy streets).
  3. Adjust sensitivity to reduce false alarms.

Troubleshooting Common Issues

Even with careful setup, you might run into problems. Here’s how to fix the most common ones.

Camera Not Connecting

  • Check IP address: Ensure the camera and NAS are on the same network.
  • Verify credentials: Double-check username and password.
  • Test with browser: Try accessing the camera’s IP in a browser to confirm it’s online.
  • Disable firewall: Temporarily disable NAS or router firewall to test.

Poor Video Quality or Lag

  • Lower resolution or bitrate: Reduce settings in Surveillance Station.
  • Check network bandwidth: Use Ethernet instead of Wi-Fi if possible.
  • Update firmware: Ensure both devices are up to date.

Motion Alerts Not Working

  • Enable motion detection: Confirm it’s turned on in both Foscam and Surveillance Station.
  • Check email settings: Verify SMTP settings in Surveillance Station > Notification.
  • Test with manual trigger: Wave in front of the camera to test detection.

Remote Access Fails

  • Check myQNAPcloud status: Ensure the service is active and the domain resolves.
  • Restart Surveillance Station: Sometimes a restart fixes connectivity.
  • Use Qfinder Pro: This QNAP tool can help locate your NAS on the network.

Best Practices for Long-Term Use

To keep your surveillance system running smoothly:

  • Regularly check storage: Monitor disk usage and clean up old recordings.
  • Update software: Keep QNAP OS, Surveillance Station, and Foscam firmware current.
  • Secure your network: Use strong passwords, enable WPA3 Wi-Fi encryption, and change default login credentials.
  • Test alerts: Periodically verify motion detection and notifications work.
  • Backup configurations: Export Surveillance Station settings in case you need to restore.

Conclusion

Installing a Foscam camera on your QNAP NAS is a powerful way to enhance your security setup. With Surveillance Station, you gain centralized control, local storage, motion alerts, and remote access—all without relying on cloud services.

By following this guide, you’ve learned how to update firmware, assign static IPs, add cameras, configure recording, enable remote viewing, and troubleshoot issues. Whether you’re monitoring your home, office, or vacation property, this setup offers reliability, privacy, and peace of mind.

Take the time to fine-tune your settings, test your system, and enjoy the benefits of a smart, secure surveillance solution. Your Foscam and QNAP make a great team—now put them to work!
