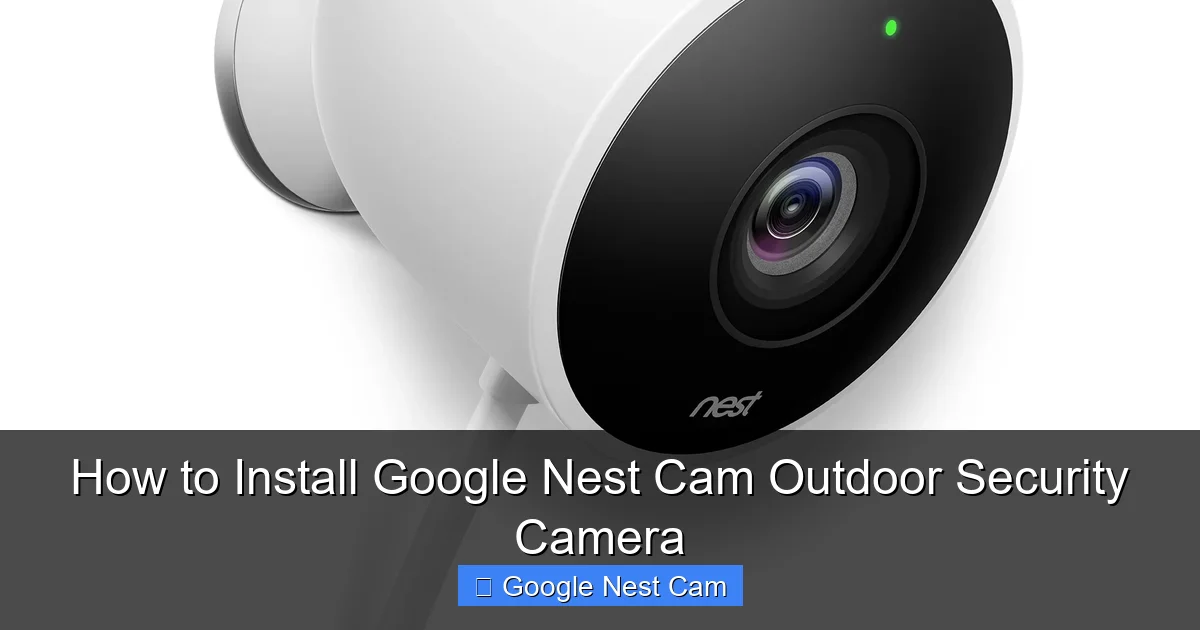

How to Install Google Nest Cam Outdoor Security Camera

Pro tip: If you’re installing the battery-powered model, make sure the battery is fully charged before starting. You can charge it using the included USB-C cable and a power adapter. A full charge takes about 5 hours and lasts up to 7 months, depending on usage and settings.

Step 1: Unbox and Inspect Your Nest Cam

The first step is to carefully unbox your Google Nest Cam and ensure all components are present and undamaged. Open the box and lay out the items on a clean, flat surface. Here’s what should be included:

• Google Nest Cam (outdoor/indoor, battery or wired)
• Mounting base (weatherproof)
• Screws and wall anchors
• USB-C charging cable (for battery model)
• Quick start guide
• Screwdriver (small, for mounting)

Inspect the camera lens for smudges or scratches. If you notice any, gently clean it with a microfiber cloth. Check the mounting base and screws for damage. If anything is missing or broken, contact Google Support immediately.

Next, locate the QR code on the bottom of the camera. This code is essential for pairing the device with the Google Home app. Keep it accessible—you’ll scan it during setup. If the code is damaged or unreadable, you can still set up the camera manually, but scanning is faster and more reliable.

Step 2: Choose the Best Location

Where you install your Nest Cam makes a big difference in its effectiveness. A poorly placed camera might miss important activity or get false alerts from passing cars or trees. Follow these guidelines to find the ideal spot:

Height and Angle

Mount the camera 7–10 feet above the ground. This height provides a wide field of view while making it difficult for intruders to tamper with. Angle the camera slightly downward to focus on entry points like doors, walkways, or driveways. Avoid pointing it straight out, as this can cause glare or overexposure.

Coverage Area

Identify the areas you want to monitor. Common locations include:

• Front door or porch
• Backyard or patio
• Driveway or garage entrance
• Side gates or alleys

Use the Nest Cam’s 130° diagonal field of view to your advantage. Position it so it captures the full width of the area without unnecessary background clutter.

Wi-Fi Signal Strength

A strong Wi-Fi signal is crucial for live streaming and alerts. Before drilling, check your signal strength at the intended location. You can use a Wi-Fi analyzer app or simply check your phone’s signal bars. If the signal is weak, consider:

• Moving your router closer
• Using a Wi-Fi extender
• Choosing a different mounting spot

Avoid These Common Mistakes

• Direct sunlight: Avoid pointing the camera into the sun, especially during sunrise or sunset. This can cause lens flare and wash out the image.
• Obstructions: Trees, bushes, or signs can block the view or trigger false motion alerts.
• Reflective surfaces: Windows, mirrors, or shiny objects can cause glare or confusing footage.
• Privacy concerns: Don’t point the camera at your neighbor’s property or public sidewalks unless allowed by local laws.

Pro tip: Use the Google Home app’s “Live View” feature during setup to test different angles before finalizing the mount. This lets you see exactly what the camera sees in real time.

Step 3: Install the Mounting Base

Once you’ve chosen the perfect spot, it’s time to install the mounting base. This weatherproof base holds the camera securely and allows you to adjust the angle after installation. Follow these steps:

Mark the Drill Holes

Hold the mounting base against the wall or surface where you want to install the camera. Use a pencil to mark the center of each screw hole. Make sure the base is level—use a spirit level or the leveling tool in your smartphone app.

Drill Pilot Holes

Using a drill and the appropriate bit (usually 3/16” for masonry or wood), drill pilot holes at the marked spots. Drill to a depth of about 1.5 inches. If you’re mounting into brick, concrete, or stucco, use wall anchors for extra stability.

Secure the Base

Line up the mounting base with the pilot holes and insert the screws. Tighten them with a screwdriver until the base is flush against the wall. Don’t overtighten, as this can crack the base or damage the surface.

Pro tip: If you’re installing on a soffit or under an eave, make sure the base is angled slightly downward to allow rainwater to run off. This prevents water from pooling around the camera.

Step 4: Connect the Camera to Power (If Applicable)

If you’re using the wired version of the Nest Cam, you’ll need to connect it to a power source. The battery model skips this step, but wired models require a nearby outlet or outdoor-rated extension cord.

Run the Power Cable

Route the power cable from the camera to the nearest outdoor outlet. Use cable clips or conduit to secure the wire along the wall and prevent tripping hazards. If the cable isn’t long enough, use a weatherproof outdoor extension cord rated for outdoor use.

Plug In the Camera

Connect the USB-C cable to the camera and plug the other end into the power source. Make sure the connection is secure and the cable isn’t pinched or bent. For added protection, use a weatherproof outlet cover.

Note: The wired Nest Cam does not have a battery, so it will not work during a power outage unless you have a backup power source like a UPS or generator.

Step 5: Set Up the Camera Using the Google Home App

Now it’s time to connect your Nest Cam to your home network and configure its settings. The Google Home app makes this process simple and intuitive. Follow these steps:

Download and Open the Google Home App

If you haven’t already, download the Google Home app from the Apple App Store or Google Play Store. Open the app and sign in with your Google account. If you don’t have one, create a free account.

Add a New Device

Tap the “+” icon in the top-left corner, then select “Set up device.” Choose “New device” and follow the prompts. The app will ask you to select your home and confirm your Wi-Fi network.

Scan the QR Code

Hold your phone over the QR code on the bottom of the camera. The app will scan it automatically and begin the pairing process. If the scan fails, you can enter the camera’s serial number manually.

Connect to Wi-Fi

The app will prompt you to connect the camera to your Wi-Fi network. Select your network and enter the password. The camera will take a few moments to connect. Make sure your phone is on the same network.

Name Your Camera

Give your camera a descriptive name, like “Front Door” or “Backyard.” This makes it easier to identify in the app and when receiving alerts.

Adjust Settings

Once connected, you can customize settings like:

• Motion detection zones: Draw areas where you want alerts (e.g., driveway but not sidewalk).
• Alert types: Choose to receive notifications for people, vehicles, or animals.
• Night vision: Enable or disable infrared night vision.
• Audio settings: Adjust microphone and speaker volume.

Pro tip: Enable “Familiar Faces” if you have a Nest Aware subscription. This feature uses facial recognition to identify family members and reduce unnecessary alerts.

Step 6: Attach the Camera to the Mount

With the base installed and the camera connected, it’s time to attach the camera to the mount. Here’s how:

Align the Camera

Hold the camera so the mounting bracket aligns with the base. The camera should snap into place with a gentle push.

Secure the Camera

Use the included security screw to lock the camera to the base. This prevents theft or tampering. Tighten it with the small screwdriver provided.

Adjust the Angle

Gently tilt or rotate the camera to fine-tune the view. The magnetic mount allows for smooth adjustments. Make sure the lens is clean and unobstructed.

Pro tip: If you’re installing multiple cameras, set them up one at a time to avoid confusion during the app setup process.

Step 7: Test the Camera and Finalize Setup

Before you call the job done, test your Nest Cam to ensure everything is working correctly. Here’s what to check:

Live View

Open the Google Home app and tap on your camera. You should see a live video feed. Check for clarity, color accuracy, and proper framing.

Night Vision

Turn off the lights or wait for dusk to test night vision. The camera should switch to black-and-white mode and illuminate the area with infrared light.

Motion Detection

Walk through the detection zone to trigger a motion alert. You should receive a notification on your phone within a few seconds.

Two-Way Audio

Tap the microphone icon in the app and speak. You should hear your voice through the camera’s speaker. Test the microphone by speaking near the camera.

Wi-Fi Stability

Watch the live feed for a few minutes to ensure there’s no lag or disconnection. If the stream is choppy, consider improving your Wi-Fi signal.

If everything looks good, you’re all set! If not, check the troubleshooting section below.

Troubleshooting Common Issues

Even with careful installation, you might run into a few hiccups. Here are solutions to common problems:

Camera Won’t Connect to Wi-Fi

• Make sure your phone is on the same network.
• Restart your router and try again.
• Move the camera closer to the router during setup.
• Ensure your Wi-Fi password is correct.

Poor Video Quality

• Clean the lens with a microfiber cloth.
• Check for obstructions or glare.
• Ensure the camera is not overheating in direct sunlight.

False Motion Alerts

• Adjust the motion detection zones to exclude trees or busy streets.
• Lower the sensitivity in the app settings.
• Enable person-only alerts to reduce animal or vehicle triggers.

Camera Disconnects Frequently

• Check Wi-Fi signal strength at the camera location.
• Reduce interference from other devices.
• Update the Google Home app and camera firmware.

Battery Drains Too Fast (Battery Model)

• Reduce the number of alerts or disable continuous recording.
• Lower the video quality to 1080p instead of 2K.
• Enable “Activity Zones” to limit monitoring areas.

Conclusion

Installing a Google Nest Cam outdoor security camera is a straightforward process that significantly boosts your home’s safety. From choosing the right location to mounting the camera and configuring smart alerts, each step ensures your system works reliably day and night. Whether you opt for the battery-powered flexibility or the always-on wired version, the Nest Cam delivers high-quality video, intelligent alerts, and peace of mind.

Remember, the key to a successful installation is planning. Take time to test Wi-Fi strength, avoid common placement mistakes, and use the Google Home app to fine-tune settings. With your camera up and running, you’ll have 24/7 visibility of your property—right from your pocket.

Now that you know how to install Google Nest Cam outdoor security camera, you’re ready to protect what matters most. Stay safe, stay connected, and enjoy the confidence that comes with smart home security.
