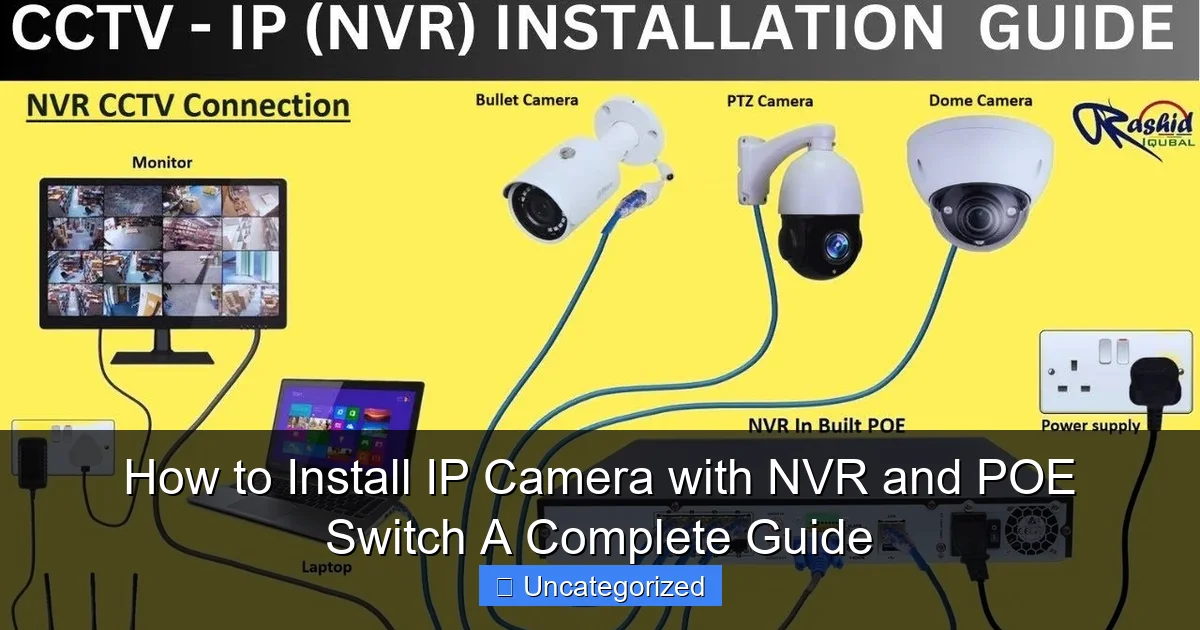

How to Install IP Camera with NVR and POE Switch A Complete Guide

Installing an IP camera with an NVR and PoE switch is a seamless, power-and-data solution that simplifies setup and reduces cabling clutter. By connecting the IP camera directly to the PoE switch—which both powers the camera and transmits video data—you streamline integration with the NVR for centralized recording and management. Ensure your NVR and PoE switch are compatible with your camera’s resolution and protocol for a plug-and-play experience that delivers professional-grade surveillance.

Key Takeaways

• Plan camera locations: Survey the area to optimize coverage and minimize blind spots.
• Use POE switches: Simplify power and data delivery with a single Ethernet cable.
• Connect NVR first: Ensure the recorder is set up before adding cameras.
• Label all cables: Avoid confusion during troubleshooting with clear, organized labeling.
• Update firmware: Enhance security and performance by installing latest device updates.
• Test camera feeds: Verify video quality and positioning before finalizing installation.

Understanding IP Camera Systems: The Basics

Modern security systems have evolved significantly, with IP camera systems leading the charge in providing high-definition surveillance solutions. Unlike traditional analog CCTV systems, IP (Internet Protocol) cameras offer superior image quality, remote access capabilities, and advanced features like motion detection and AI-based analytics. When paired with a Network Video Recorder (NVR) and Power over Ethernet (PoE) switch, these cameras create a powerful, scalable, and efficient surveillance network. Whether you’re securing a small business, a large warehouse, or your own home, understanding how to install an IP camera with an NVR and PoE switch is essential for a reliable and future-proof system.

The integration of IP cameras, NVRs, and PoE switches simplifies installation, reduces cabling complexity, and enhances system performance. PoE technology allows both data and power to be transmitted over a single Ethernet cable, eliminating the need for separate power outlets near each camera. This not only cuts down on installation time but also ensures a cleaner, more professional setup. In this guide, we’ll walk you through the entire process—from planning and selecting the right equipment to final configuration and troubleshooting—ensuring your surveillance system is up and running smoothly.

Planning Your IP Camera System: Key Considerations

Assessing Your Surveillance Needs

Before purchasing any hardware, it’s crucial to assess your surveillance requirements. Start by identifying the areas you want to monitor. Are you covering a single entrance, an entire perimeter, or multiple rooms? Consider factors like lighting conditions (day/night, low-light, backlit), required field of view, and whether you need features like zoom, pan-tilt-zoom (PTZ), or license plate recognition. For example, a retail store may need wide-angle cameras at entrances and narrow-angle cameras for cash registers, while a parking lot requires high-resolution cameras with infrared night vision.

Create a site survey map, noting potential camera locations, distances from the NVR, and obstacles like walls or trees. This helps determine the number of cameras, cable lengths, and whether you need PoE extenders or repeaters for longer runs. Remember, PoE cables (typically Cat5e or Cat6) have a maximum effective distance of 100 meters (328 feet) without signal degradation.

Choosing the Right Equipment

Selecting compatible and high-quality components is the foundation of a successful installation. Here’s what to look for:

• IP Cameras: Choose cameras with resolution (1080p, 4K, etc.), frame rate (15-30 fps), and features (motion detection, IR night vision, weatherproof rating) that match your needs. For example, a Hikvision 4MP dome camera with 30m IR range is ideal for outdoor use.
• NVR (Network Video Recorder): Ensure the NVR supports your cameras’ resolution and has sufficient channels (e.g., 8, 16, or 32) and storage capacity. Look for H.265+ compression to save storage space. A Dahua 16-channel NVR with 4TB HDD can store weeks of footage.
• PoE Switch: Calculate total power requirements. A 24-port PoE switch with 250W total power can support 20-24 cameras (assuming 10W per camera). Choose managed switches for advanced features like VLANs and port prioritization.
• Cables & Accessories: Use Cat6 shielded cables for outdoor or high-interference areas. Include waterproof junction boxes, mounting brackets, and surge protectors.

Tip: Buy from a single manufacturer (e.g., Hikvision, Axis, Reolink) to ensure seamless integration and avoid compatibility issues.

Network Infrastructure & Bandwidth

IP cameras generate significant network traffic. Calculate bandwidth usage using this formula:
Bandwidth (Mbps) = Resolution (MP) × Frame Rate (fps) × 0.15
For example, 10 cameras at 4MP, 20fps use: 10 × 4 × 20 × 0.15 = 120 Mbps. Ensure your router and PoE switch have Gigabit Ethernet ports to handle this load. For larger systems, consider a dedicated VLAN for cameras to isolate traffic and prevent network congestion.

Step-by-Step Installation Process

Preparing the Installation Site

Before mounting cameras, prepare the site to avoid last-minute issues:

1. Mark Camera Locations: Use a laser level and measuring tape to ensure even spacing and optimal angles. For outdoor cameras, aim 8-10 feet high to prevent tampering.
2. Drill Pilot Holes: For masonry or brick walls, use a hammer drill with a masonry bit. For wood, use a standard drill.
3. Route Cables: Run Ethernet cables through walls, conduits, or attic spaces. Avoid sharp bends (use 4x cable diameter radius) and keep away from electrical wires to prevent interference.
4. Install Junction Boxes: Seal outdoor connections with silicone to prevent water ingress.

Example: For a 5-camera setup in a warehouse, run a main Cat6 cable from the NVR to the PoE switch in the server room, then branch out to each camera via wall conduits.

Mounting and Cabling Cameras

Follow these steps for secure and professional mounting:

1. Attach Mounting Brackets: Use included screws and wall anchors. For domes, ensure the bracket is level; for bullets, adjust the angle for the desired field of view.
2. Connect Cables: Terminate Ethernet cables with RJ45 connectors or use pre-terminated cables. For PoE, no separate power cable is needed.
3. Secure Cameras: Attach cameras to brackets and tighten screws. For outdoor cameras, apply waterproof tape around the Ethernet port.
4. Label Cables: Tag each cable at both ends (e.g., “CAM-1 Entrance”) for easier troubleshooting.

Tip: Test each camera’s view with a temporary setup before final mounting to avoid repositioning.

Connecting the NVR and PoE Switch

Once cameras are mounted, connect the core components:

1. Install HDD in NVR: Open the NVR, insert the hard drive, and secure it with screws. Format the drive via the NVR’s interface.
2. Connect PoE Switch to NVR: Use a Cat6 cable to link the NVR’s PoE port (or a standard LAN port) to the PoE switch. If using a non-PoE NVR, connect the switch to the NVR via a separate router.
3. Power Up the System: Plug in the PoE switch and NVR. The NVR should detect cameras automatically within 1-2 minutes.
4. Verify Connections: Check the NVR interface for camera status (green = online, red = offline). If a camera isn’t detected, reseat its Ethernet cable.

Example: In a 16-camera setup, connect the NVR to a 24-port PoE switch using a 1m Cat6 cable. Label switch ports 1-16 for cameras and reserve 17-24 for future expansion.

Configuring the NVR and Network Settings

Initial NVR Setup and Camera Discovery

Access the NVR via HDMI monitor or web browser (using the NVR’s IP address). Follow these steps:

1. Create Admin Account: Set a strong password (e.g., “Cam3ra!2023”) and enable two-factor authentication if available.
2. Auto-Discover Cameras: Navigate to “Camera Management” and click “Search.” The NVR will list all connected cameras. Click “Add” to integrate them.
3. Assign IP Addresses: Use DHCP for simplicity, or set static IPs for critical cameras (e.g., main entrance). Avoid IP conflicts by reserving addresses in your router’s DHCP settings.
4. Configure Recording Settings: Set recording mode (continuous, motion-based, or scheduled) and storage retention (e.g., 30 days).

Tip: Enable “Smart Recording” (if available) to record only during motion, saving storage space.

Network Optimization and Remote Access

To access your cameras remotely and optimize performance:

1. Port Forwarding (for Direct Access): In your router, forward ports 80 (HTTP) and 554 (RTSP) to the NVR’s local IP. Caution: Only enable this if you have a static public IP and strong security (e.g., VPN).
2. DDNS Setup: Use a free service like No-IP or DuckDNS to map a dynamic public IP to a domain (e.g., “mycams.duckdns.org”).
3. Cloud Access: Register the NVR with the manufacturer’s cloud (e.g., Hik-Connect). This provides secure remote access without port forwarding.
4. Bandwidth Throttling: Limit remote stream resolution (e.g., 720p) to reduce bandwidth usage.

Example: For a business owner, configure cloud access via Hik-Connect to view cameras on a smartphone app. Set up email alerts for motion detection.

Advanced Features and Customization

Enhance your system with these features:

• Motion Detection: Define detection zones (e.g., ignore trees) and sensitivity levels. Use AI-based detection to ignore pets or moving shadows.
• Smart Alerts: Receive push notifications or emails when motion is detected. Integrate with IFTTT for smart home automation (e.g., turn on lights).
• Playback & Export: Use the NVR’s timeline search to review footage. Export clips as MP4 files for evidence.
• User Permissions: Create user accounts with restricted access (e.g., guards can view but not delete footage).

Tip: Schedule regular system reboots (e.g., weekly) to maintain performance.

Troubleshooting Common Issues

Resolving Connectivity Problems

If cameras are offline or unstable, try these fixes:

• Check PoE Power: Use a PoE tester to verify voltage (typically 48V). Replace faulty cables or use a PoE injector as a temporary fix.
• Reset Cameras: Press the reset button for 10 seconds to restore factory settings.
• Update Firmware: Download the latest firmware from the manufacturer’s website and update via the NVR.
• Reduce Network Load: Disconnect non-essential devices or add a secondary PoE switch to distribute load.

Example: If Camera 3 keeps disconnecting, test its cable with a PoE tester. If voltage is low, replace the cable or move the camera closer to the switch.

Improving Image Quality

For blurry or dark footage:

• Adjust Focus: Use the camera’s web interface to manually focus the lens.
• Enable WDR (Wide Dynamic Range): Reduces overexposure in backlit scenes.
• Clean Lenses: Wipe outdoor cameras monthly to remove dust or rain streaks.
• Add Lighting: Install IR illuminators or white lights for better night vision.

Data Table: Common Issues & Solutions

Issue	Possible Cause	Solution
Camera not detected	Faulty cable or PoE power	Replace cable; test PoE with a tester
Blurry image	Dirty lens or incorrect focus	Clean lens; adjust focus via web interface
No night vision	IR LEDs disabled or obstructed	Enable IR in camera settings; clear obstructions
Remote access fails	Incorrect port forwarding	Recheck router settings; use manufacturer’s cloud
Storage full	Retention period too long	Shorten retention; add secondary HDD

Maintenance and Best Practices

Regular System Checks

Schedule monthly maintenance to ensure reliability:

• Inspect Cameras: Check for physical damage, loose mounts, or lens obstructions.
• Review Logs: Monitor the NVR’s system log for errors (e.g., HDD failures).
• Test Remote Access: Verify cloud or app connectivity.
• Update Software: Install firmware updates for security patches.

Tip: Keep a logbook to track maintenance dates and issues.

Expanding Your System

As needs grow, add cameras or features:

• Add Cameras: Ensure the PoE switch has available ports and power headroom.
• Upgrade Storage: Replace HDDs with higher-capacity models or add a second drive.
• Integrate with Other Systems: Link cameras to access control (e.g., trigger recordings when a door opens).

Example: A homeowner expands from 8 to 12 cameras by adding a second 8-port PoE switch and upgrading the NVR’s HDD from 4TB to 8TB.

Security and Data Privacy

Protect your system from cyber threats:

• Change Default Passwords: Replace “admin/1234” with strong, unique passwords.
• Enable Encryption: Use HTTPS and AES-256 encryption for data transmission.
• Disable UPnP: This feature can expose your NVR to the internet.
• Regular Backups: Export critical footage to a USB drive or cloud storage.

Installing an IP camera system with an NVR and PoE switch is a rewarding project that enhances security and provides peace of mind. By following this guide, you’ve learned to plan effectively, select the right components, install hardware professionally, configure advanced settings, and maintain your system for long-term reliability. Whether you’re a DIY enthusiast or a professional installer, remember that attention to detail—from cable management to firmware updates—makes the difference between a functional system and a flawless one. Embrace the power of modern surveillance technology, and enjoy the confidence that comes with a well-secured environment.

Frequently Asked Questions

How do I install an IP camera with NVR and POE switch for the first time?

Begin by connecting the POE switch to your router and powering it on. Then, use Ethernet cables to link each IP camera to the switch, and connect the NVR to the switch—this ensures both power and data transfer. Finally, configure the NVR via its interface to detect and manage the cameras.

Do I need a POE switch to install IP cameras with an NVR?

Yes, a POE switch is essential if your IP cameras require Power over Ethernet and your NVR doesn’t support POE. The switch delivers both data and power to the cameras, simplifying wiring and reducing clutter. This is especially useful for large-scale setups.

How do I connect an IP camera to an NVR using a POE switch?

First, plug the POE switch into a power source and connect it to your network. Then, run Ethernet cables from the cameras to the switch and link the NVR to the same switch. The NVR will auto-detect the cameras, allowing you to finalize settings in its menu.

Can I mix non-POE devices with a POE switch in my IP camera system?

Yes, most POE switches support non-POE devices via standard Ethernet ports. Just ensure the non-POE device is connected to a non-POE port or uses a POE splitter to avoid damage. This flexibility makes POE switches ideal for hybrid setups.

How do I troubleshoot IP camera detection issues with my NVR and POE switch?

Verify all Ethernet connections, ensure the POE switch is powered, and confirm the NVR and cameras are on the same network. If cameras aren’t detected, check the switch’s POE budget or reboot the NVR to refresh the connection.

What’s the best way to plan a large-scale IP camera installation with NVR and POE switch?

Calculate the total power requirements of all cameras to choose a POE switch with sufficient budget. Use VLANs or separate switches for high-density setups, and label cables for easier management. A well-planned layout ensures seamless NVR integration and scalability.
