How to Install IP Camera with POE Switch A Complete Guide

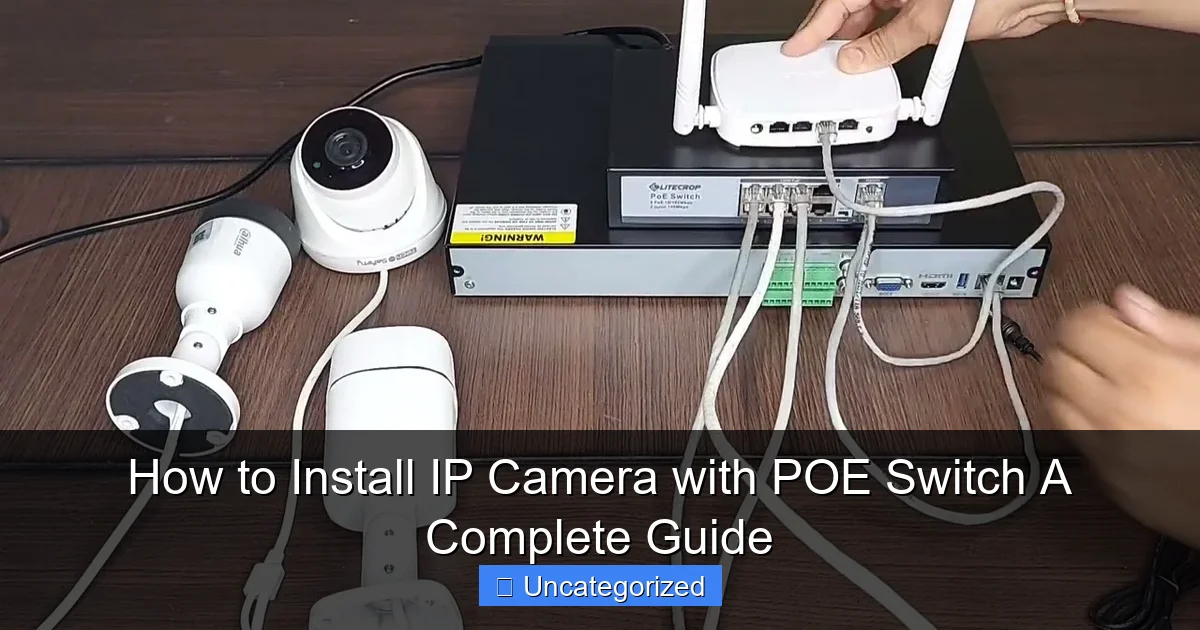

Installing an IP camera with a PoE switch simplifies setup by delivering power and data over a single Ethernet cable. Just connect the camera to the PoE switch using Cat5e or higher cabling, then link the switch to your router or NVR—no extra power adapters needed. Ensure your switch supports standard PoE (802.3af/at) to guarantee compatibility and reliable performance.

Key Takeaways

• Choose a POE switch with sufficient power and ports for your cameras.
• Run Ethernet cables directly from the switch to each camera location.
• Connect cameras to the switch using Cat5e or Cat6 cables for best performance.
• Ensure firmware is updated on both cameras and switch for compatibility.
• Test camera feeds early to verify power and data transmission work properly.
• Use VLANs or QoS to prioritize camera traffic and reduce network congestion.

How to Install IP Camera with POE Switch: A Complete Guide

In today’s fast-paced world, ensuring the safety and security of our homes, offices, and public spaces has never been more critical. With advancements in surveillance technology, IP (Internet Protocol) cameras have emerged as a popular choice for both residential and commercial security solutions. Unlike traditional analog cameras, IP cameras transmit data over a network, offering higher resolution, remote access, and greater flexibility. Among the various setups available, using a Power over Ethernet (PoE) switch to power and connect IP cameras has become the go-to method for many professionals and DIY enthusiasts alike.

Installing an IP camera with a PoE switch simplifies the entire process, eliminating the need for separate power cables and reducing clutter. PoE technology allows both data and power to be delivered over a single Ethernet cable, making installations cleaner, more efficient, and cost-effective. Whether you’re setting up a surveillance system for your home, a small business, or a large enterprise, this guide will walk you through every step of the process—from choosing the right equipment to troubleshooting common issues. By the end, you’ll have a fully functional, high-performance IP camera system that meets your security needs.

Understanding IP Cameras and PoE Technology

What Are IP Cameras?

IP cameras are digital video cameras that use Internet Protocol (IP) to transmit video footage over a network. Unlike traditional analog cameras that require coaxial cables and a Digital Video Recorder (DVR), IP cameras connect directly to a network—either via Wi-Fi or a wired Ethernet connection. This allows for higher-resolution video (often 1080p, 4K, or even higher), advanced features like motion detection, facial recognition, and remote access via smartphones or computers.

IP cameras come in various forms: dome cameras for indoor use, bullet cameras for outdoor surveillance, and PTZ (Pan-Tilt-Zoom) cameras for dynamic monitoring. They can be wired or wireless, but for reliability and performance, wired IP cameras connected via PoE are often preferred.

How Does Power over Ethernet (PoE) Work?

Power over Ethernet (PoE) is a technology that delivers both electrical power and data through a single Ethernet cable (typically Cat5e or Cat6). This eliminates the need for separate power sources at the camera location, which is especially useful in areas where power outlets are scarce or impractical to install.

PoE operates by injecting DC power into the unused wire pairs in an Ethernet cable (for 10/100 Mbps connections) or using all four pairs (for 1000 Mbps or higher). The PoE switch or injector negotiates power delivery with the connected device, ensuring safety and compatibility. For example, a PoE switch might deliver 15.4W (PoE), 30W (PoE+), or up to 60W (PoE++) depending on the standard and device requirements.

• PoE (IEEE 802.3af): Up to 15.4W per port, suitable for most standard IP cameras.
• PoE+ (IEEE 802.3at): Up to 30W per port, ideal for PTZ cameras or cameras with heaters.
• PoE++ (IEEE 802.3bt): Up to 60W (Type 3) or 100W (Type 4), used for high-power devices like video doorbells with displays.

Using PoE not only simplifies installation but also enhances reliability. If the PoE switch is connected to a UPS (Uninterruptible Power Supply), all cameras stay online during a power outage—critical for continuous surveillance.

Choosing the Right Equipment for Your Setup

Selecting the IP Cameras

The first step in any successful installation is choosing the right IP cameras for your environment. Consider the following factors:

• Resolution: 1080p (Full HD) is standard, but 4K cameras offer superior detail for large areas or license plate recognition.
• Field of View (FoV): Wide-angle lenses (e.g., 90–130 degrees) cover more area, while narrow lenses are better for focused monitoring.
• Weather Resistance: For outdoor use, ensure the camera has an IP66 or higher rating, indicating dust and water resistance.
• Night Vision: Look for infrared (IR) LEDs or low-light color sensors for 24/7 surveillance.
• Audio Support: Some cameras include built-in microphones and speakers for two-way communication.
• PoE Compatibility: Confirm the camera supports PoE (802.3af/at/bt) to avoid compatibility issues.

Example: For a backyard installation, a Hikvision DS-2CD2143G0-I dome camera (4MP, 120dB WDR, IP67, PoE) is an excellent choice. For a retail store, the Axis M3046-V (4MP, wide FoV, PoE+) offers excellent coverage.

Selecting the PoE Switch

The PoE switch is the backbone of your system. Key considerations include:

• Number of Ports: Choose a switch with enough ports for all cameras, plus a few extra for future expansion. A 4-port switch works for small setups, while 8-, 16-, or 24-port switches suit larger installations.
• PoE Budget: Calculate the total power required by all cameras and ensure the switch’s PoE budget meets or exceeds it. For example, 4 x 12W cameras = 48W; a switch with a 60W PoE budget is sufficient.
• PoE Standard: Match the switch’s PoE type (af, at, bt) to your camera’s requirements.
• Managed vs. Unmanaged: Unmanaged switches are plug-and-play, while managed switches offer VLANs, QoS, and remote monitoring—ideal for large or complex networks.
• PoE Pass-Through: Some switches support PoE passthrough, allowing you to daisy-chain another PoE device (e.g., a Wi-Fi access point).

Tip: For a 6-camera setup, the Ubiquiti UniFi Switch 8 150W (8-port, PoE+, 150W budget) is a reliable choice. For a budget option, the TRENDnet TPE-1026L (8-port, PoE+, 120W) offers excellent value.

Additional Components

Don’t forget these essential components:

• Ethernet Cables: Use Cat5e (for 100Mbps) or Cat6 (for 1Gbps) cables. For outdoor runs, use shielded (STP) or outdoor-rated (CMX) cables.
• Network Video Recorder (NVR): A dedicated NVR stores video footage and manages camera settings. Ensure it supports PoE cameras and has sufficient storage (e.g., 4TB HDD for 6 cameras at 4MP).
• Network Infrastructure: A router with gigabit Ethernet ports ensures smooth data flow.
• Mounting Hardware: Brackets, screws, and conduit for secure camera installation.

Step-by-Step Installation Process

Planning the Layout

Before drilling holes or running cables, plan your camera placement:

• Map out coverage areas to avoid blind spots.
• Ensure cameras are mounted high enough to deter tampering but low enough for clear identification (e.g., 8–10 feet for face recognition).

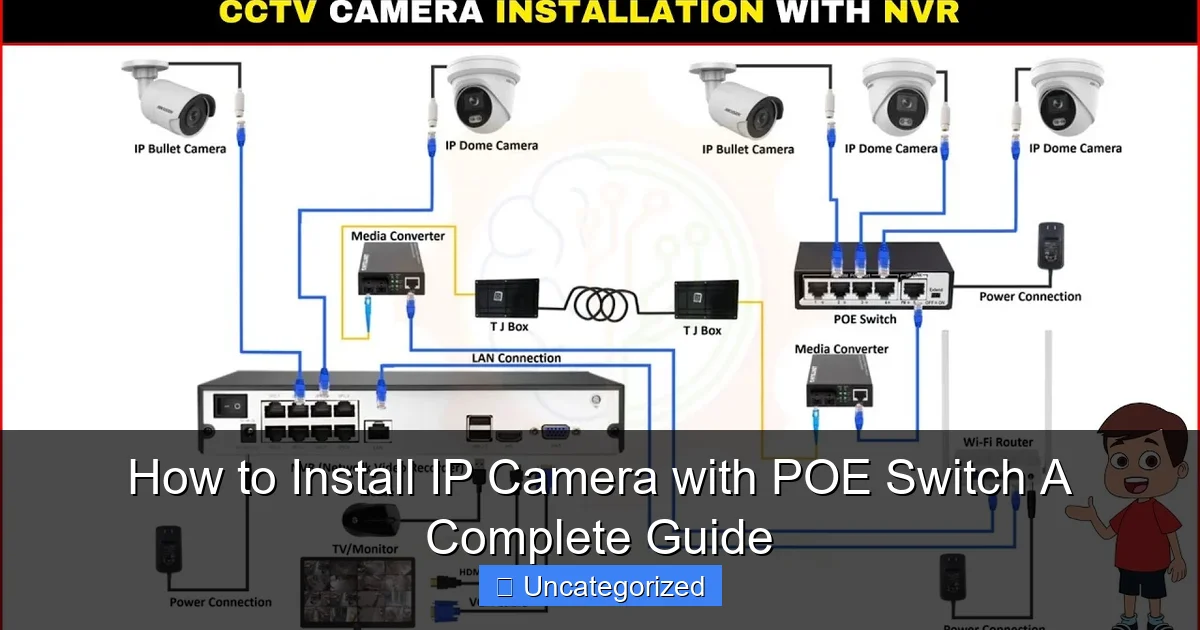

• Use a network diagram to visualize connections (cameras → PoE switch → NVR/router).

Example: For a home setup, place one camera at the front door, one at the back door, and one in the garage. Use a central PoE switch in the basement or utility closet.

Running Ethernet Cables

Proper cable management is crucial for a clean and reliable installation:

1. Measure cable lengths from each camera location to the PoE switch.
2. Use a cable tester to verify continuity before installation.
3. For indoor runs, use cable clips or conduit to secure cables to walls. For outdoor runs, bury cables in PVC conduit or run them through soffits.
4. Leave 1–2 feet of slack at both ends for flexibility.
5. Label each cable at both ends (e.g., “Front Door,” “Backyard”).

Tip: Use fish tape to pull cables through walls or ceilings. For long runs (over 300 feet), consider using PoE extenders or fiber optic converters.

Mounting the Cameras and Connecting to the PoE Switch

Follow these steps to install cameras:

1. Drill pilot holes and secure mounting brackets using anchors for drywall or masonry.
2. Attach the camera to the bracket and adjust the viewing angle.
3. Connect the Ethernet cable to the camera’s RJ45 port.
4. Route the cable to the PoE switch location.
5. Connect the other end of the cable to an available PoE port on the switch.

For the PoE switch:

• Mount the switch on a wall or rack using the included brackets.
• Connect the switch to your router or NVR using a standard Ethernet cable.
• Plug the switch into a UPS for uninterrupted power.

Configuring the NVR and Cameras

Once all cables are connected:

1. Power on the NVR and connect it to a monitor via HDMI or VGA.
2. Follow the NVR’s setup wizard to detect cameras. Most modern NVRs auto-detect PoE cameras.
3. Assign IP addresses (via DHCP or static) and configure recording settings (e.g., continuous, motion-activated).
4. Set up remote access using the NVR’s mobile app or web interface.
5. Adjust camera settings (resolution, IR mode, motion detection zones) via the NVR or camera web interface.

Example: On a Hikvision NVR, navigate to Camera → IP Camera → Add to detect cameras. Enable “Smart Event” for advanced motion detection.

Optimizing Network Performance and Security

Ensuring Stable Network Connectivity

A stable network is critical for smooth video streaming:

• Bandwidth Management: Calculate bandwidth needs: 4MP camera ≈ 4–8 Mbps. For 6 cameras, ensure your network can handle 24–48 Mbps.
• QoS Settings: On managed switches, enable QoS to prioritize camera traffic over less critical devices (e.g., smart TVs).
• Network Segmentation: Use VLANs to isolate camera traffic from other devices, improving security and performance.
• Firmware Updates: Regularly update PoE switch, NVR, and camera firmware to fix bugs and improve stability.

Securing Your Surveillance System

IP cameras are vulnerable to cyber threats. Protect your system with these measures:

• Change Default Credentials: Replace default usernames/passwords with strong, unique ones.
• Enable Encryption: Use HTTPS and SSL/TLS for remote access.
• Firewall Rules: Configure your router’s firewall to block unauthorized access to the NVR’s IP address.
• Network Monitoring: Use tools like Wireshark to detect suspicious activity.
• Physical Security: Place the NVR and PoE switch in a locked cabinet or room.

Tip: Enable two-factor authentication (2FA) if your NVR supports it.

Troubleshooting Common Issues

Camera Not Powering On

• Verify the PoE switch is powered and the port is active.
• Check cable continuity with a tester. Replace damaged cables.
• Ensure the camera is PoE-compatible and not drawing more power than the switch can provide.

Video Feed Lag or Freezing

• Check network bandwidth. Reduce camera resolution or frame rate if needed.
• Ensure the PoE switch is not overloaded (total power draw ≤ PoE budget).
• Test with a direct connection (camera → NVR) to isolate network issues.

Remote Access Problems

• Verify port forwarding on your router (e.g., port 8000 for Hikvision).
• Check if your ISP blocks certain ports. Use dynamic DNS (DDNS) for dynamic IPs.
• Update the NVR’s mobile app and ensure it’s connected to the same network.

Table: PoE Switch Power Requirements (Example)

Camera Model	Power Draw (W)	PoE Standard	Recommended Switch
Hikvision DS-2CD2143G0-I	12.5	802.3at (PoE+)	Ubiquiti UniFi Switch 8 150W
Axis M3046-V	12.9	802.3at (PoE+)	TRENDnet TPE-1026L
Dahua IPC-HDW5442TM-AS	18.5	802.3at (PoE+)	Netgear GS108PP
Reolink RLC-520A	10.5	802.3af (PoE)	TP-Link TL-SG1005P

Note: Total PoE budget should exceed the sum of all camera power draws by at least 10–15% for safety.

Conclusion

Installing an IP camera with a PoE switch is a straightforward process that delivers professional-grade security with minimal hassle. By understanding the technology, selecting the right equipment, and following best practices for installation and configuration, you can create a robust surveillance system tailored to your needs. From choosing high-resolution cameras and reliable PoE switches to optimizing network performance and securing your setup, every step contributes to a seamless experience.

Whether you’re a homeowner looking to protect your family or a business owner safeguarding your assets, a PoE-powered IP camera system offers unmatched convenience, scalability, and peace of mind. Remember to plan carefully, test thoroughly, and maintain your system regularly to ensure long-term reliability. With this guide as your roadmap, you’re well-equipped to build a cutting-edge security solution that stands the test of time. Now, go ahead—take the first step toward a safer, smarter environment.

Frequently Asked Questions

How do I install an IP camera with a POE switch step by step?

To install an IP camera with a POE switch, connect the POE switch to your router using an Ethernet cable, then link the camera to the switch via Cat5e/Cat6 cable. The switch will power the camera and transmit data, eliminating the need for separate power adapters.

Can any POE switch work with my IP camera?

Not all POE switches are compatible—ensure your switch supports the same POE standard (e.g., 802.3af/at) as your camera. Check the camera’s power requirements and the switch’s output to avoid damage or underperformance.

Do I need additional tools to install an IP camera with a POE switch?

Basic tools like a network cable tester and crimping tool (if making custom cables) are helpful. Most setups only require the POE switch, Ethernet cables, and a smartphone/PC for camera configuration.

How far can I place my IP camera from the POE switch?

Ethernet cables support distances up to 100 meters (328 feet) without signal loss. For longer runs, use a POE extender or a secondary POE switch to maintain power and data transmission.

Why is my IP camera not powering on with the POE switch?

Verify the switch’s POE compatibility, cable integrity, and port functionality. Test with another camera or cable to isolate the issue—some cameras require manual POE activation in settings.

How do I configure an IP camera after connecting it to a POE switch?

Access the camera’s IP address via a browser or manufacturer’s app to adjust settings like resolution, motion detection, and storage. Ensure your network and POE switch are properly linked for seamless configuration.
