This guide walks you through the complete process of installing a Merkury floodlight camera, from unboxing to connecting to Wi-Fi. Whether you’re a DIY beginner or a seasoned home improver, you’ll have your smart security system up and running with clear, simple instructions.
Key Takeaways
- Turn off power at the breaker before starting any electrical work to ensure safety.
- Choose a location with strong Wi-Fi signal and adequate coverage of your yard or driveway.
- Use the Merkury Smart app to pair your camera and customize settings like motion zones and alerts.
- Secure all wiring connections with wire nuts and electrical tape to prevent short circuits.
- Test the floodlights and camera after installation to confirm everything works properly.
- Adjust the camera angle and sensitivity through the app for optimal performance.
- Regularly check for firmware updates to keep your camera secure and up to date.
How to Install Merkury Floodlight Camera: A Complete Step-by-Step Guide
Are you ready to upgrade your home security with a smart, motion-activated floodlight camera? The Merkury floodlight camera combines bright LED lighting with high-definition video surveillance, giving you peace of mind and enhanced visibility around your property. Whether you’re protecting your front porch, backyard, or driveway, this all-in-one device is a smart investment.
In this comprehensive guide, we’ll walk you through every step of installing your Merkury floodlight camera—from gathering tools and turning off power to connecting to your Wi-Fi network and customizing settings in the app. You don’t need to be an electrician or tech expert to get this done. With clear instructions, helpful tips, and troubleshooting advice, you’ll have your camera up and running in under an hour.
By the end of this guide, you’ll know exactly how to safely mount your Merkury floodlight camera, connect it to power and your home network, and start receiving real-time alerts on your smartphone. Let’s get started!
What You’ll Need Before You Begin

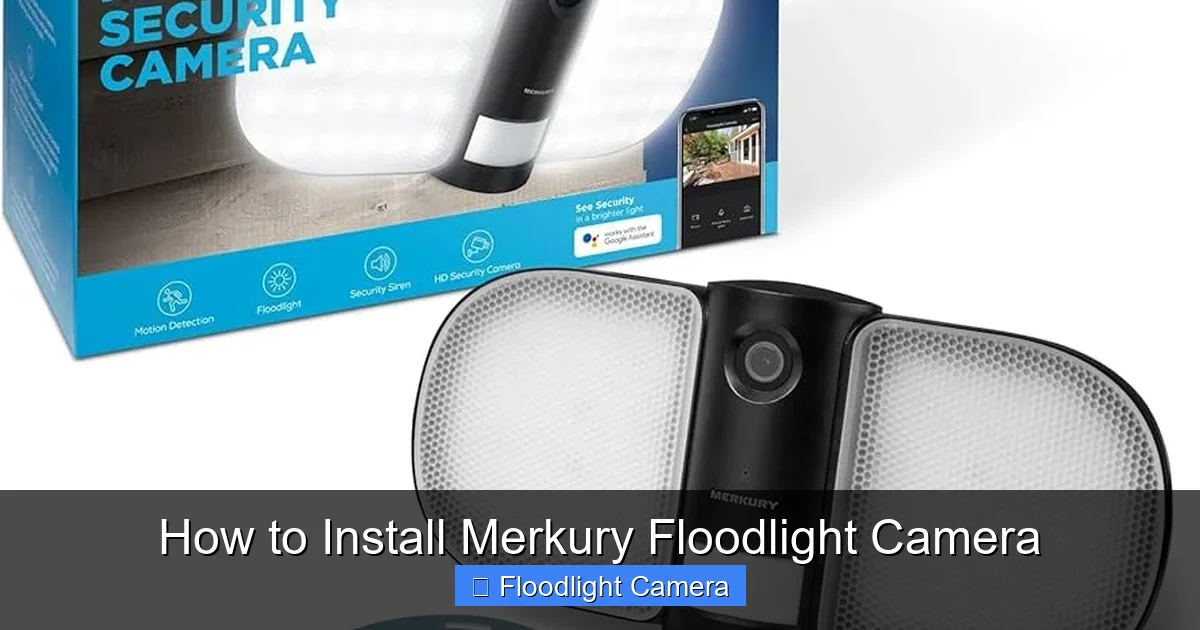

Visual guide about How to Install Merkury Floodlight Camera
Image source: surveillanceguides.com
Before you start the installation, it’s important to gather all the necessary tools and materials. Having everything ready will save you time and prevent frustration mid-project.
Here’s a checklist of what you’ll need:
- Merkury floodlight camera kit – This includes the camera unit, mounting bracket, screws, and wires.
- Screwdriver (Phillips and flathead) – For removing old fixtures and securing the new mount.
- Wire strippers – To expose the ends of electrical wires if needed.
- Voltage tester – To confirm the power is off before working.
- Wire nuts – Usually included, but good to have extras.
- Ladder – To safely reach the installation height.
- Smartphone or tablet – To download the Merkury Smart app and complete setup.
- Wi-Fi network – Your camera needs a 2.4 GHz Wi-Fi connection (5 GHz is not supported).
Pro Tip: If you’re replacing an existing floodlight, take a photo of the wiring setup before disconnecting anything. This will help you reconnect the wires correctly.
Step 1: Turn Off the Power
Safety first! Working with electricity can be dangerous, so it’s crucial to turn off the power at the source before you begin.
Locate Your Electrical Panel
Go to your home’s main electrical panel (also called the breaker box). Look for the circuit breaker that controls the outdoor light you’re replacing. It’s usually labeled “outdoor lights,” “porch,” or “exterior.” If it’s not labeled, you may need to turn off the main breaker to be safe.
Switch Off the Breaker
Flip the corresponding breaker to the “OFF” position. To double-check that the power is off, use a voltage tester on the wires inside the existing fixture. Touch the tester to the black (hot) wire and the ground. If the tester doesn’t light up, the power is off.
Important: Never assume the power is off just because the light is switched off. Always verify with a tester.
Leave a Note
Place a note on the breaker box saying “Do not turn on – working on outdoor light.” This prevents someone else from accidentally restoring power while you’re working.
Step 2: Remove the Old Fixture (If Applicable)
If you’re replacing an existing floodlight, you’ll need to remove it before installing the Merkury camera.
Unscrew the Mounting Bracket
Use a screwdriver to remove the screws holding the old fixture to the wall or junction box. Carefully lower the fixture and let it hang by the wires.
Disconnect the Wires
You’ll typically see three wires: black (hot), white (neutral), and green or bare copper (ground). Loosen the wire nuts and separate the wires. If the wires are connected to a mounting plate, unscrew them from the terminals.
Remove the Old Bracket
Once the wires are free, remove the old mounting bracket. You may need to unscrew it from the electrical box.
Tip: If the wires are short or damaged, you may need to strip the ends to expose fresh copper before connecting to the new camera.
Step 3: Prepare the Merkury Floodlight Camera
Now it’s time to get your new camera ready for installation.
Unbox the Camera
Open the Merkury floodlight camera package and remove all components. You should have:
- The camera and floodlight unit
- Mounting bracket
- Screws and anchors
- Wire connectors (wire nuts)
- Instruction manual
Attach the Mounting Bracket
Hold the mounting bracket against the wall or electrical box where you’ll install the camera. Make sure it’s level using a bubble level. Mark the screw holes with a pencil.
If you’re mounting into drywall, use the included wall anchors for a secure fit. Drill pilot holes if necessary.
Connect the Wires
The Merkury camera comes with three wires: black (hot), white (neutral), and green (ground). Match them to the corresponding wires from your electrical box:
- Black to black (hot)
- White to white (neutral)
- Green or bare copper to green or bare copper (ground)
Twist the matching wires together and secure them with wire nuts. Wrap electrical tape around the wire nuts for extra protection.
Pro Tip: If your electrical box has a grounding screw, wrap the ground wire around it and tighten the screw for a solid connection.
Step 4: Mount the Camera to the Wall
With the wires connected, it’s time to secure the camera in place.
Align the Camera with the Bracket
Lift the camera and align the mounting holes with the bracket. The camera should sit flush against the wall.
Secure with Screws
Insert the provided screws through the camera’s mounting holes and into the bracket. Tighten them firmly, but don’t over-tighten, as this could crack the housing.
Check the Angle
Before fully tightening, adjust the camera angle so it points toward the area you want to monitor—like your front door, driveway, or backyard. The floodlights should also illuminate the desired zone.
Tip: Most Merkury models allow you to tilt and swivel the camera for optimal positioning.
Step 5: Restore Power and Test the Lights
Now that the camera is mounted and wired, it’s time to turn the power back on and test the system.
Turn the Breaker Back On
Return to your electrical panel and flip the breaker to the “ON” position.
Check the Floodlights
The floodlights should turn on automatically when power is restored. If they don’t, double-check your wiring connections.
Test the Camera
The camera should power up and begin initializing. You may see indicator lights blinking—this is normal during startup.
Note: The camera won’t record or send alerts until it’s connected to Wi-Fi via the app.
Step 6: Download and Set Up the Merkury Smart App
To control your camera and receive alerts, you’ll need to use the Merkury Smart app.
Download the App
On your smartphone or tablet, go to the App Store (iOS) or Google Play Store (Android) and search for “Merkury Smart.” Download and install the app.
Create an Account
Open the app and tap “Sign Up” to create a new account. Enter your email, create a password, and verify your email address.
Add Your Camera
Tap the “+” icon in the app and select “Add Device.” Choose “Floodlight Camera” from the list.
The app will guide you through the setup process. Make sure your phone is connected to your 2.4 GHz Wi-Fi network—the camera does not support 5 GHz.
Scan the QR Code
Hold your phone up to the QR code on the camera (usually located on the back or side). The app will detect the device and begin pairing.
Connect to Wi-Fi
Enter your Wi-Fi network name (SSID) and password when prompted. The camera will attempt to connect. This may take 1–2 minutes.
Tip: If the connection fails, move closer to your router or restart your Wi-Fi.
Step 7: Configure Camera Settings
Once connected, you can customize your camera’s behavior to suit your needs.
Set Motion Zones
In the app, go to “Detection Settings” and enable “Motion Detection.” You can draw zones on the camera’s view to specify where motion should trigger alerts. For example, you might want alerts for your driveway but not the sidewalk.
Adjust Sensitivity
Set the motion sensitivity to low, medium, or high. High sensitivity may trigger alerts from small animals or moving branches, while low sensitivity might miss important activity.
Enable Night Vision
The Merkury camera has infrared night vision. Make sure it’s enabled in the app so you can see clearly in the dark.
Set Up Alerts
Turn on push notifications so you receive alerts on your phone when motion is detected. You can also set alert schedules—for example, only receive alerts at night.
Test the Live View
Tap “Live View” in the app to see the camera feed in real time. Walk in front of the camera to test motion detection and alerts.
Step 8: Final Adjustments and Maintenance
Your camera is now installed and working, but a few final steps will ensure long-term performance.
Secure Loose Wires
Tuck any excess wiring into the electrical box and secure the cover plate. This prevents water damage and keeps the installation neat.
Clean the Lens
Use a soft, dry cloth to wipe the camera lens and floodlight covers. Dirt or debris can block the view or reduce light output.
Check for Firmware Updates
In the app, go to “Device Settings” and look for “Firmware Update.” Install any available updates to improve performance and security.
Schedule Regular Checks
Every few months, test the camera, clean the lens, and verify that alerts are working. This helps catch issues early.
Troubleshooting Common Installation Issues
Even with careful installation, you might run into a few hiccups. Here’s how to solve the most common problems.
Camera Won’t Power On
- Double-check that the breaker is on.
- Verify all wire connections are tight and correct.
- Use a voltage tester to confirm power is reaching the fixture.
Wi-Fi Connection Fails
- Ensure your phone is on the 2.4 GHz network (not 5 GHz).
- Move closer to the router during setup.
- Restart your router and try again.
- Reset the camera by holding the reset button (if available) for 10 seconds.
Motion Alerts Not Working
- Check that motion detection is enabled in the app.
- Adjust sensitivity and motion zones.
- Make sure the camera lens isn’t blocked.
Floodlights Stay On All the Time
- This may be due to a wiring issue or a stuck switch.
- Check the app settings—some models have a “Always On” mode.
- Contact Merkury support if the problem persists.
Poor Video Quality
- Clean the camera lens.
- Ensure strong Wi-Fi signal at the camera location.
- Update the firmware.
Conclusion
Installing a Merkury floodlight camera is a smart way to boost your home security with minimal effort. By following this step-by-step guide, you’ve safely mounted the camera, connected it to power and Wi-Fi, and customized it to meet your needs. From motion alerts to night vision, your new system is ready to protect your property 24/7.
Remember to test the system regularly, keep the lens clean, and stay updated with firmware releases. With proper care, your Merkury floodlight camera will provide reliable performance for years to come.
Whether you’re deterring intruders, monitoring deliveries, or just keeping an eye on your pets, this smart device puts control in your hands—right from your smartphone. Enjoy the peace of mind that comes with smarter, safer home security.
