How to Install Poe Camera System: A Complete Step by Step Guide

Key Takeaways

• Plan camera placement: Choose optimal spots for coverage and minimal blind spots.
• Use Cat6 cable: Ensures reliable power and data transmission over long distances.
• Connect via PoE switch: Simplifies setup by powering cameras and transferring data.
• Test before mounting: Verify camera feed and network connection prior to installation.
• Secure connections: Protect cables from weather and tampering for long-term durability.
• Configure NVR settings: Customize recording, alerts, and remote access for full control.

Why This Matters / Understanding the Problem

Home security is no longer a luxury—it’s a necessity. With break-ins, package theft, and neighborhood safety concerns on the rise, more people are turning to PoE (Power over Ethernet) camera systems for reliable, high-quality surveillance.

Unlike traditional analog or Wi-Fi cameras, PoE cameras deliver both power and data through a single Ethernet cable. This means cleaner installations, fewer power outlets to manage, and stronger, more stable video feeds. But if you’ve never set one up, the process might seem intimidating. That’s why this How to Install Poe Camera System A Complete Step by Step Guide breaks it all down—so you can go from zero to fully protected in just a few hours.

Whether you’re a DIY homeowner, a small business owner, or just tech-curious, this guide will walk you through every detail. We’ll cover planning, tools, installation, and troubleshooting—all in plain, easy-to-follow language. No jargon, no fluff—just real steps that work.

What You Need

Before you start drilling holes or running cables, gather these essential tools and materials. Having everything ready saves time and prevents mid-installation trips to the hardware store.

• PoE Camera System Kit – Includes 4–8 cameras, a PoE NVR (Network Video Recorder), and mounting hardware.
• Ethernet (Cat 5e or Cat 6) Cables – One per camera (pre-terminated or bulk with crimping tools).
• PoE Switch or NVR with Built-in PoE Ports – Most NVRs have 4–8 PoE ports; use a switch if expanding beyond that.
• Drill & Drill Bits – For wall or ceiling mounting (masonry bits if going into brick or concrete).
• Measuring Tape & Pencil – For marking camera positions.
• Fish Tape or Cable Pulling Tool – For running cables through walls, ceilings, or attics.
• Network Cable Tester – To verify connections before finalizing.
• Power Drill, Screwdriver, Level – Basic tools for mounting and alignment.
• Weatherproof Junction Boxes (if outdoors) – Protects cable connections from rain and debris.
• Optional: PoE Extender or Injector – For runs longer than 300 feet.

Pro tip: Buy a kit with pre-terminated cables (ends already crimped) if you’re new to cabling. It eliminates guesswork and reduces errors. This How to Install Poe Camera System A Complete Step by Step Guide assumes you’re using a standard kit, but we’ll cover custom setups too.

Step-by-Step Guide to How to Install Poe Camera System A Complete Step by Step Guide

Step 1: Plan Your Camera Layout

Good planning prevents poor performance. Before touching a tool, sketch out where you want cameras placed.

Start by identifying high-risk areas: front and back doors, driveways, side gates, garages, and windows on the ground floor. Avoid pointing cameras at private areas (neighbors’ yards, bedroom windows) to respect privacy laws.

Use a floor plan or draw a simple sketch. Mark each camera location with a number. Consider:

• Field of View (FOV): Most PoE cameras have a 90°–120° FOV. Position them to cover entry points without gaps.
• Height: Mount 8–10 feet high to avoid tampering but still capture faces.
• Lighting: Use cameras with IR night vision for dark areas. For 24/7 color, consider models with low-light sensors.
• Cable Path: Plan how Ethernet cables will run from each camera to the NVR. Use attics, basements, or crawl spaces when possible.

Example: For a two-story home, place one camera above the front door, another on the garage, and one covering the backyard patio. Run cables through the attic to a central NVR in the basement or utility closet.

Pro Tip: Use a free app like SketchUp Free or RoomSketcher to create a digital layout. It helps visualize coverage and cable paths.

Step 2: Set Up the NVR (Network Video Recorder)

The NVR is the brain of your system. It records video, stores footage, and connects to your network.

Find a dry, ventilated spot near a power outlet and network connection. A basement, closet, or entertainment center works well. Avoid damp areas (bathrooms, laundry rooms).

Plug in the NVR and connect it to your router using an Ethernet cable. Power it on. Most NVRs boot up and launch a setup wizard.

Follow the on-screen prompts to:

• Set your time zone and date.
• Create a strong admin password (use a mix of letters, numbers, and symbols).
• Connect to your Wi-Fi (optional, but recommended for remote viewing).
• Update the firmware if prompted.

Once set up, note the NVR’s IP address (usually 192.168.1.x). You’ll use this to access the system later.

Warning: Don’t skip the firmware update. It often fixes security flaws and improves stability.

Step 3: Run Ethernet Cables

This is the most time-consuming step, but it’s crucial. PoE cameras need a direct Ethernet connection to the NVR or PoE switch.

Start from the NVR location. Run one Ethernet cable per camera. Use the following methods:

• Attic or Basement: Drill a small hole through the floor/ceiling. Use a fish tape to pull the cable from the camera location to the NVR.
• Exterior Walls: Drill from the inside out at the camera spot. Use a weatherproof sealant (silicone caulk) around the hole.
• Interior Walls: Cut a small hole, run the cable through the wall cavity, and patch it later.

If using bulk cable (uncrimped), cut each cable 1–2 feet longer than needed. Strip the ends, arrange the wires in T568B order (white-orange, orange, white-green, blue, white-blue, green, white-brown, brown), and crimp on an RJ45 connector.

Label each cable at both ends (e.g., “Front Door”) to avoid confusion later.

Pro Tip: Bundle cables with zip ties every 12 inches to keep them neat and prevent damage.

Step 4: Mount the Cameras

Now it’s time to attach the cameras. Most kits include mounting brackets and screws.

At each camera location:

1. Hold the bracket against the wall or ceiling. Use a level to ensure it’s straight.
2. Mark the screw holes with a pencil.
3. Drill pilot holes (use a masonry bit for brick/concrete).
4. Screw in the bracket.
5. Connect the Ethernet cable to the camera.
6. Attach the camera to the bracket (usually twist-lock or screw-in).
7. Adjust the angle to cover your target area. Tighten the mounting screws to lock it in place.

For outdoor cameras, ensure the Ethernet connection is protected. Use a weatherproof junction box or silicone sealant around the cable entry point.

Common Mistake: Don’t overtighten screws—this can crack the camera housing or misalign the lens.

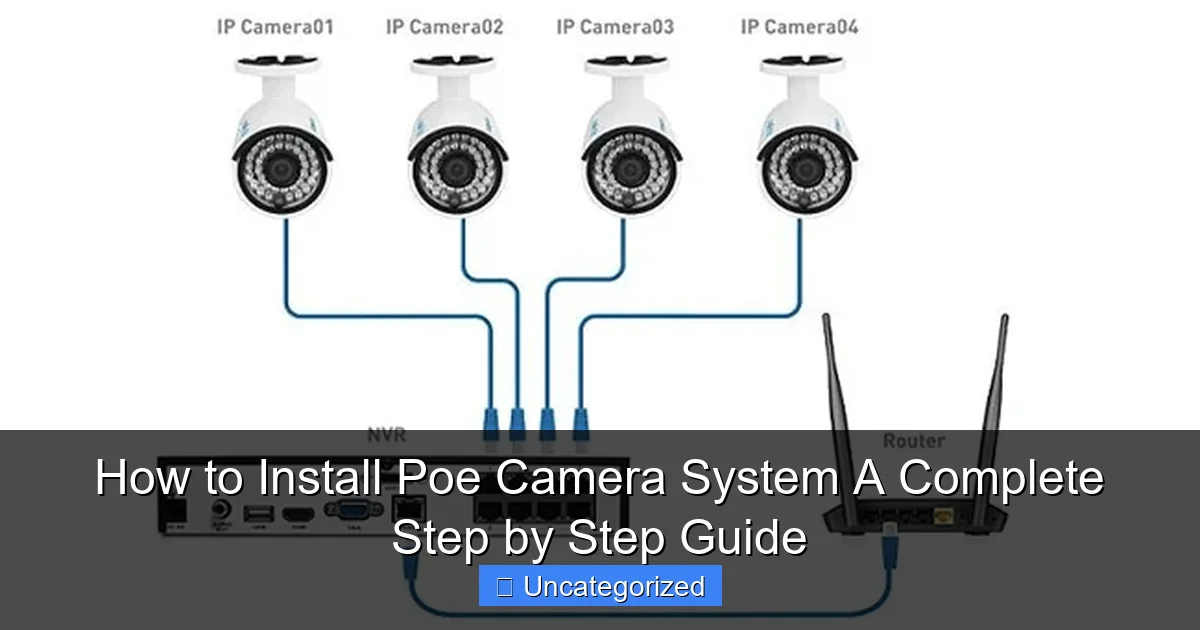

Step 5: Connect Cables to the NVR

Back at the NVR, plug each Ethernet cable into a PoE port. Most NVRs have labeled ports (Camera 1, Camera 2, etc.). Match the labels to your camera layout.

Power on the NVR if it’s not already running. Wait 1–2 minutes for the cameras to boot up.

On the NVR screen, you should see a live feed from each camera. If a camera shows “No Signal,” check:

• Is the cable fully inserted?
• Is the camera powered on (LED light visible)?
• Is the cable damaged or kinked?

Use a network cable tester to verify continuity if needed.

Pro Tip: If you’re using a separate PoE switch, connect it to the NVR with a short Ethernet cable. Then plug camera cables into the switch.

Step 6: Configure Camera Settings

Now that the cameras are online, customize them for your needs.

Access the NVR’s menu (via the on-screen interface or a connected monitor). Go to Camera Settings and adjust:

• Resolution: Set to 1080p (or 4K if supported) for clear footage.
• Frame Rate: 15–20 fps is usually sufficient.
• Motion Detection: Enable and set sensitivity. Avoid areas with moving trees or pets.
• Night Vision: Adjust IR range if cameras are too bright/dim in darkness.
• Recording Schedule: Choose continuous, motion-activated, or scheduled recording.
• Storage: Check available space. A 2TB hard drive holds ~30 days of 1080p footage (4 cameras).

For remote access, enable the NVR’s mobile app (e.g., Hik-Connect, Dahua DMSS). Scan the QR code in the app to link it to your NVR.

Step 7: Test and Troubleshoot

Before calling it a day, run a full test.

Walk through each camera’s view. Check:

• Is the image clear and stable?
• Does motion detection trigger alerts?
• Does night vision activate in the dark?
• Can you access live feeds on your phone?

Common issues and fixes:

• Blurry Image: Clean the lens with a microfiber cloth. Adjust focus if the camera has a manual dial.
• No Signal: Recheck cable connections. Test with a different cable.
• Flickering: Avoid running cables near power lines. Use shielded Cat 6 if interference persists.
• App Won’t Connect: Ensure the NVR and phone are on the same Wi-Fi. Restart the router if needed.

Document any issues and fix them now. It’s easier than troubleshooting later.

Pro Tips & Common Mistakes to Avoid

Even with the best plans, things can go wrong. Here’s how to stay ahead:

Pro Tips

• Label Everything: Use tags on cables and cameras. Saves hours when adding or replacing units.
• Use Surge Protectors: PoE systems are sensitive to voltage spikes. Plug the NVR into a surge protector.
• Optimize Cable Length: Don’t coil excess cable. Cut to length or use a cable management box.
• Test Before Finalizing: Power on cameras before sealing holes or painting.
• Enable Two-Factor Authentication: For remote access apps, add an extra layer of security.

Common Mistakes

• Ignoring Cable Bend Radius: Don’t bend Ethernet cables tighter than 1 inch. It damages internal wires.
• Skipping Firmware Updates: Outdated software causes crashes and security risks.
• Placing Cameras Too High: Above 10 feet, you lose facial detail. Balance coverage and height.
• Forgetting Weatherproofing: Outdoor connections must be sealed. Water damage is the #1 cause of PoE camera failure.
• Overloading the NVR: Check the NVR’s max camera count. Exceeding it slows down recording.

Warning: Never run PoE cables in the same conduit as power cables. It causes interference and violates electrical codes.

FAQs About How to Install Poe Camera System A Complete Step by Step Guide

1. How far can I run a PoE cable?

The maximum distance for reliable PoE is 300 feet (90 meters) with Cat 5e or Cat 6. Beyond that, use a PoE extender or switch to boost the signal. For example, a 400-foot run needs an extender at the 300-foot mark.

2. Can I mix PoE and non-PoE cameras?

Only if the NVR supports both. Most modern NVRs have hybrid ports. But mixing types can complicate setup. Stick to PoE for consistency.

3. Do I need Wi-Fi for PoE cameras?

No. PoE cameras connect via Ethernet. But Wi-Fi is needed for remote access (e.g., checking feeds on your phone). Connect the NVR to your router for internet access.

4. How much storage do I need?

For 4 cameras at 1080p (15 fps), a 2TB drive stores ~30 days of continuous footage. Motion-activated recording doubles storage time. Use the NVR’s storage calculator for exact numbers.

5. Can I install PoE cameras in the rain?

Yes, if they’re rated IP66 or higher (dust-tight and weatherproof). Always seal cable connections with silicone or a junction box.

6. What if my house has no attic or basement?

Run cables along baseboards, under floorboards, or use surface-mounted raceways (plastic channels that hide cables). For apartments, consider wireless PoE kits with battery-powered cameras.

7. How do I expand the system later?

Add more cameras by connecting them to a PoE switch. Ensure the NVR supports the total number. Update the layout in the NVR settings.

Final Thoughts

Installing a PoE camera system might feel like a big project, but with this How to Install Poe Camera System A Complete Step by Step Guide, it’s totally doable—even if you’ve never drilled a hole in your life.

Remember: plan first, test often, and seal everything. A well-installed system gives you peace of mind, 24/7. It deters crime, captures evidence, and lets you check on your home from anywhere.

Once you’re done, take a moment to review the footage. See how crisp the image is? That’s the power of PoE. Now, share your success with friends or neighbors. They’ll want to know how you did it.

Ready to protect what matters? Grab your tools, follow these steps, and enjoy a safer, smarter home—one camera at a time.

“`
