How to Install Poe Cameras A Complete Step by Step Guide

Installing PoE cameras is a seamless, single-cable solution that powers and connects your security system using just an Ethernet cable. This guide walks you through every step—from planning camera placement and running cables to connecting to a PoE switch or NVR—ensuring a reliable, high-quality surveillance setup. No electrical wiring needed, making it ideal for DIYers and professionals alike.

Key Takeaways

• Plan camera locations: Choose spots with clear views and PoE cable access.
• Use quality PoE switches: Ensure sufficient power and bandwidth for all cameras.
• Run cables properly: Secure and conceal Ethernet cables to prevent damage.
• Test connections early: Verify power and data transmission before final installation.
• Configure via NVR: Set up recording, motion detection, and remote access easily.
• Update firmware: Keep cameras secure and functional with latest updates.

How to Install Poe Cameras A Complete Step by Step Guide

Imagine a surveillance system that delivers high-definition video, is easy to set up, and doesn’t require a separate power source for each camera—this is the power of PoE (Power over Ethernet) cameras. Whether you’re securing your home, monitoring a small business, or managing a large commercial property, PoE cameras offer a streamlined, reliable, and cost-effective solution. Unlike traditional analog or Wi-Fi security cameras, PoE cameras use a single Ethernet cable to transmit both data and power, eliminating the need for messy power adapters and outlets near each camera location. This not only simplifies installation but also enhances reliability and scalability.

Installing PoE cameras may sound technical, but with the right tools, planning, and step-by-step guidance, even a DIY enthusiast can complete the process in a weekend. From choosing the right equipment to running cables, connecting devices, and testing the system, this guide walks you through every stage of the installation process. Whether you’re upgrading an existing system or starting from scratch, you’ll learn how to optimize camera placement, avoid common pitfalls, and ensure your surveillance network delivers crystal-clear footage 24/7. Let’s dive into the world of PoE cameras and transform your security setup with confidence.

Understanding PoE Cameras and Their Benefits

What Are PoE Cameras?

PoE cameras are network-based security cameras that receive both data and electrical power through a single Ethernet cable (typically Cat5e or Cat6). The technology relies on IEEE 802.3af or 802.3at (PoE+) standards, which define how power and data are safely transmitted over standard network cabling. The power is injected into the cable by a PoE switch, PoE injector, or a PoE-enabled Network Video Recorder (NVR), eliminating the need for separate power supplies at each camera location.

Key Advantages of PoE Cameras

Why choose PoE over other camera types? The benefits are compelling:

• Simplified Installation: One cable handles both power and data—no need to run separate power lines or install electrical outlets near cameras.
• Reliability: Wired connections are less prone to interference, signal loss, or hacking compared to Wi-Fi systems.
• Scalability: Adding new cameras is as simple as running another Ethernet cable to the PoE switch or NVR.
• Remote Power Management: Many PoE switches and NVRs allow you to reboot or power-cycle individual cameras remotely.
• Higher Video Quality: PoE supports high-resolution video (1080p, 4K, and beyond) without compression artifacts common in wireless systems.
• Cost-Effective: Reduced labor, fewer components, and lower maintenance make PoE ideal for long-term savings.

For example, a homeowner installing four 4K PoE cameras around their property can use a single 16-port PoE switch connected to their NVR, all powered and managed from a central location—no electrician required.

PoE vs. Alternatives: A Quick Comparison

Feature	PoE Cameras	Wi-Fi Cameras	Analog Cameras
Power Source	Via Ethernet (PoE)	Local power outlet or battery	Separate power cable
Data Transmission	Wired (Ethernet)	Wireless (Wi-Fi)	Coaxial cable
Installation Complexity	Medium (cable routing)	Low (plug-and-play)	High (separate power & data)
Max Resolution	4K+	1080p–4K (depends on bandwidth)	1080p (HD-TVI)
Reliability	High (no signal loss)	Medium (Wi-Fi interference)	Medium (coax degradation)
Remote Access	Yes (via NVR or cloud)	Yes (via app)	Yes (via DVR/NVR)

As shown, PoE strikes a balance between ease of use, performance, and reliability—making it ideal for most modern security applications.

Planning Your PoE Camera System

Assess Your Security Needs

Before buying a single camera, take time to evaluate your surveillance goals. Ask yourself:

• What areas need coverage? (e.g., front door, backyard, parking lot, server room)
• Do you need indoor, outdoor, or both types of cameras?
• Are there low-light or dark areas requiring night vision?
• Do you need motion detection, two-way audio, or facial recognition?
• How many cameras are needed? (Start with a rough count)

Example: A small business owner may need four outdoor cameras (front, back, side entrances, parking) and two indoor cameras (lobby, back office), totaling six cameras. This informs the size of the NVR and PoE switch needed.

Choose the Right Equipment

Your PoE system requires several key components:

• PoE Cameras: Select based on resolution (1080p, 2K, 4K), field of view (wide-angle vs. narrow), weather resistance (IP66/IP67), and features (IR night vision, audio, AI detection).
• PoE Switch or NVR: A PoE NVR is the most common choice—it combines video recording, storage, and PoE power. Alternatively, use a standalone PoE switch connected to a separate NVR. Ensure the switch supports IEEE 802.3af/at and has enough ports for your cameras.
• Ethernet Cables: Use Cat6 for future-proofing and longer runs (up to 100 meters). Cat5e is acceptable for shorter distances and 1080p cameras.
• Network Storage: Most NVRs include built-in hard drives (e.g., 2TB, 4TB, 8TB). Choose based on retention time (e.g., 30 days of 4K video requires more storage than 1080p).
• Monitor (Optional): A monitor allows local viewing. Otherwise, access via smartphone, tablet, or computer.

Pro Tip: Buy a PoE NVR with plug-and-play (PnP) support—many modern cameras auto-detect and configure when connected, saving setup time.

Design the Camera Layout and Cable Routes

Sketch a floor plan or site map and mark:

• Camera locations (prioritize entry points, blind spots, high-value areas)
• Central NVR/switch location (preferably indoors, near power and network)
• Cable paths (avoid high-traffic areas, water sources, or electrical interference)
• Entry points for outdoor cables (use conduit or wall grommets for weatherproofing)

Practical Tip: Use a fish tape and drill bits to route cables through walls, attics, or crawl spaces. For outdoor runs, bury cables in PVC conduit or use overhead cable trays. Always leave 1–2 meters of slack at both ends for adjustments.

Calculate Power and Bandwidth Requirements

Each PoE camera draws power (typically 5–15W). Ensure your PoE switch or NVR can supply enough total power:

• Example: 8 cameras × 10W = 80W. Choose a PoE switch with ≥100W total budget.
• Use PoE+ (802.3at) for 4K or high-performance cameras (up to 30W per port).

For bandwidth, estimate:

• 1080p: ~4 Mbps per camera
• 4K: ~16 Mbps per camera
• Total bandwidth = (cameras × Mbps) + 20% overhead

Example: 6 × 4K cameras = 96 Mbps + 20% = 115 Mbps. Ensure your network (switch, router, internet) can handle this load.

Step-by-Step Installation Process

Step 1: Mount the Cameras

Follow these steps to securely install each camera:

1. Choose Mounting Type: Most PoE cameras come with wall or ceiling mounts. Use a drill and appropriate screws/anchors for the surface (wood, brick, stucco).
2. Position for Optimal Coverage: Aim cameras to cover entry points, driveways, or high-traffic zones. Avoid direct sunlight, glare, or backlit scenes.
3. Adjust Viewing Angle: Loosen the camera’s swivel/tilt mechanism, aim manually, then tighten securely.
4. Weatherproof Outdoor Cameras: Seal cable entry points with silicone or waterproof tape. Use outdoor-rated mounts.

Pro Tip: Use a laser level to align multiple cameras horizontally. For dome cameras, ensure the bubble level is centered.

Step 2: Run Ethernet Cables

Routing cables is the most labor-intensive part. Here’s how to do it right:

• Indoor Runs: Drill holes through walls or floors near baseboards. Use a fish tape to pull cables from room to room. Label each cable at both ends (e.g., “Front Door”).
• Outdoor Runs: Bury cables in PVC conduit (minimum 6″ depth) or run along eaves with cable clips. Avoid direct sunlight exposure (UV degrades cable insulation).
• Through Attics/Basements: Route cables along existing wiring or structural beams. Secure with zip ties every 3–4 feet.
• Use Cable Grommets: When passing through exterior walls, seal gaps with silicone to prevent water, insects, and air leaks.

Practical Example: To install a backyard camera, run Cat6 cable from the NVR in the garage through the attic, down the exterior wall (using a conduit), and terminate at the camera with a waterproof RJ45 gland.

Step 3: Terminate Cables (If Using Raw Cable)

If you’re using bulk Ethernet cable (not pre-terminated), you’ll need to install RJ45 connectors:

1. Strip 1.5 inches of cable jacket using a wire stripper.
2. Untwist and arrange wires in T568B order (white/orange, orange, white/green, blue, white/blue, green, white/brown, brown).
3. Trim wires evenly and insert into an RJ45 connector.
4. Crimp firmly with a crimping tool.
5. Test connectivity with a cable tester.

Tip: Use pre-terminated cables for easier installation. Just cut to length and connect—no crimping required.

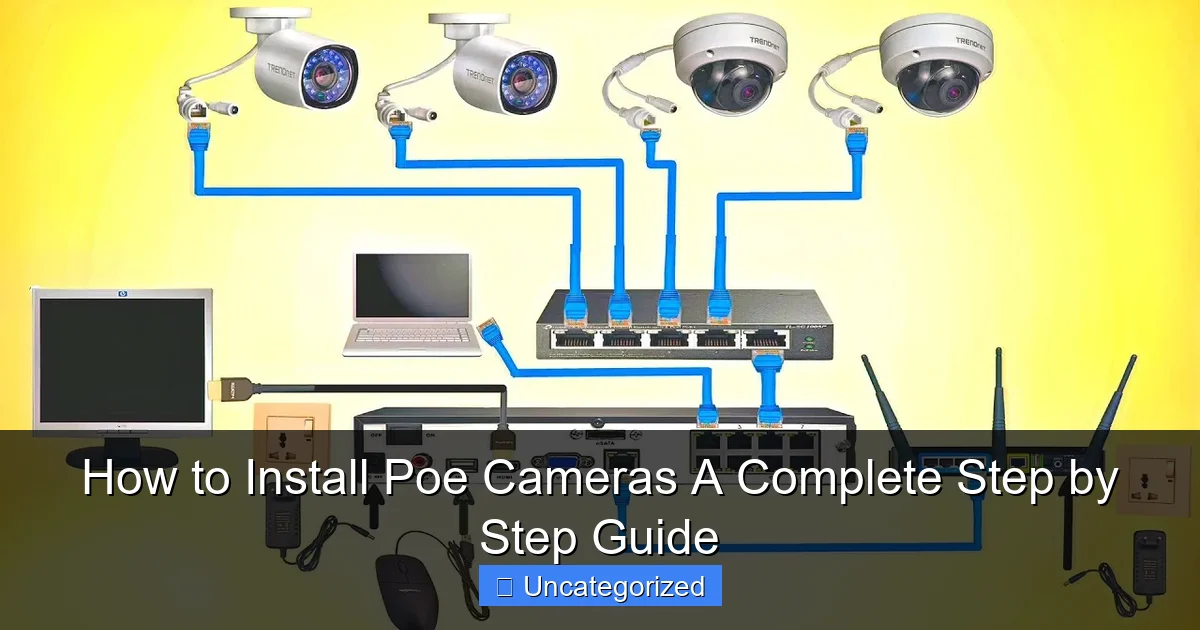

Step 4: Connect to PoE Switch/NVR

Now it’s time to power up the system:

• Plug each camera’s Ethernet cable into a PoE port on the switch or NVR.
• Connect the NVR to your router using an Ethernet cable (for remote access).
• Plug the NVR/switch into a power outlet and turn it on.
• Wait 1–2 minutes for cameras to boot and establish a connection.

Pro Tip: Use PoE testers to verify power delivery before finalizing connections. A green light confirms successful PoE negotiation.

Configuring and Testing Your System

Access the NVR Interface

Most PoE NVRs offer a user-friendly interface. To access it:

• Connect a monitor to the NVR’s HDMI or VGA port.
• Power on the NVR. The setup wizard will guide you through initial configuration.
• Set the date, time, and timezone.
• Create an admin username and password (use a strong, unique one).

Example: On a Dahua or Hikvision NVR, you’ll see a grid of camera previews—each should show “Connected” status.

Configure Camera Settings

Customize each camera for optimal performance:

• Video Settings: Adjust resolution, frame rate (15–30 fps), and bitrate. Lower settings save storage but reduce clarity.
• Motion Detection: Define detection zones (e.g., ignore trees, focus on driveways). Set sensitivity to reduce false alerts.
• Night Vision: Enable IR cut filter and set IR intensity. Adjust for ambient light conditions.
• Audio (if supported): Enable two-way talk or audio recording (check local privacy laws).
• Smart Features: Enable AI detection (e.g., person, vehicle, pet) if available.

Pro Tip: Use scheduled recording (e.g., 24/7, motion-only, business hours) to optimize storage usage.

Test the System

Verify everything is working:

• Check live feeds on the NVR monitor.
• Walk in front of each camera to test motion detection.
• Verify night vision by turning off lights or waiting for dusk.
• Test remote access: Install the NVR’s mobile app (e.g., Hik-Connect, Dahua DMSS), log in, and view live footage.
• Check recording: Play back a 10-minute clip to confirm audio/video sync and clarity.

Common Issue: If a camera shows “No Signal,” check cable connections, PoE power, or try swapping ports.

Advanced Tips and Troubleshooting

Extend Cable Range Beyond 100 Meters

Standard Ethernet limits are 100 meters. For longer runs:

• Use PoE extenders or midspan injectors to boost power and data.
• Install an intermediate PoE switch at 80–90 meters, then run another 100m to the camera.
• For extreme distances, use fiber optic cables with media converters.

Example: A 150-meter run can use a PoE switch at 90 meters, powering the final 60 meters to the camera.

Optimize Network Performance

To prevent lag or dropped frames:

• Use a dedicated VLAN for cameras (isolates traffic, improves security).
• Enable QoS (Quality of Service) on your router to prioritize camera data.
• Upgrade to gigabit switches if running multiple 4K cameras.

Secure Your System

PoE cameras are network devices—protect them from hackers:

• Change default passwords on cameras and NVR.
• Enable HTTPS and disable UPnP (Universal Plug and Play).
• Regularly update firmware.
• Use a firewall or router with built-in security features.

Common Issues and Fixes

• Camera Not Powering On: Check cable integrity, PoE port, or use a PoE tester.
• Blurry Video: Clean the lens, check focus settings, or replace damaged cables.
• Intermittent Connection: Inspect for cable kinks, water damage, or electrical interference.
• Storage Full: Upgrade the NVR hard drive or enable overwrite recording.

Conclusion

Installing PoE cameras is a powerful way to enhance your security with a professional-grade, scalable, and reliable system. By following this comprehensive guide—from planning and equipment selection to cable routing, configuration, and troubleshooting—you can achieve a seamless installation that delivers high-quality surveillance for years to come. The key to success lies in meticulous planning, using quality materials, and taking the time to test every component thoroughly.

Remember, a well-installed PoE system isn’t just about seeing what’s happening—it’s about peace of mind. Whether you’re monitoring your home, protecting your business, or keeping an eye on remote assets, PoE cameras offer unmatched clarity, convenience, and control. With modern features like AI detection, remote access, and cloud integration, your surveillance system becomes more than just a camera network—it becomes a smart security ecosystem. So grab your tools, follow the steps, and take the first step toward a safer, smarter future with PoE cameras.

Frequently Asked Questions

How do I install PoE cameras for the first time?

To install PoE cameras, start by planning camera placement, running Cat5e/6 cables from each camera to a PoE switch/NVR, and connecting the NVR to a monitor. Ensure your PoE switch or injector matches the cameras’ power requirements for seamless operation.

What tools do I need to install PoE cameras?

Essential tools include Cat5e/6 cables, a PoE switch/NVR, a crimping tool, cable testers, a drill (for mounting), and a monitor to configure the NVR. A ladder may also be necessary for ceiling or high-wall installations.

Can I install PoE cameras without an NVR?

Yes, you can use standalone PoE cameras with microSD cards or cloud storage, but an NVR simplifies management for multi-camera setups. Ensure cameras support ONVIF or RTSP for compatibility with third-party software.

How do I run cables for PoE cameras outdoors?

Use weatherproof Cat5e/6 cables and conduit to protect against moisture. For long distances, ensure the cable run doesn’t exceed 100 meters to maintain power and data integrity.

How do I troubleshoot PoE camera connection issues?

Check cable continuity with a tester, verify PoE switch power output, and ensure the NVR recognizes the camera’s IP address. Restarting the switch or camera often resolves minor glitches.

Do PoE cameras need Wi-Fi to work?

No, PoE cameras operate via wired Ethernet, eliminating Wi-Fi dependency. However, Wi-Fi may be needed for remote access if the NVR isn’t connected to your router.
