How to Install Ring Floodlight Camera

Installing a Ring Floodlight Camera is easier than you think—this guide walks you through every step, from choosing the right location to final setup and testing. Whether you’re a DIY beginner or a seasoned pro, you’ll have your smart security system up and running in under an hour.

Key Takeaways

• Choose the right location: Install the camera 8–10 feet high for optimal coverage and motion detection.
• Turn off power at the breaker: Safety first—always shut off electricity before working with wiring.
• Use the Ring app for setup: The app guides you through Wi-Fi connection, device pairing, and customization.
• Test motion zones and alerts: Adjust sensitivity and zones to reduce false alarms from trees or passing cars.
• Ensure strong Wi-Fi signal: A stable connection is crucial for live streaming and alerts.
• Maintain your camera regularly: Clean the lens and check connections every few months for best performance.
• Use a compatible junction box: Most Ring Floodlight Cameras require a standard 4-inch round electrical box.

How to Install Ring Floodlight Camera: A Complete Step-by-Step Guide

Welcome to your complete guide on how to install Ring Floodlight Camera! Whether you’re looking to boost your home security, deter intruders, or simply keep an eye on your driveway or backyard, the Ring Floodlight Camera is a powerful, all-in-one solution. With motion-activated LED lights, 1080p HD video, two-way audio, and real-time alerts sent to your phone, it’s one of the most popular smart security devices on the market.

In this guide, we’ll walk you through every step of the installation process—from planning your setup to final testing. You don’t need to be an electrician or tech expert to get this done. With the right tools, a little patience, and this guide, you’ll have your Ring Floodlight Camera up and running in under an hour.

We’ll cover everything: choosing the best location, turning off power safely, mounting the camera, connecting wires, setting it up via the Ring app, and troubleshooting common issues. By the end, you’ll not only have a fully functional security system but also the confidence to maintain and customize it for your needs.

Let’s get started!

What You’ll Need Before You Begin

Before you climb that ladder, make sure you have all the necessary tools and materials. Having everything ready will save you time and prevent frustration mid-installation.

Here’s a checklist of what you’ll need:

• Ring Floodlight Camera (obviously!)
• Phillips-head screwdriver – for tightening screws
• Wire strippers – to expose wire ends if needed
• Voltage tester – to confirm power is off
• Ladder – stable and tall enough to reach your installation height
• Electrical tape – for securing wire connections
• Wire nuts – usually included with the camera, but good to have extras
• Drill and drill bits – if you need to create new mounting holes
• Smartphone or tablet – with the Ring app installed
• Wi-Fi network – with a strong signal at the installation site

Pro Tip: If your existing floodlight uses low-voltage wiring (like some older halogen systems), you may need a Ring Transformer (sold separately) to ensure proper power delivery. Most modern homes use standard 120V line voltage, which the Ring Floodlight Camera is designed for.

Step 1: Choose the Right Location

The success of your Ring Floodlight Camera starts with where you install it. A poorly placed camera can miss important activity or trigger false alarms.

Here’s what to consider:

Height and Angle

Mount the camera between 8 and 10 feet above the ground. This height gives you a wide field of view while minimizing blind spots. Avoid placing it too high—above 12 feet—as it may reduce motion detection accuracy and make facial recognition difficult.

Coverage Area

Point the camera toward high-traffic areas like driveways, backyards, side gates, or front porches. Make sure it covers the space you want to monitor without being obstructed by trees, walls, or overhangs.

Avoid Direct Sunlight and Heat Sources

Don’t install the camera where it will face direct sunlight all day. Heat buildup can affect performance, and glare can wash out video quality. Similarly, avoid placing it near air conditioning units or heaters.

Wi-Fi Signal Strength

Your camera needs a strong Wi-Fi connection to stream video and send alerts. Use your phone to check signal strength at the installation spot. If it’s weak, consider installing a Wi-Fi extender or choosing a different location.

Existing Wiring

The Ring Floodlight Camera requires a standard electrical junction box (usually 4-inch round) with live wires. If you’re replacing an old floodlight, this should already be in place. If not, you may need to hire an electrician to install one.

Example: If you’re installing the camera above your garage door, make sure the junction box is centered and accessible. Point the camera slightly downward to capture people approaching the door, not just the sky.

Step 2: Turn Off the Power

Safety is non-negotiable when working with electricity. Never skip this step.

Locate Your Circuit Breaker

Go to your home’s main electrical panel and find the breaker that controls the floodlight or outdoor lighting circuit. It’s often labeled “Outdoor Lights,” “Garage,” or “Exterior.” If you’re unsure, turn off the main breaker to be safe.

Turn Off the Breaker

Switch the breaker to the “OFF” position. Use a voltage tester to double-check that power is off at the junction box. Touch the tester to the wires—if it doesn’t light up or beep, you’re good to go.

Label the Breaker (Optional but Helpful)

If you turned off the main breaker, label it so others in your household know not to turn it back on until you’re done.

Warning: Never assume power is off just because a switch is flipped. Always test with a voltage tester. If you’re uncomfortable working with electricity, hire a licensed electrician.

Step 3: Remove the Old Fixture (If Applicable)

If you’re replacing an existing floodlight, you’ll need to remove it first.

Unscrew the Mounting Bracket

Use a screwdriver to remove the screws holding the old fixture to the junction box. Carefully lower the fixture and let it hang by the wires.

Disconnect the Wires

Unscrew the wire nuts connecting the fixture’s wires to the house wires. Typically, you’ll have black (hot), white (neutral), and green or bare copper (ground). Separate them gently.

Remove the Old Fixture

Once the wires are disconnected, remove the old fixture completely. Set it aside or dispose of it properly.

Inspect the Junction Box

Make sure the junction box is secure and in good condition. If it’s loose or damaged, tighten it or replace it before installing the Ring camera.

Tip: Take a photo of the wiring before disconnecting anything. This can help if you get confused during reinstallation.

Step 4: Prepare the Ring Floodlight Camera

Now it’s time to get your new camera ready for installation.

Unbox the Camera

Open the Ring Floodlight Camera box and remove all components. You should find:

• The camera unit with integrated floodlights
• Mounting bracket
• Screws and anchors
• Wire nuts
• Instruction manual

Attach the Mounting Bracket

Hold the mounting bracket against the junction box. Align the screw holes and secure it with the provided screws. Make sure it’s tight and level—this will support the entire camera.

Connect the Wires

Match the wires from the camera to the house wires:

• Black to black (hot)
• White to white (neutral)
• Green or bare copper to ground

Twist the matching wires together and secure them with wire nuts. Wrap the connections with electrical tape for extra safety.

Tuck Wires into the Junction Box

Gently push the connected wires back into the junction box. Don’t force them—leave enough slack so the camera can be mounted without tension.

Pro Tip: If your wires are too short, use wire extenders (available at hardware stores) to make the connection easier.

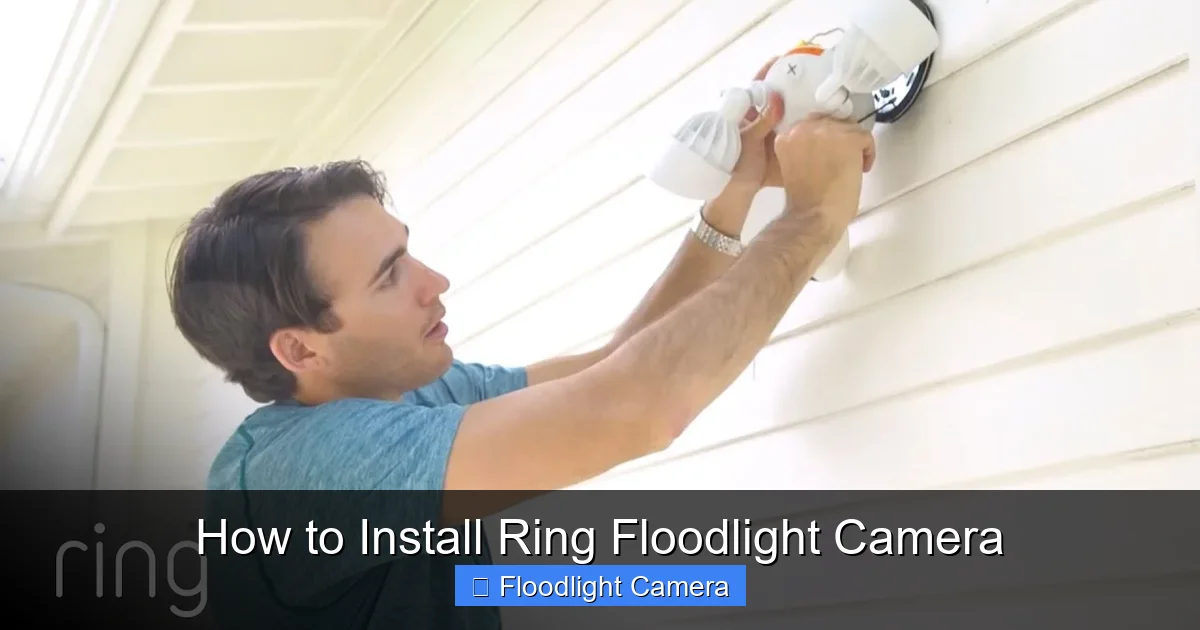

Step 5: Mount the Camera

With the wiring complete, it’s time to attach the camera.

Align the Camera with the Bracket

Hold the camera up to the mounting bracket. The bracket should slide into the slots on the back of the camera.

Secure with Screws

Use the provided screws to fasten the camera to the bracket. Tighten them firmly, but don’t over-tighten—this could crack the housing.

Adjust the Angle

Loosen the adjustment knobs on the sides of the camera to tilt and swivel it into the desired position. Aim it at your target area (e.g., driveway, porch). Once set, tighten the knobs to lock it in place.

Test the Floodlights

Turn the power back on at the breaker. The floodlights should turn on briefly (if motion is detected) or when you test them via the app. If they don’t light up, turn the power off and double-check your wiring.

Note: The camera won’t connect to Wi-Fi until you complete the app setup, but the lights should work if wired correctly.

Step 6: Set Up the Ring App

The Ring app is your control center for the camera. It’s available for free on iOS and Android.

Download and Open the App

If you don’t already have it, download the Ring app from the App Store or Google Play. Open it and log in to your Ring account. If you don’t have one, create a free account.

Tap “Set Up a Device”

On the home screen, tap the “+” icon or “Set Up a Device.” Select “Security Cameras” and then “Floodlight Cam.”

Scan the QR Code

The app will ask you to scan the QR code on the camera or its packaging. Use your phone’s camera to scan it. This links the device to your account.

Connect to Wi-Fi

Follow the prompts to connect the camera to your home Wi-Fi network. Make sure you’re within range of your router. Enter your Wi-Fi password when prompted.

Name Your Camera

Give your camera a name, like “Front Driveway” or “Backyard Floodlight.” This helps you identify it if you have multiple Ring devices.

Complete Setup

The app will finalize the connection and update the camera’s firmware if needed. This may take a few minutes.

Tip: Keep your phone close to the camera during setup to ensure a strong signal.

Step 7: Customize Settings and Test

Now that your camera is online, it’s time to fine-tune it for your needs.

Adjust Motion Zones

In the app, go to your camera’s settings and select “Motion Settings.” You can draw custom motion zones to focus on specific areas (like your walkway) and ignore others (like a busy street).

Set Motion Sensitivity

Choose how sensitive the camera is to motion. High sensitivity catches more activity but may trigger false alarms. Start with medium and adjust based on results.

Enable Smart Alerts

Turn on person detection to reduce alerts from animals or moving branches. You can also set alert schedules—for example, only receive notifications at night.

Test the Camera

Walk through your motion zones to test detection. Check the live view in the app to ensure the video is clear and the angle is correct.

Test Two-Way Audio

Tap the microphone icon in the live view and speak. You should hear your voice through the camera’s speaker. This is great for greeting visitors or scaring off intruders.

Test the Floodlights

Trigger motion to see if the floodlights turn on. You can also manually turn them on via the app.

Pro Tip: Invite family members to the app so they can also view the camera and receive alerts.

Troubleshooting Common Issues

Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.

Camera Won’t Connect to Wi-Fi

Solution: Move closer to your router during setup. Ensure your Wi-Fi network is 2.4 GHz (Ring cameras don’t support 5 GHz-only networks). Restart your router and try again.

Floodlights Don’t Turn On

Solution: Check wiring connections. Make sure the breaker is on. Test with the app’s manual light control. If still not working, the camera may be defective—contact Ring support.

Blurry or Dark Video

Solution: Clean the camera lens with a soft, dry cloth. Adjust the angle to avoid glare. Ensure the camera isn’t facing a bright light source at night.

False Motion Alerts

Solution: Adjust motion zones and sensitivity. Enable person detection. Trim tree branches or remove objects that move in the wind.

App Not Receiving Alerts

Solution: Check notification settings in the app and on your phone. Make sure “Do Not Disturb” is off. Reinstall the app if needed.

Camera Keeps Going Offline

Solution: This usually indicates a weak Wi-Fi signal. Consider a Wi-Fi extender or moving your router closer.

Need More Help? Visit Ring’s support page or contact their customer service team. They offer live chat and phone support.

Maintenance Tips for Long-Term Performance

To keep your Ring Floodlight Camera working smoothly, follow these maintenance tips:

• Clean the lens monthly: Use a microfiber cloth to remove dust, dirt, and fingerprints.
• Check wiring connections: Every few months, ensure wires are secure and not exposed.
• Update firmware: The app will notify you of updates—install them promptly for security and performance improvements.
• Trim nearby foliage: Overgrown plants can block the view or trigger false alerts.
• Test monthly: Walk through motion zones and check live view to ensure everything is working.

Conclusion

Congratulations—you’ve successfully installed your Ring Floodlight Camera! You now have a powerful, smart security system that protects your home with bright LED lights, HD video, and real-time alerts.

From choosing the perfect location to wiring, mounting, and customizing settings, this guide has walked you through every step. Remember, the key to a great installation is planning, safety, and testing. With your camera in place, you can enjoy peace of mind knowing your property is under 24/7 surveillance.

Whether you’re watching for package thieves, monitoring your kids playing outside, or just keeping an eye on your pets, your Ring Floodlight Camera is a reliable guardian. And with regular maintenance, it will serve you well for years to come.

So go ahead—step back, admire your handiwork, and enjoy the added security and convenience your new smart floodlight brings.
