This guide walks you through the complete installation of the Ring Floodlight Camera Wired Plus, from planning your setup to final testing. You’ll learn how to safely wire the device, connect it to Wi-Fi, and optimize its performance for maximum security coverage.
Key Takeaways
- Turn off power at the breaker before starting any electrical work to prevent shocks or damage.
- Choose the right location—high enough for wide coverage, near an existing junction box, and within Wi-Fi range.
- Use the included mounting bracket to securely attach the camera and ensure proper alignment.
- Connect wires correctly: match black (hot), white (neutral), and green/bare (ground) to your home’s wiring.
- Download the Ring app and follow in-app setup to connect the camera to your network and customize settings.
- Test motion zones and alerts after installation to ensure the camera detects activity accurately.
- Schedule regular maintenance like cleaning the lens and checking connections to keep your system reliable.
How to Install Ring Floodlight Camera Wired Plus
Installing the Ring Floodlight Camera Wired Plus is a smart way to boost your home security with 1080p HD video, motion-activated lighting, and two-way audio. Whether you’re replacing an old floodlight or installing a new one, this step-by-step guide will help you get it up and running safely and efficiently. You don’t need to be an electrician—just follow these clear instructions, take your time, and prioritize safety.
By the end of this guide, you’ll know exactly how to mount the camera, connect it to your home’s electrical wiring, sync it with the Ring app, and customize settings for optimal performance. We’ll also cover common pitfalls and troubleshooting tips so you can avoid frustration and enjoy peace of mind.
What You’ll Need Before Starting

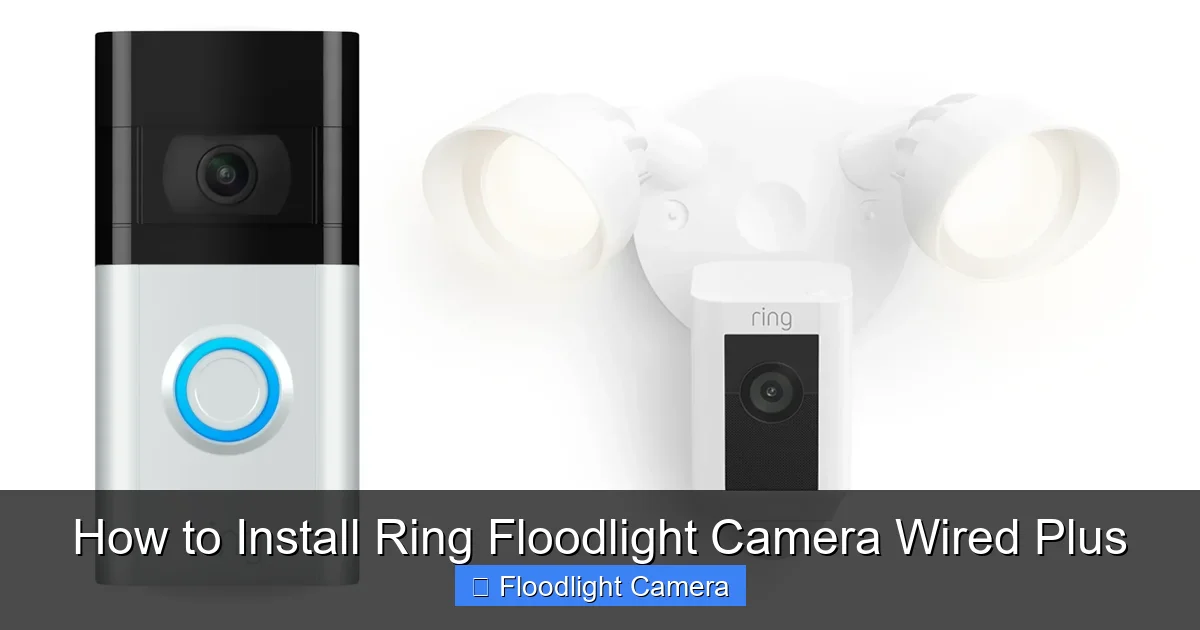

Visual guide about How to Install Ring Floodlight Camera Wired Plus
Image source: mobileimages.lowes.com
Before you begin, gather all the tools and materials to ensure a smooth installation. Having everything ready will save time and reduce the chance of mistakes.
Tools Required
- Voltage tester (non-contact)
- Screwdriver (Phillips and flathead)
- Wire strippers
- Drill (if mounting to brick or concrete)
- Ladder (stable and tall enough to reach the installation height)
- Electrical tape
- Wire nuts (usually included, but good to have extras)
Included in the Box
- Ring Floodlight Camera Wired Plus unit
- Mounting bracket
- Screws and anchors
- Wire nuts
- Jumper wire (for testing)
- Quick start guide
Optional but Helpful
- Smartphone or tablet with the Ring app installed
- Assistant to hold the camera during mounting
- Weatherproof sealant (for outdoor mounting on rough surfaces)
Step 1: Turn Off Power and Verify It’s Off
Safety is the most important part of any electrical installation. Never skip this step.
Locate Your Circuit Breaker
Go to your home’s main electrical panel and find the breaker that controls the outdoor lighting circuit where you’ll install the camera. It’s often labeled “outdoor lights,” “front porch,” or “exterior.” If unsure, turn off the main breaker to be extra safe.
Switch Off the Breaker
Flip the breaker to the “OFF” position. Use a non-contact voltage tester to double-check that power is off at the existing fixture. Touch the tester to the wires—if it beeps or lights up, power is still on. Wait and retest until it’s safe.
Leave a Note
Place a note on the breaker panel saying “DO NOT TURN ON – WORK IN PROGRESS” to prevent someone from accidentally restoring power.
Step 2: Choose the Best Location
Picking the right spot ensures your camera covers high-traffic areas and works reliably.
Height and Angle
Mount the camera 8 to 10 feet above the ground. This height gives a wide field of view while minimizing blind spots. Avoid pointing it directly at the sun or bright lights, which can cause glare.
Wi-Fi Signal Strength
Your camera needs a strong Wi-Fi connection. Use the Ring app’s “Signal Strength” tool during setup to check coverage. If the signal is weak, consider a Wi-Fi extender or moving your router.
Existing Junction Box
The Ring Floodlight Camera Wired Plus requires a standard electrical junction box with at least three wires: hot (black), neutral (white), and ground (green or bare copper). If you’re replacing an old floodlight, this should already be in place.
Avoid Obstructions
Keep the camera away from trees, bushes, or walls that could block the view or trigger false motion alerts. Aim for a clear line of sight to driveways, walkways, or entry points.
Step 3: Remove the Old Fixture (If Applicable)
If you’re replacing an existing floodlight, carefully remove it first.
Unscrew the Mounting Plate
Use a screwdriver to remove the screws holding the old light to the junction box. Gently pull the fixture away to expose the wires.
Disconnect the Wires
Unscrew the wire nuts connecting the fixture’s wires to the house wiring. Separate the black, white, and ground wires. Cap each house wire with a wire nut to prevent short circuits.
Remove the Old Bracket
If the old mounting bracket isn’t compatible, remove it completely. Clean the area and inspect the junction box for damage or corrosion.
Step 4: Install the Ring Mounting Bracket
The mounting bracket ensures a secure and weatherproof connection.
Position the Bracket
Hold the Ring mounting bracket against the junction box. Align the screw holes and mark them if needed. The bracket should sit flush against the wall.
Secure with Screws
Use the included screws to attach the bracket to the junction box. If mounting to wood, use the standard screws. For brick or concrete, drill pilot holes and use wall anchors.
Check for Level
Use a level to make sure the bracket is straight. A crooked mount can affect the camera’s view and lighting angle.
Step 5: Connect the Wires
Now it’s time to wire the camera to your home’s electrical system.
Prepare the Wires
Strip about ½ inch of insulation from the ends of the house wires (black, white, and ground) using wire strippers. Do the same for the camera’s wires if they aren’t pre-stripped.
Match the Wires
Connect the wires by color:
- Black to Black: Connect the camera’s black wire to the house’s hot (black) wire.
- White to White: Connect the camera’s white wire to the house’s neutral (white) wire.
- Green/Bare to Ground: Connect the camera’s green or bare wire to the house’s ground wire.
Twist and Secure with Wire Nuts
Twist the matching wires together clockwise, then screw on a wire nut. Give each connection a gentle tug to ensure it’s tight. Wrap electrical tape around the wire nuts for extra security.
Tuck Wires Neatly
Carefully fold the connected wires into the junction box. Avoid pinching or bending them sharply.
Step 6: Attach the Camera to the Bracket
With the wiring complete, it’s time to mount the camera.
Align the Camera
Hold the Ring Floodlight Camera Wired Plus against the mounting bracket. Slide it into place so the screw holes align.
Secure with Screws
Use the provided screws to fasten the camera to the bracket. Tighten them firmly but don’t over-tighten, which could crack the housing.
Adjust the Angle
Tilt the camera up or down to aim at your desired area. The floodlights should cover the zone you want illuminated. Lock the angle by tightening the adjustment knobs.
Step 7: Restore Power and Test
Now that everything is connected, it’s time to power up and test the system.
Turn the Breaker Back On
Return to the electrical panel and flip the breaker to “ON.” The camera’s lights should turn on briefly as it powers up.
Check for Functionality
Look for the camera’s status light. A solid blue light means it’s connecting to Wi-Fi. If the lights don’t turn on, double-check your wiring and breaker.
Use the Jumper Wire (If Needed)
If the camera doesn’t power on, use the included jumper wire to temporarily connect the black and white wires. This bypasses the camera and tests if power is reaching the junction box.
Step 8: Set Up the Ring App
The Ring app is essential for configuring your camera and receiving alerts.
Download the App
Install the Ring app on your smartphone or tablet from the App Store or Google Play.
Create or Log In to Your Account
If you’re new to Ring, create an account with your email and a strong password. Existing users can log in.
Add a New Device
Tap the “+” icon in the app and select “Security Cameras.” Choose “Floodlight Cam Wired Plus” from the list.
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of the camera or in the app. This links the device to your account.
Connect to Wi-Fi
Follow the on-screen prompts to connect the camera to your 2.4 GHz Wi-Fi network. (Note: The Wired Plus does not support 5 GHz.) Enter your Wi-Fi password when prompted.
Name Your Camera
Give your camera a descriptive name like “Front Porch” or “Backyard” so you can identify it easily.
Step 9: Customize Settings and Features
Once connected, tailor the camera to your needs.
Adjust Motion Zones
In the app, go to “Device Settings” > “Motion Settings” > “Motion Zones.” Draw zones on the live view to focus on important areas like your driveway or front door. Avoid areas with frequent false triggers, like busy streets.
Set Motion Sensitivity
Choose from Low, Medium, or High sensitivity. Start with Medium and adjust based on how often you receive alerts.
Enable Smart Alerts
Turn on person detection to reduce false alarms from animals or moving branches. You’ll only get alerts when a person is detected.
Configure Light Settings
Set the floodlights to turn on when motion is detected, stay on for a set time (e.g., 30 seconds), and adjust brightness. You can also schedule when the lights are active.
Enable Two-Way Talk
Test the microphone and speaker by speaking through the app. This lets you communicate with visitors or deter intruders.
Set Up Chime (Optional)
If you have a Ring Chime or Chime Pro, link it to your camera so you hear alerts inside your home.
Step 10: Final Checks and Optimization
Before considering the job done, run a few final tests.
Test Motion Detection
Walk through your motion zones to ensure the camera detects movement and sends alerts. Check the app’s event history to confirm recordings.
Check Video Quality
Review a recorded clip to ensure the image is clear, especially at night. Adjust the camera angle if needed.
Verify Night Vision and Lighting
Turn off nearby lights and test the infrared night vision. The floodlights should activate when motion is detected in the dark.
Update Firmware
The Ring app will notify you if a firmware update is available. Install it to ensure your camera has the latest features and security patches.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common ones.
Camera Won’t Power On
- Double-check that the breaker is on and the voltage tester confirms power at the junction box.
- Verify all wire connections are tight and correct.
- Ensure the ground wire is properly connected—this is critical for safety and function.
Poor Wi-Fi Connection
- Move your router closer or install a Wi-Fi extender.
- Reduce interference from microwaves, cordless phones, or thick walls.
- Restart your router and the camera.
False Motion Alerts
- Adjust motion zones to exclude trees, flags, or busy roads.
- Lower motion sensitivity or enable person detection.
- Clean the camera lens—dirt or spiderwebs can trigger false alerts.
Floodlights Not Turning On
- Check the light settings in the app—ensure they’re enabled and set to activate on motion.
- Verify the bulbs are properly seated (if replaceable).
- Test with manual activation in the app to rule out sensor issues.
App Not Connecting to Camera
- Make sure your phone is on the same Wi-Fi network as the camera.
- Restart the camera by turning the breaker off and on.
- Re-add the device in the app if necessary.
Maintenance Tips for Long-Term Performance
To keep your Ring Floodlight Camera Wired Plus working reliably, follow these maintenance steps.
Clean the Lens Monthly
Use a soft, dry cloth to wipe the camera lens. For stubborn dirt, lightly dampen the cloth with water—never use harsh chemicals.
Check Connections Seasonally
Inspect wiring and mounting hardware every few months. Tighten loose screws and ensure wires are secure.
Update the App and Firmware
Enable automatic updates in the Ring app to stay current with new features and security improvements.
Trim Nearby Vegetation
Keep bushes and trees trimmed to prevent obstructions and reduce false motion triggers.
Test Monthly
Walk through your property to test motion detection and lighting. Review a few recordings to ensure quality.
Conclusion
Installing the Ring Floodlight Camera Wired Plus is a straightforward project that pays off in enhanced security and peace of mind. By following this guide, you’ve learned how to safely wire the camera, mount it correctly, connect it to your Wi-Fi, and customize its settings for your home’s unique needs.
Remember, the key to success is preparation and patience. Turn off the power, choose a smart location, and take your time with each step. Once installed, your camera will provide 24/7 monitoring, bright lighting, and instant alerts—keeping your property safe day and night.
With regular maintenance and smart settings, your Ring Floodlight Camera Wired Plus will serve you well for years to come. Now go enjoy the confidence that comes with knowing your home is protected.
