This guide walks you through how to install Ring Floodlight with Camera safely and correctly. From gathering tools to final testing, you’ll get clear, beginner-friendly instructions to enhance your home security.
Key Takeaways
- Turn off power at the breaker before starting any electrical work to prevent shocks or damage.
- Use the right tools like a voltage tester, screwdriver, and drill to ensure a smooth installation.
- Mount the floodlight camera high enough (7–10 feet) for optimal coverage and to avoid tampering.
- Connect to Wi-Fi during setup using the Ring app for live video, alerts, and two-way talk.
- Adjust motion zones and sensitivity in the app to reduce false alarms from passing cars or animals.
- Test the lights and camera after installation to confirm everything works as expected.
- Schedule regular maintenance like cleaning the lens and checking connections every few months.
Introduction: Why Install a Ring Floodlight Camera?
If you’re looking to boost your home security, a Ring Floodlight Camera is one of the smartest upgrades you can make. Combining bright LED floodlights with a high-definition security camera, motion detection, and two-way audio, this device acts as both a deterrent and a monitor. Whether you’re trying to scare off intruders or just keep an eye on your front yard, driveway, or backyard, the Ring Floodlight Camera delivers peace of mind 24/7.
In this complete guide, you’ll learn how to install Ring Floodlight with Camera from start to finish. We’ll cover everything from planning your installation spot to connecting the device to your Wi-Fi and customizing settings in the Ring app. No prior electrical experience? No problem. With the right tools and careful steps, even beginners can complete this project in under an hour.
By the end of this guide, you’ll have a fully functional smart security system that integrates seamlessly with your smartphone. You’ll receive real-time alerts, view live footage, and even speak to visitors remotely. Let’s get started!
What You’ll Need Before You Begin
Before you grab your toolbox, make sure you have all the necessary tools and materials. Having everything ready will save time and prevent mid-installation trips to the hardware store.

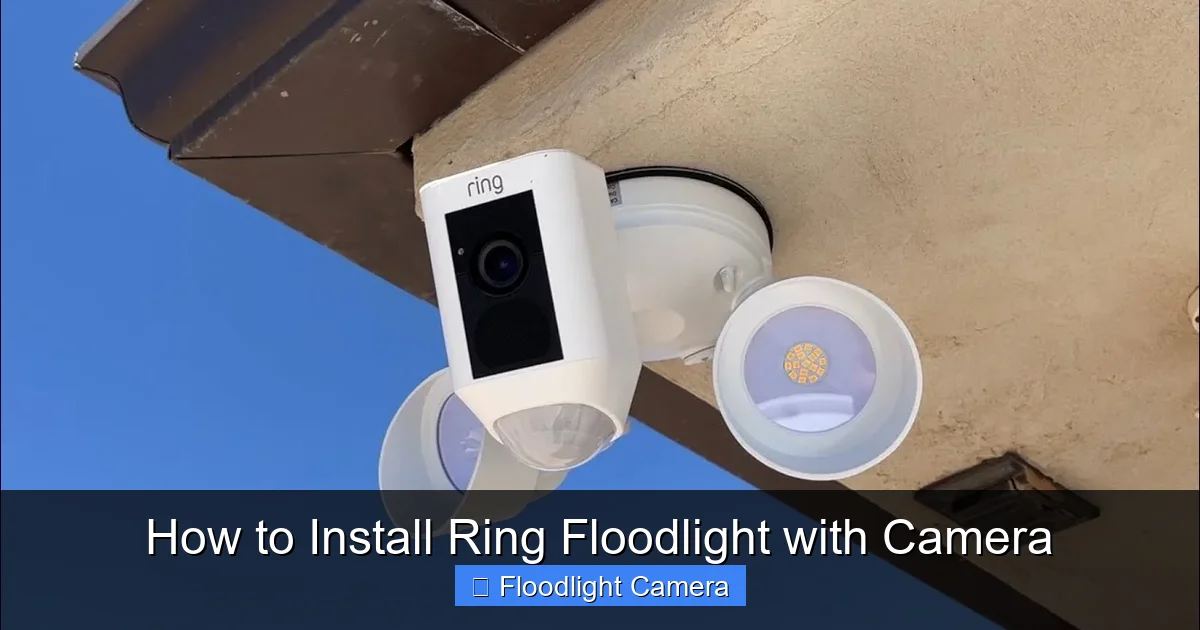

Visual guide about How to Install Ring Floodlight with Camera
Image source: i.ytimg.com
Tools Required
- Voltage tester – To confirm the power is off before working on wires.
- Screwdriver set – Both flathead and Phillips head for removing old fixtures and securing the new one.
- Drill and drill bits – For mounting the bracket if needed.
- Wire strippers – To prepare the electrical wires for connection.
- Ladder – A sturdy step ladder or extension ladder to safely reach the installation height.
- Electrical tape – To insulate wire connections.
- Wire nuts – Usually included with the Ring Floodlight Camera, but good to have extras.
Materials and Equipment
- Ring Floodlight Camera – Make sure you have the correct model (Wired or Wire-Free).
- Mounting bracket – Included in the box.
- Screws and anchors – Also included; use wall anchors if mounting on brick or concrete.
- Smartphone or tablet – With the Ring app installed (available on iOS and Android).
- Wi-Fi network – 2.4 GHz or 5 GHz (5 GHz recommended for better performance).
Optional but Helpful
- Helper – Having someone hold the camera while you wire it can make the process easier.
- Flashlight or headlamp – For better visibility, especially if installing in the evening.
- Level – To ensure the camera is mounted straight.
Step 1: Choose the Right Location
Where you install your Ring Floodlight Camera makes a big difference in its effectiveness. A poorly placed camera might miss important activity or get false alerts from passing cars or trees.
Ideal Placement Tips
- Height: Mount the camera 7 to 10 feet above the ground. This gives a wide field of view and makes it harder for someone to tamper with it.
- Coverage: Point the camera toward high-traffic areas like driveways, front doors, or backyards. Avoid pointing it directly at the sun or bright lights, which can cause glare.
- Power Access: Since the Ring Floodlight Camera is wired, you’ll need to install it near an existing electrical box or junction box. If you don’t have one, you may need to hire an electrician to add one.
- Wi-Fi Signal: Test your Wi-Fi strength at the installation spot using your phone. Weak signals can cause lag or disconnections. If needed, consider a Wi-Fi extender.
Avoid These Common Mistakes
- Installing too low – Makes the camera easy to reach and disable.
- Pointing at reflective surfaces – Windows or shiny cars can cause glare in recordings.
- Blocking the lens – Avoid mounting near overhangs, plants, or decorations that might obstruct the view.
- Ignoring privacy laws – Don’t point the camera at neighbors’ properties or public sidewalks unless allowed by local regulations.
Step 2: Turn Off the Power
Safety first! Working with electricity can be dangerous if you don’t take the proper precautions. Never skip this step.
How to Safely Shut Off Power
- Go to your home’s main electrical panel (breaker box).
- Locate the circuit breaker that controls the outdoor light or outlet where you’ll install the floodlight.
- Flip the breaker to the “OFF” position. If you’re unsure which breaker controls the light, turn off the main breaker to be safe.
- Use a voltage tester to double-check that the power is off. Touch the tester to the wires inside the electrical box. If it doesn’t light up or beep, the power is off.
Important Reminder
Never assume the power is off just because the light is out. Always test the wires. If you’re not comfortable working with electricity, consider hiring a licensed electrician.
Step 3: Remove the Old Light Fixture
If you’re replacing an existing outdoor light, you’ll need to remove it first. This step ensures a clean, secure base for your new Ring Floodlight Camera.
Step-by-Step Removal
- Use a screwdriver to remove the screws holding the old fixture to the wall or electrical box.
- Gently pull the fixture away from the wall to expose the wiring.
- Unscrew the wire nuts connecting the fixture wires to the house wires (usually black to black, white to white, and green or bare copper to ground).
- Carefully disconnect the wires and set the old fixture aside.
- Inspect the electrical box to make sure it’s secure and in good condition. If it’s loose or damaged, tighten it or replace it before proceeding.
Tip
Take a photo of the wiring before disconnecting anything. This can help you remember how to reconnect the wires later.
Step 4: Install the Mounting Bracket
The Ring Floodlight Camera comes with a sturdy mounting bracket that attaches to your wall or electrical box. This bracket holds the camera securely in place.
How to Attach the Bracket
- Hold the mounting bracket against the wall or electrical box in the desired position.
- Use a pencil to mark the screw holes.
- If mounting on wood, you can screw directly into the surface. For brick, stucco, or concrete, use a drill to create pilot holes and insert wall anchors.
- Secure the bracket with the provided screws using a screwdriver or drill.
- Double-check that the bracket is level and tightly fastened.
Pro Tip
If your electrical box has pre-threaded holes, you can attach the bracket directly to it using the included screws. This is often the most secure method.
Step 5: Connect the Wires
Now it’s time to connect the Ring Floodlight Camera to your home’s electrical system. This step requires careful handling of wires.
Wiring Instructions
- Feed the wires from the back of the Ring Floodlight Camera through the center hole in the mounting bracket.
- Match the wires by color:
- Black wire (hot) → Connect to the black (hot) wire from your house.
- White wire (neutral) → Connect to the white (neutral) wire from your house.
- Green or bare copper wire (ground) → Connect to the ground wire (usually green or bare copper) from your house.
- Twist the matching wires together and secure them with wire nuts. Make sure the connections are tight and no bare wire is exposed.
- Wrap each connection with electrical tape for extra insulation.
- Tuck the wires neatly into the electrical box to avoid pinching.
Safety Check
Before moving on, gently tug on each wire to ensure they’re secure. Loose connections can cause power issues or hazards.
Step 6: Attach the Floodlight Camera
With the wires connected and the bracket in place, it’s time to mount the camera itself.
Mounting the Camera
- Align the camera with the mounting bracket.
- Slide the camera onto the bracket until it clicks into place.
- Use the included security screw to lock the camera to the bracket. This prevents theft or tampering.
- Adjust the angle of the camera and floodlights using the adjustable arms. Tighten the knobs to lock them in place.
Adjustment Tips
- Tilt the camera slightly downward for the best view of the ground.
- Aim the floodlights to cover the area you want illuminated (e.g., driveway or walkway).
- Use the level to ensure the camera isn’t crooked.
Step 7: Restore Power and Test
Once everything is securely mounted and wired, it’s time to turn the power back on and test the system.
Powering Up
- Go back to the breaker box and flip the circuit breaker to the “ON” position.
- Wait a few seconds for the camera to power up. You should see lights on the device.
- If the lights don’t turn on, double-check your wiring and breaker.
Initial Test
- Check that the floodlights turn on when motion is detected.
- Listen for any unusual sounds or sparks (if you hear or see anything odd, turn off the power immediately).
- Make sure the camera is receiving power and the indicator light is on.
Step 8: Set Up the Ring App
The Ring app is your control center for the floodlight camera. It lets you view live video, receive alerts, and customize settings.
Download and Install the App
- Download the Ring app from the Apple App Store or Google Play Store.
- Create a Ring account or log in if you already have one.
- Tap the “+” icon and select “Set up a device.”
- Choose “Security Cameras” and then “Floodlight Cam.”
Connect to Wi-Fi
- Follow the on-screen instructions to put the camera in setup mode (usually by pressing a button on the device).
- Select your Wi-Fi network and enter the password.
- Wait for the camera to connect. This may take a minute or two.
- Once connected, the app will confirm successful setup.
Name Your Device
Give your floodlight camera a name like “Front Yard” or “Driveway Cam” so you can easily identify it in the app.
Step 9: Customize Settings in the App
Now that your camera is online, it’s time to fine-tune it for your needs. The Ring app offers many customization options.
Adjust Motion Zones
- Go to the camera’s settings and select “Motion Settings.”
- Draw motion zones on the camera’s view to focus on important areas (e.g., your front door).
- Exclude areas like busy streets or neighbor’s yards to reduce false alerts.
Set Motion Sensitivity
- Choose between low, medium, or high sensitivity.
- Start with medium and adjust based on how often you get alerts.
- If you have pets, consider lowering sensitivity to avoid alerts from small animals.
Enable Smart Alerts
- Turn on “Person Detection” to only receive alerts when a person is detected.
- Set up “Linked Devices” to trigger other Ring products (like doorbells or alarms) when motion is detected.
Test Two-Way Talk
- Tap the microphone icon in the app and speak.
- Ask someone to stand near the camera and confirm they can hear you.
- Adjust the volume in the app if needed.
Step 10: Final Checks and Maintenance
Your Ring Floodlight Camera is now installed and active, but a few final checks will ensure long-term performance.
Final Testing
- Walk through the motion zones to trigger alerts and confirm the camera records properly.
- Check that the floodlights turn on and off as expected.
- Review a test recording in the app to ensure video quality is clear.
Ongoing Maintenance
- Clean the lens every 1–2 months with a soft, dry cloth to remove dust and debris.
- Check connections periodically to ensure wires haven’t loosened.
- Update firmware through the app when prompted to keep the camera secure and functional.
- Trim nearby plants that might block the view or trigger false motion alerts.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.
Camera Won’t Power On
- Check that the breaker is on and the voltage tester confirms power.
- Inspect wire connections for looseness or incorrect pairing.
- Ensure the camera is securely mounted and the security screw is tightened.
Poor Wi-Fi Connection
- Move your router closer or use a Wi-Fi extender.
- Switch to a 5 GHz network if available.
- Restart the camera and router.
False Motion Alerts
- Adjust motion zones to exclude moving trees or passing cars.
- Lower motion sensitivity in the app.
- Enable “People Only” alerts to filter out animals and vehicles.
Floodlights Not Turning On
- Check that the lights are enabled in the app under “Light Settings.”
- Ensure the ambient light sensor isn’t blocked (the lights won’t turn on in daylight).
- Test the lights manually using the app’s “Light On” button.
Conclusion: Enjoy Your Enhanced Home Security
Congratulations! You’ve successfully learned how to install Ring Floodlight with Camera and set up a powerful home security system. From choosing the right location to connecting wires and customizing app settings, you’ve completed every step with confidence.
Your Ring Floodlight Camera now provides 24/7 monitoring, bright illumination, and real-time alerts—all from your smartphone. Whether you’re at home or away, you can keep an eye on your property and deter potential threats.
Remember to perform regular maintenance and update your settings as needed. With proper care, your Ring Floodlight Camera will serve you well for years to come. Stay safe, stay smart, and enjoy the peace of mind that comes with a secure home.
