How to Install Ring Wired Floodlight Camera

This guide walks you through how to install Ring Wired Floodlight Camera safely and efficiently. From turning off power to final app setup, we cover every detail for a seamless installation.

Key Takeaways

• Turn off power at the breaker: Always shut off electricity before starting installation to prevent shocks or damage.
• Use the right tools: A voltage tester, screwdriver, wire stripper, and drill are essential for a smooth setup.
• Follow wiring carefully: Match existing wires (black to black, white to white, green/bare to ground) for proper function.
• Mount securely: Ensure the camera is firmly attached to prevent sagging or misalignment over time.
• Test before finalizing: Power on and check camera feed in the Ring app before tightening all screws.
• Adjust motion and light settings: Customize detection zones and brightness for optimal performance.
• Update firmware regularly: Keep your camera secure and functional with the latest software updates.

How to Install Ring Wired Floodlight Camera: A Complete Step-by-Step Guide

Installing a Ring Wired Floodlight Camera is one of the smartest upgrades you can make to your home security system. This powerful device combines bright LED floodlights with a high-definition security camera, motion detection, two-way audio, and real-time alerts—all powered by your existing electrical wiring. Whether you’re replacing an old floodlight or installing a new one, this guide will walk you through the entire process safely and efficiently.

In this comprehensive how-to guide, you’ll learn how to install Ring Wired Floodlight Camera from start to finish. We’ll cover everything from gathering the right tools and turning off power, to mounting the unit, connecting wires, configuring the app, and troubleshooting common issues. By the end, you’ll have a fully functional, professionally installed security system that keeps your property safe day and night.

No prior electrical experience? No problem. We’ve broken down each step with clear instructions, helpful tips, and safety reminders. Let’s get started!

What You’ll Need Before You Begin

Before you touch a single wire, make sure you have all the necessary tools and materials. Rushing into installation without preparation can lead to mistakes, delays, or even safety hazards.

Here’s a checklist of what you’ll need:

• Ring Wired Floodlight Camera kit: Includes the camera unit, mounting bracket, wire nuts, screws, and instruction manual.
• Screwdriver (Phillips and flathead): For removing old fixtures and securing the new mount.
• Voltage tester: Essential for confirming the power is off before working.
• Wire stripper: To expose fresh wire ends if needed.
• Drill and drill bits: For mounting the bracket if no existing fixture is present.
• Ladder: A stable, non-conductive ladder to safely reach the installation height.
• Electrical tape: For securing wire connections.
• Smartphone or tablet: With the Ring app installed and connected to Wi-Fi.
• Assistant (optional but helpful): Someone to hold the camera while you wire it.

Pro Tip: If you’re replacing an existing floodlight, check that the wiring is compatible. Most standard outdoor fixtures use 120V AC, which the Ring camera supports. If you’re unsure, consult an electrician.

Step 1: Turn Off the Power

Safety is the most important part of any electrical project. Never skip this step.

Locate Your Circuit Breaker

Go to your home’s main electrical panel (usually in the garage, basement, or utility closet). Look for the breaker that controls the outdoor lighting circuit. It may be labeled “Outdoor Lights,” “Porch,” or “Floodlights.” If not clearly marked, you may need to test each breaker by turning them off one at a time and checking if the existing light turns off.

Switch Off the Breaker

Once you’ve identified the correct breaker, flip it to the “OFF” position. For extra safety, place a piece of tape over it with a note like “DO NOT TURN ON – WORK IN PROGRESS.”

Test the Power

Use a non-contact voltage tester to confirm the power is off. Touch the tester to the wires inside the existing fixture. If the tester beeps or lights up, the power is still on—double-check the breaker. Only proceed when the tester shows no voltage.

Important: Never assume the power is off just because the light is out. Always test!

Step 2: Remove the Old Fixture (If Applicable)

If you’re replacing an existing floodlight, you’ll need to remove it carefully.

Unscrew the Mounting Screws

Use a screwdriver to remove the screws holding the old fixture to the wall or junction box. Have someone assist you if the fixture is heavy.

Disconnect the Wires

Gently pull the fixture away from the wall to expose the wiring. You’ll typically see three wires: black (hot), white (neutral), and green or bare copper (ground). Unscrew the wire nuts and separate the wires.

Remove the Old Mounting Bracket

If the old bracket isn’t compatible with the Ring camera, remove it using a screwdriver or drill. Clean the area and inspect the junction box to ensure it’s secure and in good condition.

Pro Tip: Take a photo of the wiring before disconnecting. This can help if you get confused during reinstallation.

Step 3: Prepare the Ring Floodlight Camera

Now it’s time to get your new Ring camera ready for installation.

Unbox and Inspect

Open the Ring Wired Floodlight Camera box and check that all components are present:

• Camera unit with integrated floodlights
• Mounting bracket
• Wire nuts (usually yellow or red)
• Screws and anchors
• Instruction manual

Attach the Mounting Bracket

The Ring camera comes with a universal mounting bracket. Hold it against the wall where you plan to install the camera. Use a level to ensure it’s straight, then mark the screw holes with a pencil.

If you’re installing on wood or vinyl siding, you can screw directly into the surface. For brick, stucco, or concrete, use a drill to create pilot holes and insert wall anchors.

Secure the bracket with the provided screws. Make sure it’s tight and doesn’t wobble.

Prepare the Wires

The Ring camera has three wires:

• Black (hot)
• White (neutral)
• Green (ground)

If the wires are too short or damaged, use a wire stripper to remove about ½ inch of insulation from the ends. Twist the exposed copper strands to keep them neat.

Pro Tip: Label the wires with tape (e.g., “B” for black, “W” for white) to avoid confusion later.

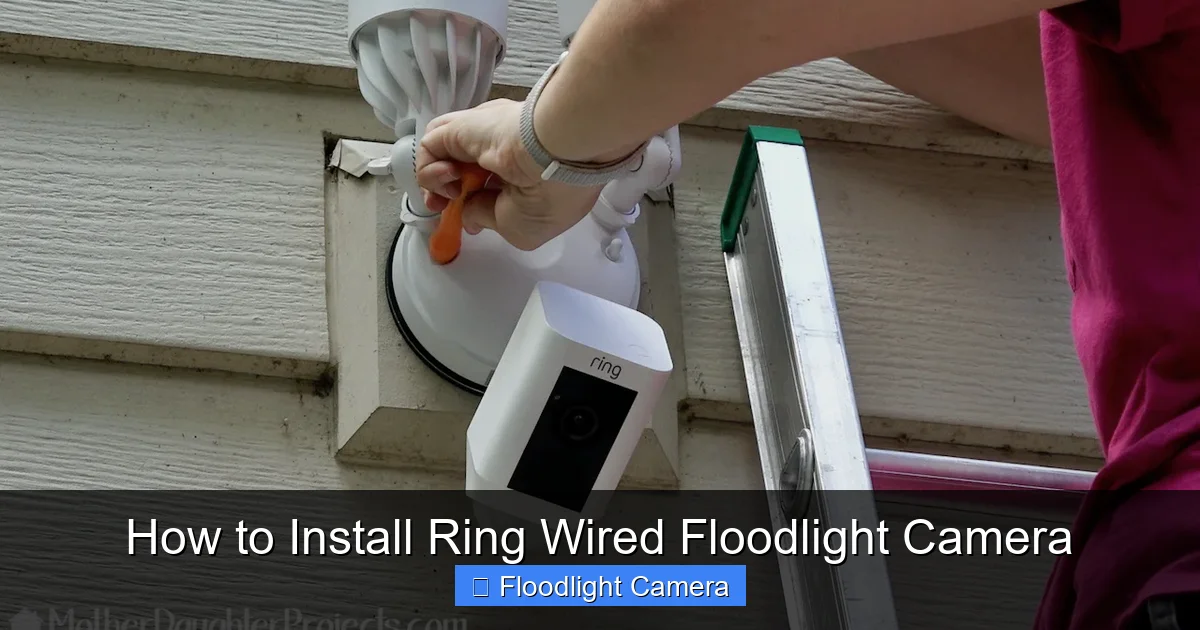

Step 4: Connect the Wires

This is the most critical part of the installation. Proper wiring ensures your camera and lights work correctly and safely.

Match the Wires

Connect the wires from the Ring camera to the corresponding wires in your wall:

• Black to black: Connect the camera’s black wire to the hot (black) wire from the wall.
• White to white: Connect the camera’s white wire to the neutral (white) wire.
• Green to ground: Connect the camera’s green wire to the ground wire (green or bare copper).

Secure with Wire Nuts

Twist the matching wires together clockwise, then screw on a wire nut. Give each connection a gentle tug to ensure it’s secure. Wrap electrical tape around the base of each wire nut for added protection.

Tuck Wires into the Junction Box

Carefully push the connected wires back into the electrical box. Avoid pinching or bending them sharply.

Warning: Do not connect wires while the power is on. Always double-check that the breaker is off.

Step 5: Mount the Camera

With the wires connected, it’s time to attach the camera to the bracket.

Align the Camera

Hold the Ring camera up to the mounting bracket. The camera should slide or snap into place, depending on the model. Make sure it’s level and facing the desired direction.

Secure with Screws

Use the provided screws to fasten the camera to the bracket. Tighten them firmly, but don’t over-tighten, as this can crack the housing.

Adjust the Angle

Most Ring floodlight cameras allow you to tilt and swivel the camera and lights. Position the camera to cover your driveway, yard, or entryway. Aim the floodlights to illuminate key areas without blinding neighbors.

Pro Tip: Test the angle before fully tightening the screws. It’s easier to adjust now than after everything is secured.

Step 6: Restore Power and Test

Now that everything is connected and mounted, it’s time to power up.

Turn the Breaker Back On

Return to the electrical panel and flip the breaker to the “ON” position. The floodlights should turn on briefly, and the camera should power up.

Check for Functionality

Listen for a chime or see a light on the camera indicating it’s receiving power. The floodlights may stay on for a few seconds as the system initializes.

Open the Ring App

On your smartphone, open the Ring app. If you haven’t set up the camera yet, follow the on-screen prompts to add a new device. Select “Floodlight Cam Wired” and scan the QR code on the camera or enter the serial number manually.

Complete the Setup

The app will guide you through connecting the camera to your Wi-Fi network, naming the device, and setting up motion zones. Make sure your phone is connected to the same Wi-Fi network you want the camera to use.

Pro Tip: Use a strong Wi-Fi signal. If your outdoor area has weak coverage, consider installing a Wi-Fi extender.

Step 7: Customize Settings

Once the camera is online, take time to personalize its features for maximum effectiveness.

Adjust Motion Zones

In the Ring app, go to Device Settings > Motion Settings > Motion Zones. Draw zones where you want the camera to detect motion (e.g., driveway, walkway). Avoid areas like busy streets or neighbor’s yards to reduce false alerts.

Set Light and Camera Schedules

You can program the floodlights to turn on at sunset and off at sunrise, or set custom schedules. Similarly, adjust the camera’s recording sensitivity and alert frequency.

Enable Two-Way Talk

Test the two-way audio feature by speaking through the app. This lets you communicate with visitors or deter intruders remotely.

Review Recordings

Check the Event History in the app to see test recordings. Make sure the video quality is clear and the field of view covers the intended area.

Pro Tip: Enable “Snapshot Capture” to take still images between recordings, giving you more frequent updates.

Troubleshooting Common Issues

Even with careful installation, you might encounter a few hiccups. Here’s how to fix the most common problems.

Camera Won’t Power On

• Double-check that the breaker is on.
• Use a voltage tester to confirm power at the wires.
• Ensure all wire connections are tight and secure.
• Try resetting the camera by holding the setup button for 20 seconds.

Poor Wi-Fi Connection

• Move your router closer or install a Wi-Fi extender.
• Reduce interference from other devices.
• Reconnect the camera to Wi-Fi in the app.

Floodlights Not Working

• Check if the lights are set to “Always On” or “Motion Activated” in the app.
• Ensure the wiring connections are correct.
• Test the circuit with another light fixture to rule out electrical issues.

False Motion Alerts

• Adjust motion zones to exclude trees, shadows, or passing cars.
• Lower the motion sensitivity in the app.
• Clean the camera lens to prevent glare or debris triggers.

App Not Connecting

• Restart your phone and the camera.
• Ensure the app is updated to the latest version.
• Remove and re-add the device in the app.

Maintenance and Long-Term Care

To keep your Ring Wired Floodlight Camera performing at its best, follow these maintenance tips:

• Clean the lens monthly: Use a soft, dry cloth to wipe away dirt, dust, or spiderwebs.
• Check wiring annually: Inspect connections for corrosion or looseness, especially after storms.
• Update firmware: The Ring app will notify you of updates. Install them promptly for security and feature improvements.
• Test lights and camera: Periodically verify that both the camera and floodlights are functioning.
• Trim nearby foliage: Overgrown plants can block the camera’s view or trigger false alerts.

Conclusion

Installing a Ring Wired Floodlight Camera is a smart, cost-effective way to enhance your home security. With the right tools, careful wiring, and attention to detail, you can complete the installation in under an hour. This guide has walked you through every step—from turning off the power and mounting the unit, to connecting wires, setting up the app, and troubleshooting issues.

By following these instructions, you’ve not only installed a powerful security device but also gained valuable DIY skills. Your home is now better protected with 1080p HD video, bright LED floodlights, motion alerts, and two-way communication—all powered by your existing electrical system.

Remember to customize your settings, maintain the camera regularly, and keep the firmware updated. With proper care, your Ring Wired Floodlight Camera will provide reliable security for years to come.

Stay safe, stay secure, and enjoy the peace of mind that comes with a well-protected home.
