This guide walks you through how to install the Ring Floodlight Camera safely and correctly, from choosing the right location to final app setup. Follow our detailed steps to enhance your home security with bright lighting and smart monitoring.
Key Takeaways
- Choose the right location: Install the camera 8–10 feet high for optimal coverage and minimal blind spots.
- Turn off power at the breaker: Always shut off electricity before wiring to prevent shocks or damage.
- Use the Ring app for setup: The app guides you through Wi-Fi connection, motion zones, and device pairing.
- Test lights and camera after install: Ensure both the floodlights and video feed work before finishing.
- Adjust motion sensitivity: Reduce false alerts by customizing motion zones and sensitivity in the app.
- Secure all connections: Tighten wires and use wire nuts to prevent loose connections or short circuits.
- Maintain regularly: Clean the lens and check for firmware updates to keep your camera performing well.
How to Install the Ring Floodlight Camera: A Complete Step-by-Step Guide
Installing the Ring Floodlight Camera is one of the smartest upgrades you can make to your home security system. This all-in-one device combines bright LED floodlights with a high-definition security camera, motion detection, two-way audio, and real-time alerts—all controllable from your smartphone. Whether you’re replacing an old outdoor light or adding security to a dark corner of your property, this guide will walk you through how to install the Ring Floodlight Camera safely, efficiently, and correctly.
In this comprehensive how-to guide, you’ll learn everything from selecting the perfect mounting spot to connecting the camera to your Wi-Fi network and customizing settings in the Ring app. We’ll cover essential tools, wiring tips, safety precautions, and troubleshooting advice to ensure your installation goes smoothly—even if you’re not an electrician. By the end, you’ll have a fully functional, weather-resistant security system that helps deter intruders and gives you peace of mind.
What You’ll Need Before You Start
Before you begin installing your Ring Floodlight Camera, it’s important to gather all the necessary tools and materials. Having everything ready will save time and reduce frustration during the installation process.
Tools and Materials Checklist
- Ring Floodlight Camera (model: Ring Floodlight Cam or Ring Floodlight Cam Wired Plus)
- Screwdriver (Phillips and flathead)
- Wire strippers
- Voltage tester (non-contact)
- Ladder (stable and tall enough to reach the installation height)
- Electrical tape
- Wire nuts (usually included with the camera)
- Drill and drill bits (if mounting to brick, concrete, or hard surfaces)
- Masonry anchors (if needed)
- Smartphone or tablet with the Ring app installed
- Wi-Fi network with strong signal at the installation site
Safety First: Turn Off the Power
Before touching any electrical wires, always turn off the power at the circuit breaker. Use a voltage tester to confirm that the wires are not live. Working on live circuits can result in serious injury or death. If you’re unsure about handling electrical wiring, consider hiring a licensed electrician.
Step 1: Choose the Right Location
The success of your Ring Floodlight Camera starts with choosing the best location. A poorly placed camera can miss important activity or trigger too many false alarms.
Ideal Mounting Height
Mount the camera 8 to 10 feet above the ground. This height provides a wide field of view while minimizing the chance of tampering. It also helps the motion sensors detect people and vehicles effectively.
Best Areas to Install
- Front or back entrances: Monitor who comes and goes.
- Driveways: Capture vehicles and visitors.
- Side yards or alleys: Cover blind spots around your home.
- Garage or shed entrances: Protect storage areas.
Avoid These Locations
- Directly facing a busy street (causes false motion alerts)
- In direct sunlight (can cause glare on the camera lens)
- Near sprinklers or water sources (risk of water damage)
- Inside a covered porch with poor Wi-Fi signal
Check Wi-Fi Signal Strength
Use your smartphone to check the Wi-Fi signal at the installation site. The Ring app includes a signal strength meter during setup. A weak signal can cause video lag, dropped connections, or failed recordings. If needed, consider installing a Wi-Fi extender to boost coverage.
Step 2: Remove the Existing Light Fixture (If Applicable)
If you’re replacing an old floodlight or outdoor fixture, you’ll need to remove it carefully to expose the electrical box and wiring.
Turn Off Power and Test Wires
Double-check that the power is off using a non-contact voltage tester. Touch the tester to each wire—black (hot), white (neutral), and green or bare (ground). If the tester beeps or lights up, the power is still on. Go back to the breaker and turn off the correct circuit.
Remove the Old Fixture
- Unscrew the mounting screws or nuts holding the old light in place.
- Gently lower the fixture to expose the wires.
- Disconnect the wires by unscrewing the wire nuts.
- Remove the old mounting bracket if necessary.
Inspect the Electrical Box
Make sure the electrical box is securely attached to the wall or junction box. It should be rated for outdoor use and able to support the weight of the Ring Floodlight Camera (about 3–4 pounds). If the box is loose or damaged, reinforce or replace it before proceeding.
Step 3: Prepare the Ring Floodlight Camera
Now it’s time to get your Ring Floodlight Camera ready for installation. This involves assembling the mounting bracket and preparing the wires.
Assemble the Mounting Bracket
The Ring Floodlight Camera comes with a universal mounting bracket. Attach it to the back of the camera using the provided screws. The bracket allows you to adjust the angle of the camera and lights after installation.
Strip the Wires
The camera includes three wires: black (hot), white (neutral), and green (ground). Use wire strippers to remove about ½ inch of insulation from each wire. Be careful not to cut the copper strands.
Check the Wire Length
Ensure the wires are long enough to reach the electrical box. If they’re too short, you may need to extend them using additional wire and wire nuts. Always match wire colors (black to black, white to white, etc.).

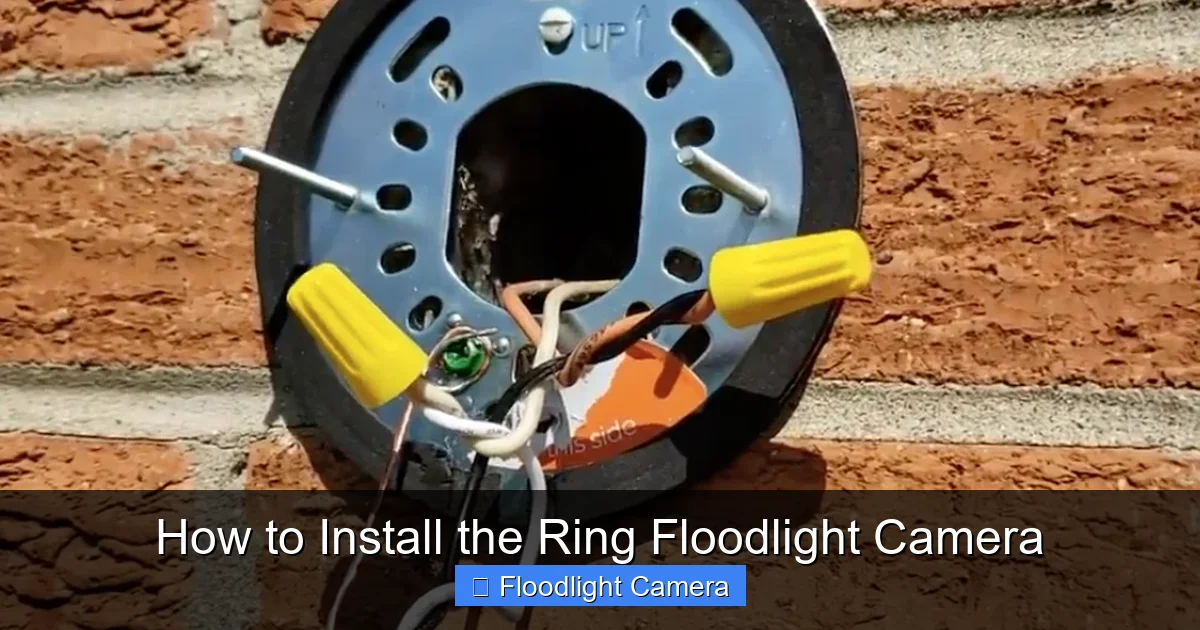

Step 4: Connect the Wires
This is the most critical part of the installation. Proper wiring ensures the camera and lights function safely and reliably.
Match the Wires
Connect the wires from the Ring Floodlight Camera to the corresponding wires in the electrical box:
- Black to black: Connect the hot wires using a wire nut.
- White to white: Connect the neutral wires.
- Green or bare to green or bare: Connect the ground wires. If your electrical box has a grounding screw, wrap the ground wire around it and tighten.
Secure the Connections
After twisting the wires together, screw on the wire nuts tightly. Give each wire a gentle tug to ensure it’s secure. Loose connections can cause flickering lights, camera malfunctions, or even electrical fires.
Tuck Wires into the Electrical Box
Carefully push the connected wires back into the electrical box. Avoid pinching or bending them sharply. The camera should sit flush against the wall without straining the wires.
Step 5: Mount the Camera to the Wall
With the wires connected, it’s time to secure the camera to the wall or electrical box.
Attach the Mounting Bracket
Align the mounting bracket with the electrical box. Use the provided screws to attach it securely. If you’re mounting to brick, stucco, or concrete, drill pilot holes and use masonry anchors for a strong hold.
Adjust the Angle
Before tightening all screws, adjust the camera and floodlights to your desired angle. The camera should point slightly downward to capture faces and activity. The floodlights should cover the area you want illuminated.
Secure the Camera
Once the angle is set, tighten all screws to lock the camera in place. Make sure it’s level and doesn’t wobble.
Step 6: Restore Power and Test the Lights
Now that the camera is mounted and wired, it’s time to turn the power back on and test the system.
Turn On the Breaker
Go to your electrical panel and flip the breaker back on. The floodlights should turn on immediately if the wiring is correct.
Test the Lights
Walk in front of the camera to trigger the motion sensors. The floodlights should activate, and you should hear a chime from the camera (if enabled). If the lights don’t turn on, turn off the power and double-check your wiring.
Check for Proper Illumination
Make sure the floodlights cover the intended area without creating harsh glare or dark spots. Adjust the angle if needed.
Step 7: Set Up the Ring App
The Ring app is your control center for the camera. It allows you to view live video, receive alerts, and customize settings.
Download and Open the Ring App
If you haven’t already, download the Ring app from the Apple App Store or Google Play. Create an account or log in if you have one.
Add a New Device
Tap the “+” icon in the app and select “Security Cameras.” Choose “Ring Floodlight Cam” from the list.
Scan the QR Code
The app will prompt you to scan the QR code on the back of the camera or the quick start guide. This pairs the device with your account.
Connect to Wi-Fi
Follow the on-screen instructions to connect the camera to your 2.4 GHz Wi-Fi network. Note: The Ring Floodlight Camera does not support 5 GHz networks. Enter your Wi-Fi password when prompted.
Name Your Camera
Give your camera a descriptive name, such as “Front Door” or “Backyard Floodlight,” to easily identify it in the app.
Step 8: Customize Settings in the Ring App
Once connected, you can fine-tune your camera’s behavior to suit your needs.
Set Up Motion Zones
Go to “Device Settings” > “Motion Settings” > “Motion Zones.” Draw zones on the camera’s field of view to focus on areas like your driveway or walkway. This reduces false alerts from passing cars or tree shadows.
Adjust Motion Sensitivity
Lower the sensitivity if you’re getting too many alerts. Increase it if the camera is missing activity. A setting between 5 and 7 usually works well for most homes.
Enable Two-Way Talk
Test the two-way audio feature by speaking through the app. You can greet visitors or warn off intruders remotely.
Set Up Light Schedules
Choose when the floodlights turn on—options include “Always On,” “Motion Activated,” or “Scheduled.” For example, set lights to turn on at dusk and off at dawn.
Enable Smart Alerts
Turn on “Person Detection” to receive alerts only when a person is detected, not animals or vehicles. This feature requires a Ring Protect subscription.
Step 9: Final Checks and Troubleshooting
Before considering the installation complete, perform a few final checks to ensure everything is working properly.
Test Live View
Open the Ring app and tap your camera to view the live feed. Check for clear video quality, proper angle, and audio clarity.
Trigger Motion Alerts
Walk in front of the camera to test motion detection. You should receive a push notification within a few seconds.
Check Night Vision
Turn off nearby lights and test the camera at night. The infrared LEDs should provide clear black-and-white video in low light.
Troubleshooting Common Issues
- Camera won’t connect to Wi-Fi: Move closer to the router during setup. Ensure you’re using 2.4 GHz, not 5 GHz.
- Floodlights don’t turn on: Check wiring connections and breaker. Test with a multimeter if needed.
- Blurry video: Clean the camera lens with a microfiber cloth. Remove dirt, spiderwebs, or condensation.
- False motion alerts: Adjust motion zones and sensitivity. Trim overhanging branches or shrubs.
- Camera offline: Restart the camera by turning off power for 10 seconds. Check Wi-Fi signal strength.
Maintenance Tips for Long-Term Performance
To keep your Ring Floodlight Camera working at its best, follow these simple maintenance tips:
Clean the Lens Monthly
Use a soft, dry cloth to wipe the camera lens. Avoid harsh chemicals or abrasive materials that could scratch the surface.
Check for Firmware Updates
The Ring app will notify you when updates are available. Install them to improve performance and security.
Inspect Wiring Annually
Look for signs of wear, corrosion, or loose connections. Tighten wire nuts if needed.
Trim Nearby Vegetation
Keep trees and bushes trimmed to prevent obstructions and reduce false motion triggers.
Test Monthly
Trigger the camera and lights once a month to ensure everything is functioning properly.
Conclusion
Installing the Ring Floodlight Camera is a straightforward process when you follow the right steps. From choosing the perfect location to wiring the device and setting up the app, this guide has covered everything you need to know to get your camera up and running. With its powerful floodlights, HD video, and smart features, the Ring Floodlight Camera is a valuable addition to any home security system.
Remember to prioritize safety, test all functions after installation, and customize settings to match your lifestyle. Whether you’re monitoring your front yard, driveway, or backyard, this camera gives you 24/7 visibility and peace of mind. Now that you know how to install the Ring Floodlight Camera, you’re ready to protect your home like a pro.
