This guide walks you through how to install a wired floodlight camera safely and correctly. You’ll learn essential tools, wiring steps, and setup tips to enhance your home security.
Key Takeaways
- Turn off power at the breaker before starting any electrical work to prevent shocks or accidents.
- Use the right tools like a voltage tester, wire strippers, and screwdrivers for a smooth installation.
- Match wire colors correctly—black to black (hot), white to white (neutral), and green or bare to ground.
- Mount the camera securely at a height of 8–10 feet for optimal coverage and motion detection.
- Test the system after installation to ensure the lights and camera function properly.
- Connect to your Wi-Fi network via the manufacturer’s app to enable live streaming and alerts.
- Check local codes—some areas require a licensed electrician for outdoor electrical installations.
How to Install Wired Floodlight Camera: A Complete Step-by-Step Guide
Installing a wired floodlight camera is one of the smartest upgrades you can make to your home security system. Unlike battery-powered models, wired floodlight cameras offer continuous power, reliable performance, and stronger connectivity—no more worrying about dead batteries or weak signals. Whether you’re replacing an old floodlight or installing a new one, this guide will walk you through the entire process safely and efficiently.
In this comprehensive how-to guide, you’ll learn everything you need to know about how to install a wired floodlight camera. We’ll cover the tools and materials required, safety precautions, step-by-step wiring instructions, mounting tips, and how to connect your camera to your home network. By the end, you’ll have a fully functional security system that lights up your yard and keeps an eye on your property 24/7.
This guide is designed for DIY homeowners with basic electrical knowledge. If you’re unsure about handling electrical wiring, don’t hesitate to consult a licensed electrician. Safety always comes first.
What Is a Wired Floodlight Camera?
Visual guide about How to Install Wired Floodlight Camera
Image source: downloads.arlo.com

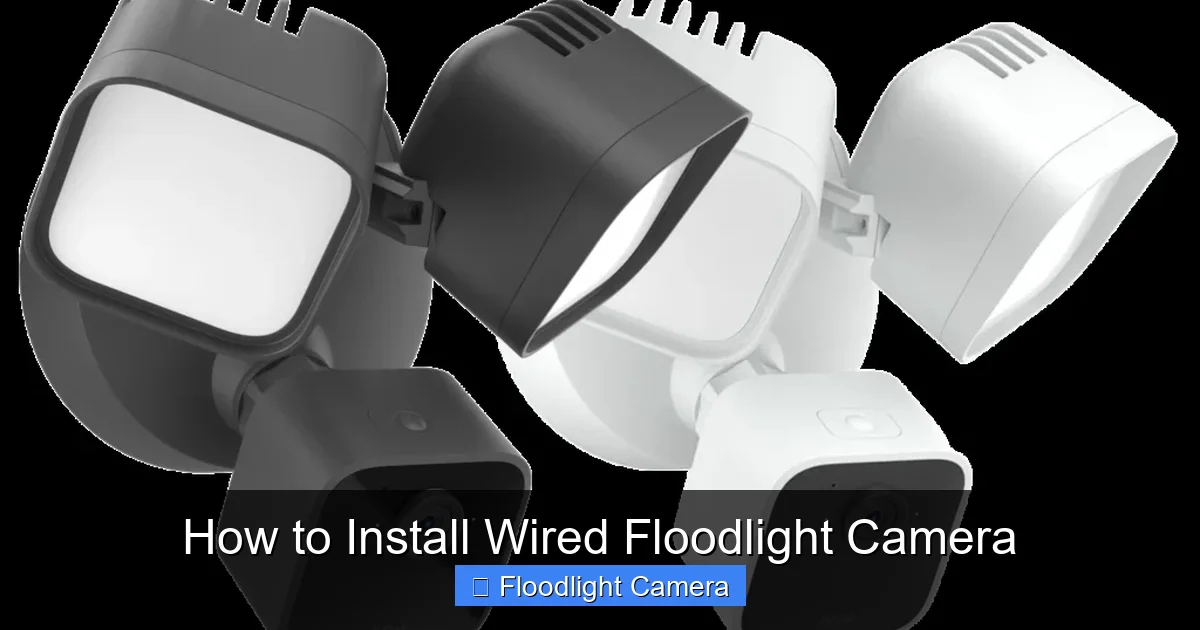

A wired floodlight camera combines two essential home security features: bright LED floodlights and a high-definition security camera. These devices are typically hardwired into your home’s electrical system, meaning they draw power directly from your existing outdoor wiring. This eliminates the need for frequent battery changes and ensures the camera is always on and ready to record.
Most wired floodlight cameras come with motion sensors that trigger both the lights and the camera when movement is detected. Many models also feature night vision, two-way audio, cloud or local storage, and smartphone alerts. Popular brands include Ring, Arlo, Eufy, and Lorex, each offering slightly different features and installation processes.
Because they’re wired, these cameras require a bit more effort to install than wireless versions, but the payoff is worth it: consistent power, stronger Wi-Fi connectivity, and fewer maintenance issues.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials. Having everything ready will make the installation process faster and less frustrating.
Essential Tools
- Voltage tester – To confirm the power is off before you start.
- Screwdrivers – Both flathead and Phillips, depending on your fixture.
- Wire strippers – For removing insulation from wires.
- Electrical tape – To insulate wire connections.
- Wire nuts – For securely connecting wires.
- Drill and drill bits – If you need to create new mounting holes.
- Ladder – A stable, non-conductive ladder to reach the installation height.
- Pencil or marker – For marking drill points.
Materials Included with Your Camera
- Wired floodlight camera unit

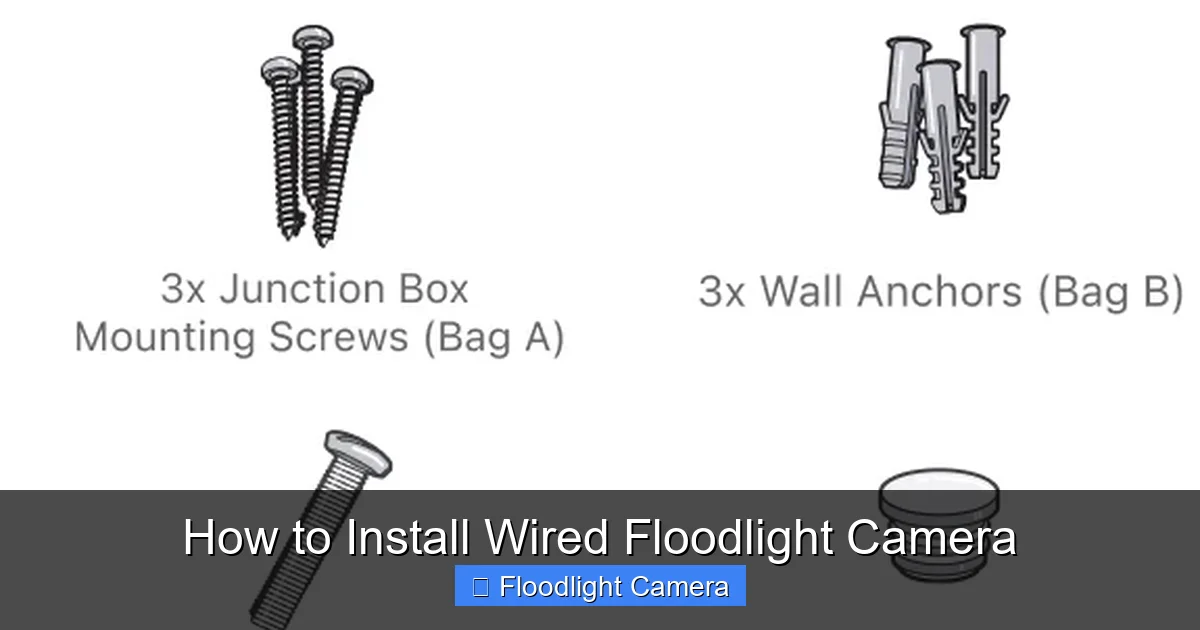

- Mounting bracket and screws
- Wire connectors (if not using wire nuts)
- Installation manual and quick start guide
- Optional: silicone sealant (to prevent water intrusion)
Optional but Helpful
- Fish tape (for running wires through walls, if needed)
- Stud finder (to locate wall studs for secure mounting)
- Gloves and safety glasses (for protection)
Safety First: Pre-Installation Checklist
Electrical work can be dangerous if not handled properly. Follow these safety steps to protect yourself and your home.
Turn Off the Power
Before touching any wires, turn off the power at the circuit breaker. Locate the breaker that controls the outdoor lighting circuit—this is usually labeled “outdoor lights,” “porch,” or “exterior.” Flip the switch to the OFF position.
Test the Wires
Use a non-contact voltage tester to double-check that the power is off. Touch the tester to the wires inside the electrical box. If the tester beeps or lights up, the power is still on—go back to the breaker and ensure it’s fully switched off.
Use a Stable Ladder
Place your ladder on level ground and ensure it’s secure. Never lean too far to one side. If possible, have someone hold the ladder while you work.
Wear Protective Gear
Put on safety glasses and gloves to protect your eyes and hands from debris and sharp edges.
Check Weather Conditions
Avoid installing your floodlight camera in rain, snow, or high winds. Wet conditions increase the risk of electrical shock and make handling tools more difficult.
Step 1: Remove the Old Fixture (If Applicable)
If you’re replacing an existing floodlight, you’ll need to remove it first. This step ensures you have access to the electrical box and wiring.
Unscrew the Old Light
Use a screwdriver to remove the screws holding the old fixture to the wall or ceiling. Gently pull the fixture away from the wall to expose the wiring.
Disconnect the Wires
You’ll typically see three wires: black (hot), white (neutral), and green or bare copper (ground). Loosen the wire nuts or terminal screws and separate the wires. Be careful not to let the wires fall back into the wall.
Remove the Mounting Bracket
Unscrew and remove the old mounting bracket. Clean the area if there’s old caulk or debris.
Inspect the Electrical Box
Make sure the electrical box is secure and in good condition. If it’s loose or damaged, you may need to replace it before installing the new camera.
Step 2: Prepare the New Floodlight Camera
Now it’s time to get your new wired floodlight camera ready for installation.
Unbox and Inspect
Carefully remove the camera from its packaging. Check for any visible damage. Verify that all components are included: camera, mounting bracket, screws, and instructions.
Read the Manual
Every model is slightly different. Read the installation guide to understand specific wiring requirements, app setup, and mounting instructions.
Assemble the Mounting Bracket
Attach the mounting bracket to the back of the camera or fixture, depending on the design. Use the provided screws and tighten them securely, but don’t over-tighten.
Prepare the Wires
Strip about ½ inch of insulation from the ends of the camera’s wires using wire strippers. This will expose the copper for a solid connection.
Step 3: Mount the Camera to the Wall
Proper mounting ensures your camera has the best view and is securely attached.
Position the Camera
Hold the camera (with the bracket) against the wall where you want to install it. The ideal height is between 8 and 10 feet. This height provides wide coverage and reduces the chance of tampering.
Mark the Drill Points
Use a pencil to mark where the mounting screws will go. If your camera has a template, use it to ensure accurate placement.
Drill Pilot Holes
Use a drill to create pilot holes at the marked spots. This makes it easier to insert screws and prevents the wood from splitting.
Secure the Bracket
Line up the bracket with the pilot holes and screw it into place. Use a level to ensure the camera will be straight. Tighten the screws firmly, but avoid over-tightening, which can crack the housing.
Step 4: Connect the Wires
This is the most critical part of the installation. Correct wiring ensures your camera gets power and functions safely.
Identify the Wires
You should have three wires coming from the wall:
- Black wire – Hot (live) wire
- White wire – Neutral wire
- Green or bare copper wire – Ground wire
Your camera will have matching wires. Match them by color:
- Black to black
- White to white
- Green/bare to green/bare
Twist the Wires Together
Hold the matching wires together and twist them clockwise with pliers. This creates a solid connection.
Secure with Wire Nuts
Screw a wire nut over each twisted pair. Give each wire a gentle tug to make sure it’s secure. If it comes loose, re-twist and re-secure.
Wrap with Electrical Tape
For extra safety, wrap each wire nut and connection with electrical tape. This prevents moisture from entering and adds insulation.
Tuck Wires into the Box
Carefully push the connected wires back into the electrical box. Don’t force them—make sure nothing is pinched or strained.
Step 5: Attach the Camera to the Bracket
Once the wires are connected, it’s time to mount the camera.
Align the Camera
Slide the camera onto the mounting bracket. Most models use a twist-lock or screw mechanism.
Secure the Camera
Tighten any screws or locking mechanisms to hold the camera in place. Double-check that it’s level and facing the desired direction.
Adjust the Angle
Tilt the camera up or down to cover the area you want to monitor. Avoid pointing it directly at the sun or bright lights, which can cause glare.
Step 6: Restore Power and Test the System
Now that everything is connected, it’s time to turn the power back on and test your work.
Turn On the Breaker
Go back to your electrical panel and flip the breaker to the ON position.
Check the Lights
The floodlights should turn on immediately or when motion is detected, depending on the model. If they don’t, turn the power off and double-check your wiring.
Test the Camera
Look for indicator lights on the camera (usually blue or green). These show that the camera is receiving power and connecting to Wi-Fi.
Verify Motion Detection
Walk in front of the camera to trigger the motion sensor. The lights should activate, and the camera should start recording (if enabled).
Step 7: Connect to Wi-Fi and Set Up the App
Most wired floodlight cameras require a Wi-Fi connection to send alerts and allow remote viewing.
Download the App
Install the manufacturer’s app on your smartphone (e.g., Ring App, Arlo App, Eufy Security). Create an account if you don’t have one.
Follow the Setup Wizard
Open the app and follow the on-screen instructions. You’ll usually need to scan a QR code on the camera or enter a serial number.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. The camera will attempt to connect. This may take a minute or two.
Test Live View
Once connected, open the live view in the app. You should see a clear video feed from your camera. Test the two-way audio if your model supports it.
Adjust Settings
Customize motion zones, sensitivity, recording schedules, and alert preferences. Enable notifications so you’re alerted when motion is detected.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common issues.
Camera Won’t Power On
- Double-check that the breaker is on.
- Use a voltage tester to confirm power at the wires.
- Ensure all wire connections are tight and secure.
- Check for loose or damaged wires.
Floodlights Don’t Turn On
- Verify the motion sensor isn’t blocked.
- Adjust the sensitivity settings in the app.
- Make sure the lights aren’t set to “off” in the app.
- Check if the bulb or LED array is faulty (rare, but possible).
Weak or No Wi-Fi Signal
- Move your router closer or use a Wi-Fi extender.
- Ensure the camera is within range of your network.
- Restart the camera and router.
- Update the camera’s firmware via the app.
Video Quality Is Poor
- Clean the camera lens with a soft, dry cloth.
- Adjust the camera angle to avoid glare or backlighting.
- Check your internet speed—low bandwidth can affect streaming.
False Motion Alerts
- Adjust motion zones to exclude trees, cars, or animals.
- Lower the sensitivity setting.
- Ensure the camera isn’t pointed at a busy street or sidewalk.
Maintenance Tips for Long-Term Performance
To keep your wired floodlight camera working well for years, follow these maintenance tips.
Clean the Lens Monthly
Dust, dirt, and spider webs can block the camera’s view. Use a microfiber cloth to gently wipe the lens.
Check for Obstructions
Trim back bushes or branches that might block the camera’s field of view or trigger false alerts.
Inspect Wiring Annually
Look for signs of wear, corrosion, or animal damage. Re-secure any loose connections.
Update Firmware
Check the app regularly for firmware updates. These improve performance and security.
Test the System Quarterly
Trigger the motion sensor and check that lights and recording work as expected.
Conclusion
Installing a wired floodlight camera is a smart, cost-effective way to boost your home security. While it requires a bit more effort than wireless models, the benefits—continuous power, reliable performance, and strong connectivity—make it well worth the time.
By following this step-by-step guide, you’ve learned how to install a wired floodlight camera safely and correctly. From turning off the power and connecting wires to mounting the unit and setting up the app, each step is designed to ensure a successful installation.
Remember, if you’re ever unsure about electrical work, consult a licensed electrician. Your safety is more important than saving a few dollars on labor.
Once your camera is up and running, you’ll enjoy peace of mind knowing your home is protected day and night. With motion-activated lighting and real-time alerts, you’ll always be in the know.
So go ahead—take control of your home security. Install your wired floodlight camera today and enjoy a safer, smarter living space.
