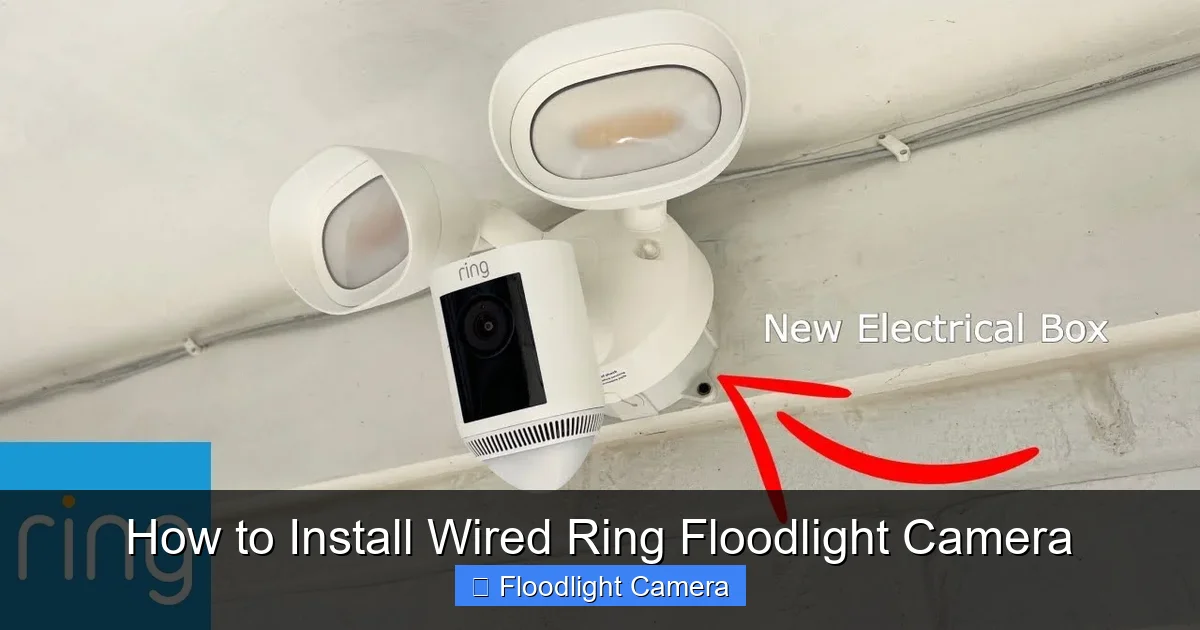

How to Install Wired Ring Floodlight Camera

Installing a wired Ring Floodlight Camera enhances your home security with motion-activated lighting and HD video monitoring. This guide walks you through every step—from choosing the right location to final setup—ensuring a safe, reliable installation.

Key Takeaways

• Choose the right location: Install the camera at least 7–10 feet high for optimal coverage and minimal blind spots.
• Turn off power before starting: Always shut off electricity at the circuit breaker to prevent electrical shock.
• Use the included mounting template: This ensures accurate drilling and secure attachment to your wall or eave.
• Connect to existing wiring: The Ring Floodlight Cam requires constant power from your home’s electrical system—no batteries needed.
• Test the system after installation: Verify camera feed, motion detection, and light function via the Ring app.
• Update firmware regularly: Keep your device secure and functioning smoothly with the latest software updates.
• Use the Ring app for setup: The app guides you through Wi-Fi connection, device registration, and feature customization.

How to Install Wired Ring Floodlight Camera

If you’re looking to boost your home security with smart technology, the wired Ring Floodlight Camera is a top choice. This powerful device combines bright LED floodlights with a high-definition security camera, motion sensors, and two-way audio—all powered directly from your home’s electrical system. Unlike battery-powered models, the wired version offers continuous operation without the hassle of recharging or replacing batteries.

In this comprehensive guide, you’ll learn how to install a wired Ring Floodlight Camera safely and correctly. Whether you’re replacing an old floodlight or installing a new one, we’ll walk you through every step—from planning your setup to testing the final system. You’ll also get practical tips, troubleshooting advice, and answers to common questions to ensure your installation goes smoothly.

By the end of this guide, you’ll have a fully functional security system that deters intruders, monitors your property 24/7, and gives you peace of mind—all from the convenience of your smartphone.

What You’ll Need Before Starting

Before you begin the installation, it’s important to gather all the necessary tools and materials. Having everything ready will save time and reduce frustration during the process.

Tools Required

• Phillips-head screwdriver
• Drill with 1/4-inch drill bit
• Wire strippers
• Voltage tester (non-contact)
• Ladder (if installing high on a wall or eave)
• Pencil or marker
• Electrical tape
• Wire nuts (usually included with the Ring kit)

Materials Included in the Ring Floodlight Camera Box

• Ring Floodlight Camera unit
• Mounting bracket
• Screws and wall anchors
• Wire connectors (wire nuts)
• Mounting template sticker
• User manual and quick start guide

Optional but Helpful Items

• Smartphone or tablet with the Ring app installed
• Wi-Fi network with strong signal at the installation site
• Assistant to help hold the camera during mounting
• Electrical conduit or wire covers (for a cleaner look)

Step 1: Choose the Right Location

The success of your Ring Floodlight Camera starts with choosing the best location. A well-placed camera maximizes visibility, minimizes blind spots, and ensures reliable performance.

Ideal Placement Tips

• Height: Mount the camera 7–10 feet above the ground. This height provides a wide field of view while keeping the camera out of easy reach.
• Coverage Area: Aim the camera to cover entry points like driveways, backyards, side gates, or porches. Avoid pointing it directly at the sun or bright lights.
• Wi-Fi Signal: Ensure the location has a strong Wi-Fi signal. Weak signals can cause lag or disconnections. Use a Wi-Fi extender if needed.
• Existing Wiring: The camera must be installed where there’s access to electrical wiring—typically where an old floodlight or outdoor fixture was.
• Weather Protection: While the Ring Floodlight Cam is weather-resistant, avoid placing it where it’s directly exposed to heavy rain or snow runoff.

Avoid These Common Mistakes

• Installing too low (vulnerable to tampering)
• Pointing the camera at a neighbor’s property (privacy concerns)
• Placing it in a dark corner with no motion activity
• Ignoring obstructions like trees or walls that block the view

Step 2: Turn Off the Power

Safety is paramount when working with electricity. Before touching any wires, you must turn off the power to the existing light fixture.

How to Safely Shut Off Power

1. Locate your home’s main electrical panel (breaker box).
2. Find the circuit breaker that controls the outdoor light or floodlight you’re replacing.
3. Switch the breaker to the “OFF” position.
4. Use a non-contact voltage tester to double-check that the wires are not live. Touch the tester to the wires—if it doesn’t beep or light up, the power is off.

Important Safety Reminder

Never assume the power is off just because the light doesn’t turn on. Always test the wires with a voltage tester to avoid electric shock.

Step 3: Remove the Old Fixture (If Applicable)

If you’re replacing an existing floodlight, you’ll need to remove it carefully to access the wiring.

Steps to Remove the Old Light

1. Use a screwdriver to remove the screws holding the old fixture to the wall or junction box.
2. Gently pull the fixture away from the wall to expose the wires.
3. Unscrew the wire nuts connecting the fixture wires to the house wires.
4. Separate the wires and set the old fixture aside.
5. Inspect the junction box to ensure it’s secure and in good condition. Replace it if it’s cracked or loose.

What to Do If There’s No Existing Wiring

If you’re installing the Ring Floodlight Cam in a new location without existing wiring, you’ll need to run electrical wire from your home’s power source. This is a job best left to a licensed electrician, as it involves drilling through walls, routing wires, and ensuring compliance with local electrical codes.

Step 4: Prepare the Mounting Surface

Now that the old fixture is removed and the power is off, it’s time to prepare the area for the new Ring Floodlight Camera.

Use the Mounting Template

• Peel the backing off the included mounting template sticker.
• Align it with the junction box or desired mounting spot.
• Press it firmly onto the wall to secure it in place.
• Use a pencil to mark the screw holes through the template.

Drill Pilot Holes

• Use a 1/4-inch drill bit to drill pilot holes at the marked spots.
• If you’re mounting into wood, the screws should go in easily. For brick, concrete, or stucco, use the included wall anchors.
• Tap the anchors gently into the holes with a hammer until flush with the wall.

Check Alignment

Before mounting, double-check that the template is level. Use a spirit level to ensure the camera will be straight. A crooked camera can affect the field of view and look unprofessional.

Step 5: Connect the Wires

This is the most technical part of the installation. The Ring Floodlight Camera requires three wires: hot (black), neutral (white), and ground (green or bare copper).

Identify the Wires

• Black wire: Hot wire (carries electricity from the breaker)
• White wire: Neutral wire (completes the circuit)
• Green or bare copper wire: Ground wire (safety connection)

Strip the Wire Ends

• Use wire strippers to remove about 1/2 inch of insulation from each wire end.
• Twist the exposed copper strands to keep them neat.

Connect the Wires

1. Match the wires from the house to the corresponding wires on the Ring Floodlight Camera:
   • House black → Camera black (hot)
   • House white → Camera white (neutral)
   • House green/bare → Camera green (ground)
2. Twist the matching wires together clockwise.
3. Screw a wire nut over each connection. Give each wire a gentle tug to ensure it’s secure.
4. Wrap electrical tape around the wire nuts for extra protection (optional but recommended).

Secure the Wires

Tuck the connected wires neatly into the junction box. Avoid pinching or bending them sharply, as this can damage the insulation over time.

Step 6: Mount the Ring Floodlight Camera

With the wires connected, it’s time to attach the camera to the wall.

Attach the Mounting Bracket

• Align the mounting bracket with the pilot holes.
• Insert the screws through the bracket and into the wall anchors.
• Tighten the screws with a screwdriver until the bracket is secure but not over-tightened (to avoid cracking the wall).

Attach the Camera to the Bracket

• Hold the Ring Floodlight Camera against the bracket.
• Slide it into place until it clicks or locks securely.
• Some models may require you to tighten a set screw on the side or bottom to lock the camera in place.

Adjust the Camera Angle

• Loosen the adjustment knobs (usually on the sides or back of the camera).
• Angle the camera to cover your desired area.
• Tighten the knobs to lock the position.

Step 7: Restore Power and Test the System

Now that the camera is mounted and wired, it’s time to turn the power back on and test everything.

Turn the Power Back On

• Go to the breaker box and switch the circuit back to “ON.”
• Wait a few seconds for the camera to power up.

Check the Lights and Camera

• The floodlights should turn on briefly as the camera initializes.
• Listen for a chime or voice prompt from the camera (if enabled).
• If the lights don’t turn on, double-check the wiring and breaker.

Download and Open the Ring App

• If you haven’t already, download the Ring app from the App Store or Google Play.
• Create a Ring account or log in if you already have one.
• Tap “Set Up a Device” and select “Security Cameras.”
• Choose “Ring Floodlight Cam Wired” from the list.

Follow the In-App Setup

• Scan the QR code on the camera or enter the serial number manually.
• Connect the camera to your Wi-Fi network. Make sure you’re using a 2.4 GHz network (the Ring Floodlight Cam doesn’t support 5 GHz).
• Name your camera (e.g., “Front Yard” or “Back Porch”).
• Adjust settings like motion zones, light schedules, and alerts.

Step 8: Customize Settings in the Ring App

Once the camera is online, you can fine-tune its behavior to suit your needs.

Motion Settings

• Set motion zones to focus on specific areas (e.g., driveway but not sidewalk).
• Adjust motion sensitivity to reduce false alerts from wind or small animals.
• Enable “People Only Mode” to receive alerts only when a person is detected.

Light Settings

• Choose when the lights turn on: always, at night, or only when motion is detected.
• Set the brightness level (low, medium, high).
• Enable “Light Schedule” to automate lighting based on sunset and sunrise.

Video and Audio Settings

• Enable HD video recording.
• Turn on two-way audio to speak through the camera.
• Set up video recording preferences (e.g., record on motion, live view, or continuously with Ring Protect Plan).

Troubleshooting Common Installation Issues

Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.

Camera Won’t Power On

• Check that the breaker is on and the voltage tester confirms power.
• Verify all wire connections are tight and correct.
• Ensure the ground wire is properly connected.

No Video Feed in the App

• Confirm the camera is connected to Wi-Fi.
• Restart the camera by turning the breaker off and on.
• Re-run the setup process in the Ring app.

Weak Wi-Fi Signal

• Move your router closer or use a Wi-Fi extender.
• Avoid installing the camera behind metal surfaces or thick walls.
• Check for interference from other electronic devices.

Floodlights Not Working

• Check the light settings in the app—ensure they’re not set to “off.”
• Verify the wiring connections, especially the hot and neutral wires.
• Test the lights manually using the app’s “Turn On Lights” feature.

False Motion Alerts

• Adjust motion zones to exclude areas with frequent movement (e.g., trees, busy streets).
• Lower the motion sensitivity.
• Enable “People Only Mode” to filter out animals and vehicles.

Maintenance and Best Practices

To keep your Ring Floodlight Camera working reliably, follow these maintenance tips.

Regular Cleaning

• Wipe the camera lens and floodlights with a soft, dry cloth every few months.
• Remove dirt, spider webs, or snow buildup that could block the view or sensors.

Firmware Updates

• The Ring app will notify you when updates are available.
• Install updates promptly to improve performance and security.

Check Connections Annually

• Inspect wire nuts and connections for corrosion or looseness.
• Tighten any loose screws on the mounting bracket.

Review Footage Regularly

• Check recorded clips to ensure the camera is capturing clear footage.
• Adjust the angle or settings if needed.

Conclusion

Installing a wired Ring Floodlight Camera is a smart investment in your home’s security. While it requires a bit more effort than a battery-powered model, the benefits—continuous power, reliable performance, and no battery changes—make it well worth it.

By following this step-by-step guide, you’ve learned how to safely wire, mount, and configure your camera for optimal performance. From choosing the right location to customizing settings in the Ring app, every detail matters for a successful installation.

Remember to prioritize safety, double-check your wiring, and test the system thoroughly. With your new Ring Floodlight Camera in place, you’ll enjoy 24/7 monitoring, bright security lighting, and peace of mind—all from the palm of your hand.

Now that you’re set up, consider adding more Ring devices like doorbells or indoor cameras to build a complete smart security system. Stay safe, stay connected, and enjoy the confidence that comes with protecting your home the smart way.
