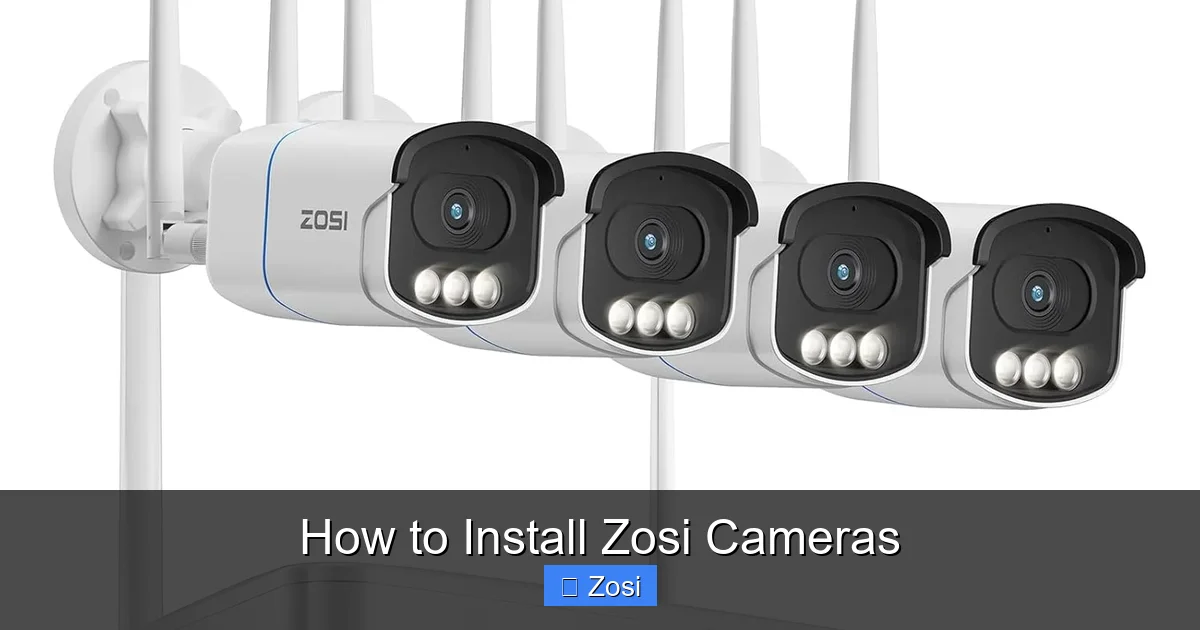

How to Install Zosi Cameras

This guide walks you through how to install Zosi cameras with clear, beginner-friendly steps. Whether you’re setting up a wired or wireless system, you’ll learn everything from planning camera placement to final testing. Secure your home in under an hour with our expert tips.

Key Takeaways

• Choose the right Zosi camera model: Pick between wired, wireless, or PoE based on your home layout and power access.
• Plan camera placement first: Identify key areas like entrances, driveways, and backyards for maximum coverage.
• Use the Zosi app for easy setup: The free app guides you through pairing, viewing live feeds, and adjusting settings.
• Ensure strong Wi-Fi or wired connections: Weak signals cause lag or disconnections—test your network before installing.
• Mount cameras securely and weatherproof: Use included brackets and seal outdoor units to protect against rain and tampering.
• Test all cameras after installation: Check video quality, motion detection, and night vision to ensure everything works.
• Keep firmware updated: Regular updates improve performance, security, and add new features.

Quick Answers to Common Questions

Tip/Question?

How high should I mount my Zosi camera?

Mount cameras 8 to 10 feet high for optimal coverage and to prevent tampering. This height captures faces and license plates clearly.

Tip/Question?

Can I install Zosi cameras myself?

Yes! Zosi cameras are designed for DIY installation. With basic tools and this guide, most people can complete setup in under an hour.

Tip/Question?

Do Zosi cameras work without Wi-Fi?

Wired DVR systems work without Wi-Fi. Wireless cameras need Wi-Fi for remote access, but can still record locally if connected to power.

Tip/Question?

How do I reduce false motion alerts?

Adjust motion sensitivity in the app and avoid pointing cameras at trees, flags, or busy streets. Use detection zones to focus on important areas.

Tip/Question?

Can I add more cameras later?

Yes! Most Zosi DVRs support 4, 8, or 16 channels. You can expand your system by adding compatible cameras and upgrading the hard drive if needed.

How to Install Zosi Cameras: A Complete Step-by-Step Guide

Are you ready to boost your home security with Zosi cameras? Whether you’re a DIY enthusiast or a first-time installer, this guide will show you how to install Zosi cameras quickly and correctly. Zosi offers a range of affordable, high-quality security cameras—from wired DVR systems to wireless Wi-Fi models—perfect for homes, small businesses, and rental properties.

In this comprehensive guide, you’ll learn everything you need to know: how to choose the right camera system, plan your layout, mount the cameras, connect them to power and network, and configure them using the Zosi app. We’ll also cover troubleshooting tips and best practices to keep your system running smoothly.

By the end of this article, you’ll have a fully functional security system that gives you peace of mind—day and night.

Step 1: Choose the Right Zosi Camera System

Before you start installing, it’s important to pick the Zosi camera system that fits your needs. Zosi offers several types, and choosing the right one will save you time and frustration.

Wired DVR Systems

These systems include a digital video recorder (DVR), coaxial cables, and multiple cameras. They’re ideal for permanent installations where you can run cables through walls or attics. Wired systems offer stable video quality and don’t rely on Wi-Fi, making them great for areas with poor internet.

Wireless Wi-Fi Cameras

Zosi’s wireless cameras connect directly to your home Wi-Fi network. They’re easier to install since there’s no need to run long cables. However, they require a strong Wi-Fi signal and power source (usually via a power adapter). These are perfect for renters or quick setups.

PoE (Power over Ethernet) Cameras

PoE cameras use a single Ethernet cable to transmit both power and data. They’re more reliable than Wi-Fi and don’t need separate power adapters. You’ll need a PoE switch or injector, but the result is a clean, professional setup.

Hybrid Systems

Some Zosi kits support both wired and wireless cameras. This flexibility lets you mix and match based on your home’s layout. For example, use wired cameras for the front yard and wireless ones for the backyard.

Pro Tip: Check the camera resolution (1080p, 2K, or 4K), night vision range, and field of view before buying. Higher resolution means clearer images, but it also uses more storage.

Step 2: Plan Your Camera Placement

Good planning prevents poor performance. Before drilling any holes, take time to map out where each camera will go.

Identify Key Areas

• Front Door: Most common entry point. Install at eye level to capture faces clearly.
• Back Door and Patio: Often overlooked but vulnerable. Angle the camera to cover the door and surrounding area.
• Driveway: Monitor vehicles and visitors. A wide-angle lens helps cover more ground.
• Garage: Protect tools and vehicles. Consider a camera with motion alerts.
• Backyard: Watch for intruders or wildlife. Ensure the camera is out of easy reach.
• Hallways or Staircases (Indoor): Great for monitoring movement inside the home.

Consider Height and Angle

Mount cameras 8 to 10 feet high for optimal coverage. This height reduces tampering risk while capturing faces and license plates. Avoid pointing cameras directly at bright lights or the sun, which can cause glare.

Check Wi-Fi Signal Strength (For Wireless Models)

Use your phone or a Wi-Fi analyzer app to test signal strength at each location. Weak signals cause lag, dropped connections, or poor video quality. If needed, install a Wi-Fi extender or mesh network.

Power Source Access

Ensure each camera is within reach of a power outlet or plan to run extension cords safely. For outdoor cameras, use weatherproof outlets or outdoor-rated extension cords.

Example: If installing a wireless camera on your back porch, make sure it’s within 30 feet of your router or use a range extender. Also, plug the power adapter into a GFCI outlet to prevent electrical hazards.

Step 3: Gather Your Tools and Equipment

Having the right tools on hand makes installation faster and safer.

Basic Tools Needed

• Drill and drill bits (for mounting brackets)
• Screwdriver (Phillips and flathead)
• Measuring tape
• Level (to keep cameras straight)
• Pencil (for marking drill points)
• Ladder (for high mounts)
• Cable clips or conduit (for organizing wires)
• Power drill with masonry bits (if mounting on brick or concrete)

Included in Zosi Kits

Most Zosi camera kits come with:

• Cameras (indoor or outdoor)
• Mounting brackets and screws
• Power adapters
• Coaxial or Ethernet cables (depending on model)
• DVR or NVR (for wired systems)
• Mouse and remote control
• Quick start guide

Always check the box contents before starting. If anything is missing, contact Zosi support immediately.

Step 4: Install the DVR or NVR (For Wired Systems)

If you’re using a wired Zosi system, the DVR (or NVR for IP cameras) is the brain of your setup. It records video and connects to your monitor or TV.

Choose a Location for the DVR

Place the DVR in a secure, dry, and well-ventilated area—like a closet, basement, or office. Avoid heat sources or direct sunlight. It should be close enough to run cables to your cameras but out of sight for security.

Connect the DVR to Power and Monitor

1. Plug the DVR into a power outlet using the included adapter.
2. Connect the DVR to a monitor or TV using an HDMI or VGA cable.
3. Turn on the DVR and monitor. You should see the Zosi setup screen.

Insert Hard Drive (If Not Pre-Installed)

Some DVRs come with a pre-installed hard drive. If not, open the DVR case (usually with screws on the side), insert the hard drive, and secure it. Format the drive using the on-screen menu.

Connect to the Internet (Optional)

To access your cameras remotely, connect the DVR to your router using an Ethernet cable. This enables the Zosi app and cloud features.

Tip: Label your cables as you connect them. This makes troubleshooting much easier later.

Step 5: Mount the Cameras

Now it’s time to install the cameras. Follow these steps for a secure, professional-looking setup.

Attach the Mounting Bracket

1. Hold the bracket against the wall or ceiling where you want the camera.
2. Use a level to ensure it’s straight.
3. Mark the screw holes with a pencil.
4. Drill pilot holes (use a masonry bit for brick or concrete).
5. Secure the bracket with screws and wall anchors (if needed).

Connect the Camera to Power and Cable

For wired systems:

• Run the coaxial or Ethernet cable from the camera to the DVR.
• Connect the cable to the camera and the DVR.
• Plug the camera’s power adapter into an outlet.

For wireless cameras:

• Plug the camera into a power source.
• The camera will connect to Wi-Fi during setup.

Safety Note: Turn off power at the circuit breaker if working near electrical wires.

Attach the Camera to the Bracket

Slide the camera onto the bracket and tighten the locking screw. Adjust the angle so it points at your target area. Most Zosi cameras allow 360-degree rotation and tilt for fine-tuning.

Weatherproof Outdoor Cameras

For outdoor installations:

• Use silicone sealant around the mounting area to prevent water leaks.
• Ensure the power connection is protected with a weatherproof box or cover.
• Avoid mounting under direct rain or snow if possible.

Zosi outdoor cameras are IP66 or IP67 rated, meaning they’re dust-tight and can withstand heavy rain. Still, extra protection helps extend their life.

Step 6: Connect and Configure Using the Zosi App

The Zosi app is your control center for viewing live feeds, receiving alerts, and adjusting settings.

Download the App

Search for “Zosi” in the Apple App Store or Google Play Store. Download and install the app on your smartphone or tablet.

Create an Account

Open the app and sign up with your email. Verify your account via the confirmation email.

Add Your DVR or Camera

For DVR systems:

1. Tap “Add Device” in the app.
2. Select “DVR/NVR” and choose your model.
3. Enter the DVR’s IP address or scan the QR code on the device.
4. Enter the username and password (default is often “admin” and “123456”).
5. The app will connect and show live camera feeds.

For wireless cameras:

1. Power on the camera and wait for the LED to blink.
2. In the app, tap “Add Device” and select “Wi-Fi Camera.”
3. Follow the on-screen instructions to connect the camera to your Wi-Fi network.
4. Enter your Wi-Fi password when prompted.
5. The camera will pair and appear in the app.

Tip: Change the default password immediately for security.

Adjust Camera Settings

Once connected, customize your cameras:

• Motion Detection: Set sensitivity and alert zones. Avoid areas with trees or pets to reduce false alarms.
• Recording Schedule: Choose continuous, motion-triggered, or scheduled recording.
• Night Vision: Most Zosi cameras auto-switch to night mode. You can adjust IR brightness if needed.
• Two-Way Audio: If your camera supports it, enable audio to speak through the app.

Test each setting to ensure it works as expected.

Step 7: Test Your System

After installation, thorough testing ensures everything works correctly.

Check Video Quality

View each camera feed in the app and on the monitor. Look for:

• Clear, sharp images
• Proper lighting and color balance
• No flickering or lag

If the image is blurry, clean the lens or adjust the focus ring (on some models).

Test Night Vision

Turn off the lights or wait for nighttime. Check that the camera switches to black-and-white mode and illuminates the area with infrared LEDs. Walk in front of the camera to ensure it detects motion.

Verify Motion Alerts

Walk in front of each camera and check if you receive a push notification on your phone. Open the app to view the recorded clip.

Test Remote Access

Turn off your home Wi-Fi and use mobile data to open the app. You should still see live feeds if the DVR is connected to the internet.

Check Storage and Playback

Go to the playback section in the app or DVR menu. Select a recent time and watch the recorded video. Ensure it’s smooth and clear.

Example: If a camera in the backyard isn’t recording, check the power connection, Wi-Fi signal, and motion detection settings. Reboot the camera if needed.

Troubleshooting Common Issues

Even with careful installation, problems can occur. Here’s how to fix the most common ones.

Camera Not Powering On

• Check the power adapter and outlet.
• Try a different power cable.
• Ensure the circuit breaker hasn’t tripped.

No Video Signal or Black Screen

• Verify cable connections (coaxial or Ethernet).
• Restart the DVR and camera.
• Check if the camera is assigned to the correct channel.

Poor Wi-Fi Connection (Wireless Cameras)

• Move the camera closer to the router.
• Use a Wi-Fi extender.
• Switch to a less congested Wi-Fi channel.

Motion Alerts Not Working

• Enable motion detection in the app.
• Adjust sensitivity and detection zones.
• Ensure the camera has a clear view of the area.

App Won’t Connect to DVR

• Check if the DVR is connected to the internet.
• Verify the IP address and port settings.
• Update the app and DVR firmware.

Flickering or Poor Image Quality

• Clean the camera lens.
• Check for interference from other devices.
• Ensure the camera isn’t pointed at a bright light source.

Pro Tip: Keep your Zosi system’s firmware updated. Go to the DVR menu or app settings to check for updates. New firmware often fixes bugs and improves performance.

Maintenance and Best Practices

To keep your Zosi cameras working well for years, follow these maintenance tips.

Clean Cameras Regularly

Wipe the lens with a microfiber cloth every few weeks. For outdoor cameras, remove dirt, spider webs, and snow buildup.

Check Cables and Connections

Inspect cables for damage, especially after storms. Secure loose wires with clips or conduit.

Review Footage Weekly

Set a reminder to check recordings. This helps you spot issues early and review any incidents.

Secure Your Network

Change your Wi-Fi password regularly. Use WPA3 encryption if available. Never share your DVR login details.

Backup Important Videos

Save critical footage to a USB drive or cloud storage. Zosi DVRs allow you to export clips easily.

Conclusion

Installing Zosi cameras is easier than you think—especially with this step-by-step guide. From choosing the right system to mounting cameras and configuring the app, you now have the knowledge to set up a reliable home security network.

Remember: plan your layout, use the right tools, and test everything. A well-installed system not only deters crime but also gives you peace of mind knowing your home is protected 24/7.

Whether you’re using wired, wireless, or PoE cameras, Zosi offers affordable, high-quality options for every need. With regular maintenance and smart settings, your cameras will serve you well for years to come.

Ready to get started? Grab your tools, download the Zosi app, and take the first step toward a safer home today.
