This guide walks you through how to install Zosi security camera system with clear, beginner-friendly steps. You’ll learn about planning, wiring, connecting to DVR, and testing your setup for reliable home or business surveillance.
Key Takeaways
- Plan your camera locations first: Choose spots with clear views, power access, and minimal blind spots for maximum coverage.
- Use the right cables and tools: Zosi systems typically use BNC and power cables—ensure you have a drill, screwdriver, and cable clips ready.
- Connect cameras to the DVR correctly: Match each camera to a BNC port and power it using the included power adapter or splitter.
- Configure the system via the monitor or app: Set up recording schedules, motion detection, and remote viewing using the Zosi app or on-screen menu.
- Test and adjust after installation: Check video quality, angle, and night vision to ensure all cameras work properly before finalizing.
- Troubleshoot common issues: No video? Check connections, power, and DVR settings. Most problems are fixable with simple checks.
- Maintain your system regularly: Clean lenses, update firmware, and check cables to keep your Zosi system running smoothly.
Quick Answers to Common Questions
Should I hire a professional to install my Zosi system?
Not necessarily. Zosi systems are designed for DIY installation. With basic tools and this guide, most people can complete the setup in a few hours.
Can I add more cameras later?
Yes, as long as your DVR has available channels. You can expand your system by purchasing additional Zosi cameras and connecting them to unused ports.
Do Zosi cameras work in extreme cold or heat?
Yes, most Zosi cameras are rated for temperatures from -22°F to 140°F (-30°C to 60°C), making them suitable for most climates.
How long does the hard drive store footage?
It depends on the hard drive size and recording settings. A 1TB drive can store about 7–14 days of continuous 1080p footage.
Can I view my cameras on multiple devices?
Yes, the Zosi app supports multiple users. You can share access with family members or employees by adding their accounts.
How to Install Zosi Security Camera System: A Complete Step-by-Step Guide
Installing a Zosi security camera system might seem intimidating at first, but with the right preparation and guidance, it’s a straightforward DIY project. Whether you’re protecting your home, office, or small business, Zosi offers reliable, high-definition surveillance systems that are designed for easy setup. In this comprehensive guide, you’ll learn exactly how to install Zosi security camera system from start to finish—including planning, mounting, wiring, connecting to the DVR, and configuring remote access.
By the end of this guide, you’ll have a fully functional security system that gives you peace of mind and 24/7 monitoring. We’ll cover everything from unpacking your kit to testing the final setup, plus tips to avoid common mistakes. Let’s get started!

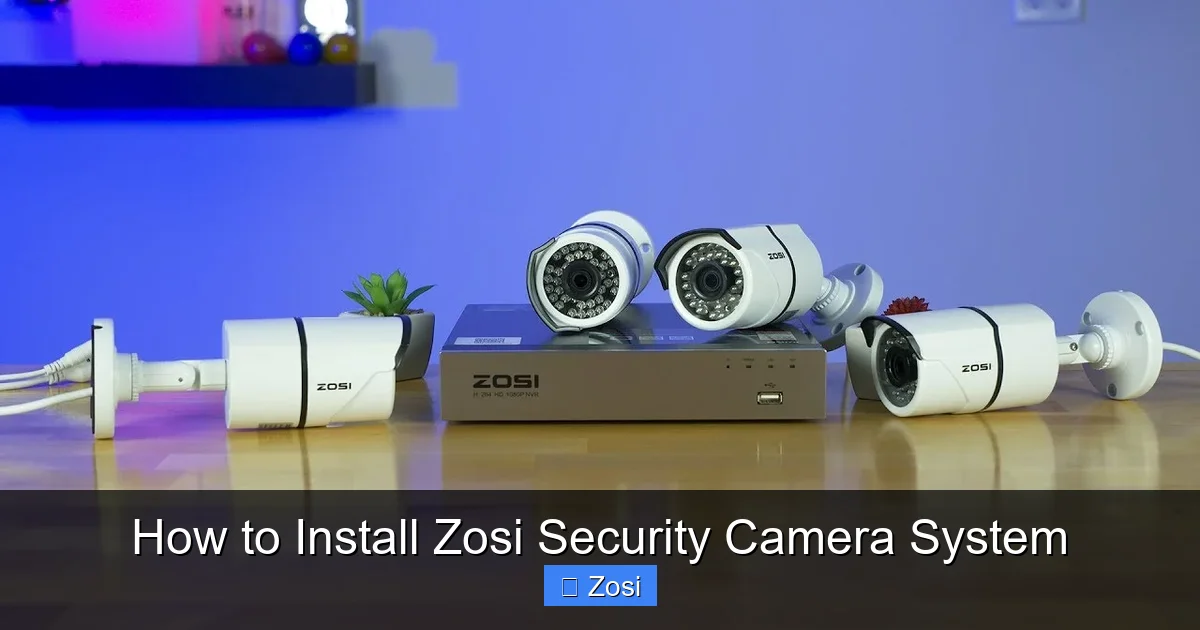

What’s in the Zosi Security Camera System Box?
Visual guide about How to Install Zosi Security Camera System
Image source: i.ytimg.com
Before you begin, it’s important to know what you’re working with. Most Zosi security camera kits come with similar components, but always check your specific model. Here’s what you can typically expect:
- Security cameras: Usually 4, 8, or 16 weatherproof bullet or dome cameras with night vision.
- DVR (Digital Video Recorder): The central hub that records and stores footage. Some models support HDMI and VGA outputs.
- Power adapter and splitter: Powers multiple cameras from one outlet using a splitter cable.
- BNC cables: Coaxial cables that transmit video and power (in some models) from cameras to the DVR.
- Mouse: For navigating the DVR menu on your monitor.
- Mounting hardware: Screws, anchors, and brackets for securing cameras to walls or ceilings.
- Quick start guide and software CD: Includes setup instructions and software for remote viewing.
Some newer Zosi systems use Power over Coax (PoC), which sends both power and video through a single BNC cable—making installation even easier. Older models may require separate power cables.
Step 1: Plan Your Camera Placement
The success of your security system starts with smart planning. Before drilling any holes or running cables, take time to map out where each camera will go.
Assess Your Property
Walk around your home or business and identify key areas that need monitoring. Common spots include:
- Front and back doors
- Driveway and garage
- Backyard and side entrances
- Stairways and hallways (for indoor cameras)
- Parking areas or storage sheds
Avoid placing cameras in areas with heavy shadows, direct sunlight, or obstructions like trees or signs.
Check for Power and Signal Range
Make sure each camera location is within reach of a power source or can be connected via the included power splitter. Also, ensure the DVR is centrally located so that all BNC cables can reach it without excessive length.
Tip: Use a tape measure to confirm cable lengths. Most kits include 60-foot cables, but you can buy extensions if needed.
Consider Weather and Lighting
Zosi cameras are weatherproof (usually IP66 rated), so they can handle rain, snow, and dust. However, avoid pointing cameras directly at bright lights or reflective surfaces, which can cause glare or wash out the image.
For night vision, ensure cameras are placed where they can illuminate key areas with infrared (IR) light. Avoid pointing them at walls or surfaces that reflect IR light back, which can cause a “whiteout” effect.
Step 2: Gather Your Tools and Materials
You don’t need to be a professional installer, but having the right tools makes the job faster and safer.
Essential Tools
- Power drill with drill bits
- Screwdriver (Phillips and flathead)
- Tape measure
- Pencil or marker
- Ladder (for high mounts)
- Cable clips or conduit (to secure wires)
- Electrical tape (for temporary wire management)
Optional but Helpful
- Cable stapler or zip ties
- Fish tape (for running wires through walls)
- Level (to ensure cameras are straight)
- Stud finder (to avoid drilling into structural beams)
Having everything ready before you start saves time and frustration.
Step 3: Mount the Cameras
Now it’s time to install the cameras. Follow these steps for a secure and professional-looking setup.
Mark the Mounting Spots
Use a pencil to mark where each camera will go. Hold the mounting bracket against the wall or ceiling and trace the screw holes. Use a level to ensure the camera will be straight.
Drill Pilot Holes
Drill small pilot holes where you marked. This prevents the wall from cracking and makes screwing in the brackets easier. If mounting into concrete or brick, use a masonry bit and wall anchors.
Attach the Mounting Brackets
Secure the brackets with the provided screws. Make sure they’re tight and stable—cameras should not wobble.
Connect the Cables
Before mounting the camera, connect the BNC and power cables (if separate) to the camera’s rear. For PoC models, only one BNC cable is needed.
Tip: Leave a little slack in the cable so you can adjust the camera angle later.
Mount the Camera
Attach the camera to the bracket and tighten the screws. Adjust the angle so it covers the desired area. Most Zosi cameras allow you to tilt and swivel for optimal coverage.
Run the Cables
Route the cables from each camera toward the DVR location. Use cable clips to secure wires along walls or baseboards. If running through walls, use a fish tape to pull cables through.
Safety Tip: Turn off power to any electrical outlets near your work area to avoid shocks.
Step 4: Set Up the DVR and Monitor
The DVR is the brain of your system. It records footage, connects to your monitor, and allows remote access.
Choose a Location for the DVR
Place the DVR in a secure, dry, and well-ventilated area—like a closet, office, or basement. It should be close enough for all camera cables to reach.
Avoid placing it near heat sources or in direct sunlight.
Connect the DVR to a Monitor
Use an HDMI or VGA cable to connect the DVR to a TV or monitor. Plug in the included mouse for navigation.
Power On the DVR
Connect the DVR to a power outlet using the provided adapter. Turn it on. You should see the Zosi logo and a setup screen.
Connect the Cameras to the DVR
Now, connect each camera’s BNC cable to the corresponding port on the DVR. Most DVRs are labeled “Camera 1,” “Camera 2,” etc. Match them in order.
If your system uses separate power cables, connect them to the power splitter, then plug the splitter into a power outlet.
Note: For PoC systems, the BNC cable handles both video and power—no separate power connection is needed.
Step 5: Configure the System
Once everything is connected, it’s time to set up your system for optimal performance.
Initial Setup Wizard
The DVR will usually launch a setup wizard the first time it powers on. Follow the on-screen prompts to:
- Set the date and time
- Choose your language
- Create a password (important for security)
- Select video resolution (e.g., 1080p or 4MP)
Set Up Recording
Go to the recording settings and choose your preferred mode:
- Continuous recording: Records 24/7.
- Motion detection: Only records when movement is detected (saves storage).
- Schedule recording: Records only during specific hours (e.g., nighttime).
You can also adjust motion sensitivity to avoid false alarms from pets or moving shadows.
Format the Hard Drive
If this is a new system, the DVR may prompt you to format the hard drive. This prepares it for recording. Confirm the format—this will erase any existing data.
Test Each Camera
Go to the live view screen and check each camera feed. Make sure the image is clear, the angle is correct, and night vision works in low light.
If a camera shows “No Signal,” double-check the BNC connection and power.
Step 6: Enable Remote Viewing with the Zosi App
One of the best features of Zosi systems is the ability to view your cameras from anywhere using your smartphone or tablet.
Download the Zosi App
Search for “Zosi” in the App Store (iOS) or Google Play (Android) and download the official app.
Connect the DVR to the Internet
Use an Ethernet cable to connect the DVR to your router. This enables remote access.
Add the DVR to the App
Open the app and follow these steps:
- Tap “Add Device” or the “+” icon.
- Choose “DVR/NVR” and select your model.
- Enter the DVR’s serial number (found on the device or in the menu under “Info”).
- Enter the username and password you created during setup.
- Tap “Connect.”
Once connected, you’ll see live feeds from all your cameras on your phone.
Set Up Push Notifications
In the app, go to settings and enable motion alerts. You’ll receive a notification on your phone whenever motion is detected.
Step 7: Final Testing and Adjustments
Before considering the job done, perform a final check to ensure everything works perfectly.
Test Night Vision
Turn off the lights or wait until dark. Check each camera’s night vision mode. The image should be clear in black and white with no overexposure.
Check Recording
Trigger motion in front of a camera (e.g., walk past it) and check if the DVR records the event. Play back the footage to confirm quality.
Adjust Camera Angles
If any camera is pointing too high, low, or off-target, loosen the bracket and reposition it. Tighten the screws when satisfied.
Secure All Cables
Use cable clips or conduit to neatly secure all wires. This prevents tripping hazards and protects cables from damage.
Troubleshooting Common Installation Issues
Even with careful planning, problems can happen. Here’s how to fix the most common issues when installing your Zosi security camera system.
No Video Signal on One or More Cameras
- Check the BNC connection at both the camera and DVR.
- Ensure the camera is powered—look for a small LED near the lens.
- Try swapping cables or ports to isolate the issue.
- Test the camera on another port to see if the DVR port is faulty.
Poor Image Quality or Blurry Video
- Clean the camera lens with a soft, dry cloth.
- Adjust the focus ring on the camera (if applicable).
- Ensure the resolution is set correctly in the DVR menu.
- Check for interference from other electronic devices.
Night Vision Not Working
- Make sure the camera is in a dark environment—IR lights won’t activate in bright light.
- Check if the IR LEDs are blocked by dirt, spider webs, or protective film.
- Ensure the camera is not pointing at a reflective surface.
Can’t Connect to the App
- Verify the DVR is connected to the internet via Ethernet.
- Double-check the serial number and password.
- Restart the DVR and router.
- Update the app and DVR firmware if available.
DVR Not Powering On
- Check the power adapter and outlet.
- Ensure the power switch on the DVR is turned on.
- Try a different power cable or outlet.
Maintenance Tips for Long-Term Performance
To keep your Zosi system running smoothly, follow these maintenance tips:
- Clean camera lenses monthly: Use a microfiber cloth to remove dust and dirt.
- Check cable connections: Ensure all cables are secure and not damaged.
- Update firmware: Visit the Zosi website to download and install the latest firmware for your DVR.
- Review recordings regularly: Check stored footage to ensure recording is working.
- Backup important footage: Save critical clips to a USB drive or cloud storage.
Conclusion
Installing a Zosi security camera system is a smart investment in your safety and peace of mind. With this guide, you now know exactly how to install Zosi security camera system—from planning and mounting to wiring, configuring, and troubleshooting. The process is simple, cost-effective, and achievable for most homeowners and small business owners.
By following these steps, you’ll have a reliable, high-quality surveillance system that protects your property day and night. Remember to plan carefully, test thoroughly, and maintain your system regularly for the best results.
Whether you’re monitoring your front door, watching over your backyard, or keeping an eye on your business, your Zosi system will give you the security you deserve.
