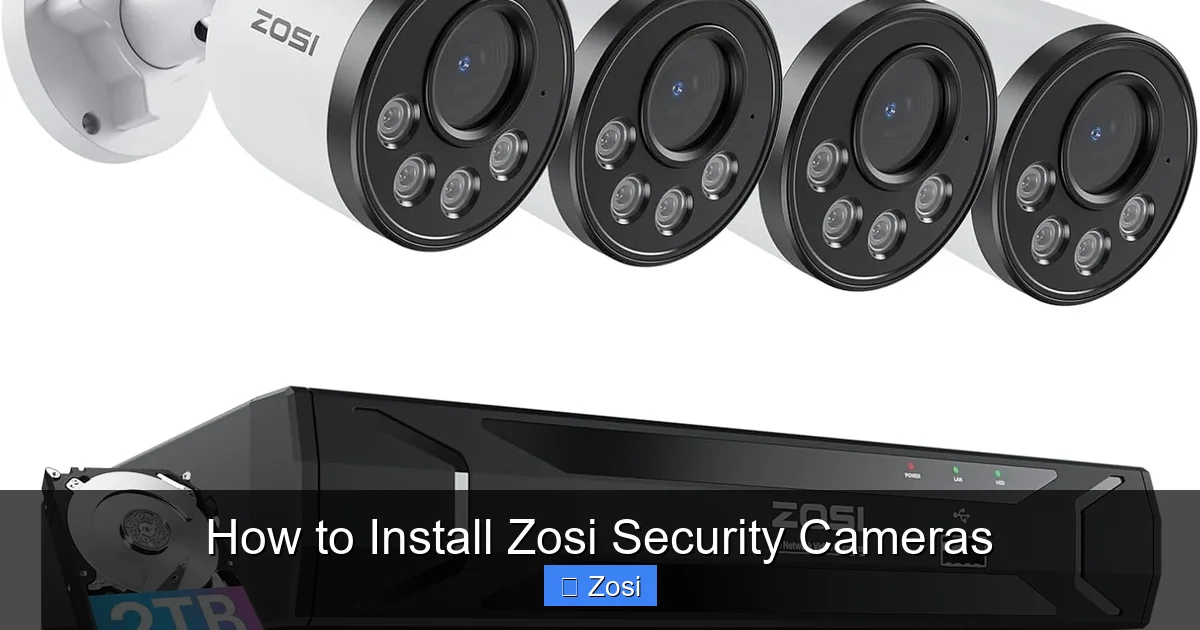

How to Install Zosi Security Cameras

This guide walks you through how to install Zosi security cameras with clear, beginner-friendly instructions. Whether you’re setting up a wired DVR system or a wireless NVR kit, you’ll learn everything from planning camera placement to final testing and troubleshooting.

Key Takeaways

• Plan your camera layout first: Identify key areas like entry points, driveways, and blind spots before drilling or running cables.
• Use the right tools: A drill, screwdriver, ladder, and cable clips are essential for a clean and secure installation.
• Follow the wiring diagram: Zosi systems use BNC and power cables—match each camera to the correct port on the DVR or NVR.
• Test before final mounting: Power up and check video feed on the monitor before securing cameras in place.
• Secure cables properly: Use conduit or cable clips to protect wires from weather and tampering.
• Update firmware regularly: Keep your system secure and functional by checking for updates via the Zosi app or DVR menu.
• Use the Zosi app for remote viewing: Download the app, connect to your network, and monitor your property from anywhere.

Quick Answers to Common Questions

Should I install cameras indoors or outdoors?

Use outdoor-rated cameras for exterior areas. They’re weatherproof and have better night vision. Indoor cameras work well for garages, basements, or entryways.

Can I add more cameras later?

Yes! Most Zosi DVR/NVR systems support 4, 8, or 16 cameras. You can expand your system by purchasing additional compatible cameras and connecting them to available ports.

Do I need internet for the cameras to work?

No. The cameras will record locally to the DVR/NVR without internet. However, you need internet to use the Zosi app for remote viewing and alerts.

How long does the installation take?

A basic 4-camera system takes 2–4 hours for a DIY installer. Larger systems or complex wiring may take longer.

What if I don’t have a monitor?

You can set up the system using the Zosi app on your phone. However, a monitor is recommended for initial configuration and troubleshooting.

How to Install Zosi Security Cameras: A Complete Step-by-Step Guide

Installing Zosi security cameras might seem intimidating at first, but with the right approach, it’s a straightforward DIY project. Whether you’re protecting your home, business, or rental property, Zosi offers reliable, high-definition surveillance systems that are easy to set up and manage. This guide will walk you through every step of the installation process—from planning your camera layout to connecting to the Zosi app for remote monitoring.

By the end of this guide, you’ll know exactly how to install Zosi security cameras like a pro. We’ll cover both wired (DVR) and wireless (NVR) systems, explain essential tools and materials, and share practical tips to avoid common mistakes. You’ll also learn how to troubleshoot issues and maintain your system for long-term reliability.

Let’s get started!

What You’ll Need Before You Begin

Before you pick up a drill or unbox your cameras, gather all the necessary tools and materials. Having everything ready will save time and prevent frustration during installation.

Tools Required

• Power drill with drill bits (for mounting brackets and running cables)
• Screwdriver set (Phillips and flathead)
• Ladder or step stool (for high mounting locations)
• Measuring tape
• Cable clips or conduit (to secure and protect wires)
• Wire strippers (if modifying cables)
• Marker or pencil (for marking drill points)
• Level (to ensure cameras are straight)

Materials Included in Most Zosi Kits

• Security cameras (typically 4, 8, or 16 depending on the kit)
• DVR (Digital Video Recorder) or NVR (Network Video Recorder)
• Power adapter and splitter cable
• BNC video cables (for DVR systems) or Ethernet cables (for NVR systems)
• Mounting brackets and screws
• HDMI or VGA cable (to connect DVR/NVR to a monitor)
• Mouse (for DVR/NVR interface navigation)
• Quick start guide and software CD (optional, as most setups are app-based now)

Optional but Helpful Items

• Extension cords or outdoor-rated power outlets
• Weatherproof junction boxes (for exposed wiring)
• Cable management sleeves
• Smartphone or tablet with the Zosi app installed

Step 1: Plan Your Camera Layout

A successful installation starts with smart planning. You don’t want to mount cameras only to realize they’re pointing at a wall or missing key areas.

Identify Key Monitoring Zones

Walk around your property and note the areas you want to monitor. Common high-priority zones include:

• Front and back doors
• Driveway and garage
• Side gates and walkways
• Yard or backyard
• Basement or attic entrances (if applicable)
• Business storefronts or parking lots

Consider Camera Types and Features

Zosi offers different camera models, including:

• Bullet cameras: Long, cylindrical shape; ideal for long-range viewing and deterrence.
• Dome cameras: Rounded, discreet design; great for indoor use or areas where vandalism is a concern.
• PTZ (Pan-Tilt-Zoom) cameras: Can rotate and zoom remotely; best for large areas.
• Night vision cameras: Most Zosi models include infrared LEDs for clear footage in low light.

Choose cameras based on your needs. For example, use bullet cameras for driveways and dome cameras for entryways.

Check for Obstructions and Lighting

Avoid placing cameras:

• Behind trees, bushes, or fences that could block the view
• Directly facing bright lights or the sun (causes glare)
• In areas with heavy rain or snow exposure (unless using weatherproof models)

Use a measuring tape to estimate cable lengths. Most Zosi kits include 60-foot cables, but you may need extensions for distant cameras.

Step 2: Set Up the DVR or NVR

The DVR (for analog cameras) or NVR (for IP cameras) is the brain of your system. It records footage, connects to your network, and allows remote access.

Choose a Central Location

Place the DVR/NVR in a secure, dry, and well-ventilated area—like a closet, basement, or office. It should be:

• Close to a power outlet
• Near your router (for internet connectivity)
• Accessible for maintenance

Connect the DVR/NVR to a Monitor

Use the included HDMI or VGA cable to connect the DVR/NVR to a TV or monitor. This will let you see the camera feeds and navigate the menu.

Power On and Initialize

Plug in the DVR/NVR and power adapter. The system will boot up and display a setup screen. Follow the on-screen prompts to:

• Set the date and time
• Create a password (use a strong one and write it down)
• Choose recording settings (continuous, motion-activated, etc.)

Connect to Your Network (For Remote Access)

To use the Zosi app, your DVR/NVR must be connected to your home Wi-Fi or Ethernet.

• Use an Ethernet cable to connect the DVR/NVR to your router.
• Alternatively, configure Wi-Fi in the system settings (if supported).
• Note the system’s IP address for app setup.

Step 3: Mount the Cameras

Now it’s time to install the cameras. Proper mounting ensures stability, optimal viewing angles, and protection from tampering.

Mark and Drill Mounting Holes

Hold the camera bracket against the wall or ceiling where you want to install it. Use a level to ensure it’s straight, then mark the screw holes with a pencil.

Drill pilot holes using a drill bit slightly smaller than the screws. This prevents cracking and makes insertion easier.

Secure the Bracket

Insert wall anchors (if needed) and screw the bracket into place. Make sure it’s tight and doesn’t wobble.

Attach the Camera

Slide or screw the camera onto the bracket. Adjust the angle so it covers the desired area. Most Zosi cameras allow 360-degree rotation and tilt.

Run the Cables

This is the most critical part of the installation.

For DVR systems:

• Run the BNC video cable and power cable from each camera to the DVR.
• Use cable clips or conduit to secure wires along walls, under eaves, or through walls.
• Label each cable at both ends to avoid confusion.

For NVR systems:

• Run Ethernet cables (Cat5e or Cat6) from each camera to the NVR.
• These cables carry both power (PoE) and video, simplifying wiring.
• Use weatherproof connectors if running cables outdoors.

Tips for Clean Cable Management

• Bury cables underground in conduit if running across lawns.
• Use cable raceways along baseboards or ceilings.
• Avoid sharp bends in cables to prevent damage.
• Keep cables away from power lines to reduce interference.

Step 4: Connect Cameras to the DVR/NVR

Once cables are run, it’s time to connect everything.

For DVR Systems

• Plug the BNC connector into the corresponding video input on the DVR (e.g., Camera 1 to CH1).
• Connect the power cable to the power splitter, then plug the splitter into the power adapter.
• Ensure each camera gets power and a video signal.

For NVR Systems

• Plug each Ethernet cable into a PoE port on the NVR.
• The NVR will automatically power the camera and receive the video feed.
• No separate power adapter is needed.

Power On and Test

Turn on the DVR/NVR and monitor. You should see live feeds from all connected cameras. If a camera isn’t showing up:

• Check cable connections
• Verify power is reaching the camera
• Ensure the correct channel is selected

Step 5: Configure Recording and Alerts

Your system is now live, but you’ll want to customize settings for optimal performance.

Set Recording Mode

Choose from:

• Continuous recording: Records 24/7 (uses more storage).
• Motion detection: Records only when movement is detected (saves space).
• Scheduled recording: Records during specific hours (e.g., nighttime only).

Adjust Motion Sensitivity

In the DVR/NVR menu, go to motion detection settings. Set sensitivity to avoid false alarms from wind, pets, or passing cars.

Enable Push Notifications

Link your system to the Zosi app to receive alerts on your phone when motion is detected.

Step 6: Connect to the Zosi App

Remote viewing is one of the best features of Zosi systems. Here’s how to set it up.

Download the Zosi App

Search for “Zosi Security” in the App Store (iOS) or Google Play (Android). Install the app on your smartphone or tablet.

Add Your System

• Open the app and create an account (or log in).
• Tap “Add Device” and select your system type (DVR or NVR).
• Scan the QR code on the DVR/NVR label or enter the device ID manually.
• Enter your system password.

Test Remote Viewing

Once connected, you should see live camera feeds on your phone. You can:

• Switch between cameras
• Record clips remotely
• Receive motion alerts
• Playback recorded footage

Troubleshooting Common Issues

Even with careful installation, problems can arise. Here’s how to fix the most common ones.

No Video Feed on Monitor

• Check all cable connections at the camera and DVR/NVR.
• Ensure the camera is powered (look for a red LED near the lens).
• Try swapping cables or ports to isolate the issue.

Poor Image Quality

• Clean the camera lens with a soft cloth.
• Ensure the camera isn’t facing a bright light source.
• Check for loose BNC or Ethernet connections.

Motion Alerts Not Working

• Verify motion detection is enabled in the DVR/NVR settings.
• Adjust sensitivity and detection zones.
• Ensure the app is connected and notifications are allowed.

Can’t Connect to the App

• Confirm the DVR/NVR is connected to the internet.
• Check your router’s firewall settings.
• Restart the DVR/NVR and router.
• Update the Zosi app and firmware.

Cameras Keep Disconnecting

• Inspect cables for damage or loose connections.
• Ensure power supply is stable (use a surge protector).
• For NVR systems, verify PoE ports are functioning.

Maintenance and Best Practices

To keep your Zosi system running smoothly, follow these tips:

• Clean cameras monthly: Wipe lenses and housings to maintain clear footage.
• Check cables annually: Look for wear, corrosion, or animal damage.
• Update firmware: Visit the Zosi website or use the app to check for updates.
• Review recordings regularly: Ensure motion detection is working and storage isn’t full.
• Secure your network: Use a strong Wi-Fi password and enable WPA3 encryption.

Conclusion

Installing Zosi security cameras is a smart investment in your safety and peace of mind. With this guide, you’ve learned how to plan your layout, mount cameras, run cables, connect to the DVR/NVR, and set up remote viewing via the Zosi app. Whether you chose a wired or wireless system, the process is manageable with the right tools and preparation.

Remember, the key to a successful installation is planning, patience, and attention to detail. Take your time, test each step, and don’t hesitate to consult the user manual or Zosi support if needed.

Once your system is up and running, you’ll enjoy 24/7 surveillance, motion alerts, and the ability to check in from anywhere. Stay safe, stay secure, and enjoy the confidence that comes with a professionally installed Zosi security system.
