This guide walks you through how to install Zosi wireless security camera system with clear, beginner-friendly steps. You’ll learn about planning, mounting, connecting, and troubleshooting your cameras for reliable home protection.
Key Takeaways
- Plan your camera placement first: Identify key entry points, high-traffic areas, and blind spots before drilling or mounting anything.
- Ensure strong Wi-Fi coverage: Zosi wireless cameras need a stable 2.4GHz network with good signal strength at each camera location.
- Use the Zosi app for setup: Download the official Zosi Smart app (iOS or Android) to pair, configure, and manage your cameras remotely.
- Power each camera properly: Most Zosi wireless models still require a power source—use the included adapters or consider solar options if available.
- Test motion detection and night vision: After installation, walk through detection zones and check low-light footage to ensure optimal performance.
- Update firmware regularly: Keep your system secure and functional by checking for firmware updates in the app.
- Secure your network: Change default passwords and enable WPA3 encryption to protect your camera feeds from unauthorized access.
Quick Answers to Common Questions
Should I use a Wi-Fi extender for my Zosi cameras?
Yes, if your cameras are far from the router or in areas with weak signal. A Wi-Fi extender can boost coverage and ensure stable video streaming.
Can I use Zosi cameras without internet?
You can view live feeds locally over Wi-Fi, but remote access, cloud storage, and push notifications require an internet connection.
Do Zosi wireless cameras record audio?
Some models support two-way audio, but audio recording may be limited by local laws. Check your region’s privacy regulations before enabling.
How long does the battery last on Zosi wireless cameras?
Most Zosi “wireless” cameras are powered by cables, not batteries. True battery-powered models (if available) typically last 3–6 months depending on usage.
Can I view multiple Zosi cameras at once?
Yes, the Zosi Smart app supports multi-camera viewing. You can see up to 4 cameras on one screen in grid mode.
How to Install Zosi Wireless Security Camera System: A Complete Step-by-Step Guide
Installing a Zosi wireless security camera system is one of the smartest upgrades you can make for your home or small business. These cameras offer high-definition video, night vision, motion detection, and remote viewing—all without the hassle of running long cables across your property. But even though they’re labeled “wireless,” there’s still some setup involved.
In this comprehensive guide, you’ll learn exactly how to install Zosi wireless security camera system from unboxing to live monitoring. Whether you’re a tech beginner or a DIY enthusiast, we’ll walk you through every step with clear instructions, helpful tips, and troubleshooting advice. By the end, you’ll have a fully functional, secure surveillance system that gives you peace of mind 24/7.
Let’s get started!
What You’ll Need Before You Begin

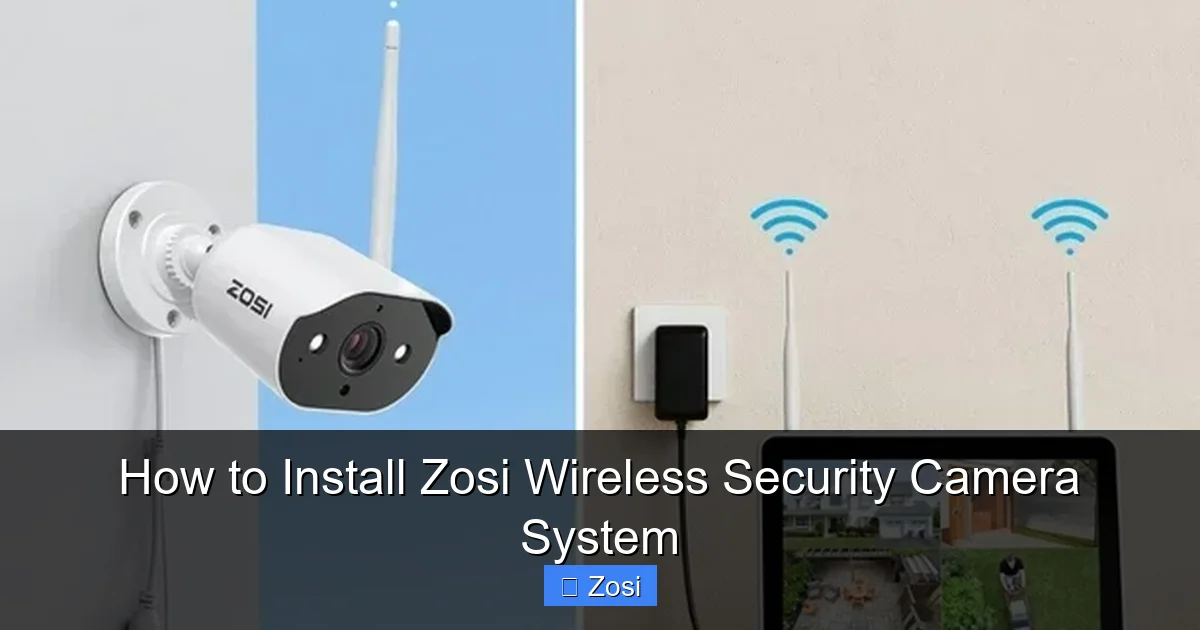

Visual guide about How to Install Zosi Wireless Security Camera System
Image source: i5.walmartimages.com
Before diving into installation, make sure you have all the necessary tools and components. Most Zosi wireless camera kits come with everything you need, but it’s good to double-check.
Included in the Box
- Zosi wireless security cameras (quantity depends on your kit)
- Power adapters and cables (usually micro-USB or USB-C)
- Mounting brackets and screws
- Quick start guide
- Safety lanyard (for outdoor mounting)
Tools You Should Have Ready
- Smartphone or tablet (iOS 9.0+ or Android 5.0+)
- Wi-Fi network name (SSID) and password
- Drill and drill bits (for wall mounting)
- Screwdriver (Phillips head)
- Measuring tape
- Ladder (for high placements)
- Optional: Power drill with masonry bit (for brick or concrete)
Download the Zosi Smart App
The Zosi Smart app is essential for setup and daily use. It’s available for free on the Apple App Store and Google Play Store. Download it now and create an account—you’ll need it during the pairing process.
Tip: Make sure your phone is connected to the same Wi-Fi network you plan to use for the cameras.
Step 1: Plan Your Camera Placement
Good planning prevents poor performance. Before you mount anything, take time to map out where each camera will go.
Identify Key Areas to Monitor
Think about the most important spots around your property:
- Front and back doors
- Driveway and garage
- Backyard or patio
- Side gates or alleys
- Stairwells or hallways (for indoor models)
Avoid placing cameras pointing directly at bright lights, windows with glare, or areas with constant motion (like busy streets) unless necessary.
Check Wi-Fi Signal Strength
Zosi wireless cameras rely on your home Wi-Fi network. Use your phone to walk to each planned location and check the signal strength in the settings. You want at least 2–3 bars.
If signal is weak, consider:
- Moving your router closer
- Using a Wi-Fi extender
- Choosing a different camera location
Note: Zosi cameras only work on 2.4GHz networks—not 5GHz. Make sure your router broadcasts a 2.4GHz band.
Consider Power Access
Even though the cameras are wireless in terms of data, they still need power. Most Zosi models plug into a standard outlet. Plan for nearby power sources or use extension cords if needed.
For outdoor installations, use outdoor-rated extension cords and protect connections with weatherproof covers.
Step 2: Mount the Cameras
Now it’s time to physically install your cameras. Follow these steps for secure, long-lasting mounting.
Attach the Mounting Bracket
1. Hold the mounting bracket against the wall or ceiling where you want the camera.
2. Use a pencil to mark the screw holes.
3. Drill pilot holes (use a masonry bit for brick or concrete).
4. Insert wall anchors if needed.
5. Screw the bracket into place using the provided screws.
Tip: For angled views, adjust the bracket before tightening fully. You can fine-tune the angle later.
Connect the Power Cable
1. Plug the power adapter into a nearby outlet.
2. Run the cable along the wall or through a conduit to the camera location.
3. Connect the cable to the camera’s power port.
For outdoor setups, use a drip loop (a U-shaped bend in the cable) to prevent water from entering the outlet.
Attach the Camera to the Bracket
1. Slide the camera onto the mounted bracket.
2. Secure it with the locking screw or clip.
3. Adjust the camera angle to cover your desired field of view.
Double-check that the camera is level and pointing in the right direction.
Step 3: Power On and Connect to Wi-Fi
With the cameras mounted and powered, it’s time to connect them to your network.
Turn On the Camera
Press and hold the power button (usually on the side or bottom) until the LED light flashes. This indicates the camera is in pairing mode.
Most Zosi cameras will beep or announce “Waiting for connection” when ready.
Open the Zosi Smart App
1. Launch the app on your phone.
2. Tap “Add Device” or the “+” icon.
3. Select “Wireless Camera” from the list.
Scan the QR Code
Each Zosi camera has a unique QR code on the back or in the manual. Point your phone’s camera at the code to scan it.
If scanning fails, you can manually enter the device ID (found on the label).
Connect to Wi-Fi
1. The app will prompt you to select your Wi-Fi network.
2. Enter your Wi-Fi password carefully (case-sensitive).
3. Wait while the camera connects—this may take 30–60 seconds.
The LED should turn solid green or blue when connected successfully.
Name Your Camera
Give each camera a descriptive name like “Front Door” or “Backyard” so you can easily identify it later.
Repeat this process for each camera in your system.
Step 4: Configure Camera Settings
Once connected, customize your cameras for the best performance.
Adjust Motion Detection
1. In the app, go to the camera’s settings.
2. Tap “Motion Detection” or “Alerts.”
3. Set sensitivity (low, medium, high).
4. Define detection zones by drawing areas on the screen.
Tip: Exclude areas with frequent false alarms (like trees swaying in wind).
Enable Night Vision
Most Zosi cameras have automatic night vision. Ensure it’s turned on in the settings. You can also adjust IR brightness if the image is too bright or dim at night.
Set Up Recording Options
Choose how you want your camera to record:
- Continuous Recording: Records 24/7 (requires a microSD card or cloud storage).
- Motion-Activated Recording: Only records when motion is detected (saves storage).
- Schedule Recording: Set specific times (e.g., only at night).
If using a microSD card, insert it into the camera’s slot before setup.
Enable Two-Way Audio (If Supported)
Some Zosi models support two-way talk. Enable it in the app to speak through the camera’s speaker.
Set Up Push Notifications
Allow the app to send alerts to your phone when motion is detected. Customize notification sounds and frequency.
Step 5: Test Your System
Don’t skip this step! Testing ensures everything works as expected.
Check Live View
Open the app and view each camera’s live feed. Walk around the area to confirm the camera captures the intended space.
Test Motion Detection
Walk in front of each camera to trigger motion alerts. Check if you receive a notification and if a recording starts.
Verify Night Vision
Turn off the lights or wait until dark. Check the live feed to ensure the image is clear and the IR LEDs are working.
Test Remote Access
Turn off your home Wi-Fi and use mobile data to open the app. Confirm you can still view your cameras remotely.
Troubleshooting Common Issues
Even with careful setup, you might run into problems. Here’s how to fix the most common ones.
Camera Won’t Connect to Wi-Fi
- Ensure you’re using a 2.4GHz network (not 5GHz).
- Move the camera closer to the router during setup.
- Restart the camera and router.
- Reset the camera (hold the reset button for 10 seconds).
Poor Video Quality
- Check Wi-Fi signal strength at the camera location.
- Clean the camera lens with a soft cloth.
- Adjust resolution settings in the app (higher resolution uses more bandwidth).
Motion Alerts Not Working
- Verify motion detection is enabled in the app.
- Increase sensitivity or adjust detection zones.
- Ensure the camera isn’t facing a heat source (like a vent) that causes false triggers.
Night Vision Too Dark or Too Bright
- Adjust IR brightness in settings.
- Move the camera away from reflective surfaces (windows, mirrors).
- Ensure there’s no direct light hitting the IR LEDs.
App Crashes or Freezes
- Update the Zosi Smart app to the latest version.
- Restart your phone.
- Reinstall the app if problems persist.
Maintaining Your Zosi Camera System
To keep your system running smoothly, follow these maintenance tips.
Update Firmware Regularly
Check for firmware updates in the app every few months. Updates often include security patches and performance improvements.
Clean the Cameras
Wipe the lens and housing with a dry or slightly damp cloth every 1–2 months. Avoid harsh chemicals.
Check Power Connections
Inspect outdoor cables and outlets for wear, corrosion, or damage—especially after storms.
Review Recordings Monthly
Delete old footage to free up storage. Back up important clips to your phone or cloud.
Secure Your Network
Change your Wi-Fi password periodically and use strong encryption (WPA3 if available). Never share your camera login details.
Conclusion
Installing a Zosi wireless security camera system is a straightforward process when you follow the right steps. From planning your layout to configuring alerts and testing performance, this guide has covered everything you need to know to get your system up and running.
Remember, the key to success is preparation—check your Wi-Fi, choose smart locations, and use the Zosi Smart app to manage your cameras with ease. With your new system in place, you’ll enjoy real-time monitoring, motion alerts, and peace of mind knowing your home is protected.
If you ever run into issues, refer back to the troubleshooting section or contact Zosi customer support. And don’t forget to keep your firmware updated and your network secure.
Now that you know how to install Zosi wireless security camera system, it’s time to take action. Protect your property, deter intruders, and stay connected—no matter where you are.
