How to Installation Foscam Fi8918w

Installing the Foscam FI8918W is easier than you think—this guide walks you through unboxing, mounting, Wi-Fi setup, and remote viewing in simple steps. Whether you’re a beginner or tech-savvy, you’ll have your security camera up and running in under 30 minutes.

Key Takeaways

• Prepare your tools and environment first: Ensure you have a stable Wi-Fi network, power outlet, and smartphone or computer ready before starting the installation.
• Use the Foscam app for easiest setup: The official Foscam app (available on iOS and Android) simplifies camera pairing and configuration.
• Mount the camera securely and at the right angle: Position it 7–10 feet high, facing downward slightly, to maximize coverage and reduce glare.
• Connect via WPS or manual Wi-Fi entry: Both methods work, but WPS is faster if your router supports it.
• Test audio, video, and night vision after setup: Verify all features are working before finalizing the installation.
• Update firmware regularly: Keep your camera secure and functional by checking for updates in the app or web interface.
• Use strong passwords and enable encryption: Protect your camera from unauthorized access with secure login credentials and WPA2/WPA3 encryption.

How to Installation Foscam Fi8918w: A Complete Step-by-Step Guide

Welcome to your complete guide on how to installation Foscam Fi8918w! Whether you’re setting up your first home security system or adding another camera to your network, the Foscam FI8918W is a reliable, affordable, and feature-packed IP camera that delivers clear 720p HD video, night vision, two-way audio, and remote access via smartphone or computer.

In this guide, we’ll walk you through every step—from unboxing and mounting to connecting to Wi-Fi and accessing your camera remotely. No technical degree required! By the end, you’ll have a fully functional security camera watching over your home, office, or property. Let’s get started.

What You’ll Need Before You Begin

Before diving into the installation, make sure you have the following items ready:

• Foscam FI8918W camera (obviously!)
• Power adapter and cable (included in the box)
• Smartphone or tablet (iOS or Android)
• Wi-Fi network (2.4 GHz only—this camera does not support 5 GHz)
• Router with WPS button (optional, but helpful)
• Screwdriver and drill (for mounting)
• Smartphone mount or tripod (optional, for temporary setup)

Also, ensure your Wi-Fi signal is strong where you plan to install the camera. Weak signals can cause connection drops or poor video quality. If needed, consider using a Wi-Fi extender.

Step 1: Unbox and Inspect the Camera

Open the box and lay out all components. You should find:

• Foscam FI8918W camera
• Power adapter (12V/1A)
• Power cable
• Mounting bracket and screws
• Quick start guide
• Reset pin (small metal tool)

Inspect the camera for any physical damage. Check the lens, infrared LEDs (around the lens), and the microphone/speaker grilles. Make sure the power port and network port (if using Ethernet) are clean and undamaged.

Pro tip: Keep the box and packaging for at least 30 days in case you need to return or exchange the camera.

Step 2: Download the Foscam App

The easiest way to set up your Foscam FI8918W is through the official Foscam app. It’s available for free on both iOS and Android.

For iOS Users:

• Open the App Store
• Search for “Foscam”
• Download “Foscam VMS” (Video Management System)

For Android Users:

• Open Google Play Store
• Search for “Foscam VMS”
• Download and install the app

Once installed, open the app and create a free Foscam account. Use a valid email and strong password. This account will let you access your camera from anywhere in the world.

Note: You can also use the web interface at www.foscam.com, but the app is faster and more user-friendly for initial setup.

Step 3: Power On the Camera

Plug the power adapter into a nearby outlet and connect it to the camera’s power port. The camera will boot up in about 30–60 seconds.

When powered on, the camera will emit a series of beeps and the LED light will flash red. This means it’s in setup mode and ready to connect to your Wi-Fi network.

If the LED stays solid red or doesn’t light up at all, check the power connection. Try a different outlet or cable if necessary.

Pro tip: For initial setup, place the camera near your router so the Wi-Fi signal is strong. You can move it later once it’s connected.

Step 4: Connect the Camera to Wi-Fi

The Foscam FI8918W supports two main methods for Wi-Fi setup: WPS (Wi-Fi Protected Setup) and manual configuration. We’ll cover both.

Method 1: Using WPS (Recommended)

If your router has a WPS button, this is the fastest way to connect.

• Press and hold the WPS button on your router for 2–3 seconds.
• Within 2 minutes, press and hold the WPS button on the Foscam camera (located on the back or side) for 3 seconds.
• The camera’s LED will flash red rapidly, then turn solid green when connected.
• Open the Foscam app and tap “Add Camera” → “Auto Search”. The app should detect the camera automatically.

Once detected, follow the on-screen prompts to name your camera and set a password. Use a strong password—avoid “123456” or “password”.

Method 2: Manual Wi-Fi Setup

If your router doesn’t support WPS, or you prefer manual setup, follow these steps:

• Open the Foscam app and tap “Add Camera” → “Manual Add”.
• Select “FI8918W” from the list of models.
• The app will guide you to connect your phone to the camera’s temporary Wi-Fi network (named something like “Foscam_XXXX”).
• Go to your phone’s Wi-Fi settings, find the Foscam network, and connect to it.
• Return to the Foscam app. It will now ask for your home Wi-Fi network name (SSID) and password.
• Enter the details and tap “Connect”.
• The camera will attempt to join your network. Wait 1–2 minutes.
• If successful, the LED will turn solid green, and the camera will appear in the app.

If the connection fails, double-check your Wi-Fi password and ensure you’re using 2.4 GHz (not 5 GHz). The FI8918W does not support 5 GHz networks.

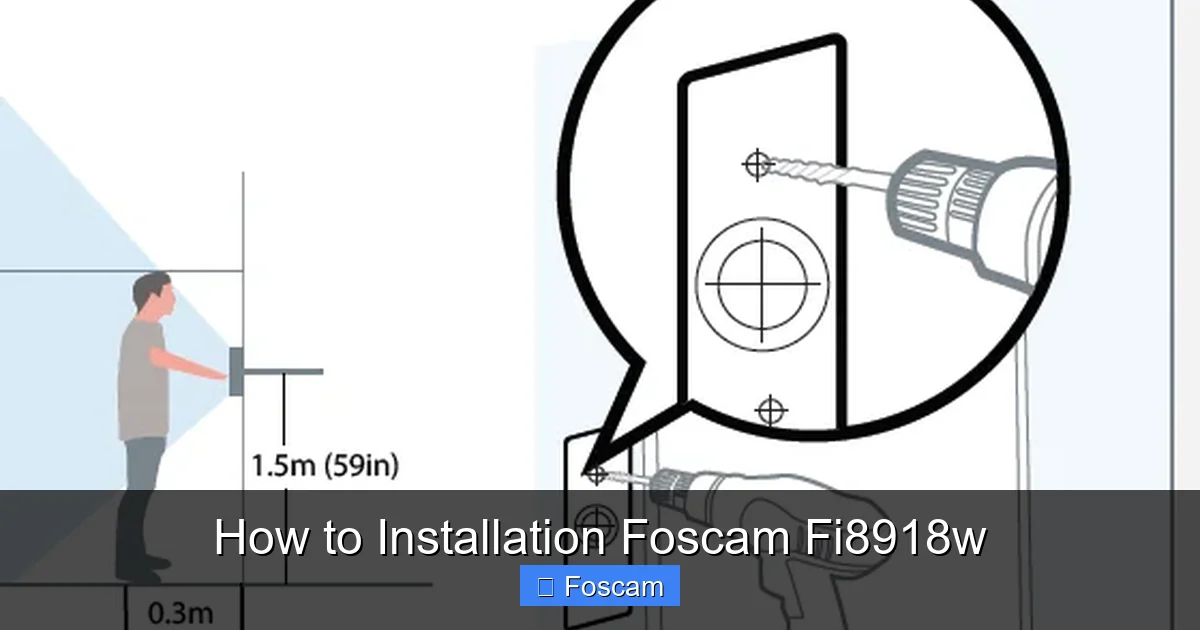

Step 5: Mount the Camera

Now that your camera is online, it’s time to mount it in its permanent location. Proper placement ensures maximum coverage and security.

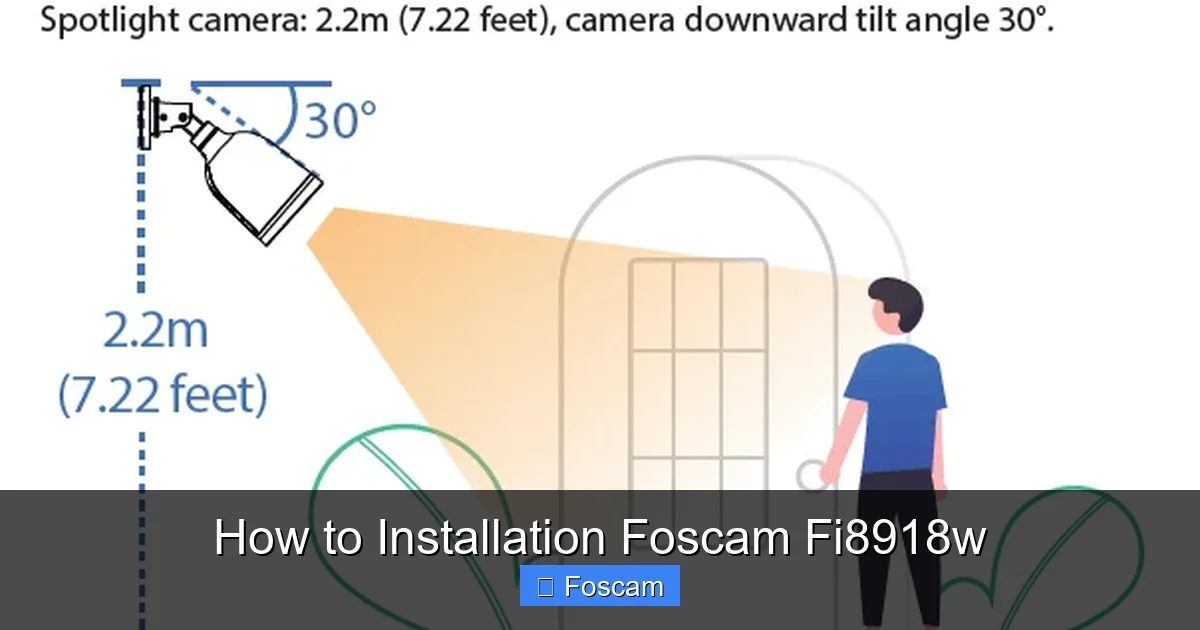

Choosing the Right Location

• Height: Mount the camera 7–10 feet above the ground. This reduces tampering risk and provides a wide field of view.
• Angle: Tilt the camera slightly downward (10–15 degrees) to avoid capturing the sky or ceiling.
• Coverage: Aim for entry points like doors, windows, driveways, or hallways.
• Power Access: Ensure the power cable can reach an outlet. Use an outdoor-rated extension cord if needed.
• Wi-Fi Signal: Test the signal strength using your phone. If weak, consider a Wi-Fi extender.

Mounting the Camera

• Hold the mounting bracket against the wall or ceiling where you want to install the camera.
• Use a pencil to mark the screw holes.
• Drill pilot holes (use a masonry bit for brick or concrete).
• Insert wall anchors if needed.
• Screw the bracket into place.
• Attach the camera to the bracket and tighten the locking screw.
• Adjust the camera angle and secure it.

Pro tip: For indoor use, you can also place the camera on a shelf or use a tripod. Just make sure it’s stable and not easily knocked over.

Step 6: Configure Camera Settings

Once mounted and connected, open the Foscam app and tap on your camera to access live view. Now, let’s customize the settings for optimal performance.

Basic Settings

• Camera Name: Rename it to something meaningful like “Front Door” or “Backyard”.
• Time Zone: Set your correct time zone so timestamps are accurate.
• Video Quality: Choose “High” for best clarity, or “Medium” to save bandwidth.
• Frame Rate: 15–20 fps is ideal for smooth motion.

Motion Detection

The FI8918W has built-in motion detection. Here’s how to set it up:

• Go to “Settings” → “Alarm Settings” → “Motion Detection”.
• Enable motion detection.
• Adjust sensitivity (start with “Medium”).
• Set detection zones (optional): Draw areas on the screen where motion should trigger alerts.
• Choose alert type: Push notification, email, or both.
• Set a schedule (e.g., only alert at night).

Pro tip: Avoid pointing the camera at moving trees or busy streets to reduce false alarms.

Night Vision

The camera has 11 infrared LEDs for night vision up to 20 feet.

• Go to “Settings” → “Image Settings” → “Night Vision”.
• Choose “Auto” (recommended): The camera switches to night mode when it gets dark.
• Or select “On” to force night vision, or “Off” to disable it.

Note: Night vision works best in total darkness. Avoid pointing the camera at reflective surfaces like windows.

Two-Way Audio

The FI8918W has a built-in microphone and speaker, allowing you to talk through the camera.

• Tap the microphone icon in the app to speak.
• Speak clearly and wait a moment for the audio to transmit.
• Use this feature to greet visitors or warn intruders.

Pro tip: Test audio quality during the day and night. Background noise can affect clarity.

Step 7: Access Your Camera Remotely

One of the best features of the Foscam FI8918W is remote access. You can view live video from anywhere using your smartphone, tablet, or computer.

Using the Foscam App

• Open the Foscam VMS app.
• Log in with your account.
• Tap on your camera to view live feed.
• Use pinch-to-zoom, rotate, or take snapshots.
• Enable recording to save clips to your phone.

Using a Web Browser

• Go to www.foscam.com
• Log in to your account.
• Click on your camera.
• Enter the camera’s username and password (default is usually “admin” with no password—change this immediately).
• You’ll see the live video stream.

Pro tip: For better performance, use the app instead of the web interface, especially on mobile devices.

Step 8: Set Up Recording and Alerts

To get the most out of your camera, configure recording and alerts.

Local Recording (MicroSD Card)

The FI8918W has a microSD card slot (supports up to 32GB).

• Insert a formatted microSD card (Class 10 recommended).
• Go to “Settings” → “Storage” → “SD Card”.
• Enable “Motion Recording” or “Continuous Recording”.
• Set recording schedule if needed.

Recorded videos are saved in MP4 format and can be played back in the app.

Cloud Recording (Optional)

Foscam offers cloud storage plans for automatic backup. While not free, it’s useful for critical footage.

• Go to “Settings” → “Cloud Service”.
• Choose a plan (7-day or 30-day retention).
• Link your payment method.
• Enable cloud recording.

Pro tip: Use local recording for everyday use and cloud for important events.

Email and Push Alerts

• Go to “Settings” → “Alarm Settings” → “Email Alarm”.
• Enter your email address.
• Set up SMTP settings (Foscam provides guides for Gmail, Outlook, etc.).
• Enable push notifications in the app.

Now, when motion is detected, you’ll get an instant alert on your phone and/or email.

Troubleshooting Common Issues

Even with careful setup, you might run into problems. Here are solutions to common issues.

Camera Won’t Connect to Wi-Fi

• Ensure you’re using 2.4 GHz Wi-Fi (not 5 GHz).
• Check the Wi-Fi password for typos.
• Move the camera closer to the router.
• Restart the camera and router.
• Reset the camera (use the reset pin to press the reset button for 10 seconds).

No Video or Poor Quality

• Check the lens for dirt or smudges—clean with a microfiber cloth.
• Ensure the camera is powered properly.
• Reduce video quality if bandwidth is low.
• Update the camera firmware.

Night Vision Not Working

• Make sure night vision is enabled in settings.
• Check that the IR LEDs are not blocked.
• Ensure the environment is dark enough (IR needs low light to activate).

App Can’t Find the Camera

• Make sure the camera and phone are on the same Wi-Fi network.
• Restart the app and camera.
• Try manual IP entry in the app.
• Reset the camera and reconfigure.

Forgot Camera Password

• Use the reset pin to restore factory settings.
• Default login is usually “admin” with no password.
• Change the password immediately after reset.

Maintenance and Best Practices

To keep your Foscam FI8918W running smoothly, follow these tips:

• Update firmware regularly: Check for updates in the app or web interface every few months.
• Clean the lens monthly: Use a soft cloth to remove dust and fingerprints.
• Check Wi-Fi signal: Use a Wi-Fi analyzer app to ensure strong connection.
• Secure your network: Use WPA2 or WPA3 encryption and a strong router password.
• Change default credentials: Never leave the camera with default username/password.
• Monitor storage: Format the microSD card every 3–6 months to prevent corruption.

Conclusion

Congratulations! You’ve successfully completed the installation of your Foscam FI8918W. From unboxing to remote access, you now have a powerful security tool protecting your home or business.

Remember, the key to a great experience is proper setup, strong Wi-Fi, and regular maintenance. Use the Foscam app to stay connected, customize alerts, and review footage whenever needed.

Whether you’re watching over your front door, monitoring a pet, or keeping an eye on a vacation home, the FI8918W delivers reliable performance at an affordable price. Stay safe, stay connected, and enjoy peace of mind with your new security camera.
